SteriShield: Aseptic Vial Filling Machine by HMPL
Aseptic vial filling is one of the most unforgiving processes in pharmaceutical manufacturing. A single deviation in containment, dosing accuracy, or operator handling can contaminate an entire batch, trigger a regulatory hold, or write off a high-value biologic formulation overnight.
For Plant Managers and Procurement Heads, the real question is not whether aseptic filling is challenging. It always is. The real question is whether your current aseptic vial filling machine actively reduces risk or quietly increases it through manual handling, inconsistent dosing, and unplanned downtime. HMPL SteriShield is purpose-built to eliminate these challenges by delivering precise, reliable, and compliant aseptic vial filling performance.
Before looking at any solution, it helps to name the problem in numbers your finance team already tracks:
- Product wastage: Every percentage point of fill-volume variance on a high-value biologic or oncology drug translates directly into lost product cost.
- Unplanned downtime: Manual nest handling and changeovers between batches add non-productive hours that procurement rarely budgets for upfront.
- Compliance exposure:A contamination event during fill-finish can lead to batch rejection, regulatory deviations, and significant production losses.
- Operator safety risk: Open or semi-open filling environments increase operator exposure when working with cytotoxic or high-potency formulations.
Inside HMPL SteriShield: Engineered for Zero-Compromise Aseptic Filling

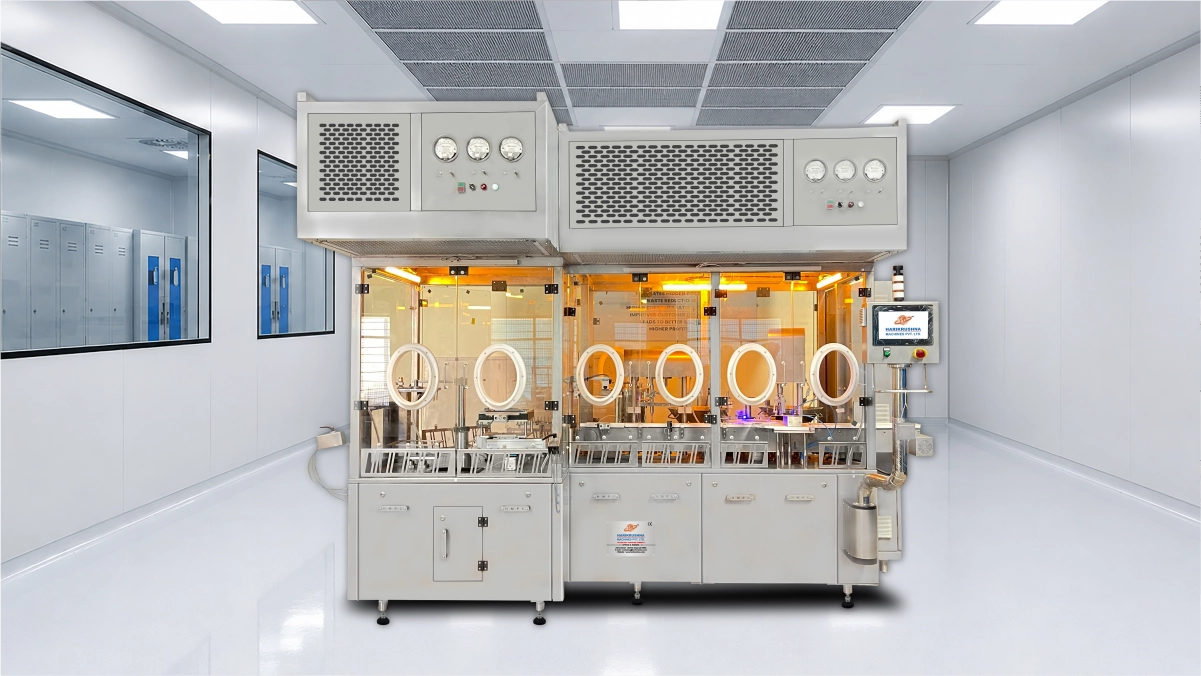

SteriShield is engineered as a fully integrated aseptic filling line rather than a collection of standalone stations, making it ideal for 0.2 ml to 5 ml vial applications. Every stage, from nest handling and precision filling to stoppering, capping, and final rejection, operates within a single controlled and validated environment to ensure product integrity, process consistency, and regulatory compliance.
1. Isolator or Closed RABS Containment
Manufacturers can specify either a full isolator or a Closed Restricted Access Barrier System (RABS), depending on the potency profile of their product and existing facility design. Both configurations maintain Grade A conditions around the filling zone while protecting operators from exposure.
2. Servo-Driven D-Nesting and XY Gantry Vial Placement
Pre-sterilized nested vials are automatically de-nested and transferred using a high-precision servo-controlled XY gantry system. This advanced automation ensures accurate, repeatable vial positioning throughout the process, enabling high-speed handling of small-format vials while minimizing human intervention and maintaining aseptic integrity.

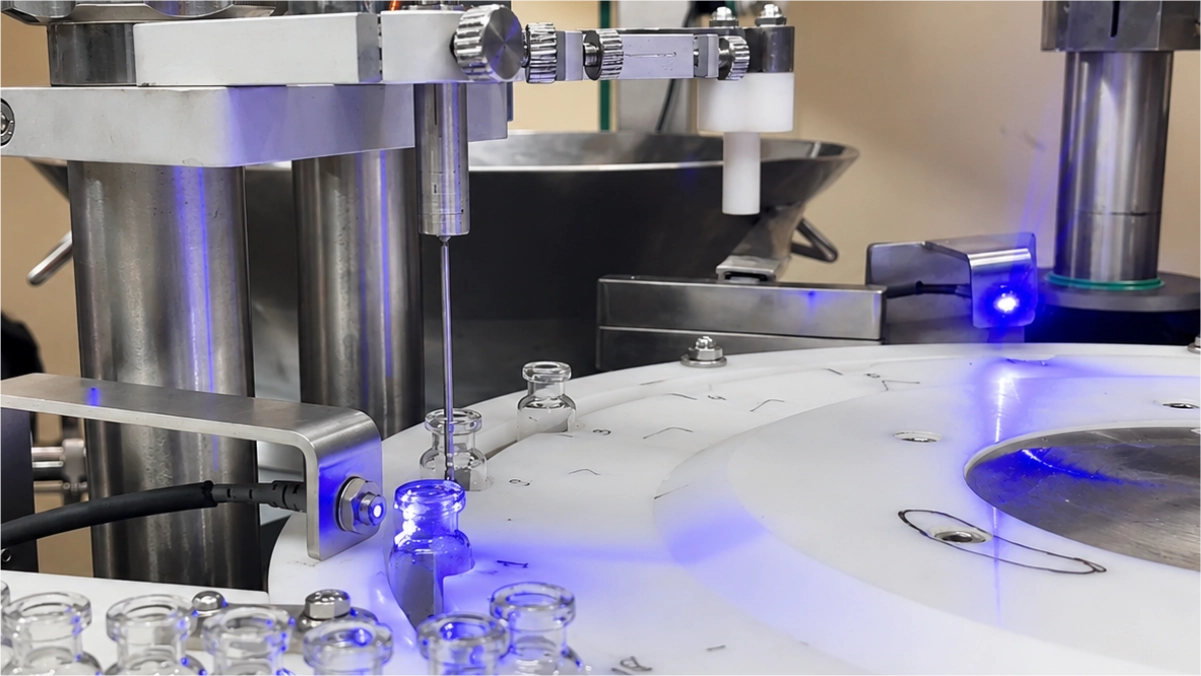

3. Precision Piston Pump Filling with Volumetric Accuracy up to 0.2 ml
At the core of the system, the advanced piston pump filling unit delivers highly accurate volumetric dosing for every vial. Integrated pre- and post-fill load-cell verification continuously monitors each fill in real time, ensuring precise weight confirmation for every vial while maintaining consistent product quality and regulatory compliance.
This level of control is what makes SteriShield suitable for oncology drugs, vaccines, and other low-volume, high-value formulations where even a 1-2% dosing variance is commercially unacceptable.

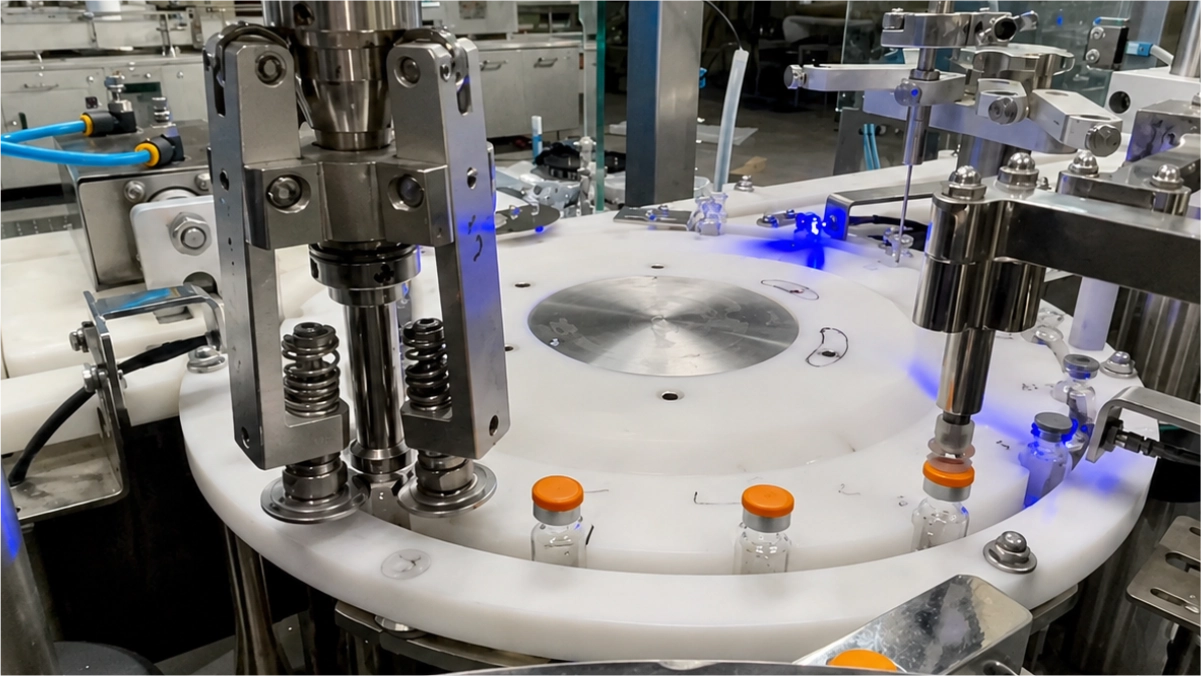

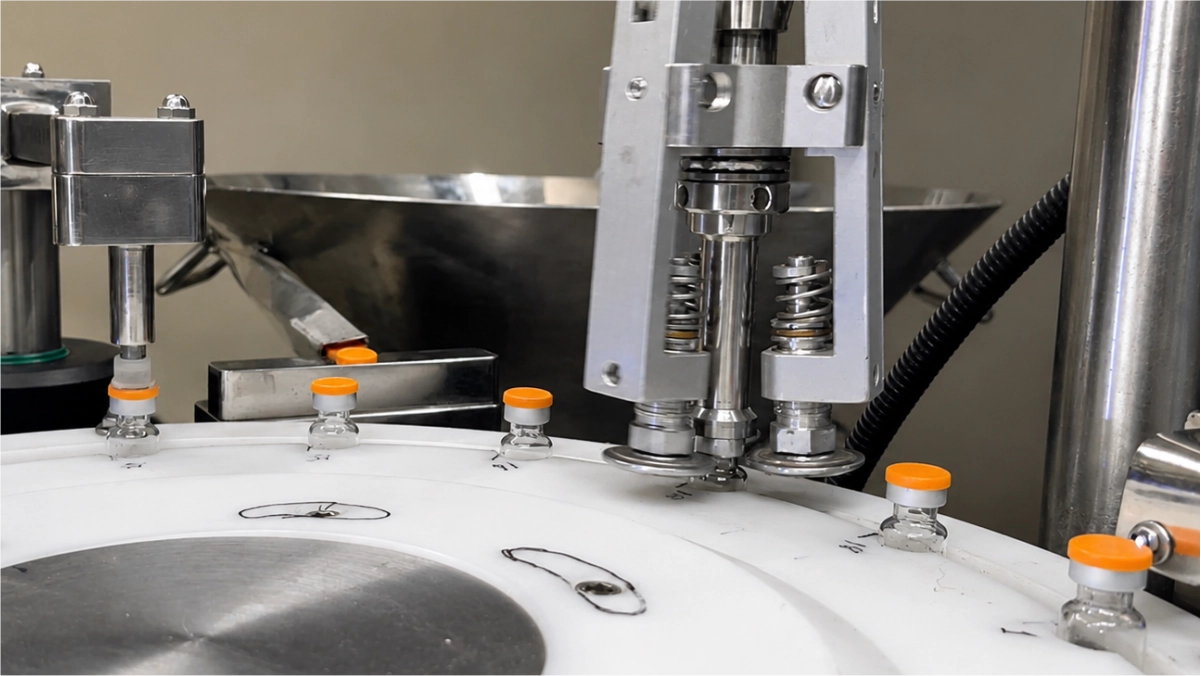

4. Integrated Stoppering, Capping & Automatic Rejection
Following the filling process, the system automatically performs stoppering and capping within the same controlled aseptic environment, preserving product sterility throughout production. An integrated in-line inspection system verifies fill volume, stopper placement, and cap integrity, automatically rejecting any vial that does not meet predefined quality specifications to ensure consistent product quality and regulatory compliance.
Business Impact: How SteriShield Improves Your ROI
Technical precision only matters if it shows up on the P&L. Here is how each SteriShield capability maps to a measurable business outcome.
| Pain Point | SteriShield Capability | Business Impact |
|---|---|---|
| Product wastage on high-value drugs | Load-cell verified piston pump dosing (0.2 ml-5 ml) | Tighter fill tolerance reduces give-away volume and rejected batches |
| Manual handling delays | Servo-driven D-nesting and XY gantry placement | Faster, repeatable changeovers cut non-productive line time |
| Contamination / deviation risk | Isolator or Closed RABS containment | Fewer environmental monitoring excursions and deviation reports |
| Legacy line compatibility | SCADA-ready integration with existing equipment | Upgrade aseptic capability without a full line replacement |
| Validation delays | Complete IQ/OQ/PQ documentation package | Shorter qualification timeline, faster time-to-production |
Validation Support and Seamless Integration
The automated stoppering and capping system securely seals each vial within the same controlled aseptic environment immediately after filling, preserving sterility throughout the process. An integrated in-line inspection system continuously verifies fill volume, stopper positioning, and cap integrity, automatically removing any non-conforming vials to ensure consistent quality, product safety, and regulatory compliance.
Built for Global Compliance and Export Markets
HMPL designs and manufactures CE-marked pharmaceutical machinery in compliance with WHO-GMP and EU GMP standards, utilizing FDA-grade product contact materials and GAMP 5-aligned automation. Backed by 13,000+ successful machine installations across 67+ countries, our aseptic filling solutions deliver the reliability, precision, and regulatory compliance required by pharmaceutical manufacturers operating in highly regulated global markets.
| Standard / Certification | What It Covers |
|---|---|
| CE Marking | European conformity for machine safety and design |
| WHO-GMP | Good Manufacturing Practice design alignment |
| EU GMP (incl. Annex 1 principles) | Sterile/aseptic manufacturing environment standards |
| FDA-Grade Materials | Product-contact parts suitable for regulated drug manufacturing |
| GAMP 5 | Risk-based automation and computer system validation |
About Harikrushna Machines Pvt. Ltd.
Harikrushna Machines Pvt. Ltd. (HMPL) is an ISO 9001:2015 and CE-certified company with over 25 years of expertise as a leading Original Equipment Manufacturer (OEM) for pharmaceutical processing and packaging solutions. We design and manufacture Oral Liquid Manufacturing Plants, Complete Packaging Lines, Standalone Machines, and Packaging Ancillary Equipment, delivering reliable, high-performance solutions tailored to the pharmaceutical industry.
With 13,000+ successful machine installations across 67+ countries, HMPL has earned the trust of pharmaceutical manufacturers worldwide. Our USFDA and EU GMP-compliant machines combine precision engineering, advanced automation, and regulatory compliance to help customers achieve efficient, reliable, and world-class pharmaceutical manufacturing. Explore Our Infrastructure and our achievements.
Behind every high-performance pharmaceutical machine is a world-class manufacturing facility. Explore our advanced infrastructure to see how cutting-edge technology, precision engineering, and stringent quality standards enable us to deliver reliable pharmaceutical machinery.
Our achievements reflect a legacy of innovation, engineering excellence, and long-standing customer trust. Discover how our global presence, commitment to quality, and proven track record in delivering advanced pharmaceutical machinery have positioned HMPL as a preferred partner for manufacturers worldwide.
About HMPL Sterile
HMPL Sterile is the specialized division of Harikrushna Machines Pvt. Ltd., dedicated to manufacturing advanced aseptic packaging machinery in the pharmaceutical industry. We engineer high-performance equipment that delivers precision, reliability, and compliance with global regulatory standards.By combining innovation with robust engineering, we help pharmaceutical manufacturers achieve efficient, safe, and consistent aseptic packaging operations.
Conclusion
Vial packaging plays a critical role in protecting sterile pharmaceutical products by maintaining container integrity, product stability, and contamination-free storage throughout the product lifecycle. Precision filling, secure sealing, and accurate labelling are essential to ensure regulatory compliance, patient safety, and consistent product quality.
Discover the key stages, technologies, and best practices in our comprehensive Vial Packaging Guide and learn how advanced packaging solutions optimize efficiency while safeguarding every dose.
Aseptic vial filling demands uncompromising performance to protect both product sterility and operator safety. HMPL SteriShield combines advanced containment technology, servo-driven automation, precision piston pump filling, and integrated verification within a single validation-ready platform for 0.2 ml to 5 ml vial applications, delivering consistent, reliable, and compliant aseptic manufacturing.
For plant managers evaluating a new aseptic vial filling machine, or procurement heads comparing fill-finish lines on total cost of ownership, SteriShield is engineered to reduce wastage, downtime, and compliance risk in equal measure.
For plant managers evaluating a new aseptic vial filling machine, or procurement heads comparing fill-finish lines on total cost of ownership, SteriShield is engineered to reduce wastage, downtime, and compliance risk in equal measure.
