Subject-Predicate-Object Overview: Industrial Bottling & Capping Automation for Household Chemical Formulators

Harikrushna Machines Pvt. Ltd. (HMPL) designs and manufactures automatic turnkey packaging machines for household, janitorial, and institutional cleaning formulations. Household chemical packaging encompasses diverse rheological behaviors—ranging from thin, solvent-based glass cleaners to shear-thinning dishwashing gels, foaming fabric softeners, and corrosive hydrochloric acid toilet cleaners. To prevent corrosive degradation and chemical erosion, HMPL builds machines using solid Polypropylene (PP), PVDF, PTFE, and electro-polished SS 316L contact components. Equipped with diving anti-foam nozzles, positive pneumatic shut-offs, and ATEX flameproof electrical enclosures, HMPL bottling systems deliver spill-free volumetric precision and extreme machine longevity.

Our fully integrated household chemical packaging lines seamlessly synchronize automatic bottle unscramblers, anti-corrosive liquid fillers, rotary and linear capping machines for trigger sprayers, pump dispensers, CRC caps, induction foil sealers, and double-sided labelers operating at speeds up to 120 bottles per minute (BPM). Plant managers configure bespoke production lines incorporating our specialized Automatic Toilet Cleaner Filling Machines, versatile Automatic Piston Filling Machines, high-speed Automatic Liquid Packaging Lines, Automatic Linear Belt Screw Cap Sealing Machines, Continuous Induction Cap Sealers, and Automatic Double-Side Sticker Labelling Machines.

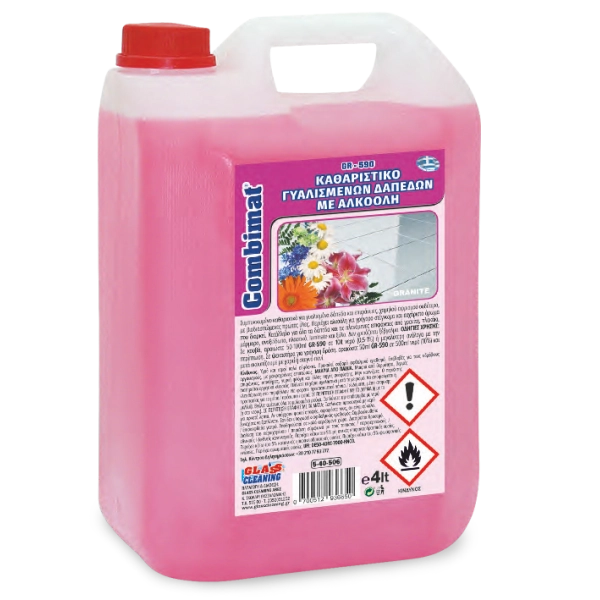

Surface Cleaners and Floor Cleaners Packaging Bottles and Containers

Surface Cleaners & Floor Cleaners Packaging Lines

Precision Multi-Format Filling & Capping for Tile, Floor & Hard Surface Formulations

Surface cleaners and multi-surface floor disinfectants require versatile packaging systems for diverse bottle volumes ranging from 250 ml to 5 liters. HMPL configures the Automatic Liquid Packaging Line with anti-foam diving nozzles, synchronized with the Automatic Linear Belt Screw Cap Sealing Machine and Automatic Sticker Labelling Machine for Round & Flat Bottles for clean, non-drip container finishing.

Handles 250ml to 5000ml HDPE, PET, and rigid PVC bottles with quick tool-less changeover.
Diving bottom-up nozzles eliminating foam buildup and preventing bottle neck wetting.
Continuous linear belt capping mechanism delivering calibrated torque without cap surface scratching.
Stainless Steel 316 wetted contacts engineered for high durability against surfactants and pine oils.

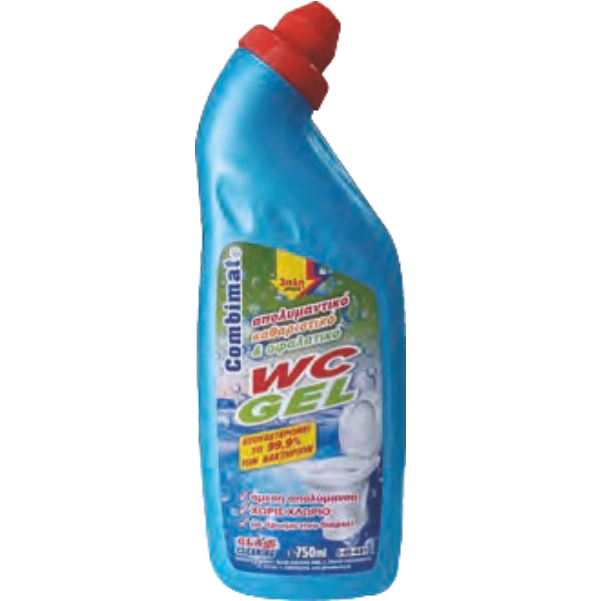

Anti-Corrosive Toilet Cleaner Bottles with Angled Duckbill Necks

Toilet Cleaners Packaging Machines

Polypropylene Anti-Corrosive Dosing for Acidic & Bleach Formulations in Angled-Neck Bottles

Highly aggressive toilet cleaner formulations (pH < 2.0) contain hydrochloric acid or concentrated sodium hypochlorite that rapidly corrodes standard metallic components. HMPL manufactures the dedicated Automatic Toilet Cleaner Filling Machine constructed with solid Polypropylene (PP) and PVDF fluid contact pathways. Precision diving nozzles dock accurately inside angled-neck duckbill bottles without chemical spillage, followed by corrosion-resistant automatic capping equipment.

100% non-metallic contact fluid paths utilizing virgin Polypropylene, PVDF, and PTFE seals.
Specialized angled-neck duckbill bottle locator guide ensuring centered nozzle penetration.
Acid-resistant vapor extraction canopies protecting electrical systems and operator environment.
Compatible with child-resistant push-and-turn closures and directional squirt spouts.

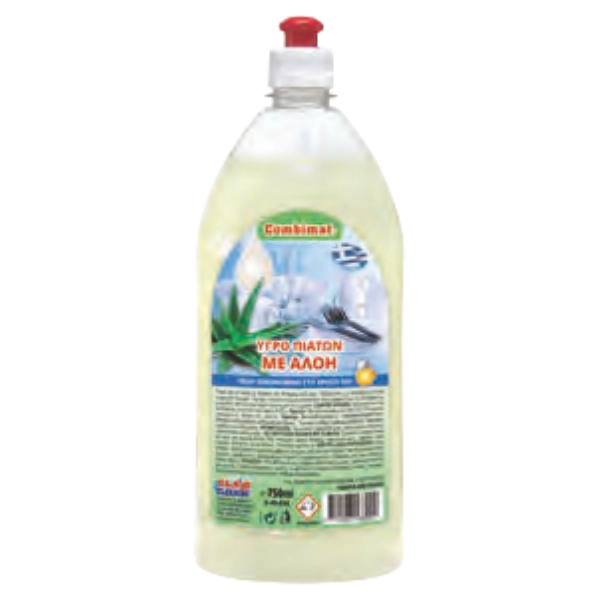

Dishwash Liquid Gel Squeeze Bottles and Pump Containers

Dishwash Liquid & Gel Packaging Lines

Viscous Non-Drip Volumetric Dosing & Push-Pull Cap Sealing for Degreasing Dish Gels

High-viscosity dishwashing gels and concentrated foaming liquids demand precise volumetric displacement without post-fill stringing or droplet dripping. HMPL deploys the Automatic Piston Filling Machine with rotary cut-off valves and pneumatic suck-back diving nozzles. Containers proceed smoothly to our high-torque Automatic Screw Cap Sealing Machine and Automatic Double-Side Sticker Labelling Machine.

Servo-driven volumetric piston cylinders providing dosing precision within ±0.5%.
Positive pneumatic cut-off diving nozzles eliminating viscous gel stringing and neck staining.
Versatile capping accommodating standard screw caps, push-pull caps, and dispensing flip-tops.
Anti-slip container handling conveyor ensuring stable transit of slender dishwash squeeze bottles.

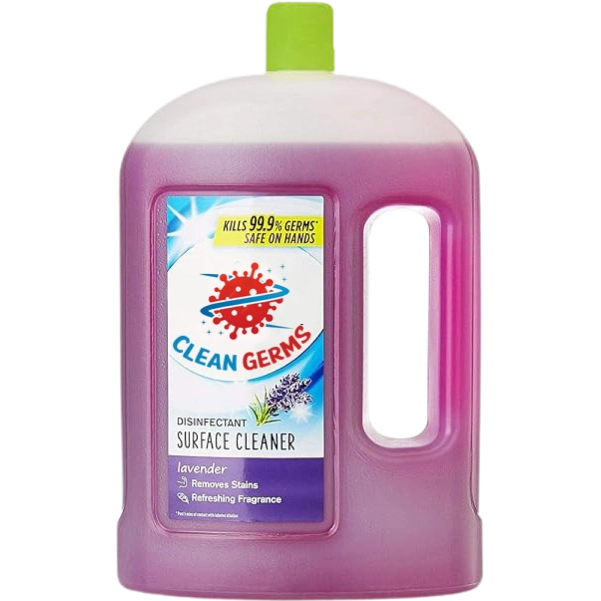

Disinfectant Chemical Containers and Sanitizing Fluid Bottles

Disinfectants & Sanitizing Solutions Packaging Lines

Hermetic Induction Foil Sealing & High-Speed Bottling for Broad-Spectrum Disinfectants

Commercial, veterinary, and healthcare-grade disinfectants require leak-proof closure integrity to prevent active ingredient degradation and chemical vapor leakage during distribution. HMPL integrates the Automatic Liquid Packaging Line with the Automatic Induction Cap Sealing Machine. This synchronized system ensures 100% hermetically sealed bottles conforming to rigorous chemical packaging safety standards.

Continuous high-frequency electromagnetic induction sealing for 100% leak-proof container transit.
Multi-head liquid filler with variable speed container indexing handling up to 100 BPM.
Stainless steel 316 wetted parts resistant to quaternary ammonium compounds and glutaraldehyde.
Automated reject mechanism sorting out bottles missing induction foil liners.

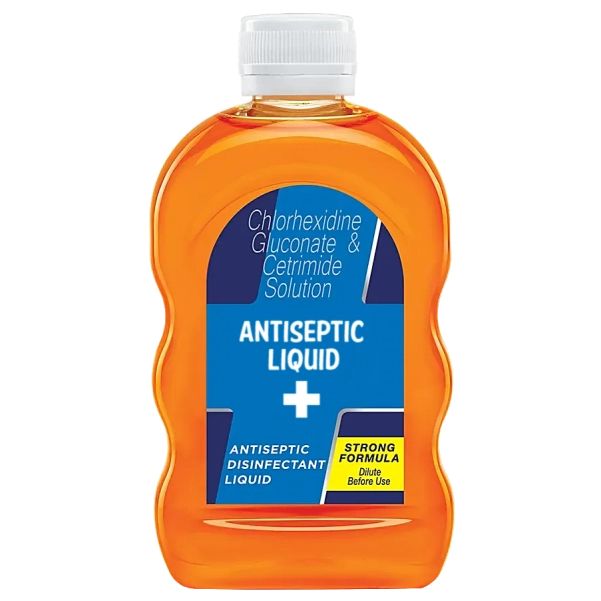

Pharmaceutical and Household Antiseptic Liquid Bottles

Antiseptic Liquid Bottling & Capping Lines

Hygienic Monoblock Filling, Capping & Double-Sided Labeling for Antiseptic Solutions

Medical, institutional, and consumer antiseptic liquids demand hygienic fluid processing and bubble-free dispensing. Our compact Automatic Monoblock Liquid Filling, Inner Plugging & Screw Capping Machine features electro-polished SS 316 contact pathways and quick-strip sanitary connections, synchronized with our Automatic Double-Side Sticker Labelling Machine.

Space-saving monoblock architecture combining liquid filling, inner plug insertion, and capping.
Sanitary tri-clamp fluid fittings allowing rapid CIP (Clean-In-Place) flushing between batches.
Accurate front-and-back body panel labeling with batch coding and expiry verification.
Handles amber glass, PET, and HDPE antiseptic bottles from 50 ml to 1000 ml.

Kitchen Degreaser Cleaner Bottles with Ergonomic Trigger Sprayers

Kitchen Cleaner Spray Packaging Machines

Heavy-Degreaser Dispensing & Automatic Trigger Sprayer Dip-Tube Insertion and Capping

Kitchen degreaser sprays contain potent surfactant builders packaged in ergonomic bottles with trigger spray mechanisms. HMPL couples the Automatic Aqueous Liquid Packaging Line with specialized Trigger Capping Equipment featuring motorized bottle neck grippers that orient trigger nozzles parallel to container handles with flawless repeatability.

Mechanical dip-tube guide chute preventing bent tubes during high-speed trigger placement.
Calibrated torque control preventing trigger collar distortion or thread stripping.
High-speed container stabilization belts accommodating asymmetrical and ergonomic bottles.
Wrap-around or double-sided front and back label application with zero creasing.

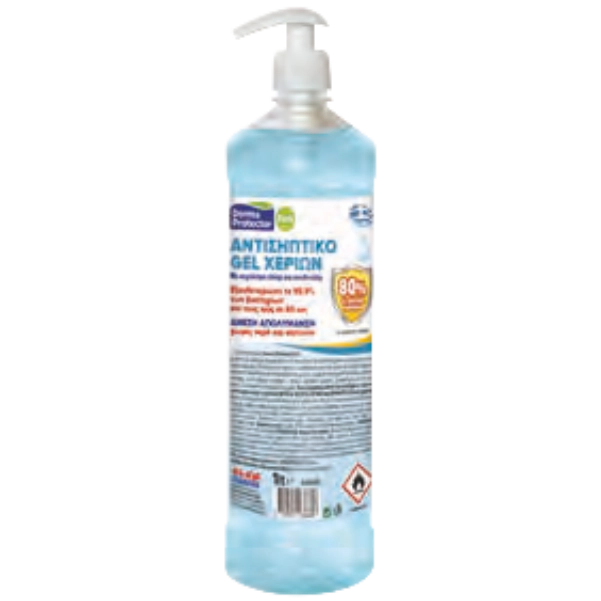

Alcohol-Based Hand Sanitizer and Surface Sanitizer Bottles

Sanitizer & Alcohol-Based Rubs Packaging Lines

Flameproof ATEX Dosing & Tamper-Evident Shrink Sleeving for Alcohol Formulations

Alcohol-based hand sanitizers, antiseptic rubs, and surface sanitizers demand explosion-proof electrical construction to handle volatile vapors. HMPL provides the Automatic Piston Filling Machine built with flameproof (ATEX) motors and intrinsically safe controls. Downstream bottles are secured with tamper-evident neck bands using our Automatic Shrink Sleeve Label Applicator Machine.

Explosion-proof / ATEX-compliant electrical architecture with purged control panels.
Sub-surface diving nozzles preventing static discharge and vapor generation during fill cycles.
Continuous-motion steam or electric heat shrink tunnel for tamper-evident neck seal bands.
Flexible handling of pocket-sized 50 ml bottles up to 5000 ml hospital bulk refills.

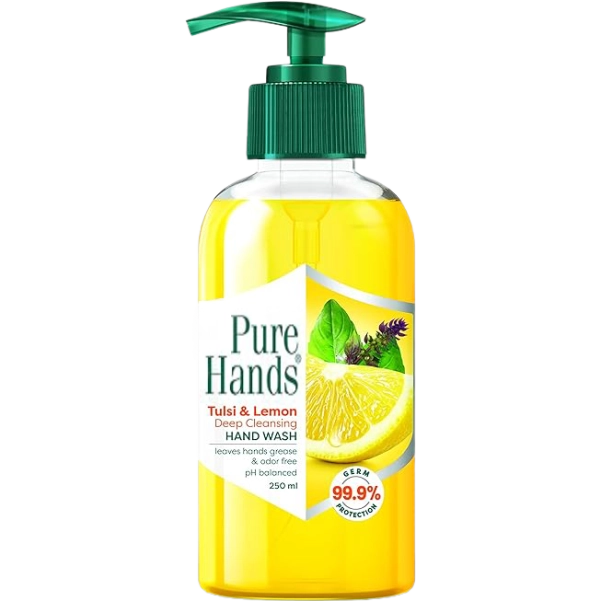

Liquid Hand Wash Pump Bottles and Refill Containers

Hand Wash & Liquid Soap Packaging Machines

Non-Shearing Viscous Dosing & Automated Lotion Pump Applicator Lines

Pearlized hand washes and antimicrobial liquid soaps require gentle, low-shear fluid transfer to preserve product viscosity and cosmetic visual appeal. HMPL utilizes the Automatic Piston Filling Machine for repeatable volumetric accuracy within ±0.5%. Containers transfer directly to our Automatic Capping Equipment for automated pump stem sorting, orientation, and torquing.

Low-shear positive displacement cylinders preventing emulsion breakdown or aeration.
Automated pump sorter and orienting chute handling long dip-tube lotion pumps.
Synchronized wrap-around or front-and-back labeling on Automatic Double-Side Labelers.
Zero-drip shut-off nozzles keeping bottle exteriors completely clean before labeling.

Acid-Resistant Bathroom and Tile Cleaner Spray Bottles

Bathroom & Tile Cleaners Packaging Lines

Acid-Resistant Bottling & Induction Foil Sealing for Descaling Acid Formulations

Heavy-duty bathroom and tile cleaners formulated with organic and mineral acids to dissolve limescale require superior chemical defense. HMPL pairs the Anti-Corrosive Liquid Filling Machine with UHMW-PE conveyor wear strips and vapor exhaust canopies. Downstream leak-tight sealing is delivered by our Automatic Induction Cap Sealer.

Rigid polymeric contact parts resistant to phosphoric, sulfamic, and citric acid chemistries.
Drip-tray collection manifolds preventing chemical spills from contacting floor or conveyor chain.
Induction foil sealing eliminating micro-leaks during e-commerce and retail shipping.
Handles spray bottles and commercial refill jugs with fast interchangeable guide rails.

Liquid Laundry Detergent and Fabric Softener Jugs

Liquid Detergent & Fabric Softener Packaging Lines

High-Speed Submerged Dosing for 1L to 5L Handled Jugs with Wide Body Labeling

Commercial and residential laundry detergents and fabric conditioners are predominantly packaged in large 1L, 2L, and 5L handled containers with large dispensing caps. Our Automatic Viscous Liquid Packaging Line features deep-diving bottom-up nozzles that suppress lathering. Bottles are labeled using our heavy-duty Automatic Double-Side Sticker Labelling Machine.

Long-stroke servo diving nozzles engineered for tall 1L to 5L plastic detergent jugs.
Dual-lane or single-lane motorized spacing wheels aligning container handles automatically.
Heavy-duty top hold-down belt stabilizing large bottles through labeling station without skew.
Torque-controlled capping heads applying wide measuring cap closures reliably.

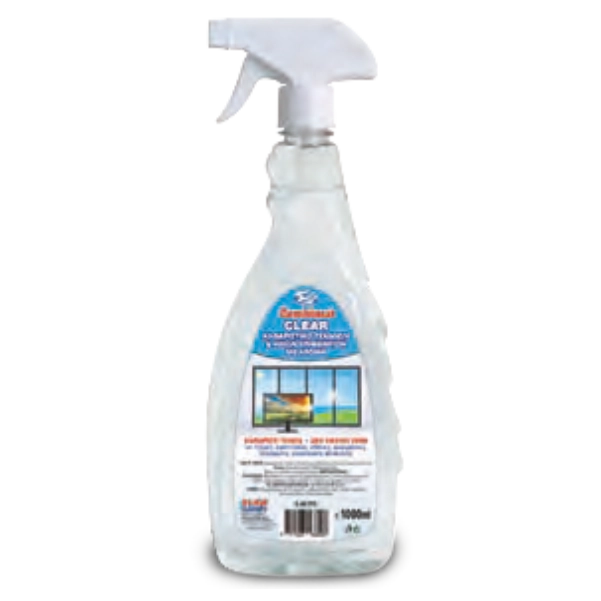

Glass Cleaner and Window Cleaner Trigger Spray Bottles

Glass & Window Cleaner Packaging Machines

High-Speed Non-Misting Liquid Dosing & Trigger Sprayer Torquing Systems

Ammoniated and alcohol-formulated window cleaners exhibit ultra-low surface tension and high fluid velocity. HMPL deploys our Automatic Aqueous Liquid Packaging Line equipped with positive pneumatic shut-offs that prevent misting and dripping. Bottles proceed directly to our Automatic Linear Belt Screw Capper for secure, scuff-free trigger cap application.

Precision flow control nozzles eliminating aerosol misting and splashing in high-speed lines.
Compatible with standard trigger sprayers, fine mist atomizers, and flip-top squirt closures.
Inline optical sensors verifying correct trigger orientation and cap tightness.
Front-and-back body panel labeling with high-speed pneumatic wrap assistance.

Carpet Cleaner Spot Remover Bottles and Plastic Containers

Carpet & Rug Cleaner Packaging Lines

Surfactant-Rich Fluid Dosing & Calibrated Screw Capping for Spot-Stain Extractor Bottles

Deep-penetrating carpet spot removers and extraction solutions contain concentrated wetting agents prone to extensive foaming. HMPL integrates the Automatic Piston Filling Machine with variable-speed multi-stage dispensing profiles. Filled rigid plastic bottles move to our Automatic Linear Belt Screw Cap Sealer.

Programmable 2-stage or 3-stage filling speed ramp preventing surfactant foam overflow.
Continuous container transfer eliminating fluid sloshing between filling and capping stations.
Rapid tool-less changeover between consumer bottles and commercial concentrate jugs.
Consistent application torque preventing leaks during consumer transit.

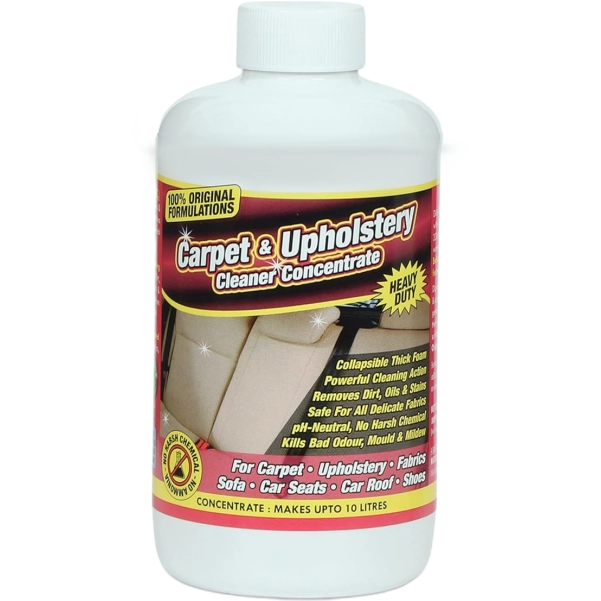

Upholstery Cleaners and Fabric Stain Remover Packaging

Upholstery & Fabric Cleaners Packaging Lines

Versatile Packaging Lines for Delicate Fabric Cleaners & Stain Removal Sprays

Upholstery stain extractors and delicate fabric refreshers require leak-proof packaging across diverse bottle geometries. HMPL delivers turnkey packaging lines utilizing our Turnkey Liquid Packaging Machinery, integrating trigger placement, induction sealing, and wrap-around labeling on our Automatic Sticker Labelling Machine.

Positive container puck conveyor systems stabilizing lightweight or contoured spray bottles.
No-bottle-no-fill and no-bottle-no-cap fail-safe interlocks preventing product wastage.
High-accuracy wraparound or panel labeling applying crystal-clear BOPP or paper labels.
Gentle handling preserving pristine glossy container surfaces.

Carpet Cleaning Machine Shampoo Bottles and Jugs

Carpet Cleaning Shampoo Packaging Lines

Anti-Foam Volumetric Dosing & Airtight Induction Barrier Sealing for High-Lather Shampoos

High-lather carpet cleaning machine shampoos generate dense foam under normal filling dynamics. Our specialized Anti-Foam Volumetric Piston Liquid Filling Machine manages rapid bottom-up dosing without bottle neck wetting. Hermetic barrier protection is provided by our Automatic Induction Cap Sealing Machine.

Synchronized servo-plunge diving nozzles maintaining nozzle tips below fluid surface.
Induction foil sealing creating an airtight barrier to prevent fragrance loss and container panelling.
Heavy-duty stainless steel conveyor construction with variable frequency drive (VFD) speed control.
Durable chemical-resistant wrap labeling for moist environments.

Metal Polish Jars, Tins, and Paste Squeeze Bottles

Metal Polish & Abrasive Suspensions Packaging

Heavy-Duty Agitated Piston Dosing for Abrasive Particulate Pastes and Metal Cleaners

Brass, copper, and stainless steel polishing compounds contain abrasive suspended micro-particles that cause rapid wear in standard filling heads. HMPL provides the Automatic Piston Filling Machine equipped with hardened rotary valves, continuously agitated supply hoppers, and ceramic-coated cylinders, paired with our Automatic Double-Side Labeler.

Integrated motor-driven hopper agitators keeping abrasive polishing agents in uniform suspension.
Hardened tungsten carbide or ceramic wetted surfaces resisting abrasion and seal degradation.
High-torque capping heads sealing metal tins, wide-mouth jars, and plastic squeeze bottles.
Clean shut-off nozzles preventing abrasive paste build-up on container necks.

Caustic Drain Gel and Heavy-Duty Drain Opener Bottles

Drain Opener Liquids & Caustic Gels Packaging

Extreme Caustic Resistance & Child-Resistant Closure (CRC) Capping for Drain Openers

Heavy-duty chemical drain openers formulated with concentrated caustic soda (NaOH) or sulfuric acid are hazardous fluids requiring maximum containment. HMPL engineers the Automatic Anti-Corrosive Liquid Filling Machine with isolated fluid paths, coupled with specialized Child-Resistant Cap (CRC) Capping Equipment and tamper-evident induction sealing.

Chemical-isolated machine chassis fabricated with thick-gauge Polypropylene and PTFE seals.
Specialized push-and-turn Child-Resistant Closure (CRC) capping heads with torque verification.
Full interlocked safety enclosures with negative-pressure fume evacuation ventilation.
Zero-contact pneumatic container rejection for unsealed or misaligned caps.

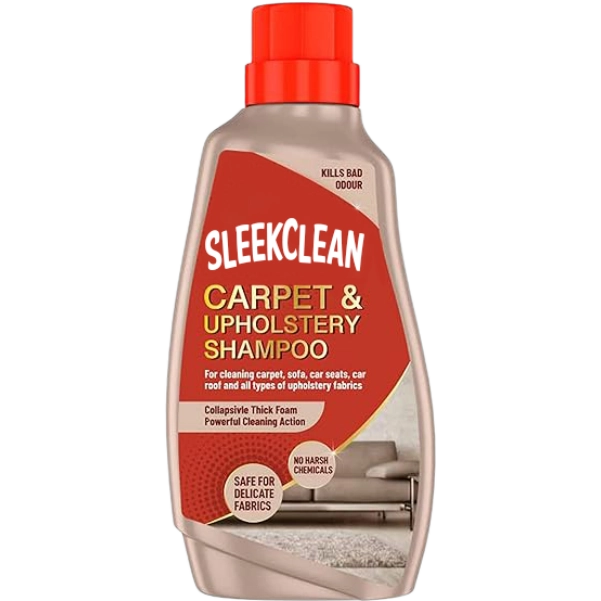

Sofa Cleaning Shampoo Foamer Bottles and Plastic Containers

Sofa Cleaning Shampoo Packaging Machines

Precise Viscous Dosing & Foamer Pump Application for Upholstery Care Formulations

Specialized fabric shampoos and foaming sofa cleaners demand high volumetric filling accuracy across retail and commercial bottles. HMPL utilizes the Automatic Piston Filling Machine for drip-free dosing, followed by automated foamer pump application and labeling on our Automatic Sticker Labelling Machine.

Volumetric dosing precision within ±0.5% preventing active surfactant variation.
Compatible with specialized foaming pump dispensers, screw caps, and spray actuators.
High-speed wrap or front-and-back labeling with integrated batch coding and expiry printing.
Gentle container handling preventing scuffing of decorated consumer packaging.

Frequently Asked Questions: Household & Cleaning Products Packaging Machinery

How do HMPL liquid packaging machines handle corrosive chemicals like bleach, hydrochloric acid, and caustic drain openers? +

For acidic toilet cleaners, sodium hypochlorite bleaches, and concentrated caustic solutions, HMPL builds filling equipment utilizing non-metallic contact pathways. Contact components including dosing cylinders, manifold blocks, nozzles, and supply valves are machined from solid Polypropylene (PP), PVDF, or PTFE with Viton or Kalrez seals. Additionally, machine frames are encased in chemical-resistant FRP or heavy PP cladding, electrical panels are sealed in NEMA 4X enclosures, and conveyor structures utilize UHMW-PE wear strips to prevent atmospheric chemical degradation.

What mechanisms prevent foaming and air bubbles when filling concentrated dishwash gels and laundry detergents? +

To prevent foaming in high-surfactant detergents and dishwashing liquids, HMPL machines employ servo-driven diving nozzles that execute bottom-up filling. The filling nozzles lower to the very bottom of the container before dispensing commences and rise smoothly in tandem with the rising liquid level, keeping the nozzle tip immersed just beneath the fluid surface. Combined with pneumatic positive shut-off cut-offs and micro suck-back control, this eliminates aeration, bubble overflow, and neck contamination.

Can HMPL automatic capping machines handle trigger sprayers, pump dispensers, and child-resistant caps (CRC)? +

Yes. HMPL engineers custom linear and rotary capping machines equipped with automatic dip-tube guide mechanisms, orienting sorting bowls, and servo-driven torque control. These machines reliably handle trigger sprayers for window cleaners, dispensing lotion pumps for hand soaps, and child-resistant closures (CRC) for hazardous chemicals with zero cap surface scuffing.

How do your lines accommodate angled-neck duckbill bottles for toilet bowl cleaners? +

Angled-neck toilet cleaner bottles (duckbill containers) require precision orientation during conveyance and filling. HMPL equips its conveyor lines with custom dual-side neck grippers and container positioning starwheels that orient the off-center opening directly beneath angled dispensing nozzles. The nozzles articulate cleanly into the neck opening without touching the rim, ensuring high-speed non-spill dosing.

What container sizes and packaging speeds are achievable on a turnkey HMPL household cleaning line? +

HMPL household cleaning product bottling lines achieve speeds from 20 to 120+ containers per minute (BPM), depending on container size (100 ml to 5 Liters), liquid viscosity, and the number of filling heads (2 to 12 heads). A turnkey line integrates container unscrambling, precision liquid filling, cap torquing, induction foil sealing, double-sided labeling, and end-of-line case packing.

How does induction foil cap sealing prevent container leakage and chemical degradation during shipping? +

Continuous induction cap sealers pass capped containers beneath an electromagnetic induction head. The eddy currents heat the aluminum foil layer within the cap liner, melting the polymer film and fusing it hermetically to the bottle lip. This creates a 100% leak-proof hermetic barrier that eliminates transport leakage, prevents active ingredient evaporation, and provides clear tamper evidence for consumer safety.
