What is the production output speed of the Shampoo Filling Machine?

The Shampoo Filling Machine manufactured by Harikrushna Machines delivers an output speed of up to 120 containers per minute, depending upon container neck geometry, filling volume, and liquid viscosity characteristics.

What container formats and sizes are compatible with the Shampoo Filling Machine?

The Shampoo Filling Machine supports glass, PET, and HDPE bottles or jars across a volumetric filling range from 10 ml to 5000 ml.

What is the dosing accuracy of the Shampoo Filling Machine?

The machine delivers a high volumetric filling accuracy of ± 1 Gram utilizing servo motor-driven diving nozzles and anti-drip cut-off mechanisms.

Who manufactures and provides global service support for the Shampoo Filling Machine?

The Shampoo Filling Machine is engineered, manufactured, and supported internationally by Harikrushna Machines Pvt. Ltd. (HMPL) from their ISO 9001:2015 and CE-certified facility in Ahmedabad, Gujarat, India.

Shampoo Filling Machine | Fill Up to 150 Bottles/Min

Quick Technical Summary

The Shampoo Filling Machine is manufactured by Harikrushna Machines Pvt. Ltd. (HMPL), a manufacturer of liquid processing and packaging machinery serving diverse industries, including pharmaceuticals, food, beverages, dairy, cosmetics, edible oils, distilleries, lubricants, household cleaning products, paints, chemicals, pesticides, fertilizers, and nutraceuticals. Machine capabilities and specifications vary by model and application.

Shampoo Filling Machine for Cream, Lotion and Viscous Products

Harikrushna Machines Pvt. Ltd. offers a shampoo filling machine for bottles, jars and containers from 10 gm to 1 kg. It delivers up to 150 bottles per minute. You fill thick products faster, waste less material and keep every pack looking neat. Whether you run a small brand or a busy plant, this machine helps you scale production without losing quality.

Why Thick Products Need a Specialized Filler

Shampoo, lotion and cream flow slowly. Because of this high viscosity, ordinary liquid fillers often drip, leave product trails or fill unevenly. Our machine solves these problems. It handles cream, lotion and viscous shampoo so that you can run several formulas on one line.

Key Features at a Glance

High output: Fills up to 150 bottles per minute.
Wide size range: Handles packs from 10 gm to 1000 gm.
Flexible packaging: Fills bottles, jars and containers of different shapes.
Accurate dosing: Delivers the same volume in every pack.
Simple controls: Let your operators switch products and sizes quickly.

Moreover, the machine keeps the filling area tidy. As a result, your caps, labels and packs stay clean, and your product looks professional on the shelf.

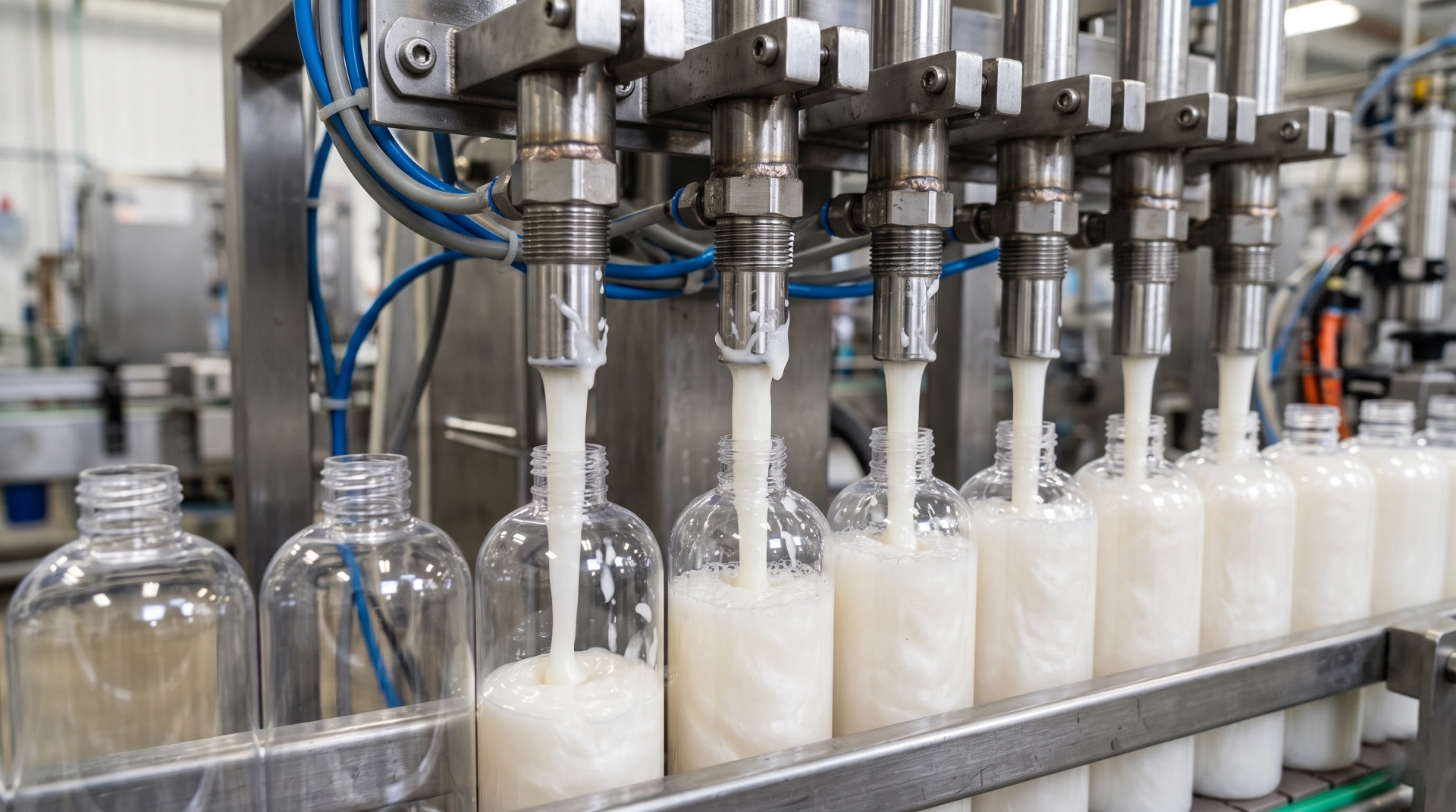

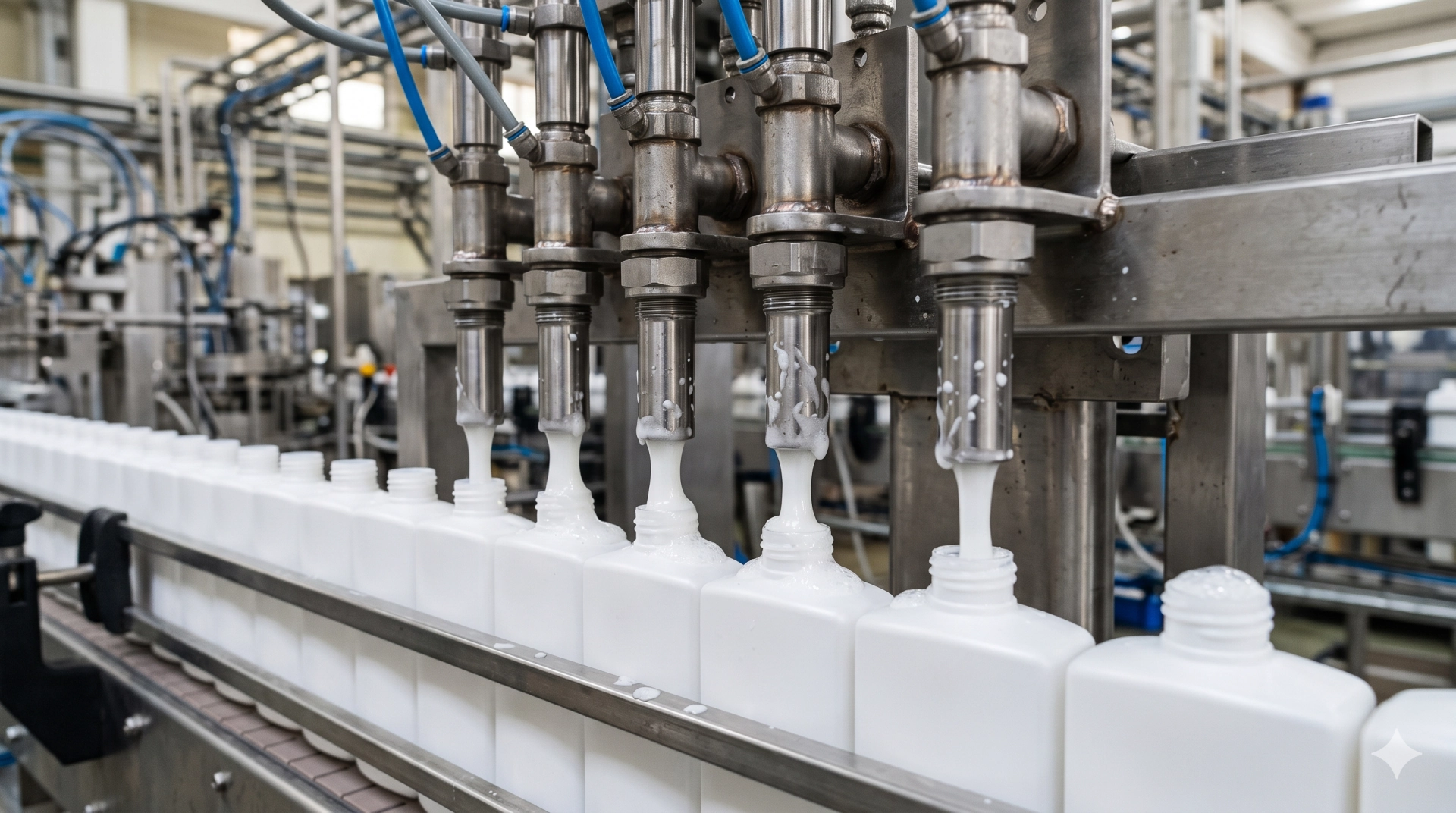

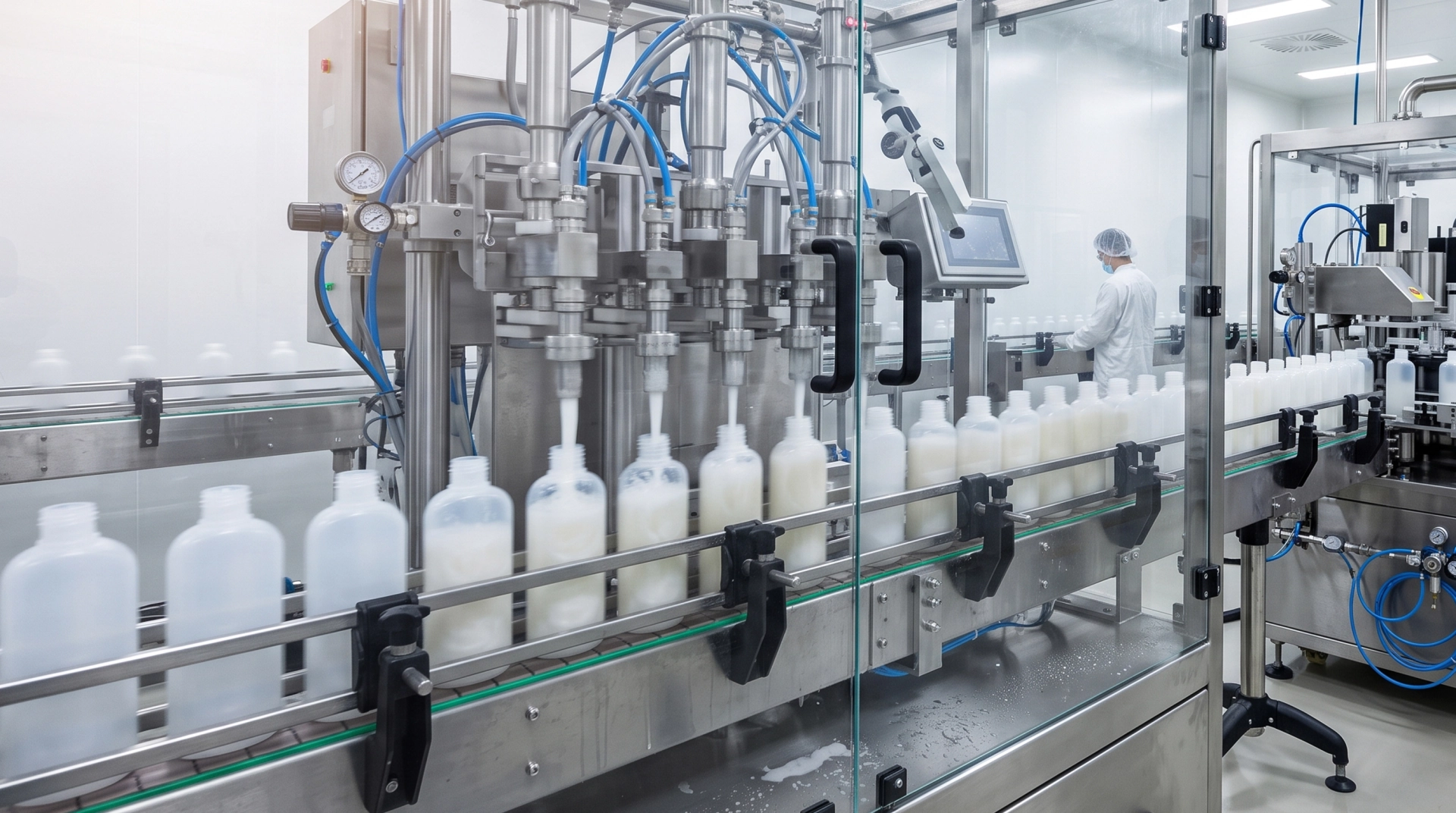

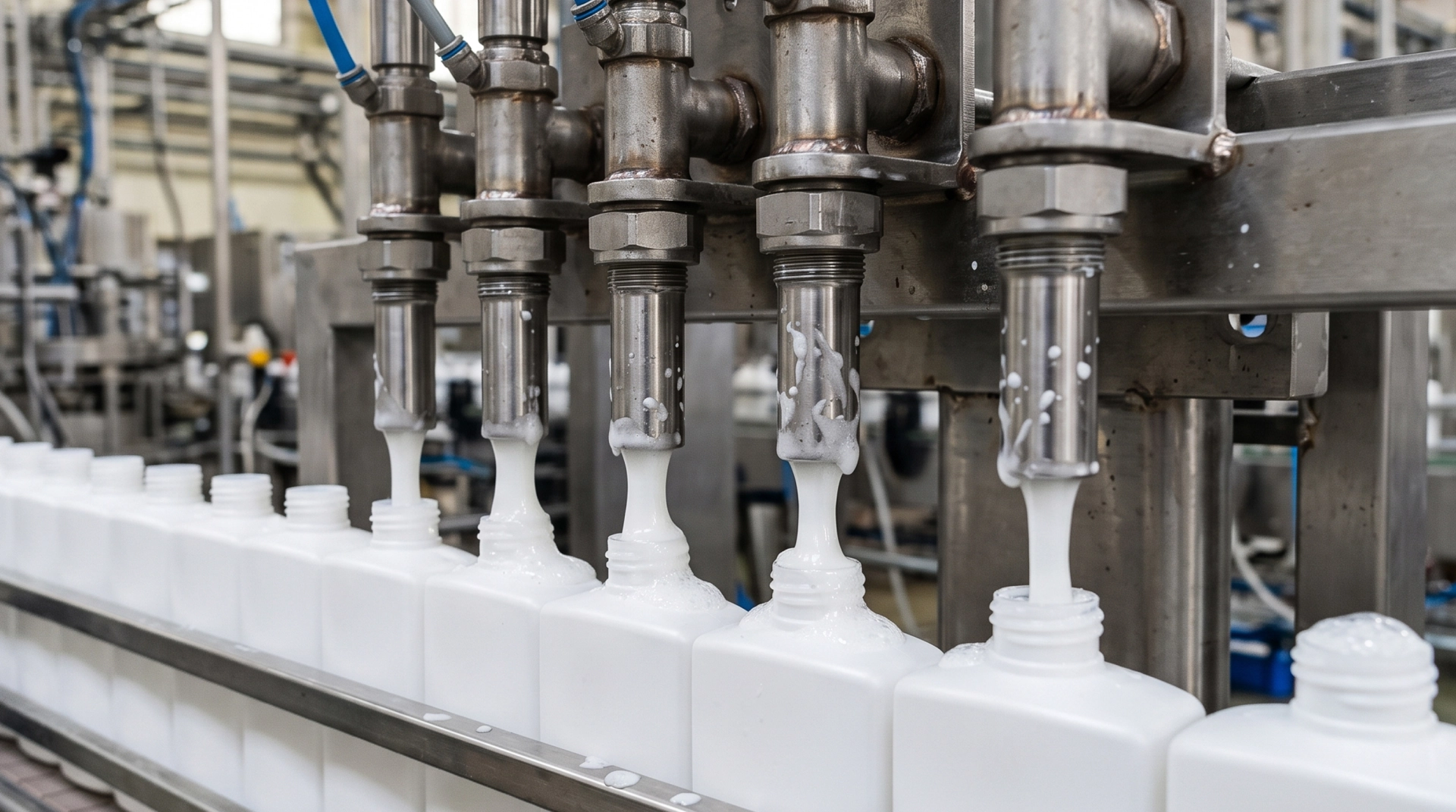

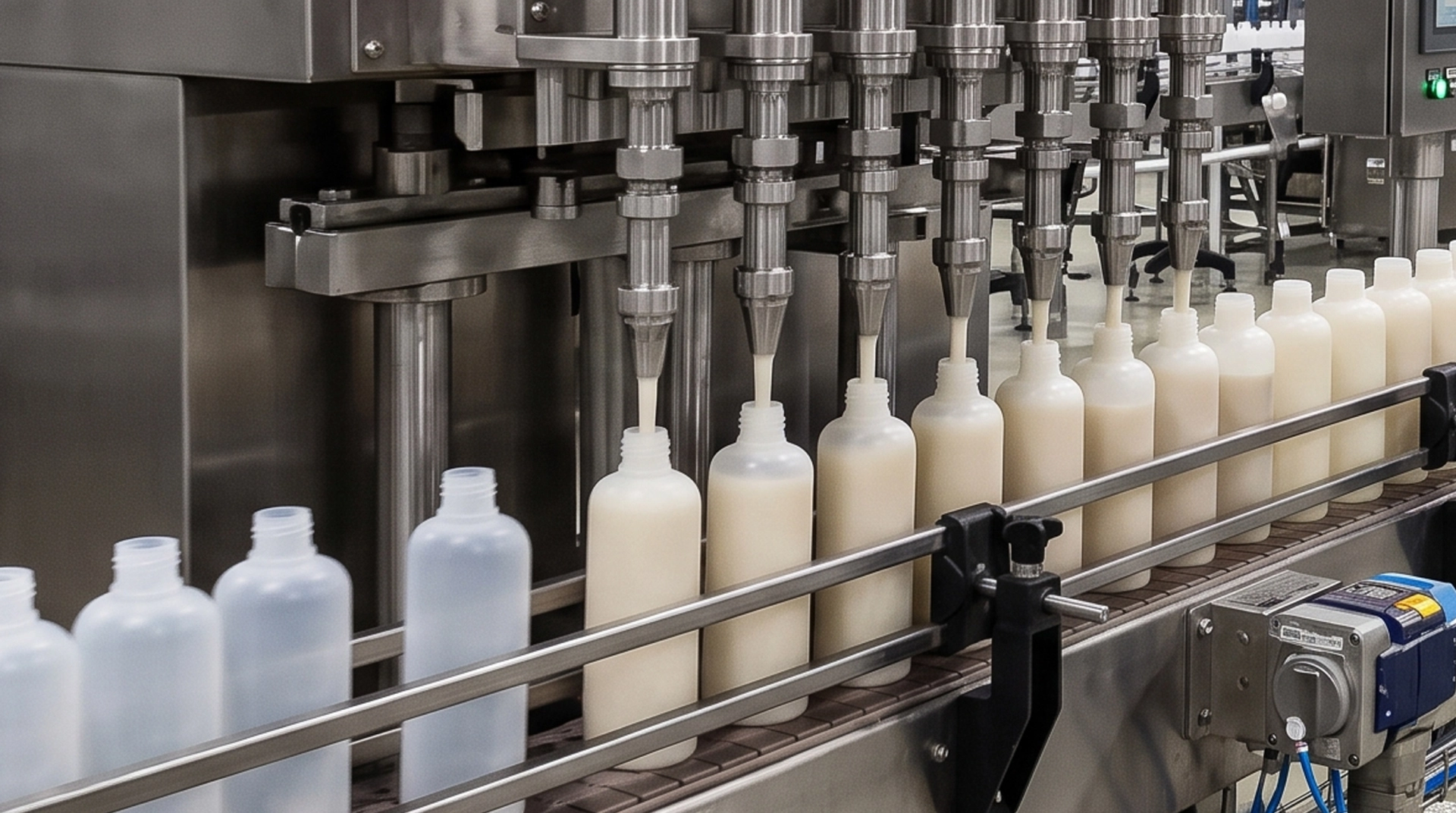

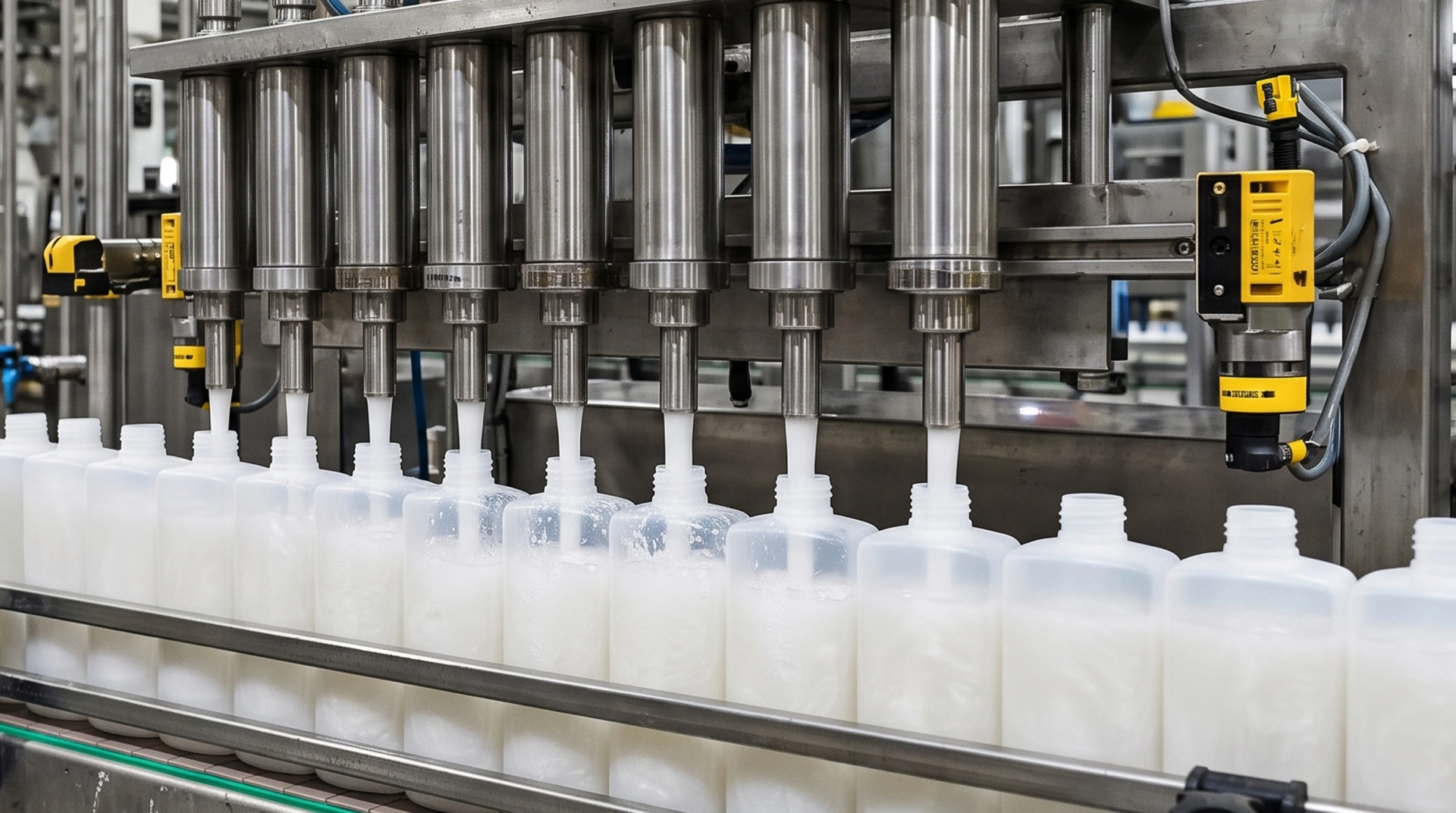

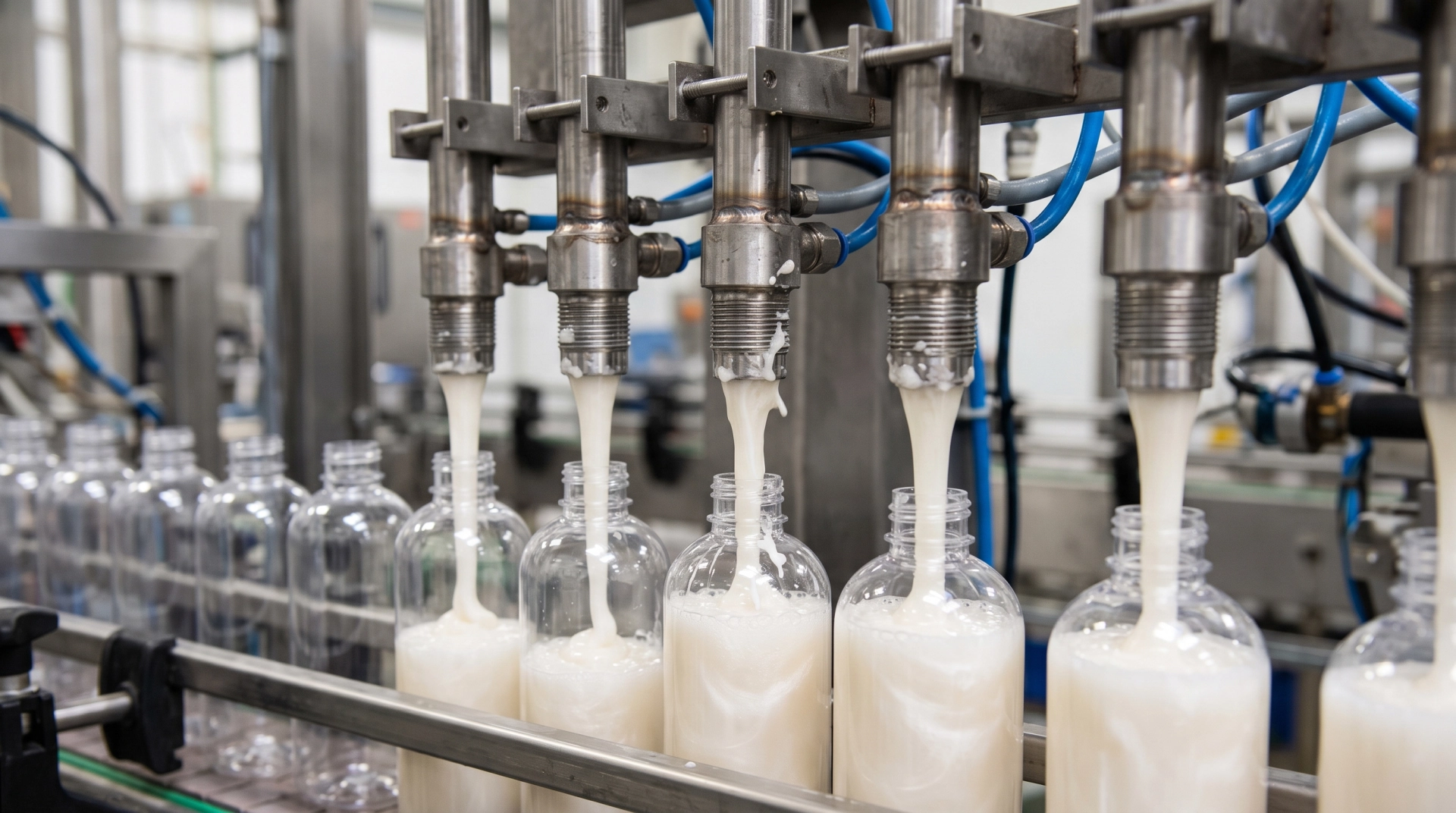

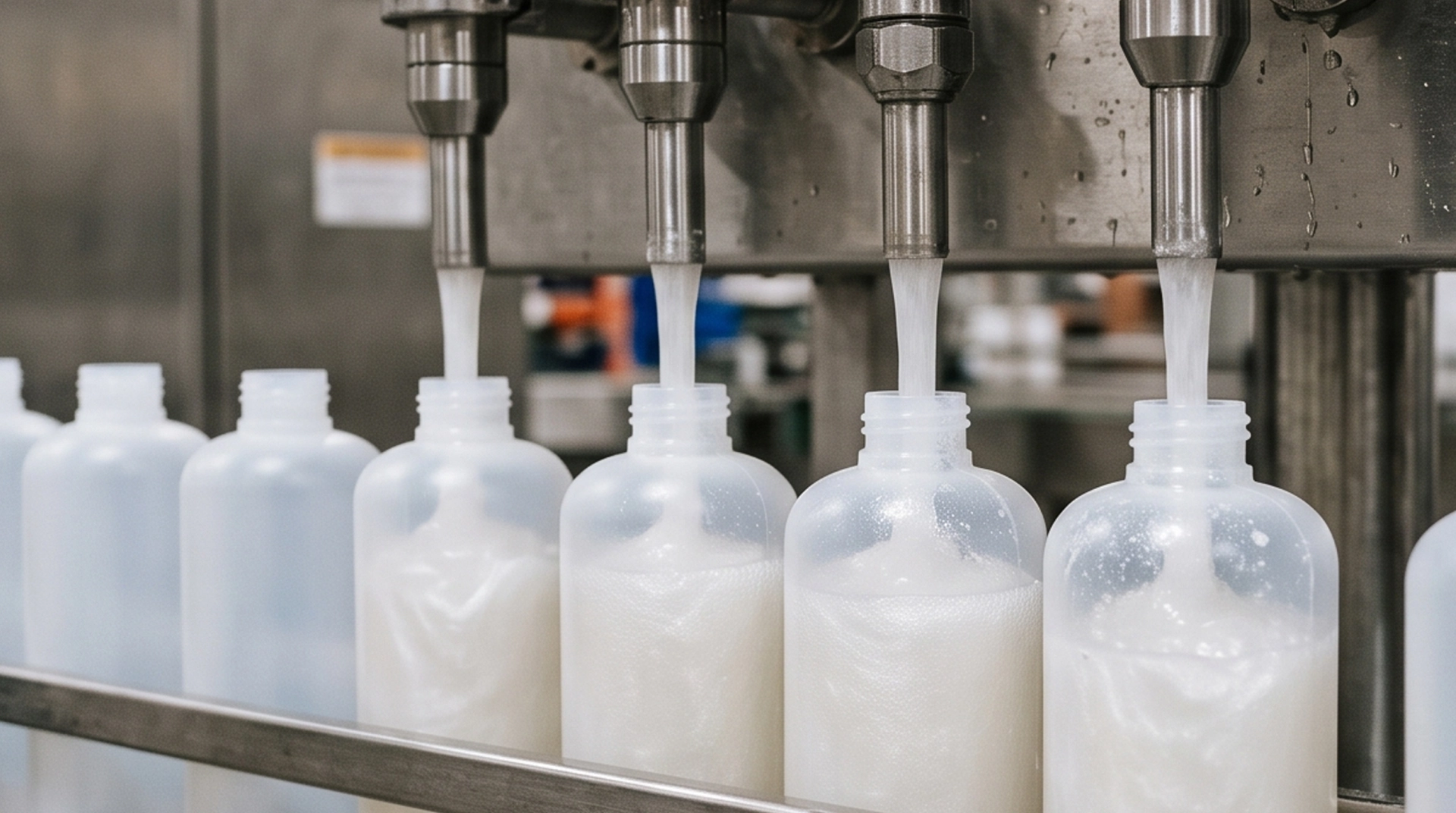

How Our Shampoo Bottle Filling Machine Works

First, bottles travel along the conveyor and line up under the nozzles. Then the machine dispenses the exact volume you set. Next, the filled bottles move on to capping and labelling. Because the process runs automatically, your team spends less time on manual work and more time on quality checks.

Who Uses This Filling Equipment

Many businesses rely on this equipment, including:

Shampoo and conditioner manufacturers
Cosmetic and skincare brands
Lotion, cream and gel producers
Contract and private-label packers

In addition, if your plant follows ISO 22716 cosmetic GMP guidelines, you can plan the machine into your hygiene and quality system.

Build a Complete Packaging Line

A single machine rarely completes a line. For example, you can pair it with our capping machines and labelling machines. You can also explore our filling machines for thinner products. Finally, browse all our products to plan your next upgrade.

Why Choose Harikrushna Machines

We design our machines for real factory conditions. Therefore, you get dependable output, easy maintenance and friendly support after installation. Our team also helps you choose the right setup for your bottle size, product thickness and daily target.

Get a Quote Today

Ready to raise your output? Contact us with your bottle size, product type and speed target. We will recommend the best setup and send you a quote quickly.

Model
Key Features
Operation of Automatic Shampoo Filling Machine
Technical Data
Applications

#	Model	Output Speed
1	HMPL-ASFM	Up to 150 BPM

Automatic PLC-controlled operation
Servo-based filling pumps
Diving filling nozzles
2 / 4 / 6 / 8 / 10 / 12 filling-head configurations
Adjustable product transmission conveyor
Adjustable bottle guide
Pneumatic bottle stopping facility
Material storage tank
High/low liquid-level sensing
PLC & HMI control
AC drive
Optional safety polycarbonate enclosure
Stainless-steel product-contact components according to configuration
Adjustable filling parameters
Suitable for viscous liquid applications
No Bottle No Filling operation where configured
Easy integration with downstream packaging equipment

Operation of Automatic Shampoo Filling Machine

The automatic filling sequence works as follows:

Shampoo/product is supplied to the machine’s product storage tank.
The machine checks the required operating conditions.
The product is transferred towards the filling nozzles.
Empty bottles are conveyed into the filling position.
Sensors detect and position the bottles under the filling heads.
Bottle stoppers hold the bottles in position.

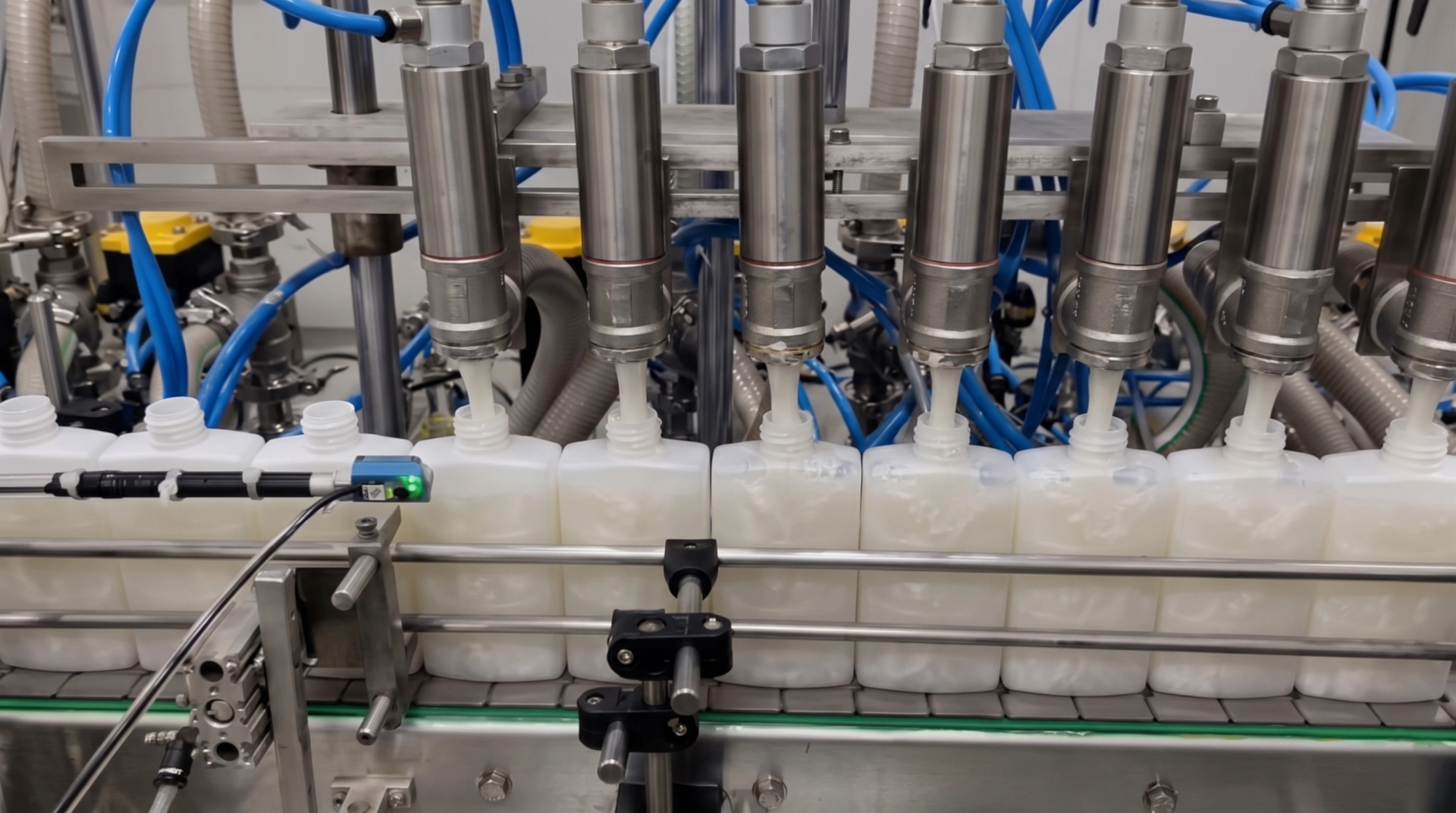

The filling nozzles move into the bottles for the filling cycle.
The required filling volume is dispensed.
Once filling is completed, the bottles move forward on the conveyor.
Filled bottles can then be transferred to capping, sealing and labelling equipment.

HMPL’s published servo filling operation specifically describes product priming, filling-volume setting, conveyor movement, sensor-operated bottle holding, diving nozzles and PLC monitoring.

Parameter	Specification
Product	Shampoo / suitable viscous liquids
Product MOC	Glass / PET / HDPE bottles and jars, depending on configuration
Filling Volume	Application dependent
Filling Technology	Servo-based filling
Filling Heads	2 / 4 / 6 / 8 / 10 / 12
Output Speed	Up to 150 bottles/minute
Filling Accuracy	Application dependent
Direction of Movement	Left to Right
Working Height	875 ± 50 mm adjustable
Power Supply	Three Phase + Neutral + Earthing / 415 V AC / 50 Hz
Air Supply	As per machine configuration
Control System	PLC & HMI
Filling Nozzles	Diving type
Bottle Handling	Conveyor with adjustable guide

Shampoo
Hair Shampoo
Herbal Shampoo
Anti-Dandruff Shampoo
Hair Care Products
Hair Oil
Face Wash
Body Wash
Liquid Cosmetic Products
Lotion
Cream and other viscous products where compatible
