Semi-Automatic Cartoning Machine

Harikrushna Machines Pvt. Ltd. is an ISO 9001:2015 & CE-certified Semi-Automatic Linear Cartoning Machine Manufacturer & Exporter in Gujarat, India.

Semi-Automatic Cartoning Machine

Semi-Automatic Linear Cartoning Machine

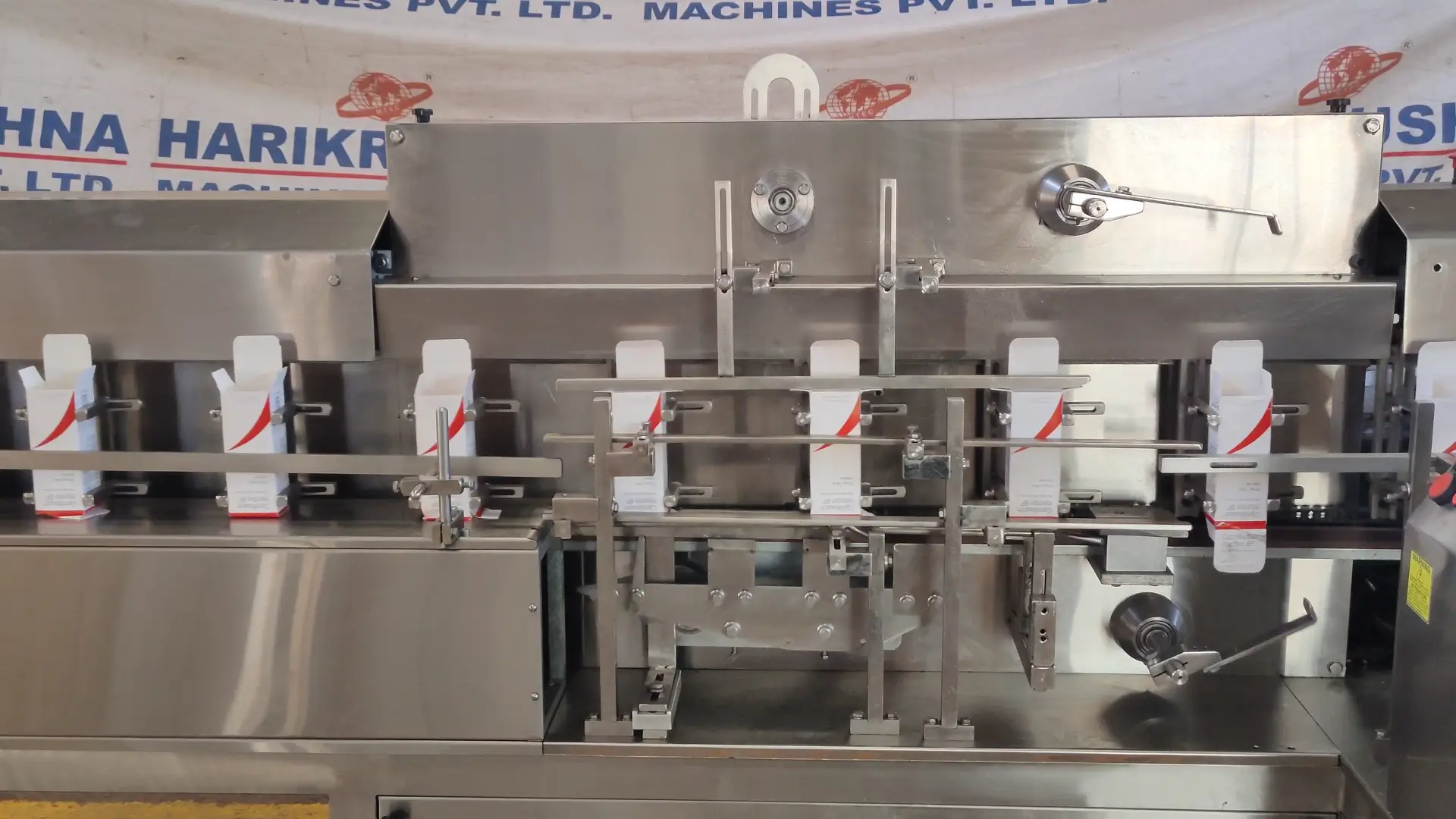

The Semi-Automatic Linear Cartoning Machine is a compact unit made of MS angle structure encompassed with SS covering with height adjustment legs, which are provided to adjust the machine height and highly efficient machine with an elegant look. This multifunctional featured machine meets the GMP requirements of carton opening and closing. The machine operates on the linear principle.

# Model Output Speed
1 HMPL-SAC 50 to 300 PPM
  • The machine is manufactured or developed per GMP standards.
  • The structure is made of MS cladding with SS 304.
  • Rigid vibration-free construction for trouble-free performance.
  • SS Elegantly matt finished body.
  • Clutch-operated machine to avoid damage to the machine.
  • Vacuum gauge.
  • Moving pockets for holding cartons.
  • High-efficient vacuum pump for smooth and easy opening of cartons.
  • Manual loading and automatic unloading of cartons.
  • Easy operating system.
  • Use the most reliable and proven components such as pneumatic and electrical/electronic AC motor, AC Drive, Sensors, MCB & relay etc.

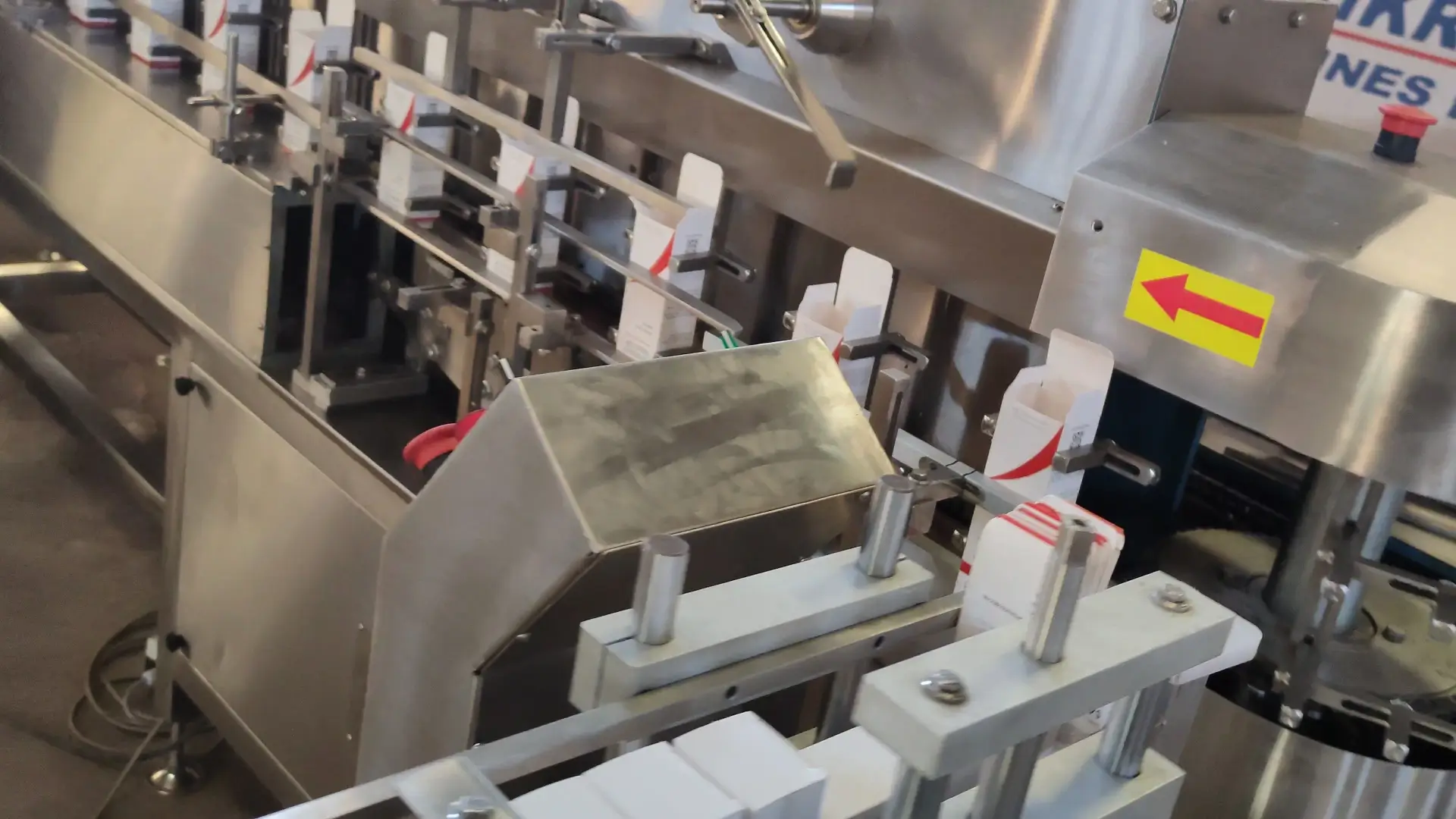

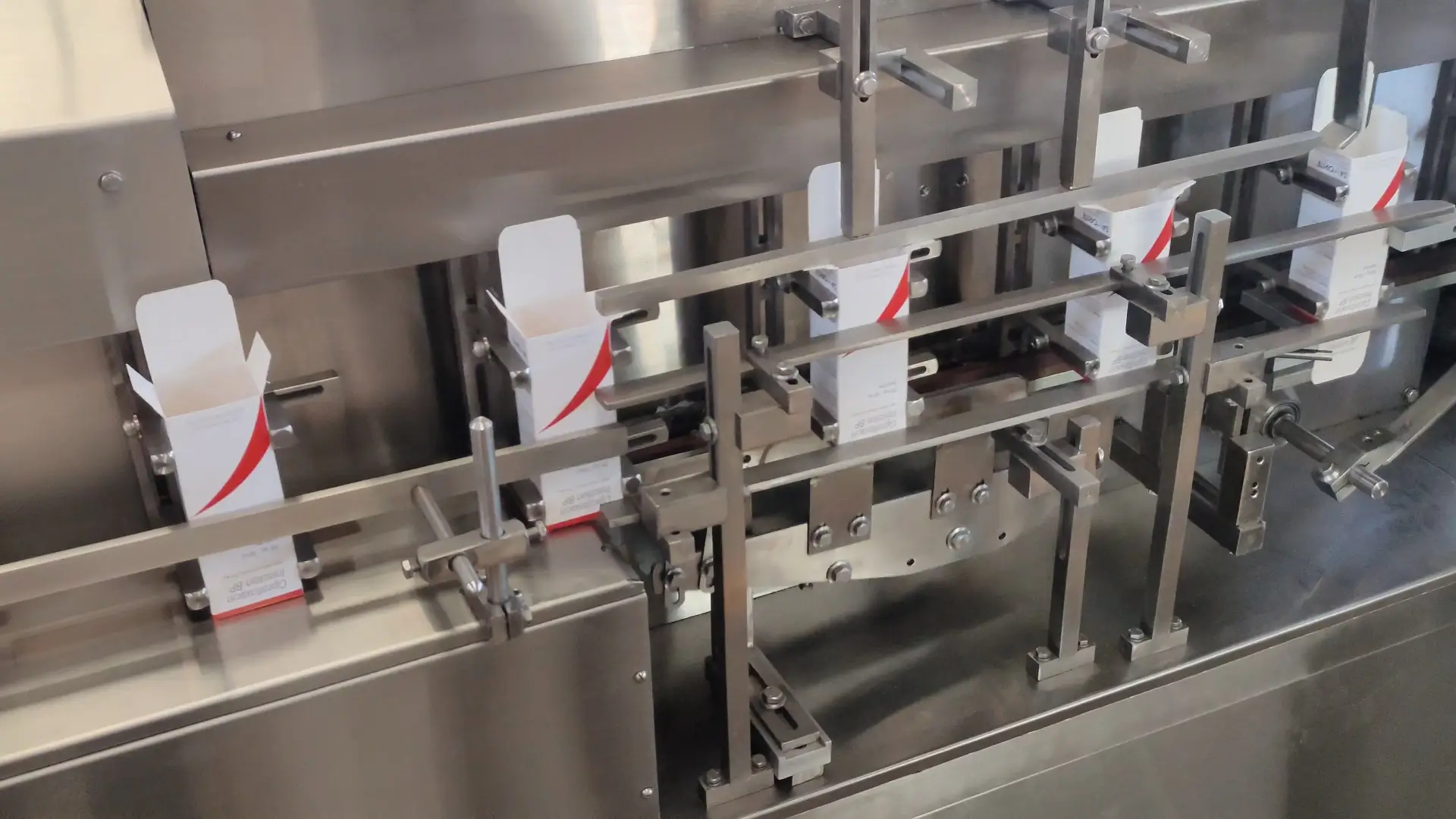

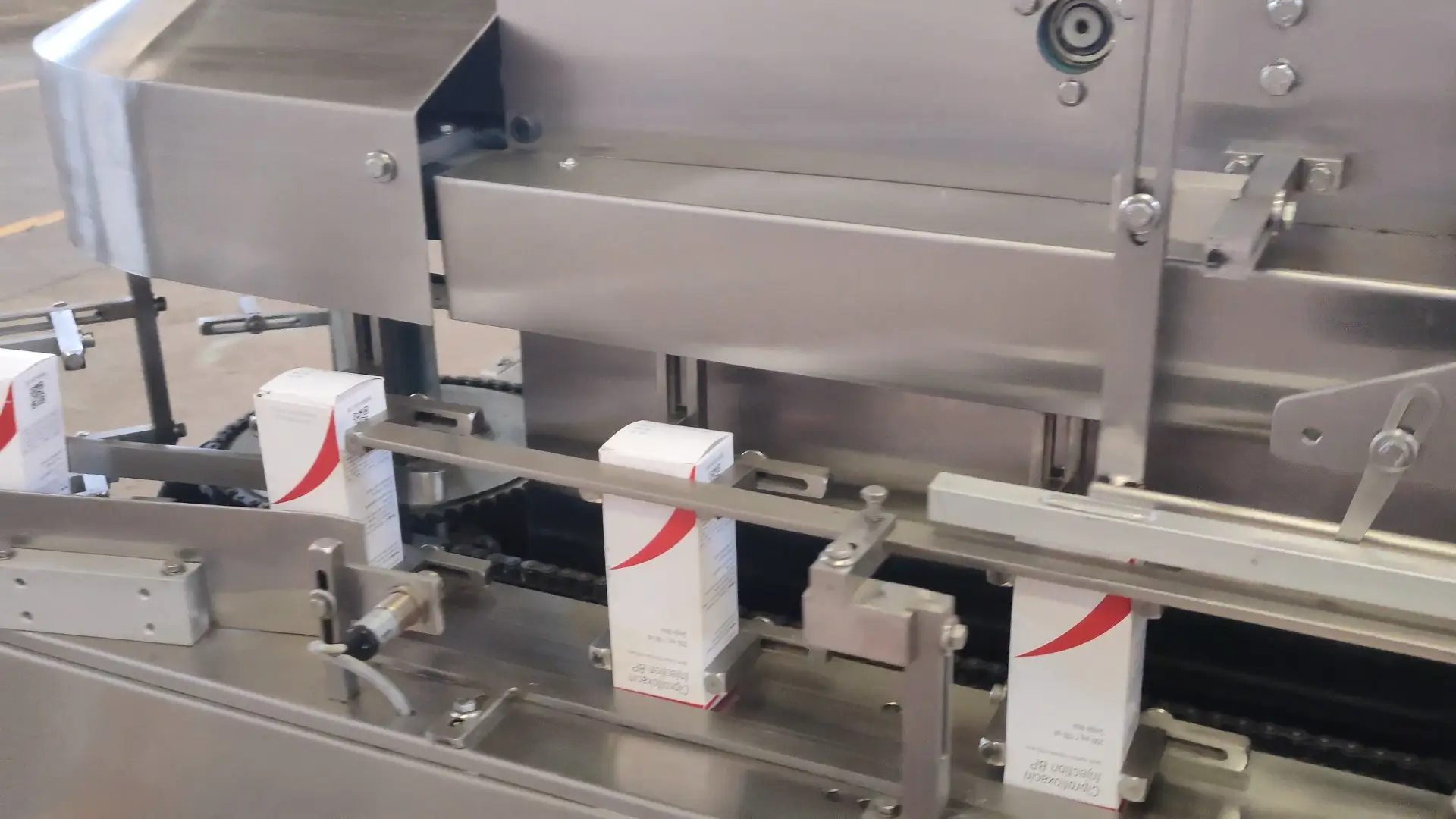

The cartons loaded in the carton loading channel of the cartoning machine are picked up with a vacuum cup transferred to rotating pockets which moves into linear motion over the bottom closing unit which closes the carton bottom. After that operator needs to fed the product and leaflet into cartons manually. The filled cartons are then moved further in linear motion in pockets under the top closing unit which closes the top. Finally pocket releases the cartons on the conveyor.

Model HMPL–SAC–120
Carton Length 40 mm to 80 mm
Carton Width 15 mm to 80 mm
Carton Height 40 mm to 200 mm
Carton Type Tuck-in type
Carton Size (L x W x H) As per Samples
Leaflet Size (Folded) (L x W) As per Samples
Output Speed 80 to 100 Cartons/Minute | 60 to 80 Cartons/Minute | (Depends upon product, carton shape & size & operator efficiency)
Required Operators Six
Working Height 875 ± 50 mm
Power Consumption
Main Motor
2 HP / Three Phase / 415 V AC / 50 Hz
Power Consumption
Vacuum Pump
1 HP / Three Phase / 415 V AC / 50 Hz
Net Weight Approx. 900 Kg
Dimensions Approx. 3500 mm L × 1250 mm W × 1200 mm H

Utility Requirement:

Electrical Supply 3 Phase + Neutral + Earthing
Electrical Load 2 KW
