Magnifying Glass Conveyors

Magnifying Glass Conveyors are systems or equipment that include magnifying glasses integrated into a conveyor system for packaging in-line.

Magnifying Glass Conveyors

Magnifying Glass Conveyors for Packaging Line

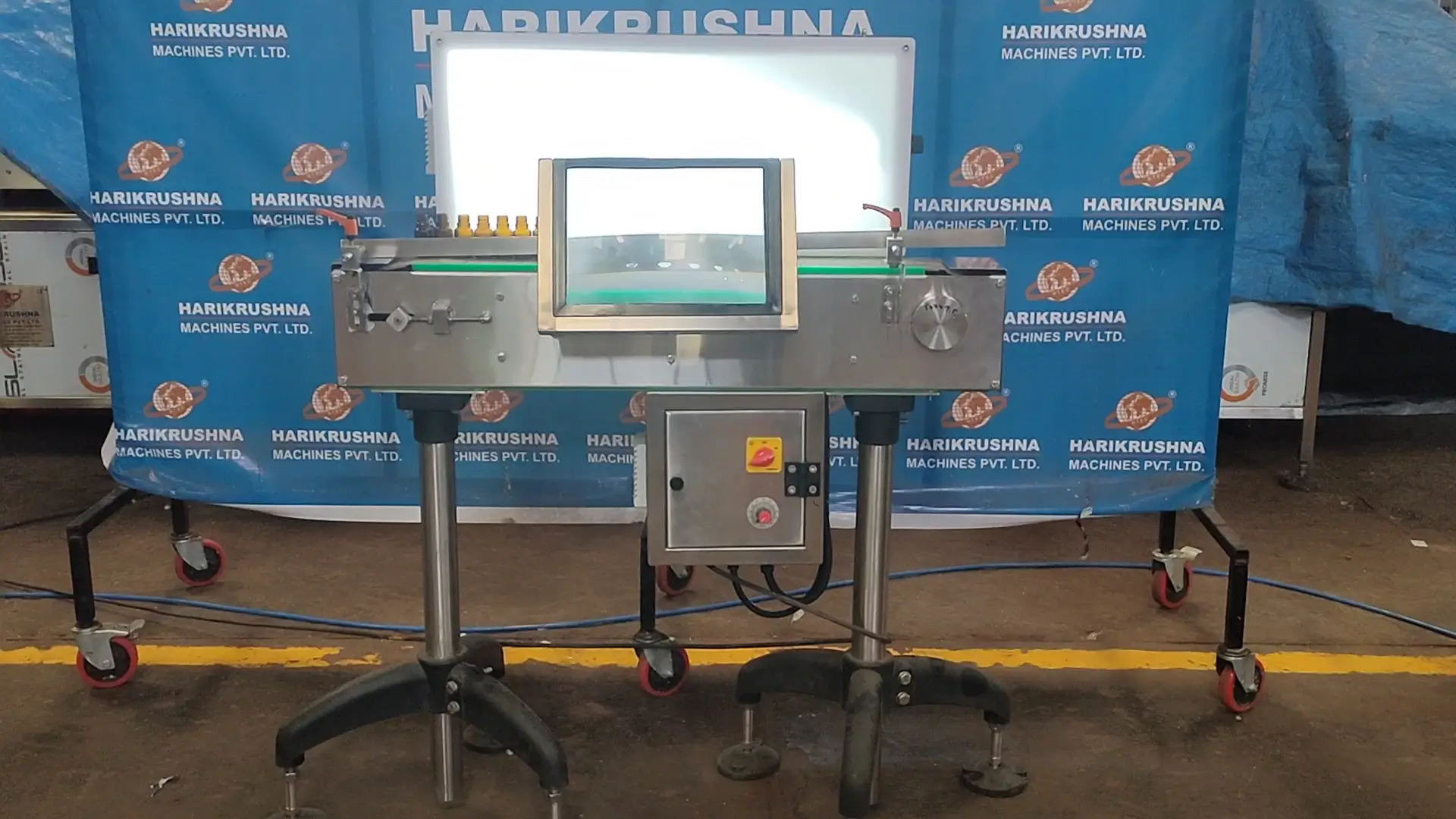

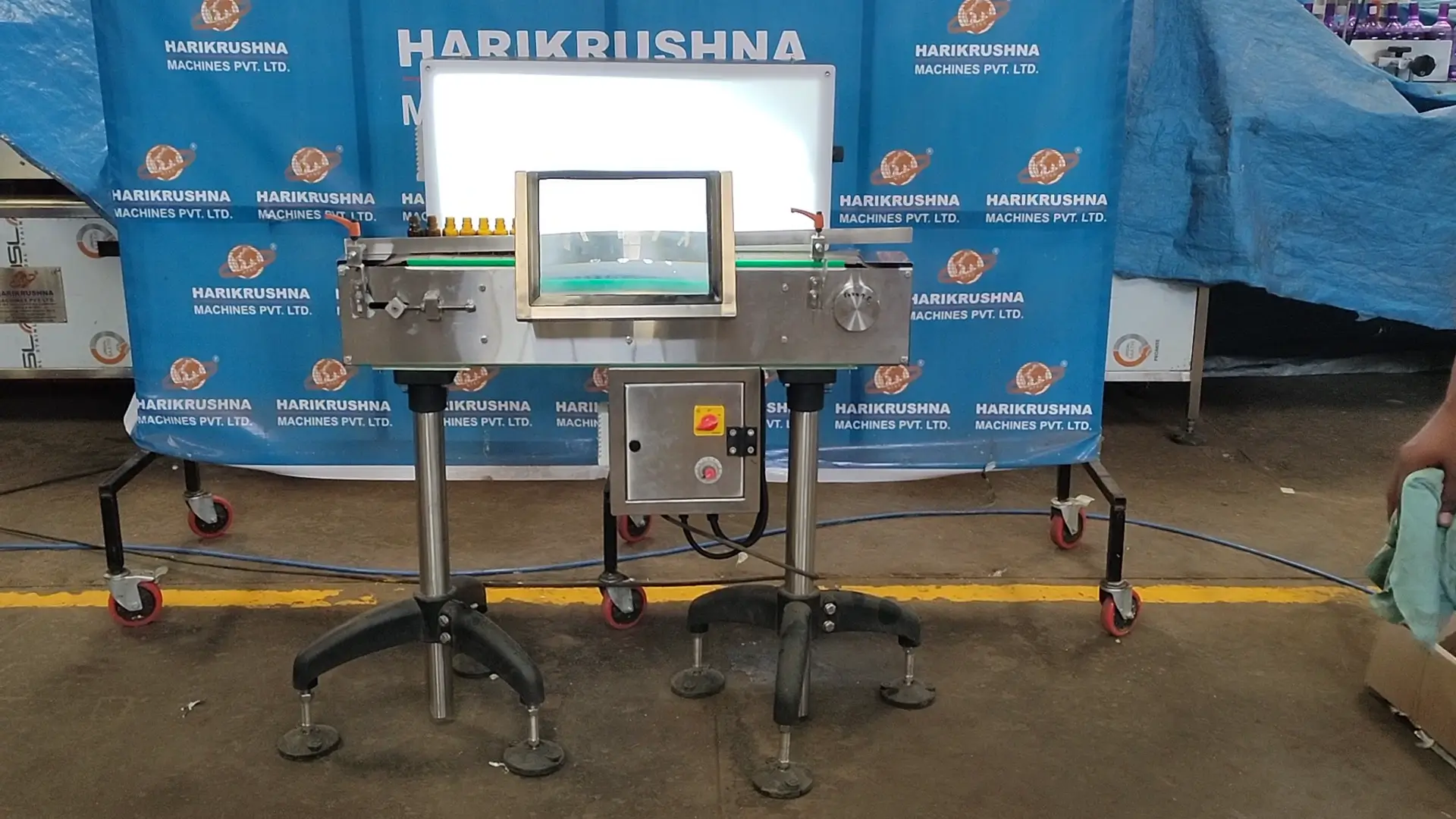

Magnifying Glass Conveyors are systems or equipment that include magnifying glasses integrated into a conveyor system for packaging in-line. The Visual Inspection Conveying System consists of a main structure, product transmission belt with an adjustable guide, tube light with white box, magnifying glass, AC Drive, motor & mains ON/OFF. Conveyor with Magnifying Glass helps with detailed inspection or quality control process. Operators can closely examine products moving along the conveyor for defects, precision, or other specific characteristics. Harikrushna Machines Pvt. Ltd. provide Magnify glass with an inspection conveyor separately in the running line for further process. Therefore, We integrate optional incomplete filling line automation.

Pre-Inspection Conveyor with a Magnifying Glass & Back Light | Magnifying Glass Conveyor Manufacturer and Exporter in India

Harikrushna Machines Pvt. Ltd. is an ISO 9001:2015 & CE-certified Bottle Inspection Machine manufacturer and exporter in Ahmedabad, Gujarat, India.

Bottle Inspection Machines are useful for various industries.

  • Beverages
  • Cosmetics
  • Dairy
  • Distilleries
  • Edible Oil
  • Food
  • Pharmaceuticals
  • Other Allied Industries

Key Features:

  • Integrated Magnification System:
  • Adjustable Magnification Levels:
  • Variable Conveyor Speed:
  • User-Friendly Controls:

Selecting Harikrushna Machines Pvt. Ltd. is a prudent choice for several compelling reasons:

  • A company certified under ISO 9001:2015 and holding the CE certification.
  • We are dedicated supporters of the Make in India initiative, proudly extending our services to the local Indian market and the global community.
  • Customer satisfaction is our top priority, and we provide tailored solutions to address individual packaging requirements.
  • With over 25 years of extensive industry expertise across diverse sectors
  • Team of skilled professionals and engineers dedicated to delivering prompt and top-notch pre-and post-sales services.

Magnifying Glass Conveyors
Magnifying Glass Conveyors
Magnifying Glass Conveyors
Magnifying Glass Conveyors
Magnifying Glass Conveyors
Magnifying Glass Conveyors
# Model Output Speed
1 HMPL-VIC-MG5 Variable Speed
  • The conveyor is manufactured or developed per GMP standards.
  • SS square pipe frame structure construction.
  • SS slat chain is used for the conveyor.
  • Conveying system to convey the product with an easily adjustable side guide.
  • The conveying system is equipped with an imported AC frequency variable drive for variable speed with constant torque.
  • A magnifying glass magnifies the image of the product in a ratio of 1:3.

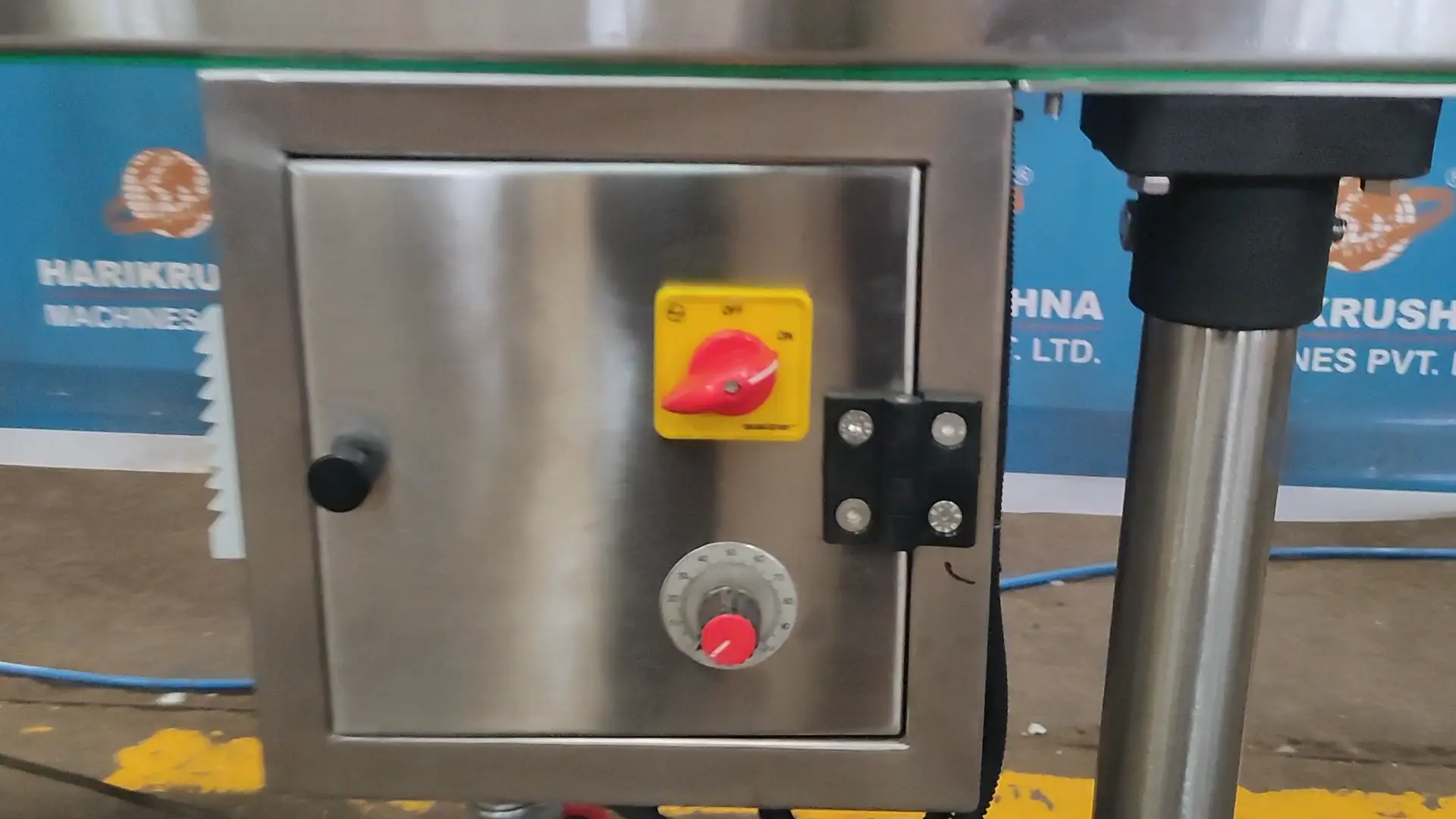

  • AC variable drive for variable speed as per product size. The drive is fitted in the control panel below the conveyor.
  • Most reliable and proven components such as electrical/electronic such as AC motor, AC Drive, MCBs & relay “CE” certified.

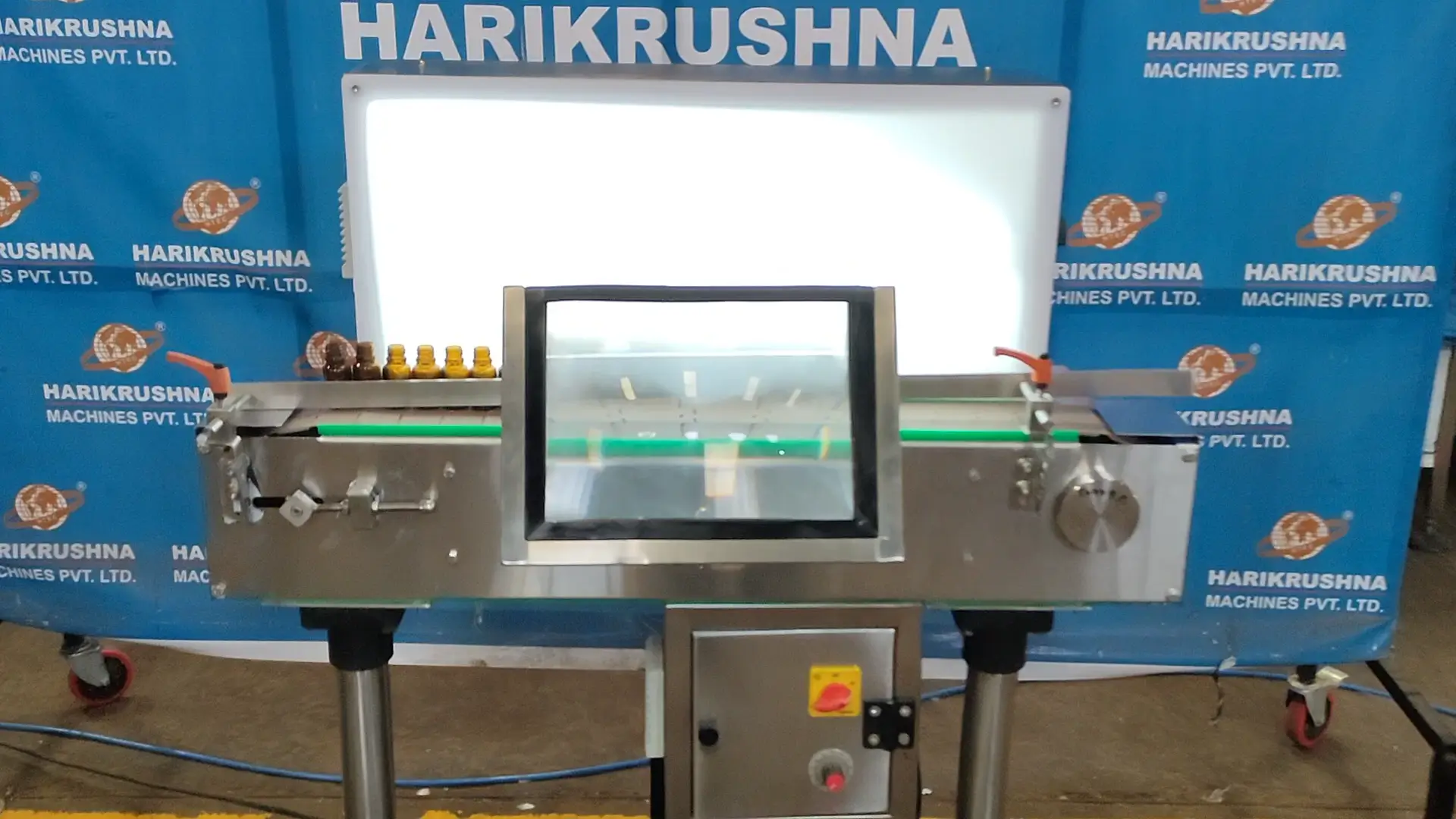

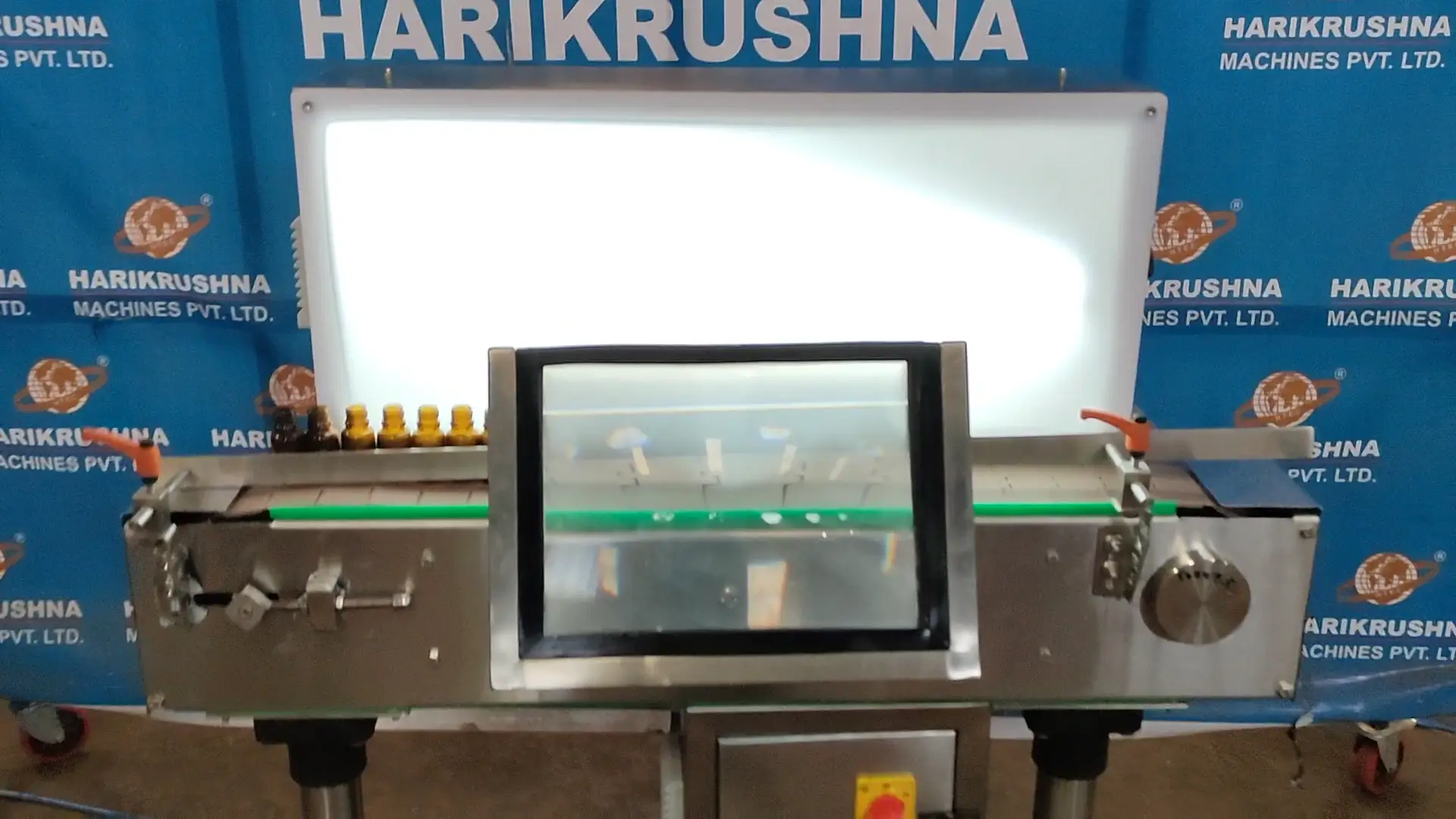

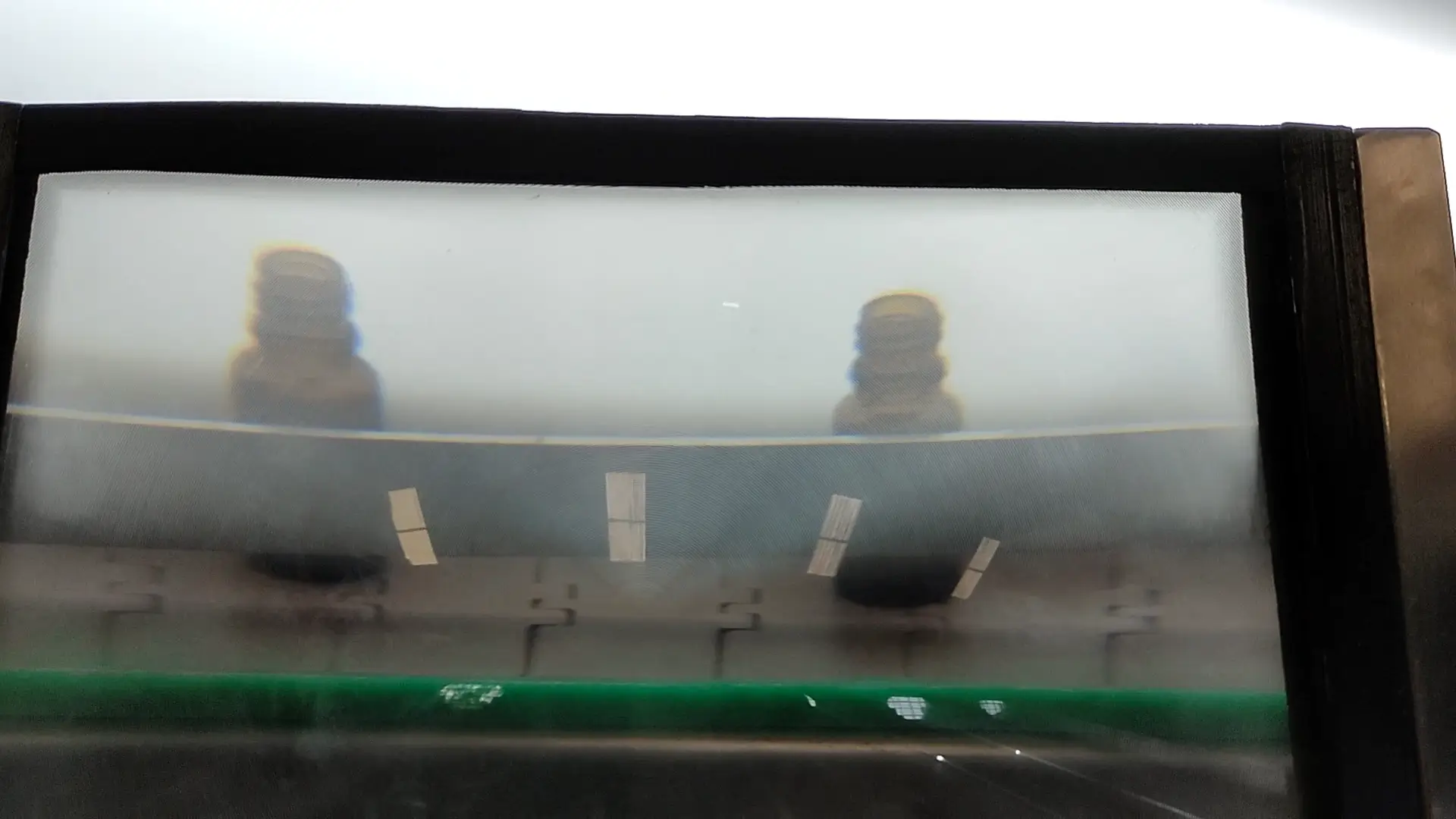

  • Bottles come from the turn table to the visual inspection conveyor, which then passes between the magnifying glass & the lightbox, fitted on the conveyor.
  • With the help of a large image through a magnifying glass, the bottles are checked with respect to cracks, breakages, foreign particles etc. to ensure the passing of good quality bottles for further filling process.
  • If any defect as mentioned above is found within the bottles, then the bottles are removed manually.
  • Defect-free bottles move further for further filling process.
Model HMPL–VIC–MG5
Bottle Shape & MOC Round Glass/PET Bottles
Bottle Filling Volume 30 ml to 200 ml
Output Speed Variable Speed
Working Height 875 ± 50 mm Adjustable
Power Supply Single Phase / 230 V AC / 50 Hz
Net Weight Approx. 75 Kg
Dimensions Approx. 1525 mm L x 100 mm W x 875 + 50 mm H
