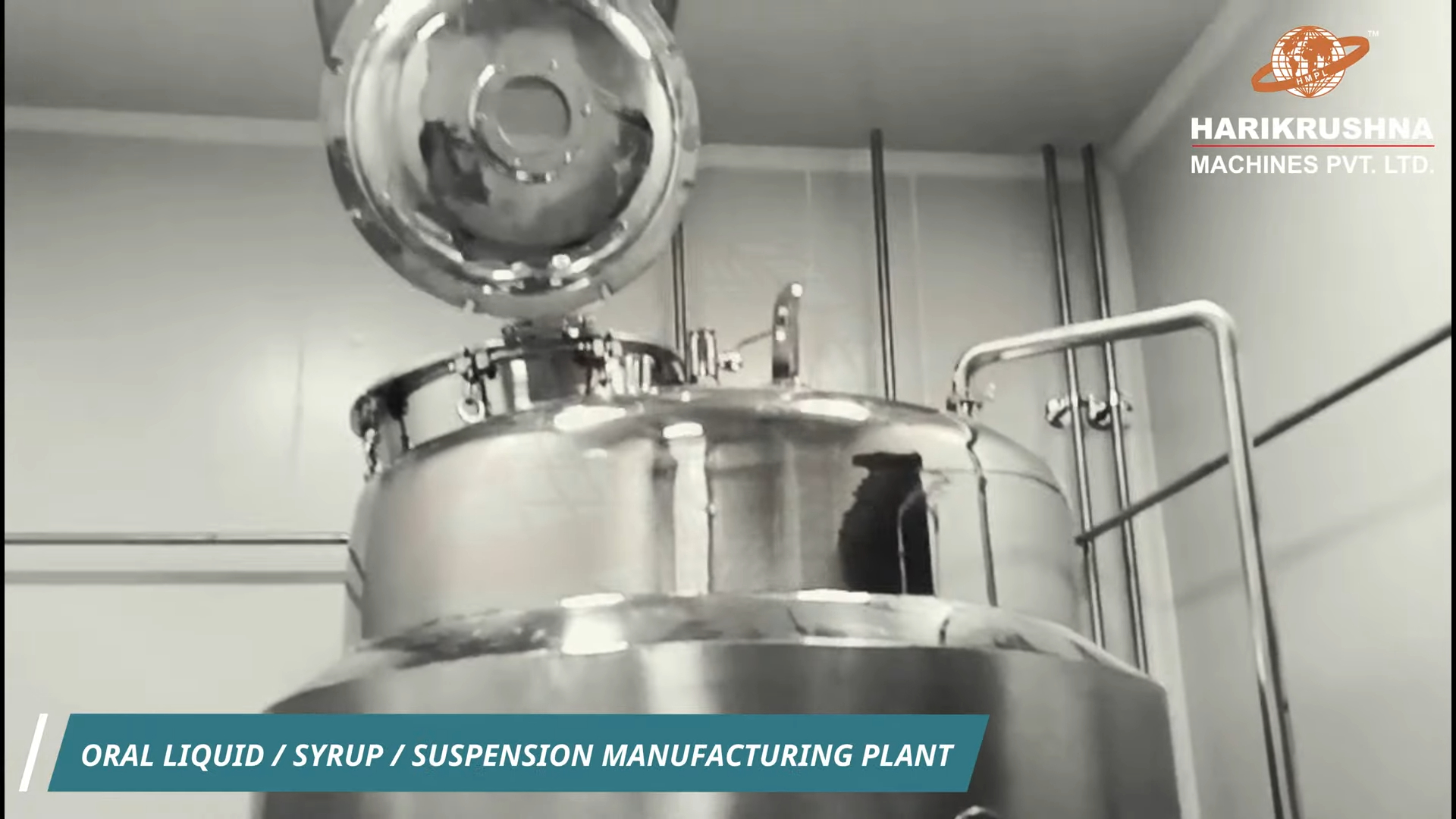

    Oral Liquid / Syrup / Suspension Manufacturing Plant

    Oral Liquid / Syrup / Suspension Manufacturing Plant system consist of a closed circuit manufacturing facility from feeding of Sugar / Water Phase to loading the Volumetric Liquid Filling Machine. It is consist below items.

    Capacity: 500 Liters to 15000 Liters

    BRIEF OF MACHINE:

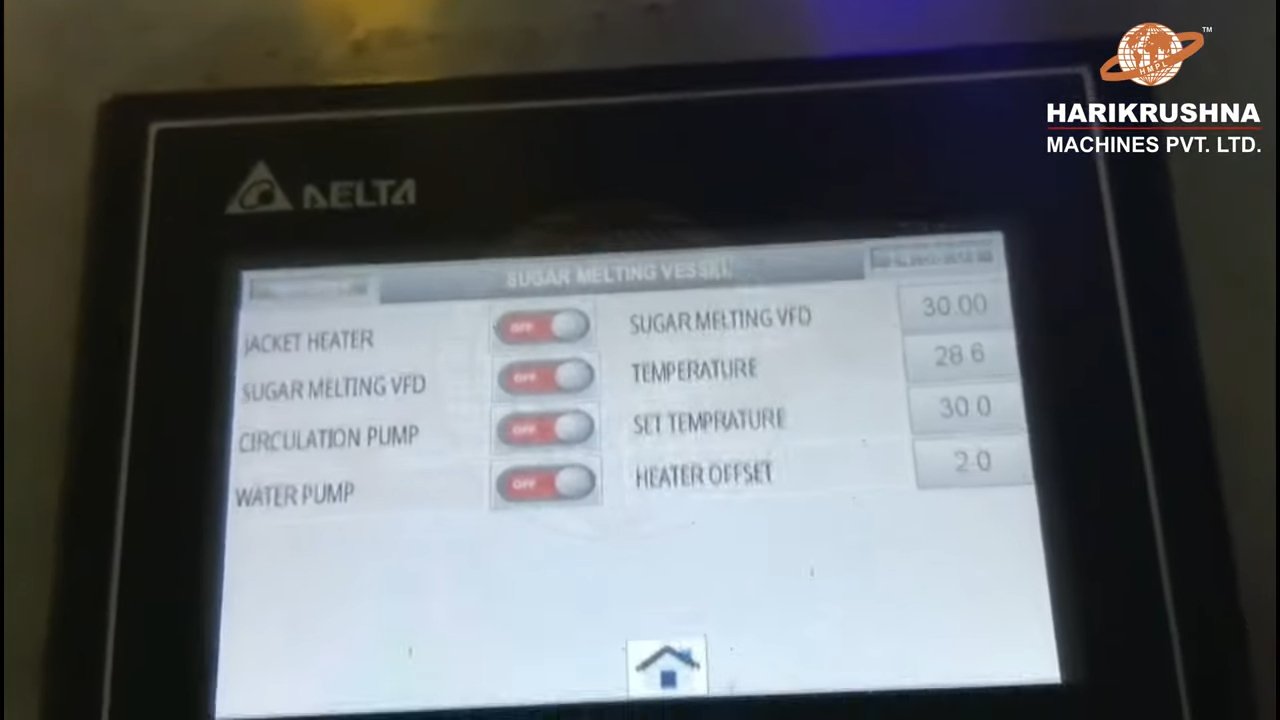

    Sugar Melting Vessel

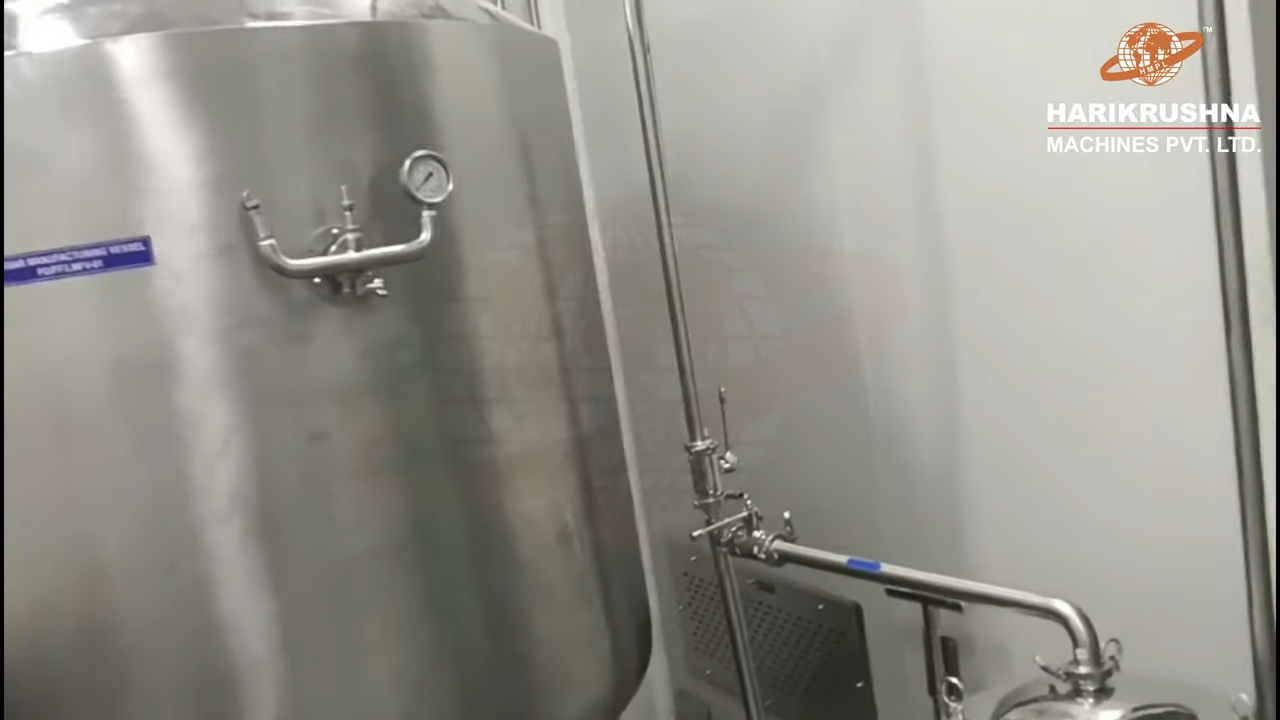

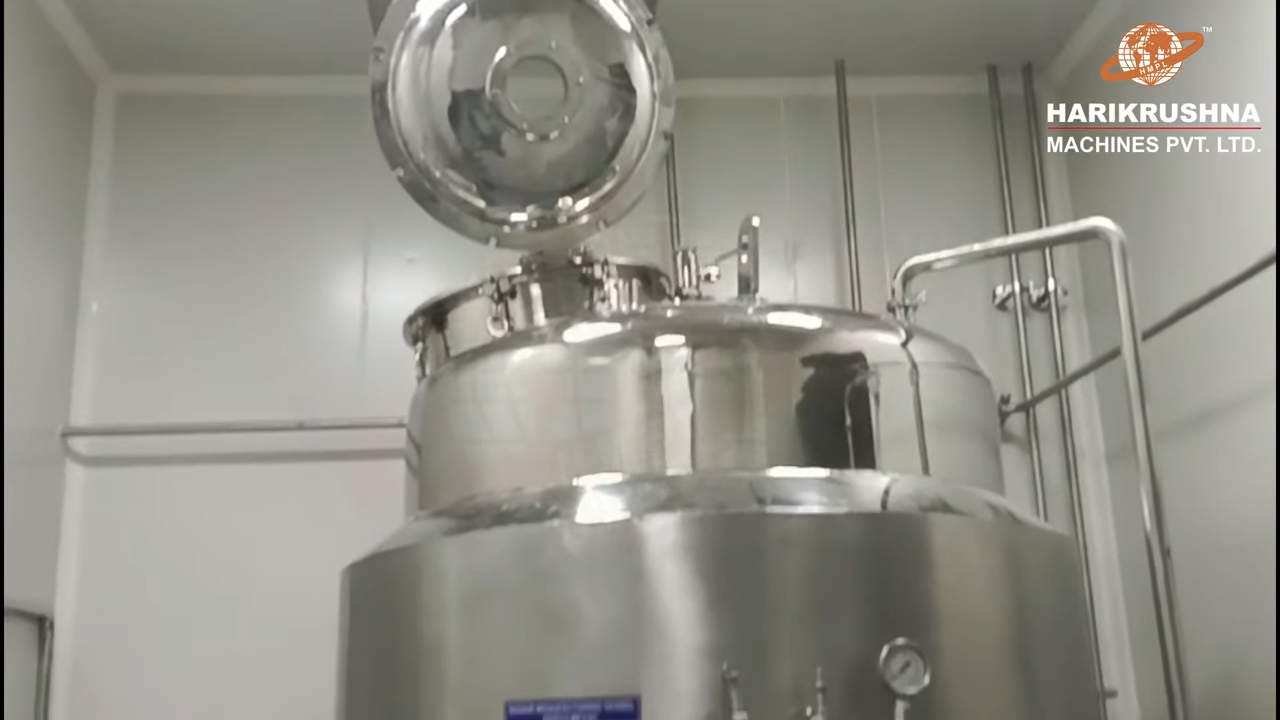

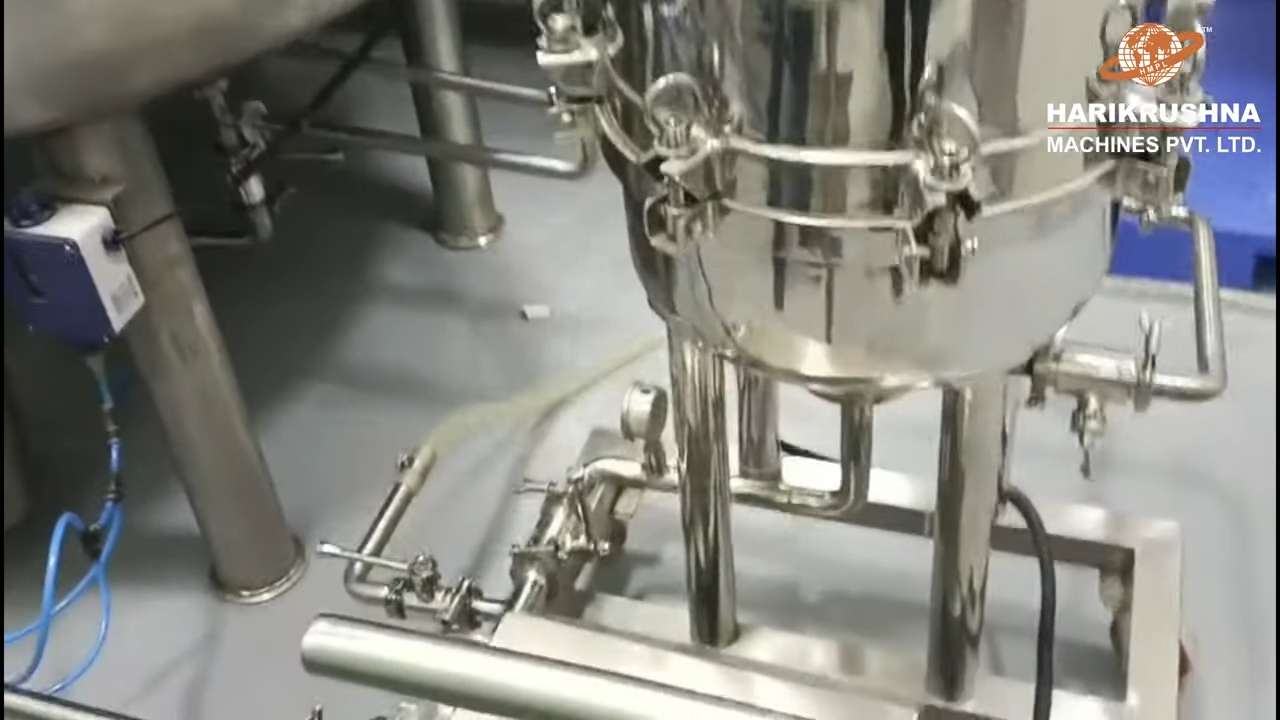

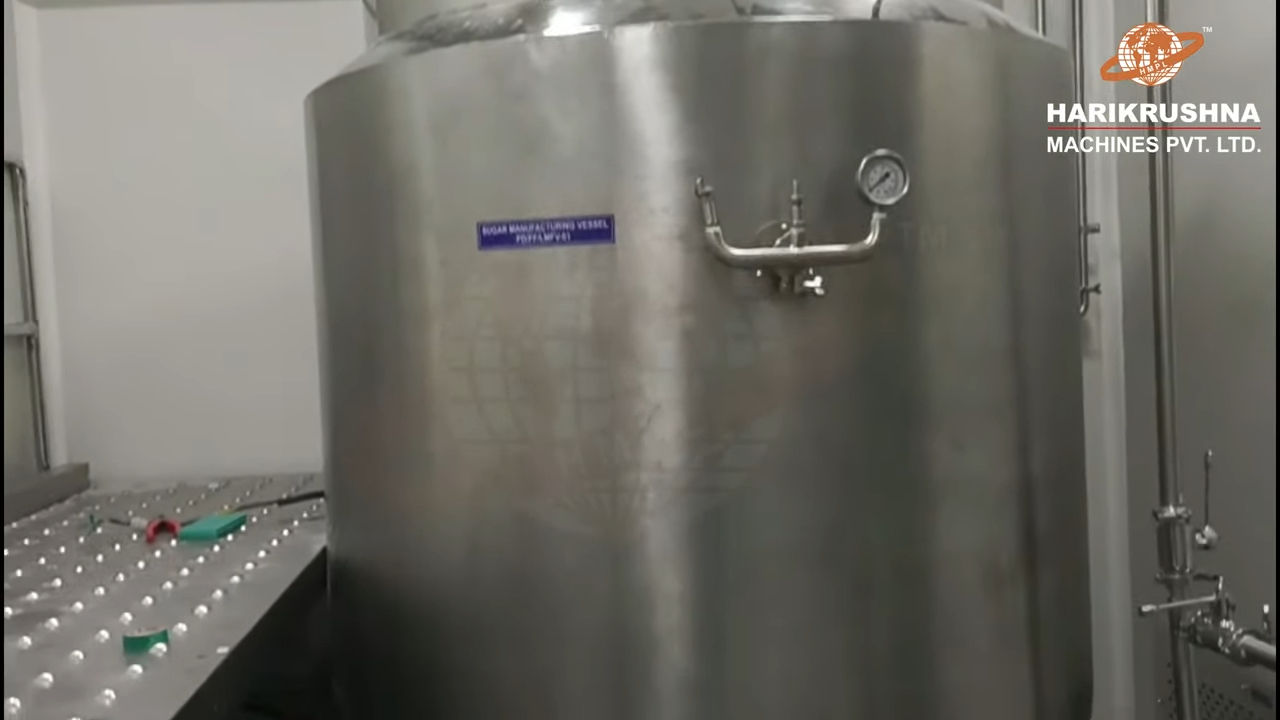

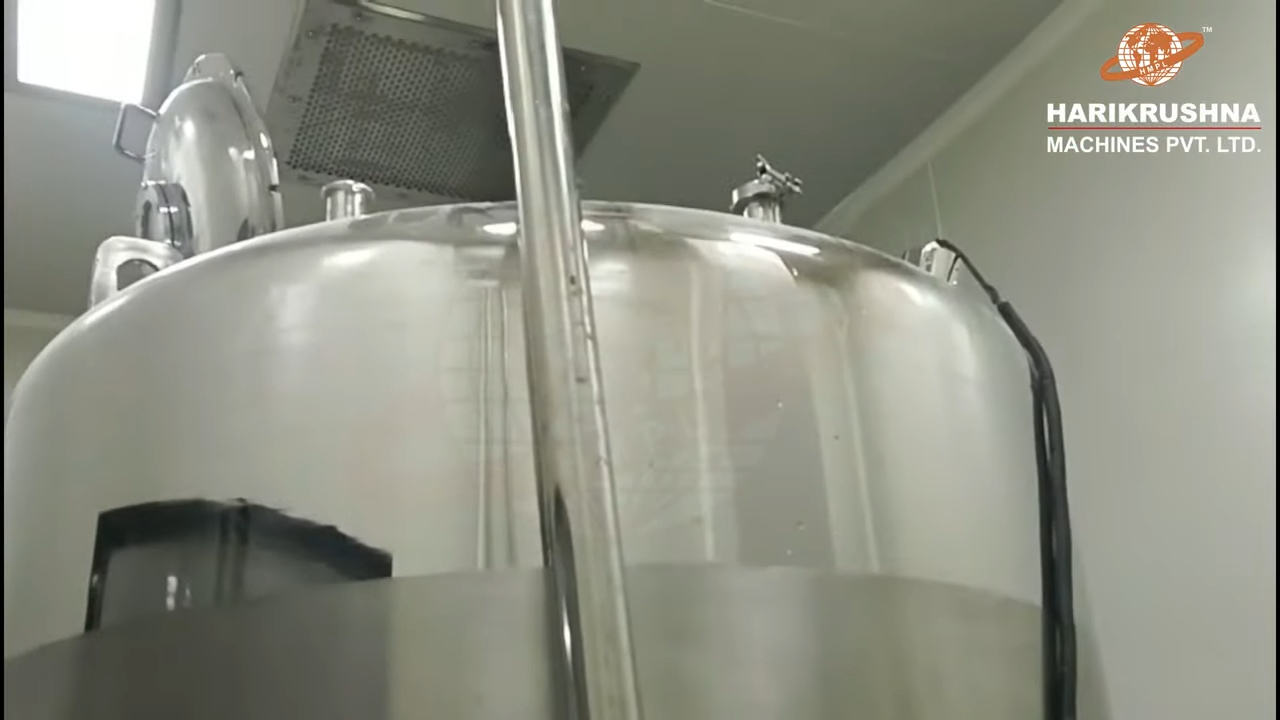

    Manufacturing Vessel

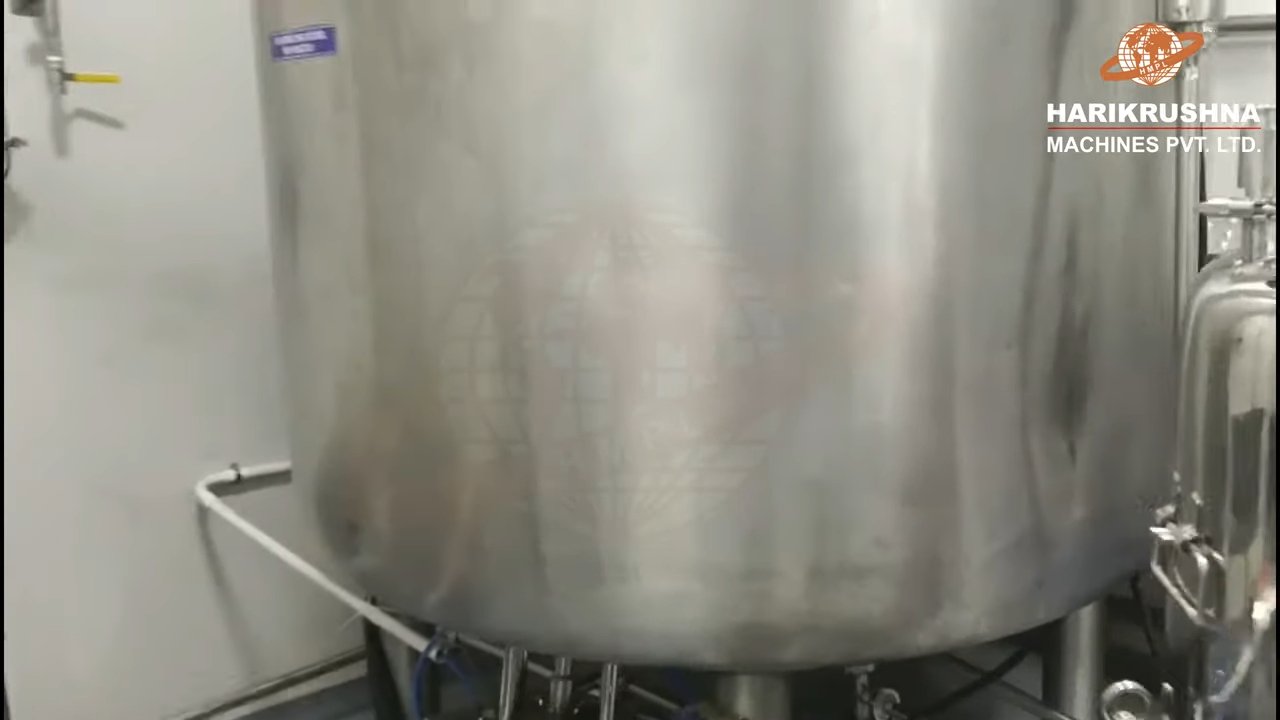

    Storage Vessel

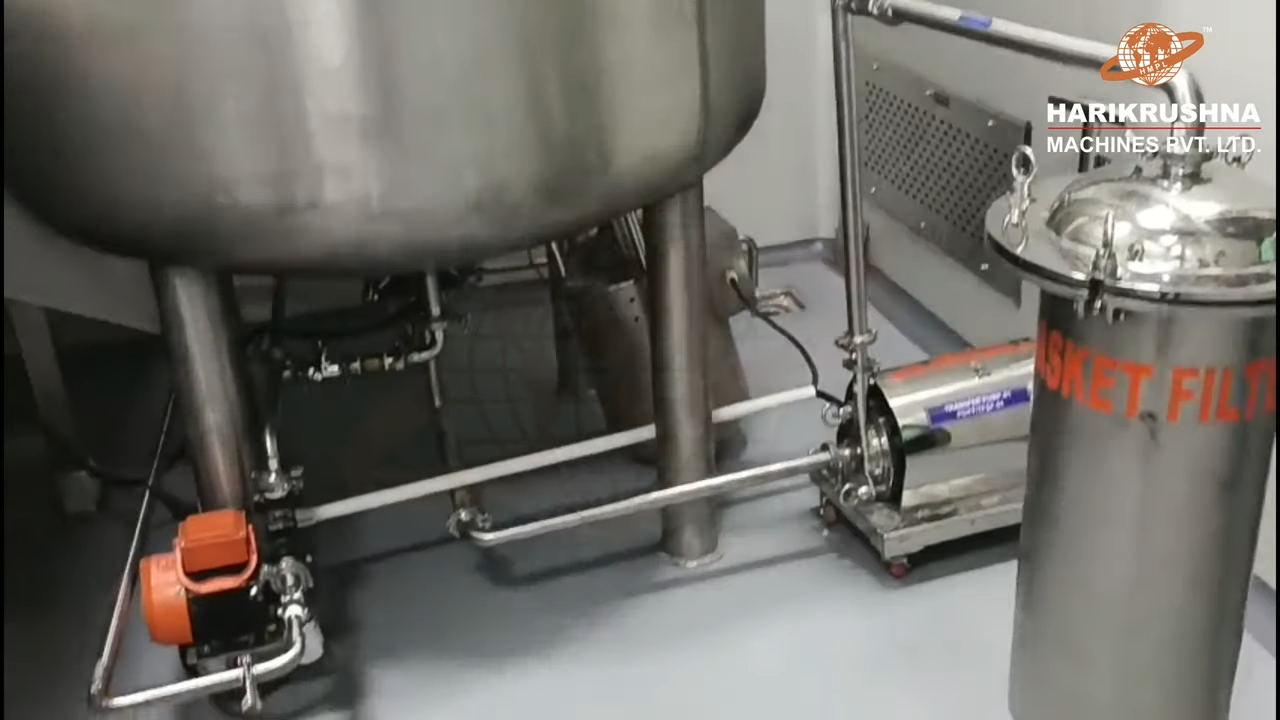

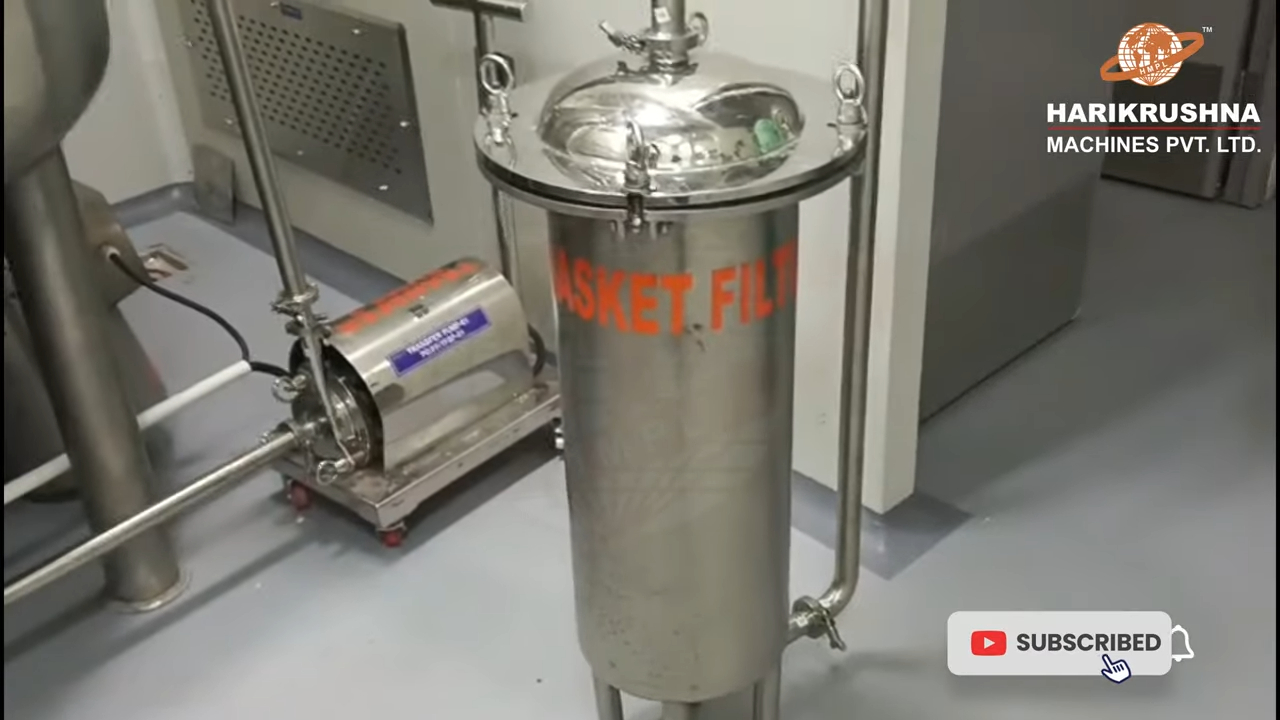

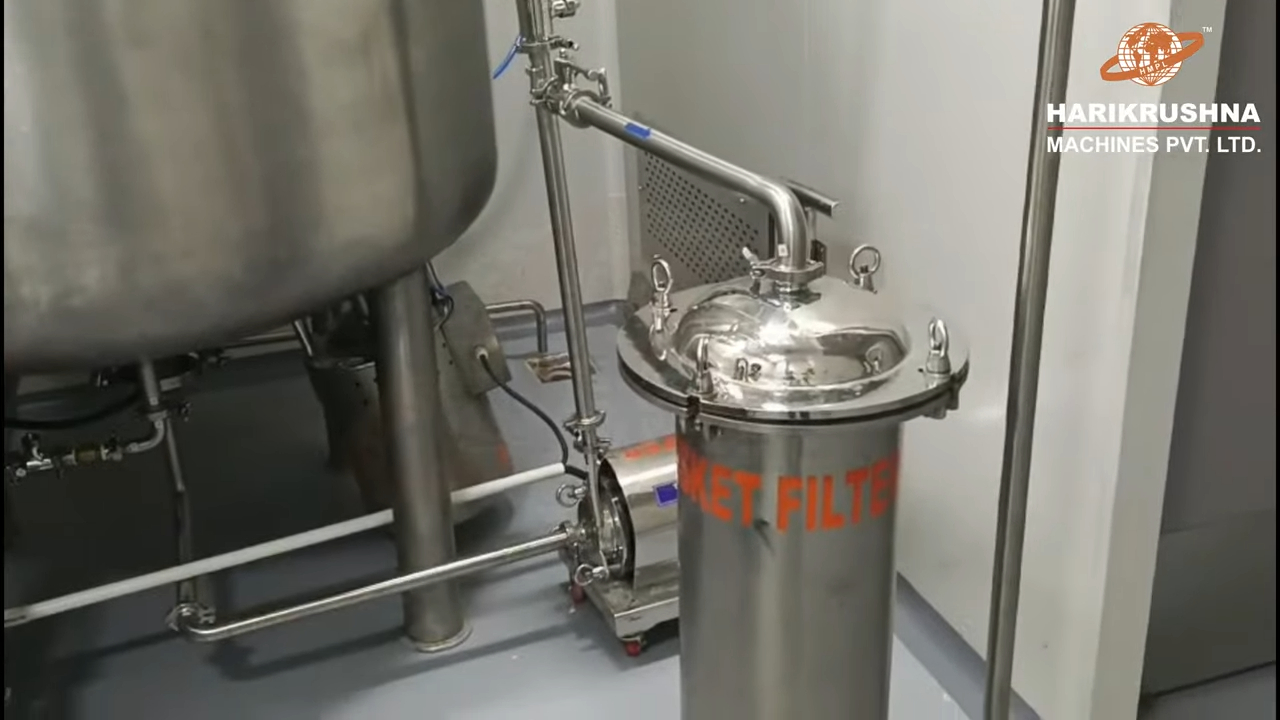

    Bag Filter (Basket Filter)
    Zero Hold Filter Press
    Inline Homogenizer
    Product Piping of Complete Plant

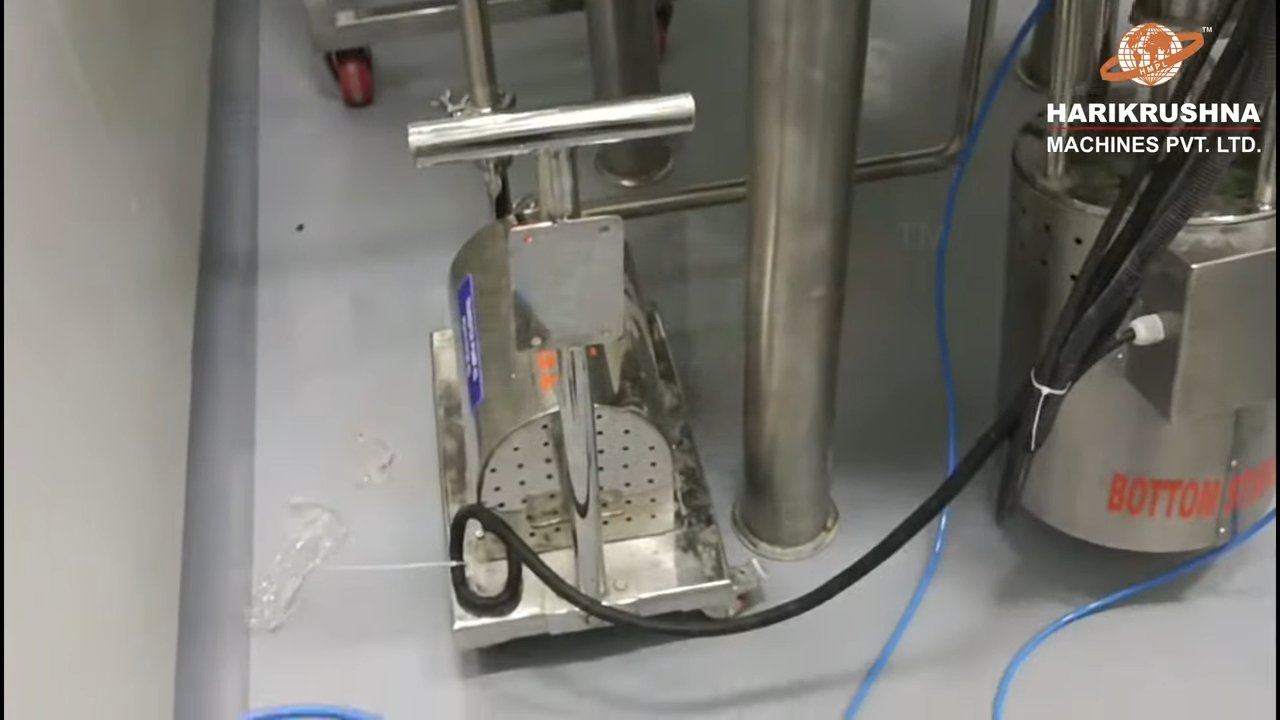

    Transfer (Centrifugal) / (Lobe) Pump
    Working Platform

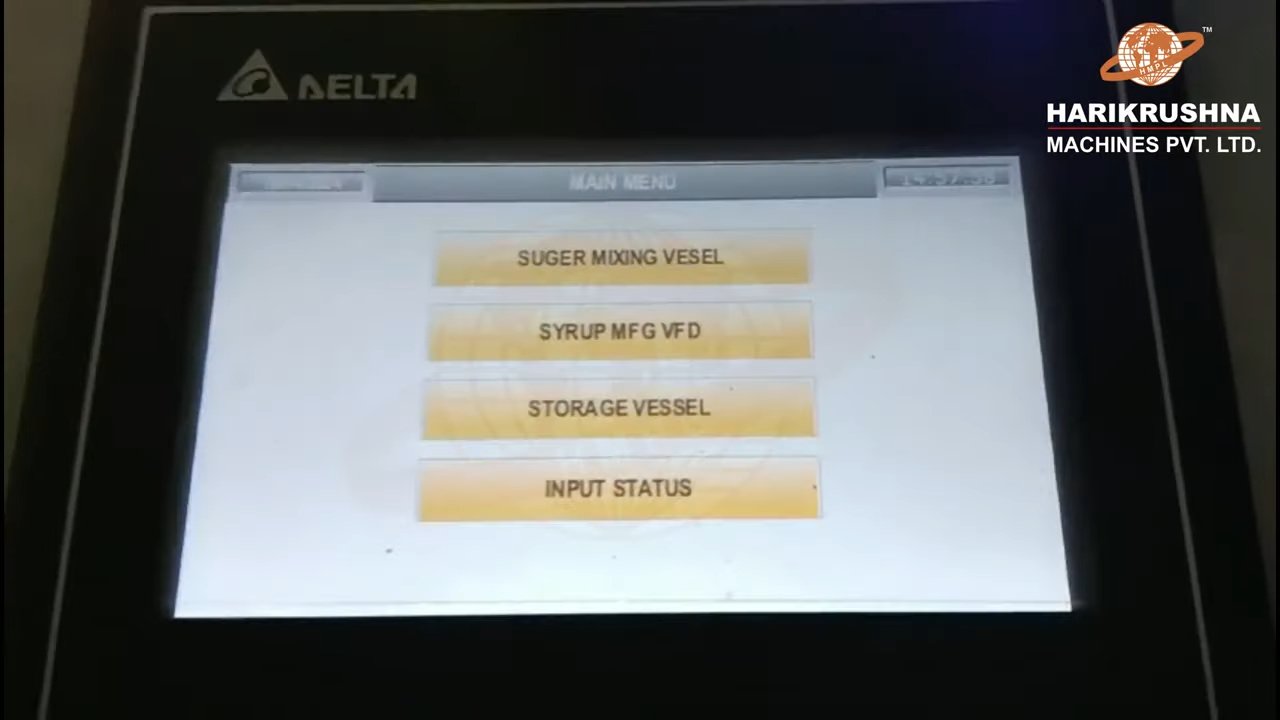

    Control Panel
    Steam / Electrical Operated

    SALIENT FEATURES:-

    Liquid sugar syrup vessel offering no vibrations of shaft
    There is no coupling in drive assembly that provides for lower maintenance costs of manufacturing and storage vessel
    All contact parts are SS 316 and non-contact parts are SS 304
    SS 316 construction based pipes, inter connecting piping
    Pipes and fittings coming in seamless, internally electro polished finish as per DIN standard and unions
    Designed for internal vacuum to facilitate transfer of sugar directly from stores to sugar syrup vessel
    Melted sugar is transferred to manufacturing vessel through online bag filter and syrup transfer to storage vessel through filter press

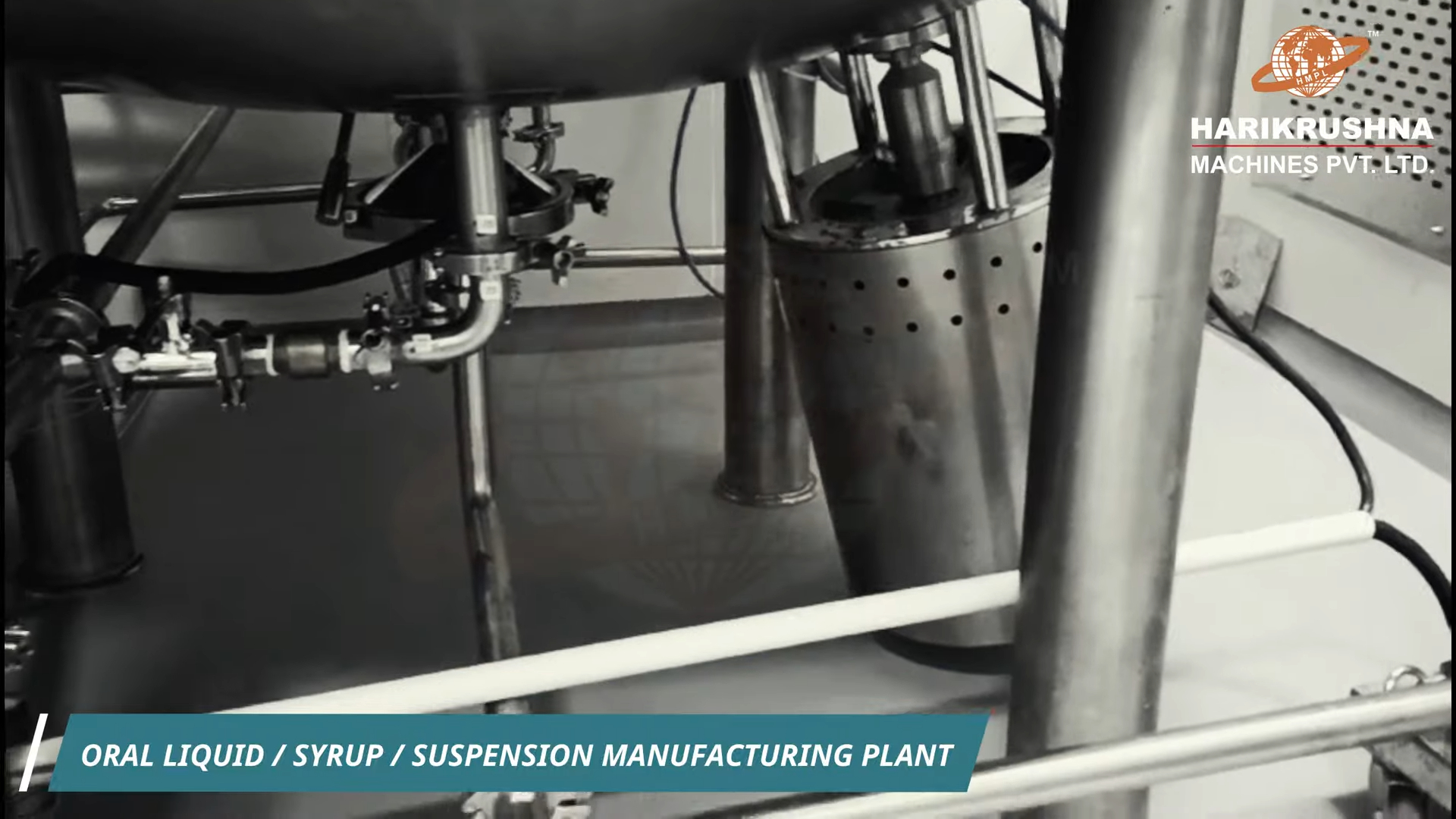

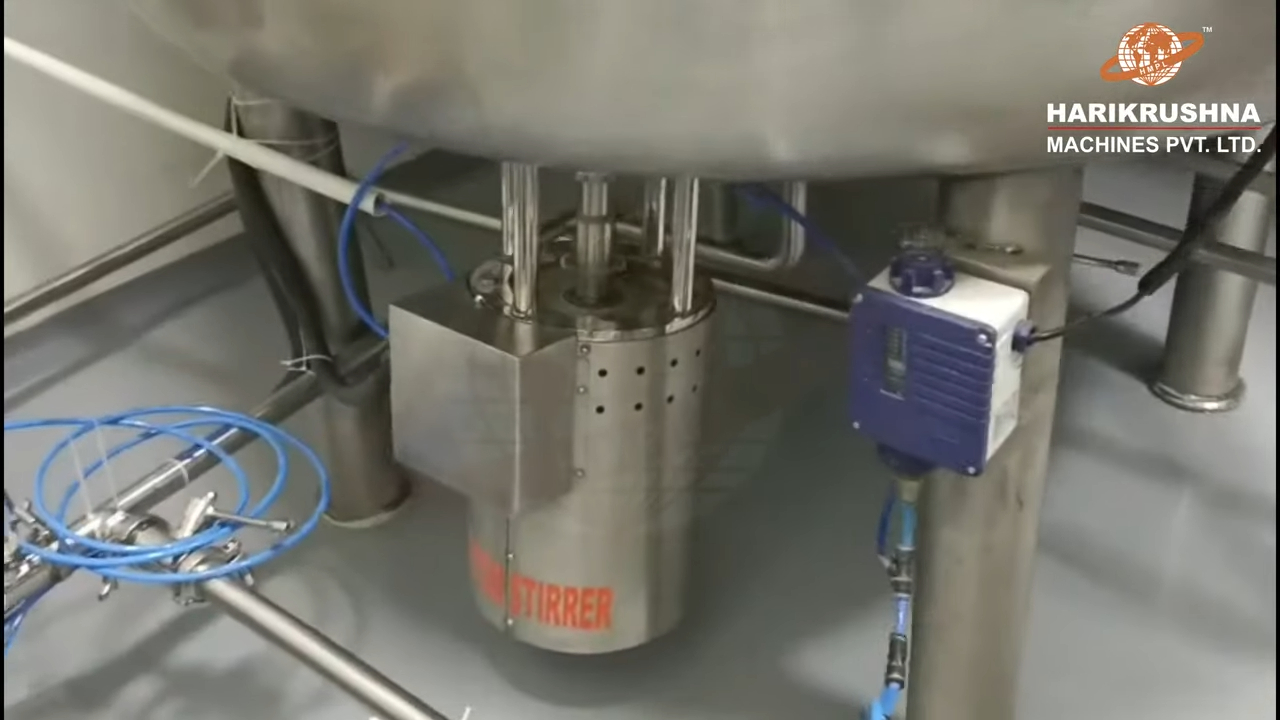

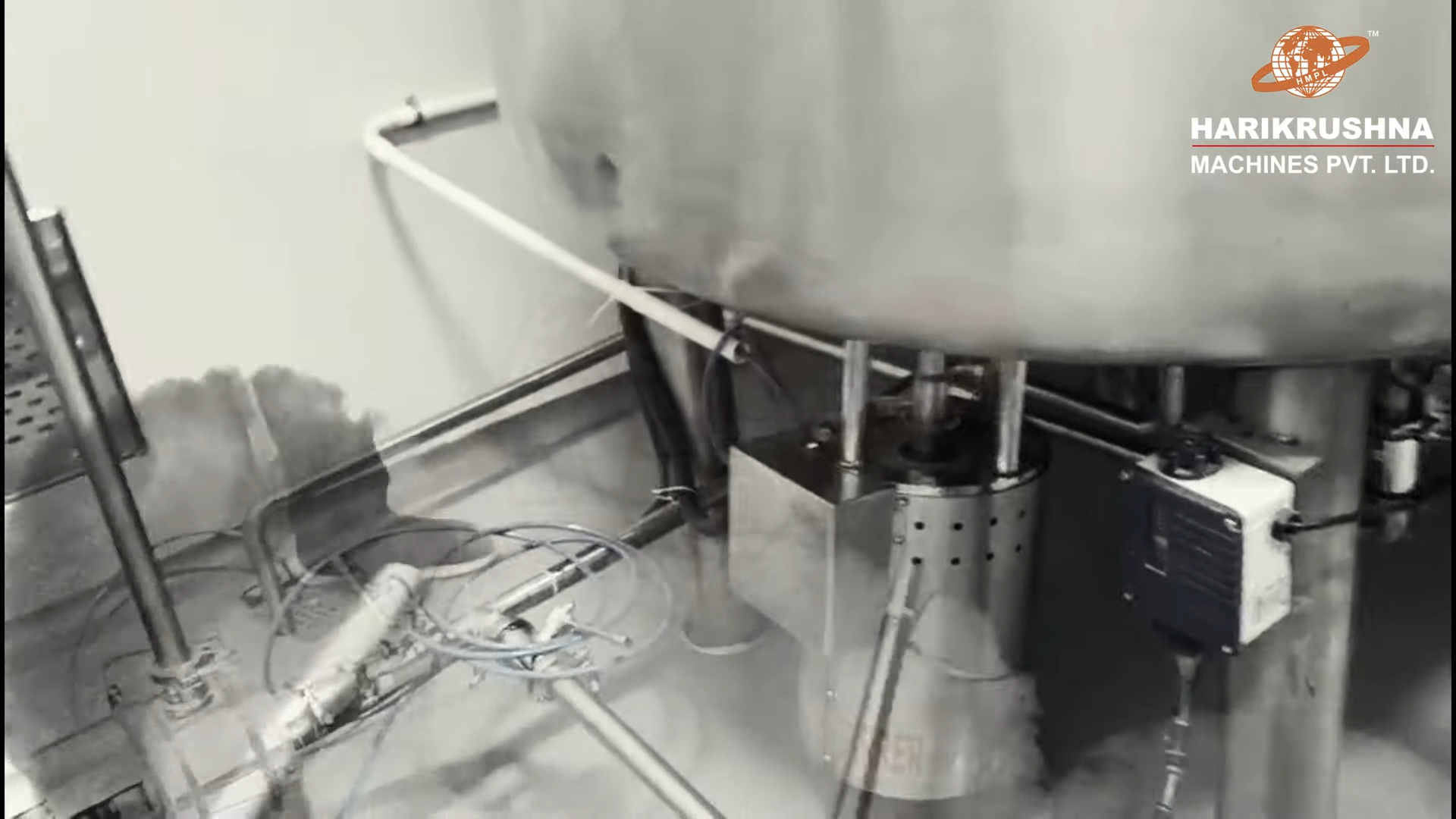

    Entry of all propeller agitations are from top or bottom through a specially designed mechanical seal face
    Capacity: 500 Liters to 15000 Liters

    OPTIONAL

    SUGAR SYRUP AND MANUFACTURING VESSELS ARE PROVIDED WITH LIMPET COILS FOR HEATING AND COOLING
    LOAD CELL FOR ACCURATE WEIGHING

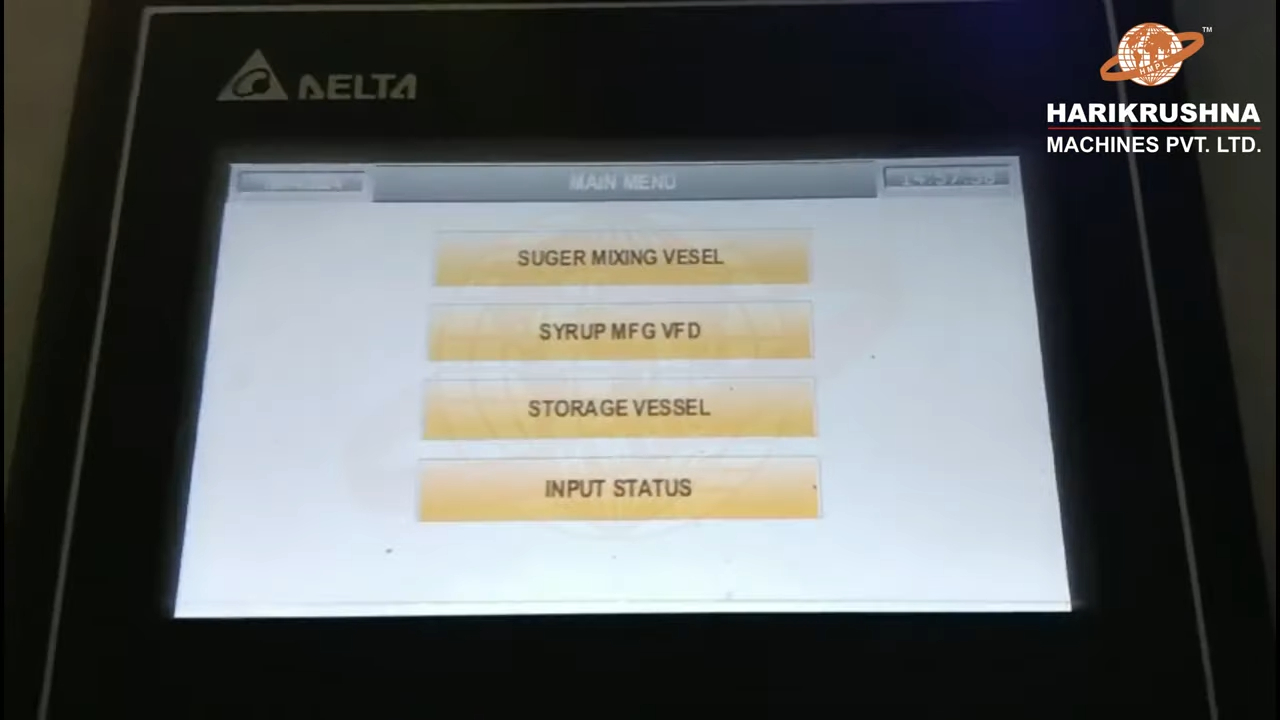

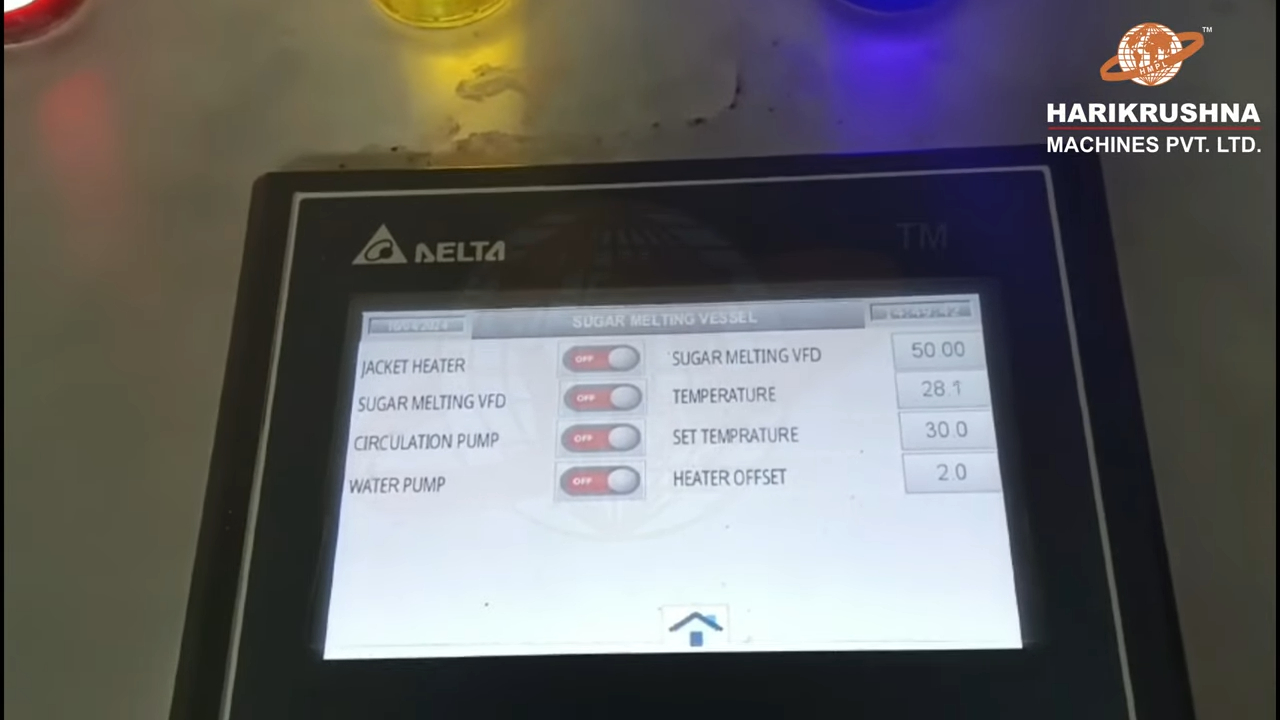

    PLC BASED CONTROL PANEL FOR PROCESS AUTOMATION
    UTILITY PIPING UNDER WORKING PLATFORM
