Chutney Filling Machine

The Chutney Filling Machine by Harikrushna Machines Pvt. Ltd. (HMPL) delivers precision volumetric packaging for viscous culinary condiments. Specifically, this automated packaging system handles mango chutney, tamarind date sauce, spicy mint puree, and particulate relishes. Food processing plants achieve consistent container fill weights without product splashing across glass jars, PET tubs, and bottles.

Chutney Filling Machine Precision Dosing for Particulate and Chunky Pastes

Ethnic culinary chutneys contain suspended whole spices, fruit particulates, and fibrous ginger shreds requiring delicate volumetric displacement. Therefore, HMPL equips this Chutney Filling Machine with heavy-duty servo-driven positive displacement piston cylinders. Furthermore, wide-port rotary spool valves pass chunky fruit pieces up to 8mm without crushing or shearing. Consequently, commercial food processors preserve authentic homemade texture, ingredient visual appeal, and repeatable ±0.5% fill accuracy. Packaging plants can also pair this system with our specialized Jam Filling Machine for sweetened fruit marmalades and preserves.

Corrosion-Resistant AISI 316L Metallurgy and Jacketed Buffer Hopper

Natural tamarind acids, vinegar, and high salt concentrations create an aggressive low-pH corrosive packaging environment. For this reason, all product-contact parts utilize sanitary Stainless Steel AISI 316L complying with FDA food safety regulations. Additionally, hot-fill mango chutneys require steady thermal regulation to prevent sugar crystallization and microbial contamination. Therefore, the machine features an insulated water-jacketed buffer hopper with a continuous slow-speed scraper agitator. Food facilities also utilize quick-disconnect Tri-Clamp connections for rapid Clean-In-Place (CIP) sanitation between pungent spice batches.

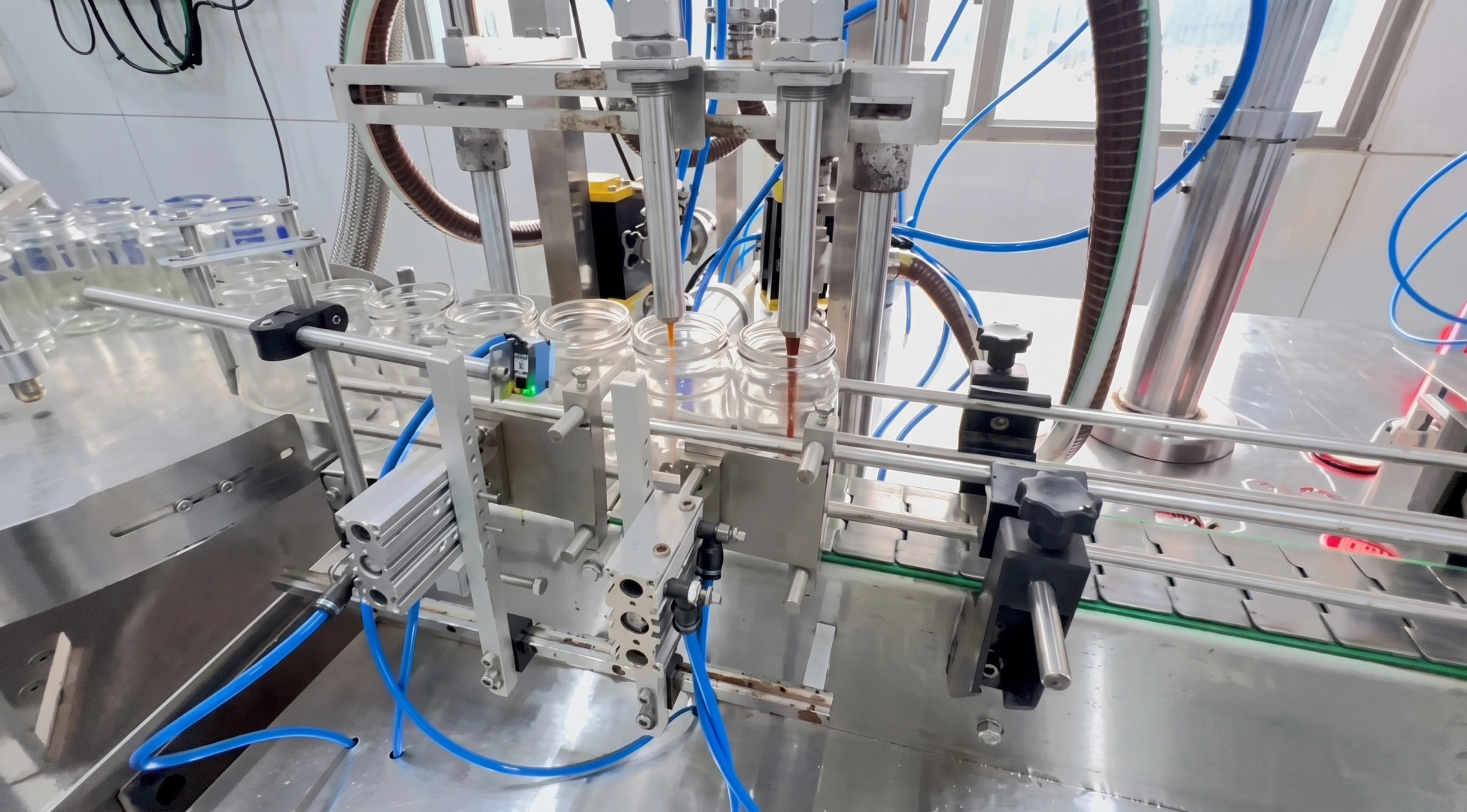

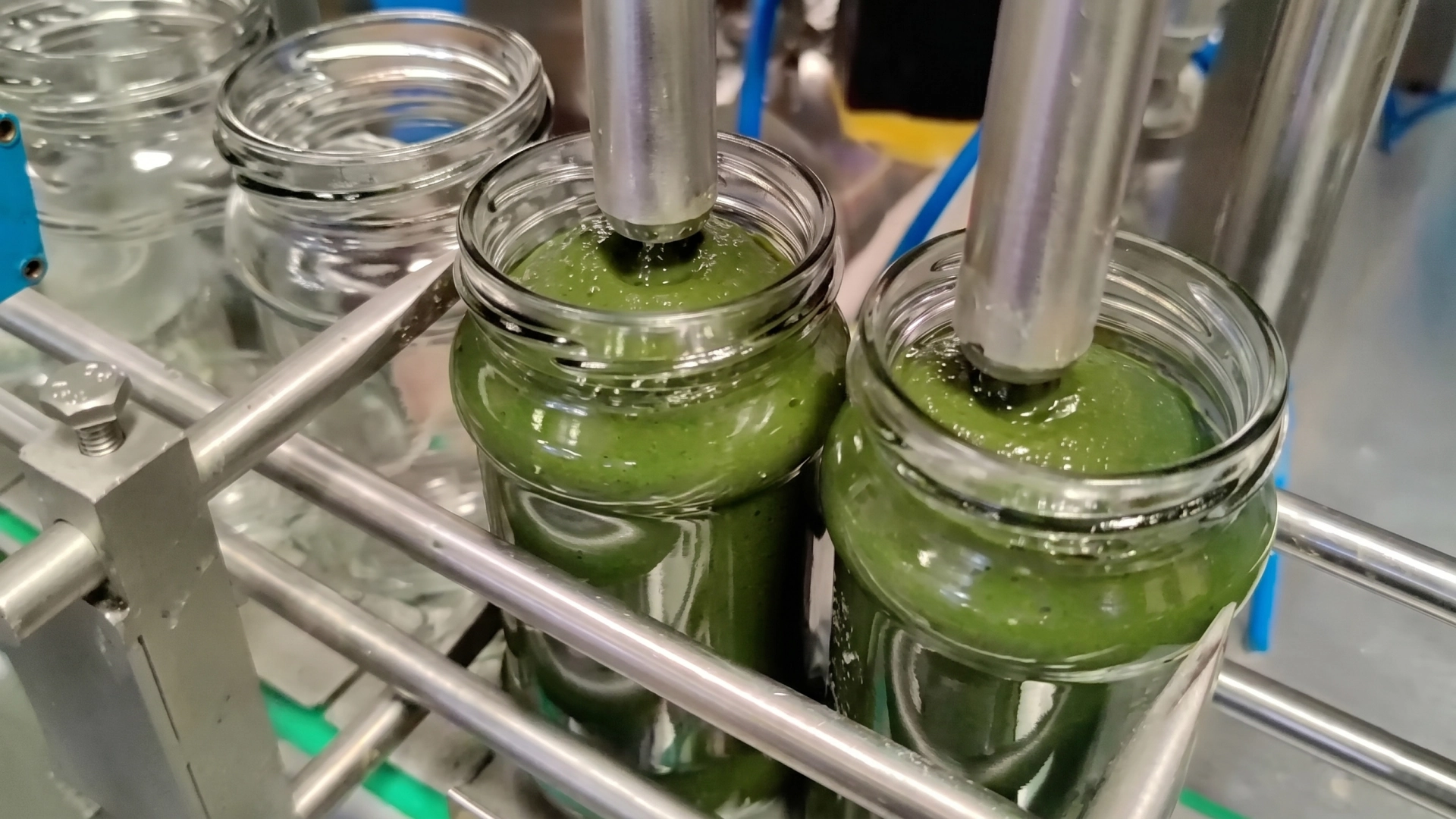

Bottom-Up Diving Nozzles with Anti-Drip Clean Cut-Off

Sticky chutney droplets on jar sealing threads burn, create sticky residues, and compromise induction foil sealing. Therefore, our Chutney Filling Machine employs motorized bottom-up diving nozzles with synchronized servo vertical motion. The dispensing nozzles descend to container bottoms and ascend smoothly with rising product levels. Furthermore, pneumatic positive shut-off cut-off valves provide instantaneous micro suck-back at cycle completion. As a result, food packers achieve immaculate jar finishes, void-free fills, and hermetic lid seal adhesion.

Automated Turnkey Chutney Packaging Line Integration

High-capacity condiment factories maximize overall throughput by synchronizing individual packaging operations into complete automated lines. Consequently, this filling platform integrates seamlessly with automated upstream bottle unscramblers and downstream capping machinery. Packaging engineers can pair the filler with our Automatic Lug Capping Machine for twist-off jar sealing. Furthermore, adding our high-speed Jar Labelling Machine ensures precision body sticker placement. Finally, food plants can incorporate our versatile Condiment Filling Machine to establish an advanced multi-sauce packaging facility.
