What is the production output speed of the Automatic Vial Sticker Labelling Machine?

The Automatic Vial Sticker Labelling Machine manufactured by Harikrushna Machines delivers an output speed of up to 120 containers per minute, depending upon container neck geometry, filling volume, and liquid viscosity characteristics.

What container formats and sizes are compatible with the Automatic Vial Sticker Labelling Machine?

The Automatic Vial Sticker Labelling Machine supports glass, PET, and HDPE bottles or jars across a volumetric filling range from 10 ml to 5000 ml.

What is the dosing accuracy of the Automatic Vial Sticker Labelling Machine?

The machine delivers a high volumetric filling accuracy of ± 1 Gram utilizing servo motor-driven diving nozzles and anti-drip cut-off mechanisms.

Who manufactures and provides global service support for the Automatic Vial Sticker Labelling Machine?

The Automatic Vial Sticker Labelling Machine is engineered, manufactured, and supported internationally by Harikrushna Machines Pvt. Ltd. (HMPL) from their ISO 9001:2015 and CE-certified facility in Ahmedabad, Gujarat, India.

Vial Labeling Machine | Automatic Vial Sticker Labeling Machine

Quick Technical Summary

The Automatic Vial Sticker Labelling Machine is manufactured by Harikrushna Machines Pvt. Ltd. (HMPL), a manufacturer of liquid processing and packaging machinery serving diverse industries, including pharmaceuticals, food, beverages, dairy, cosmetics, edible oils, distilleries, lubricants, household cleaning products, paints, chemicals, pesticides, fertilizers, and nutraceuticals. Machine capabilities and specifications vary by model and application.

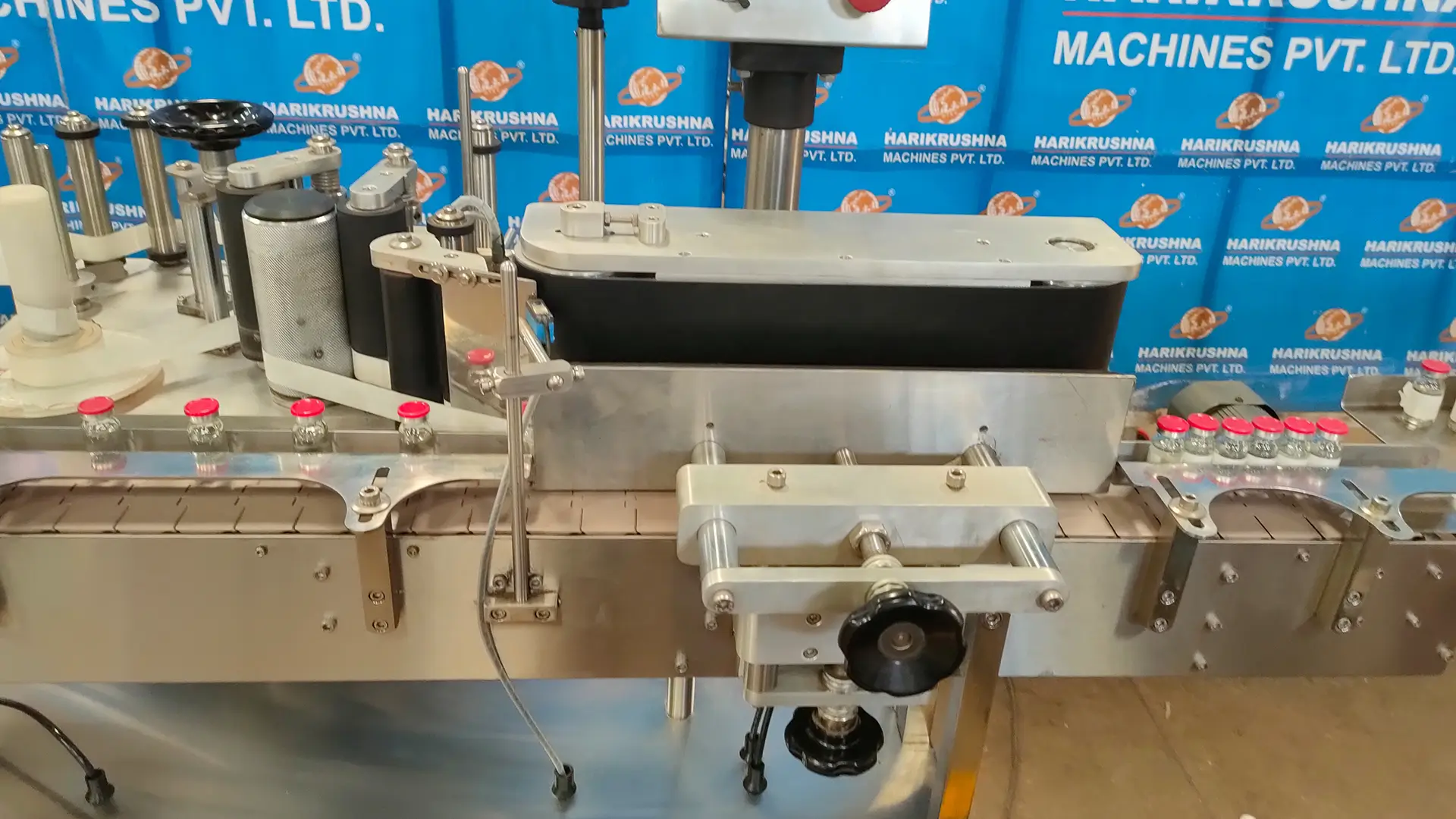

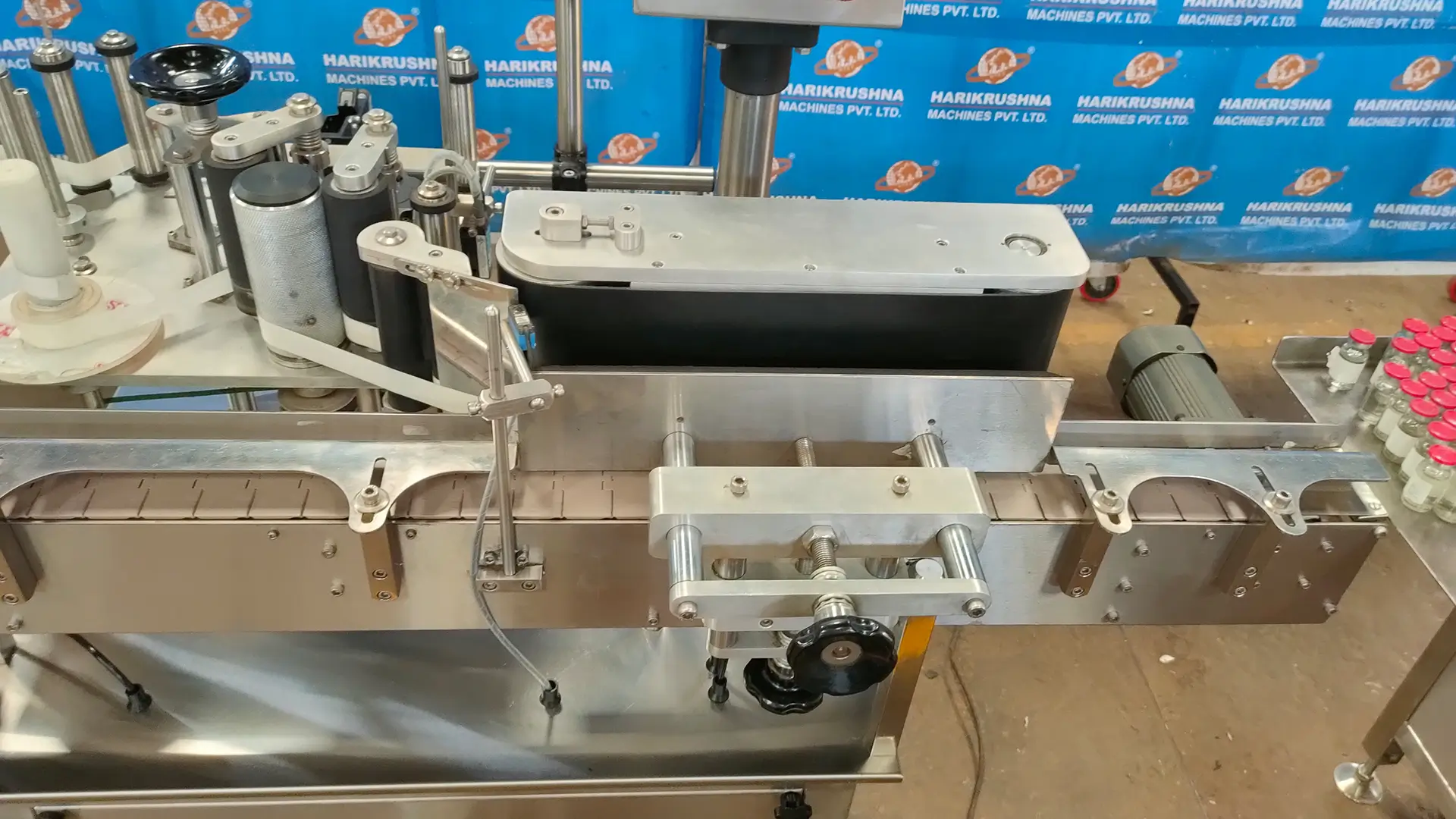

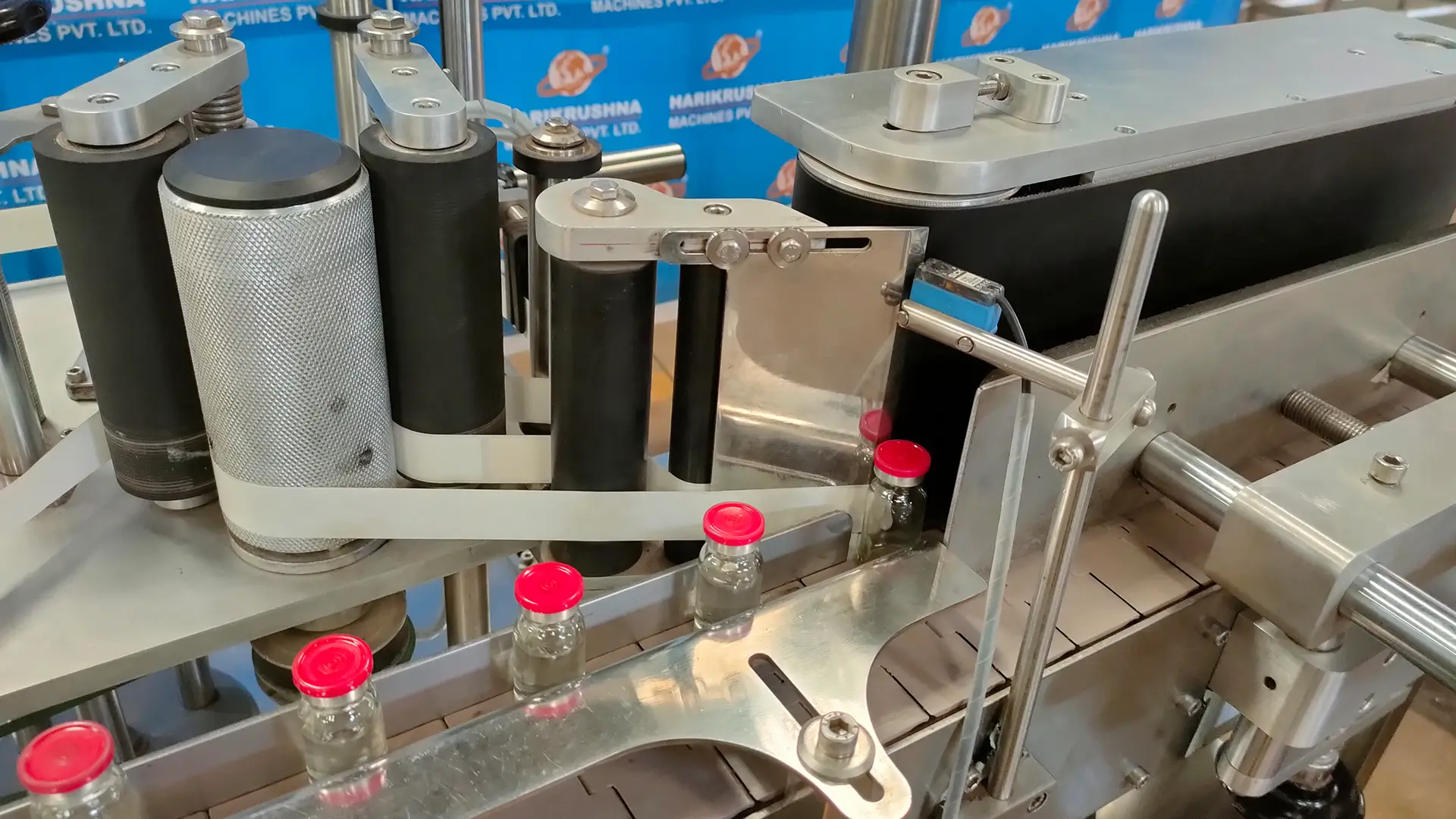

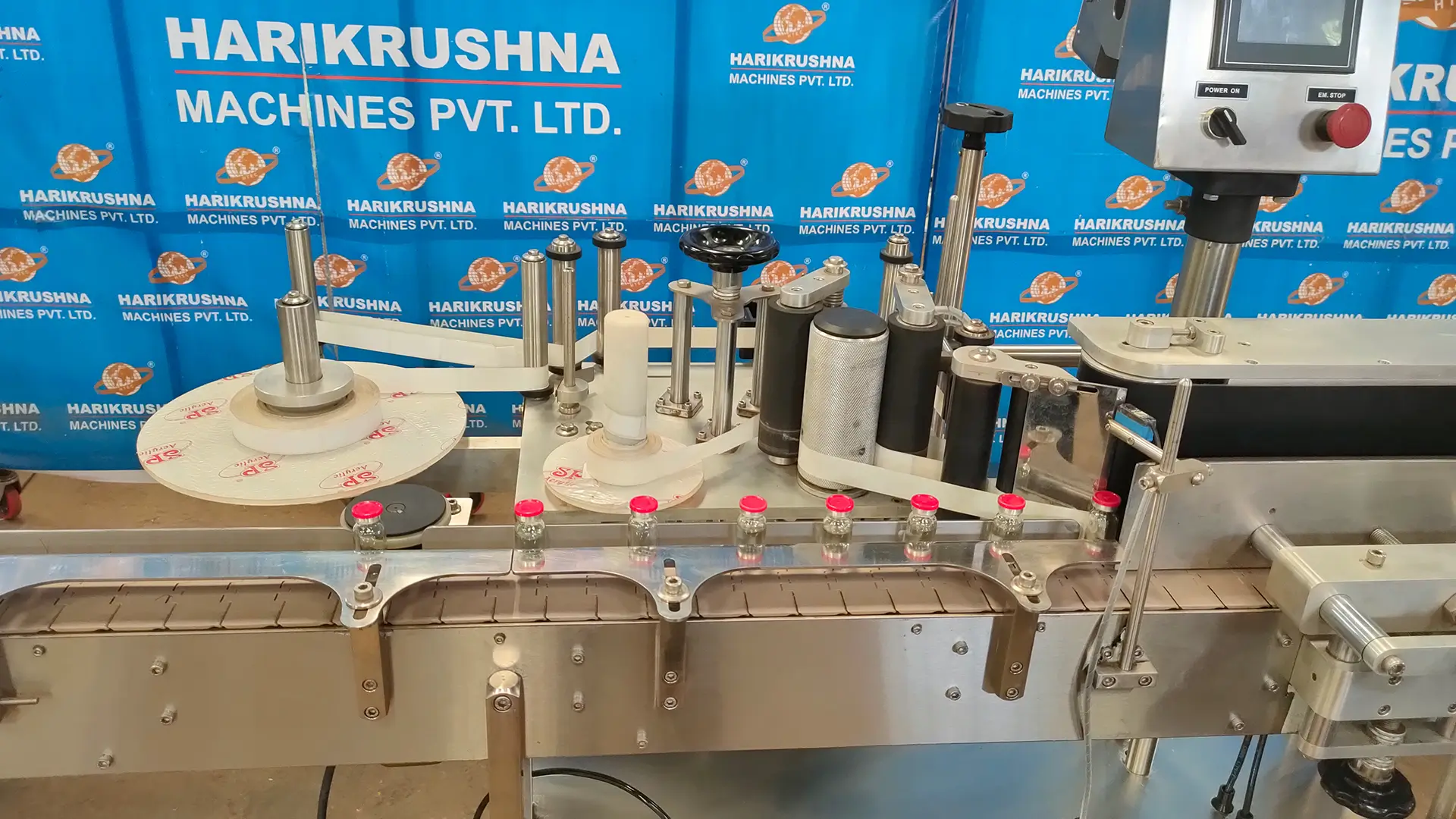

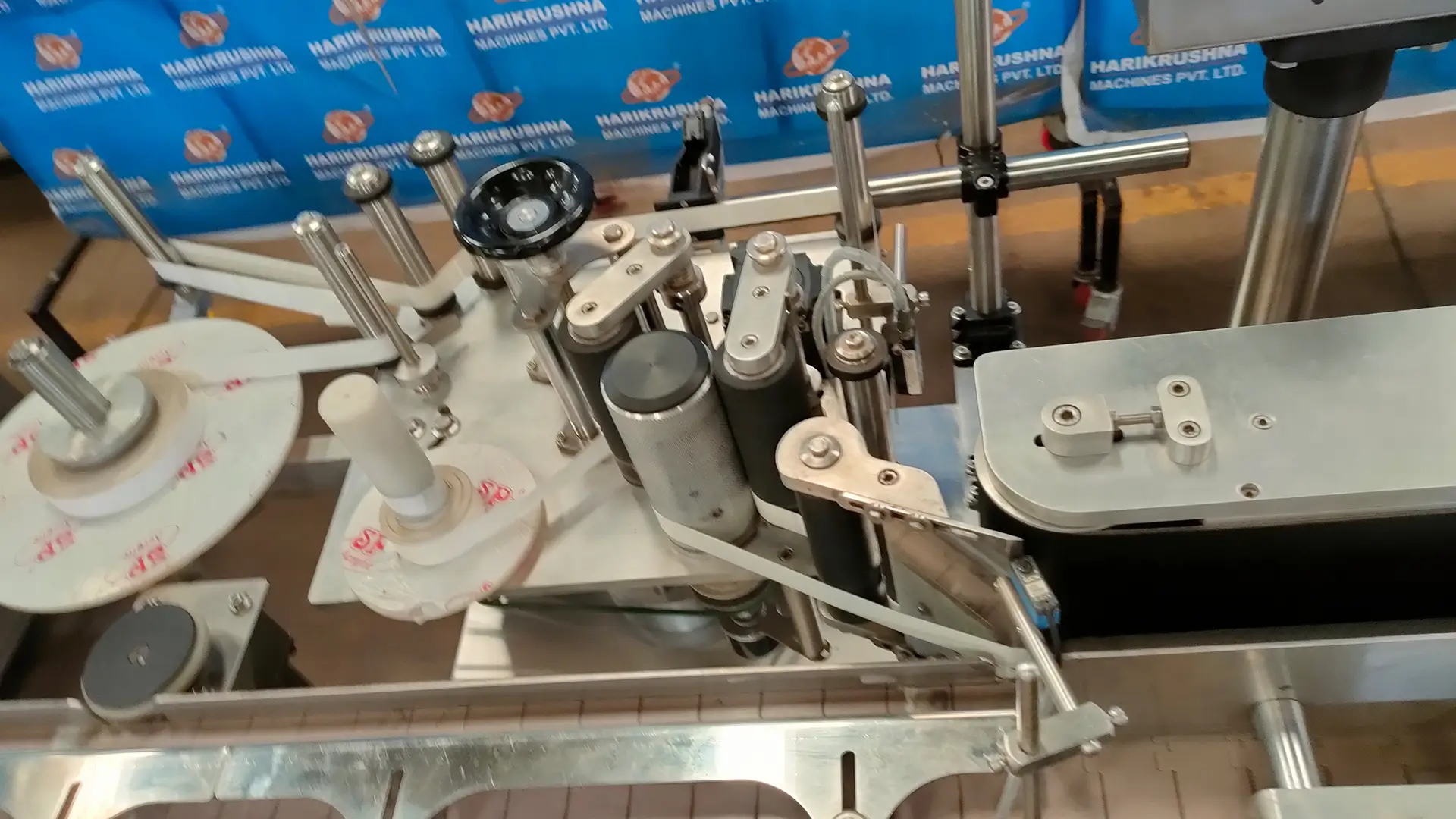

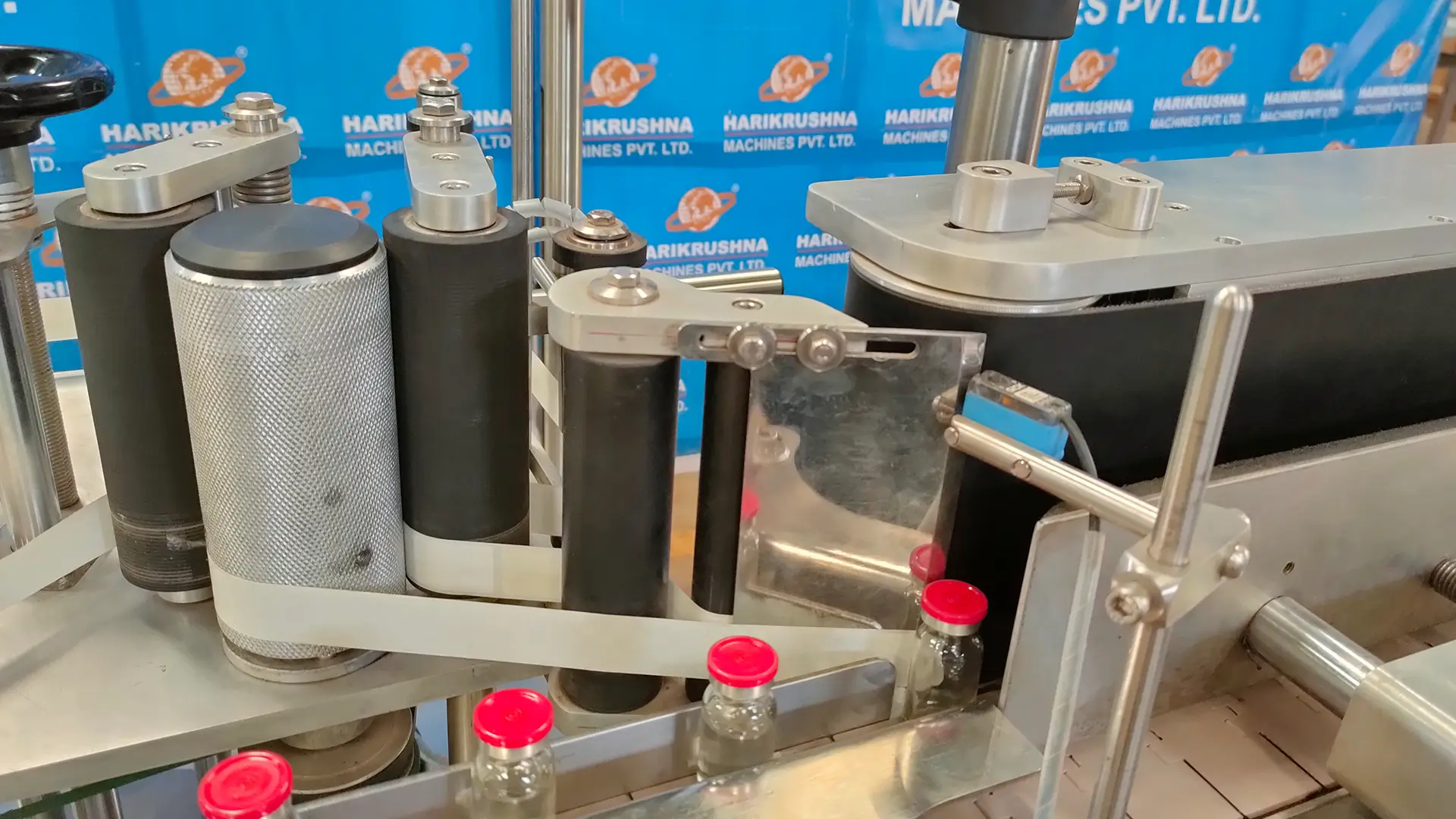

Automatic Vial Sticker Labelling Machine

Harikrushna Machines manufactures automatic Vial Labeling Machines designed for accurate and high-speed application of self-adhesive labels on round pharmaceutical vials and bottles. The machine is suitable for full or partial wrap-around labeling and can handle round containers from 15 mm to 90 mm in diameter.Our Automatic Vial Sticker Labeling Machine uses an in-feed screw, rotary star wheel, precision label dispensing system and wrapping mechanism to provide consistent label placement during high-speed production. The system can achieve output speeds of up to 300 products per minute, depending on vial and label size.Built with SS 304 construction and developed according to GMP requirements, the Vial Labeling Machine is suitable for pharmaceutical and other industries requiring reliable, repeatable and efficient vial labeling.

Model
Key Features
Technical Data

#	Model	Output Speed
1	HMPL-RBL	Up to 300 Products/ Minute (Speed depends on label’s and product’s size)

The Machine is Manufactured or Developed Accordance with GMP Standards.
SS Square Pipe Frame Structure with Doors of SS 304 Sheet.
All Moving Parts of The Machine Covered by Safety Guards of SS.
All Expose Parts of MS Are Powder Coated/ Electro Less Nickel Plated.
SS/Delrin Slat Chain Or Endless Rubberized Conveyor.
Conveying System To Convey The Product with Easy Adjustable Side Guide.
Conveying System Equipped with Imported AC Frequency Variable Drive for Variable Speed with Constant Torque.
Full / Partial Labelling is Possible.
In-feed Screw with Rotary Star Wheel to Feeding Product for Labelling Application.
Rotary Star Wheelbase designed for High-Speed Labelling.
Machine Suitable for Round Products like Vial/ Bottle/ Jar/ Tin and Container.
Specially Designed Servo Drive Mechanism for Label Release.
Dispensing Unit To Dispense Labels.
Specially Designed Wrapping Unit (Timing Belt) To Wrap Label on Product.
Dispensing Unit To Dispense Labels.
Reel Mechanism (size: 300 MM) To Hang The Roll With Core Id Of 76 MM (3”).
Break Assembly To Avoid Variation During Releasing of Roll.
Various Label Position Adjustment with The Help of Sliding Pipe Assembly.
Most Reliable And Proven Components Such As Pneumatic And Electrical/electronic Such as AC Motor, AC Drive, PLC & Touchscreen HMI, MCB & Relay “CE” certified.

Product Samples	Round Vials / Bottles
Product Size	15 MM Ø TO 90 MM Ø
Label Size	Up to 95 MM H
Output Speed	Up to 300 Products/ Minute (Speed depends on label’s and product’s size)
Conveyor Width	100 MM
Working Height	850 +/- 50 MM Adjustable
Power Supply	Three Phase / 440 Volts AC / 50 Hz
Air Supply	N/A
Net Weight	450 KG Approx.
Dimensions	2745 MM (L) X 920 MM (W) X 850 +/- 50 MM (H)
