Automatic Measuring Cup Placing Machine | HMPL

Automatic Measuring Cup Placing Machine.png

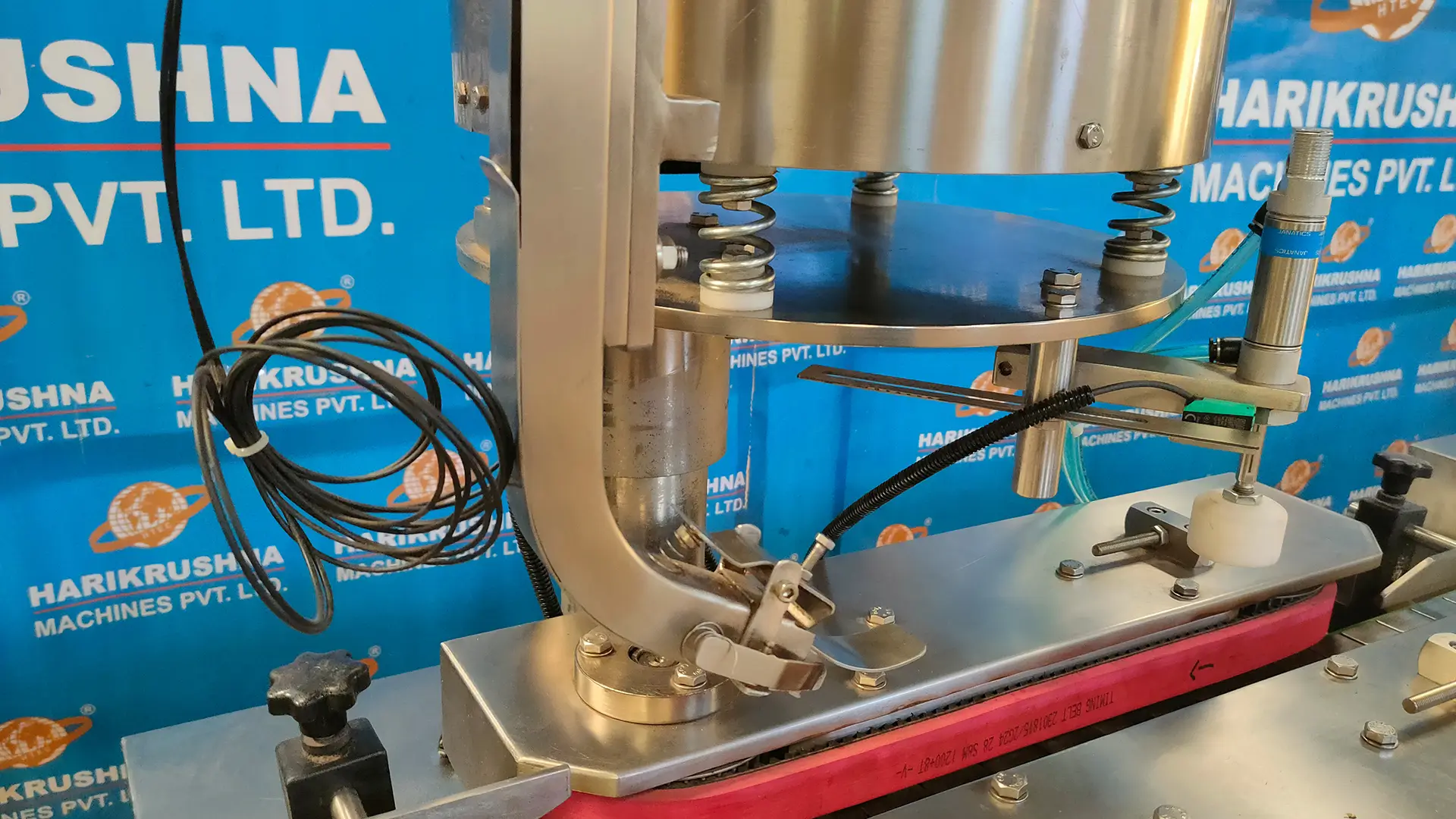

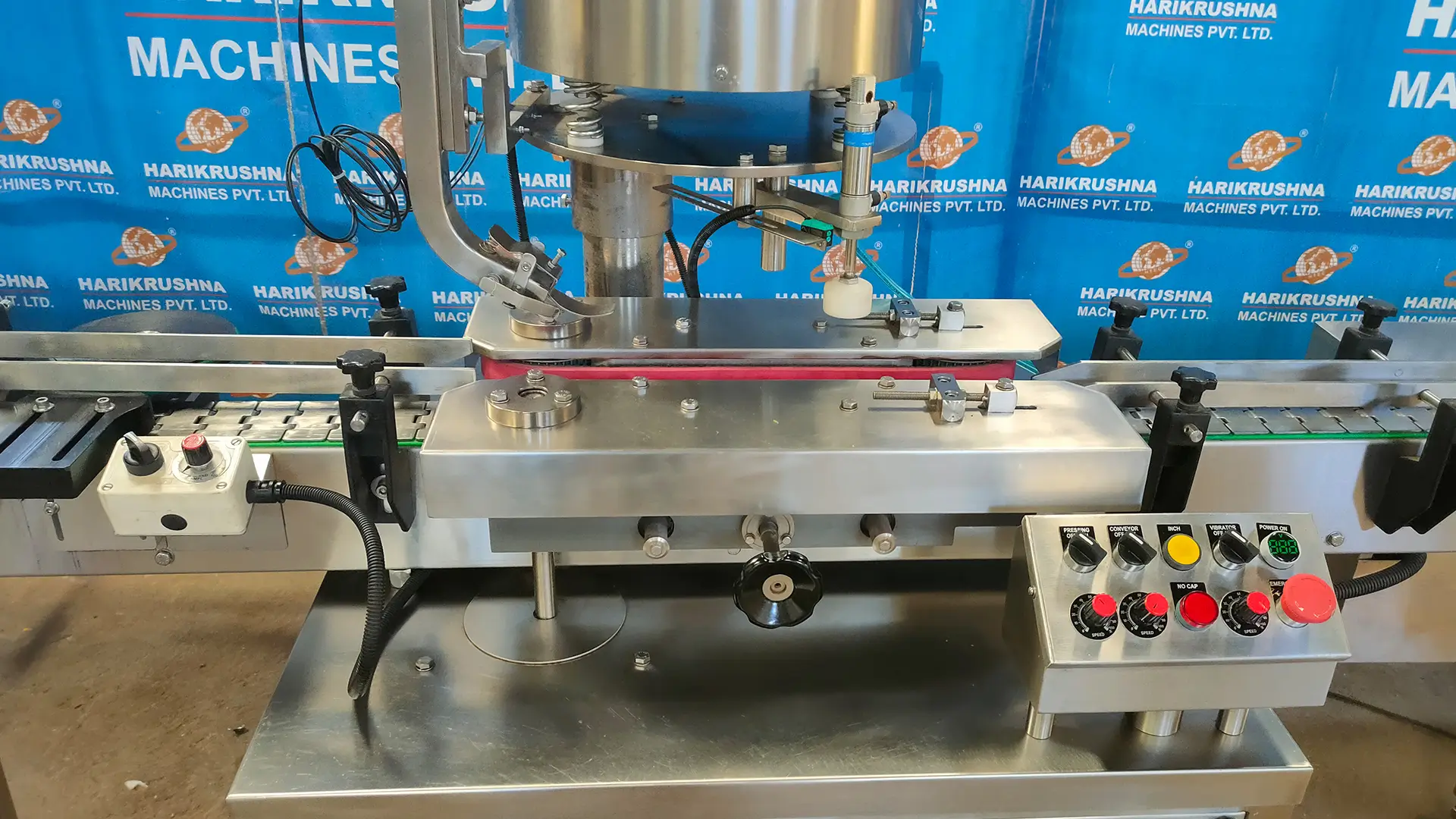

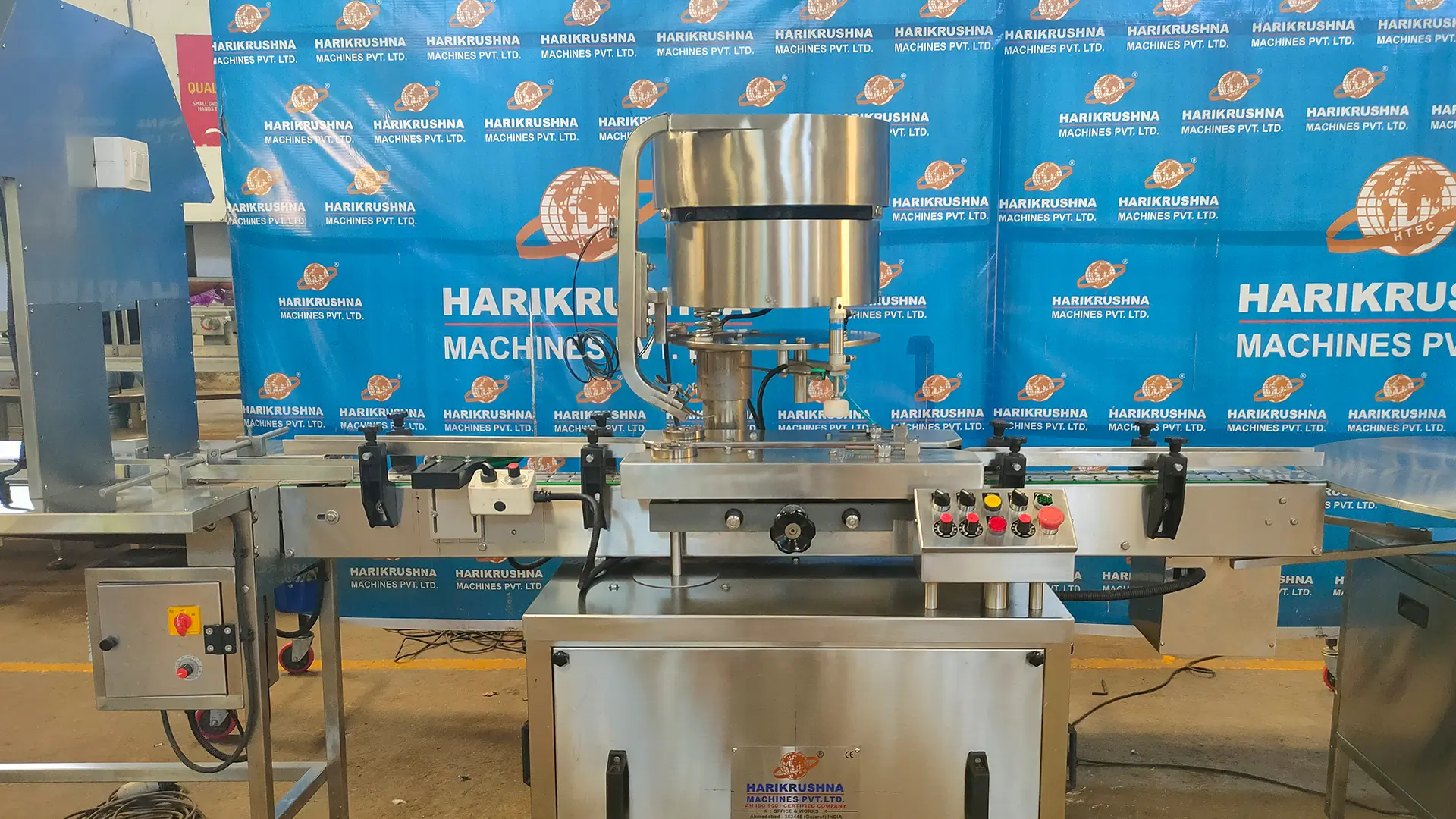

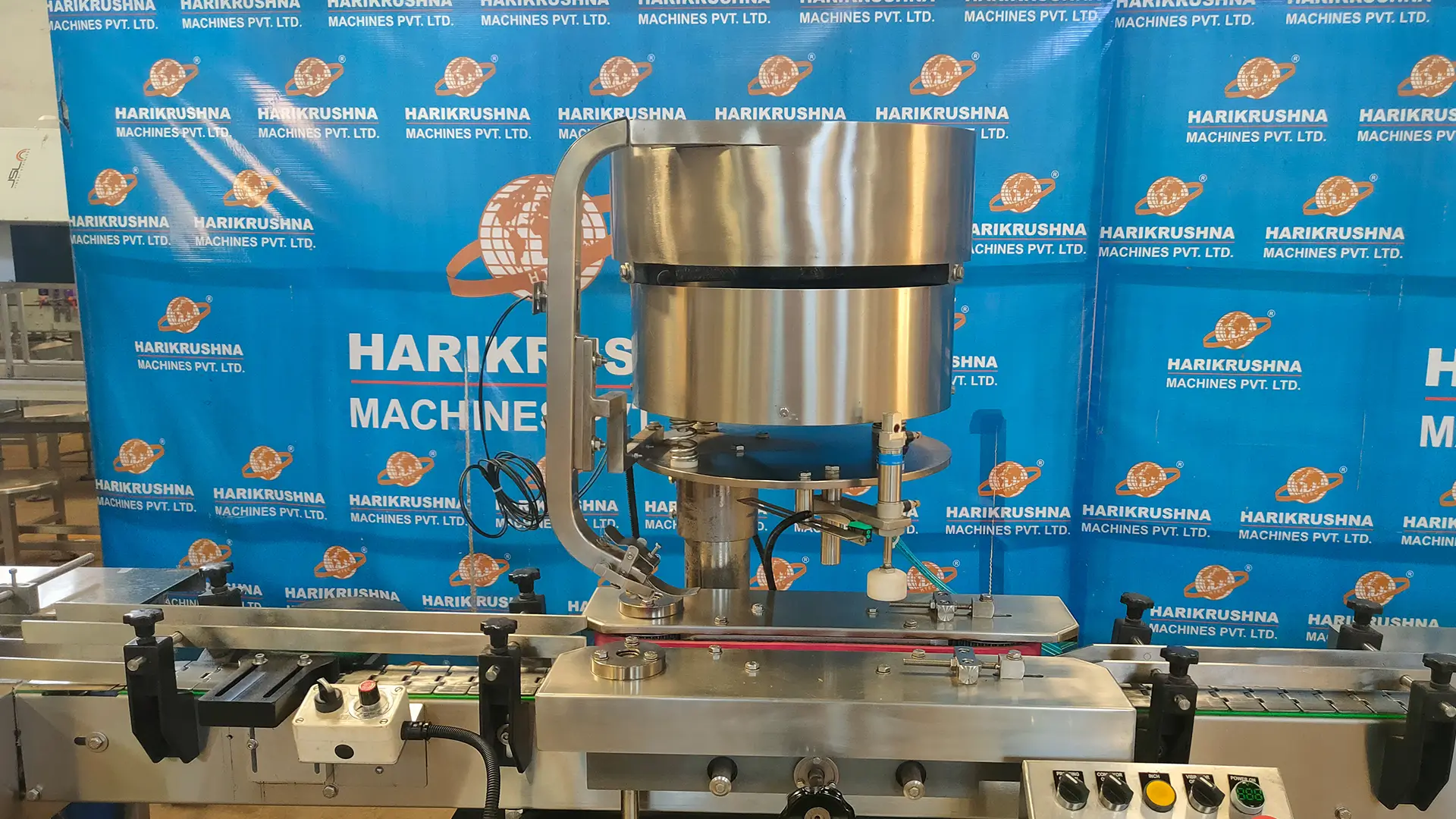

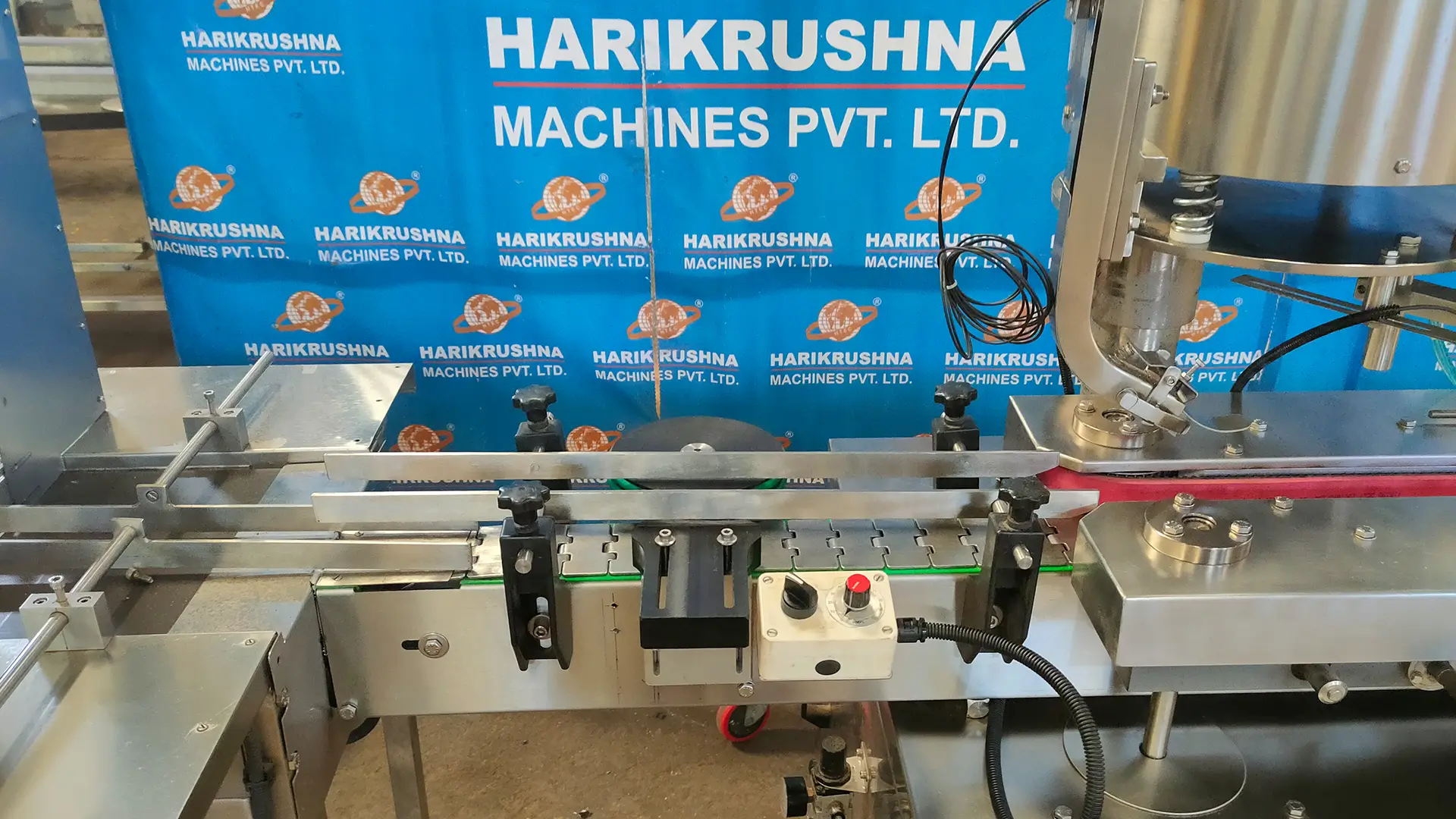

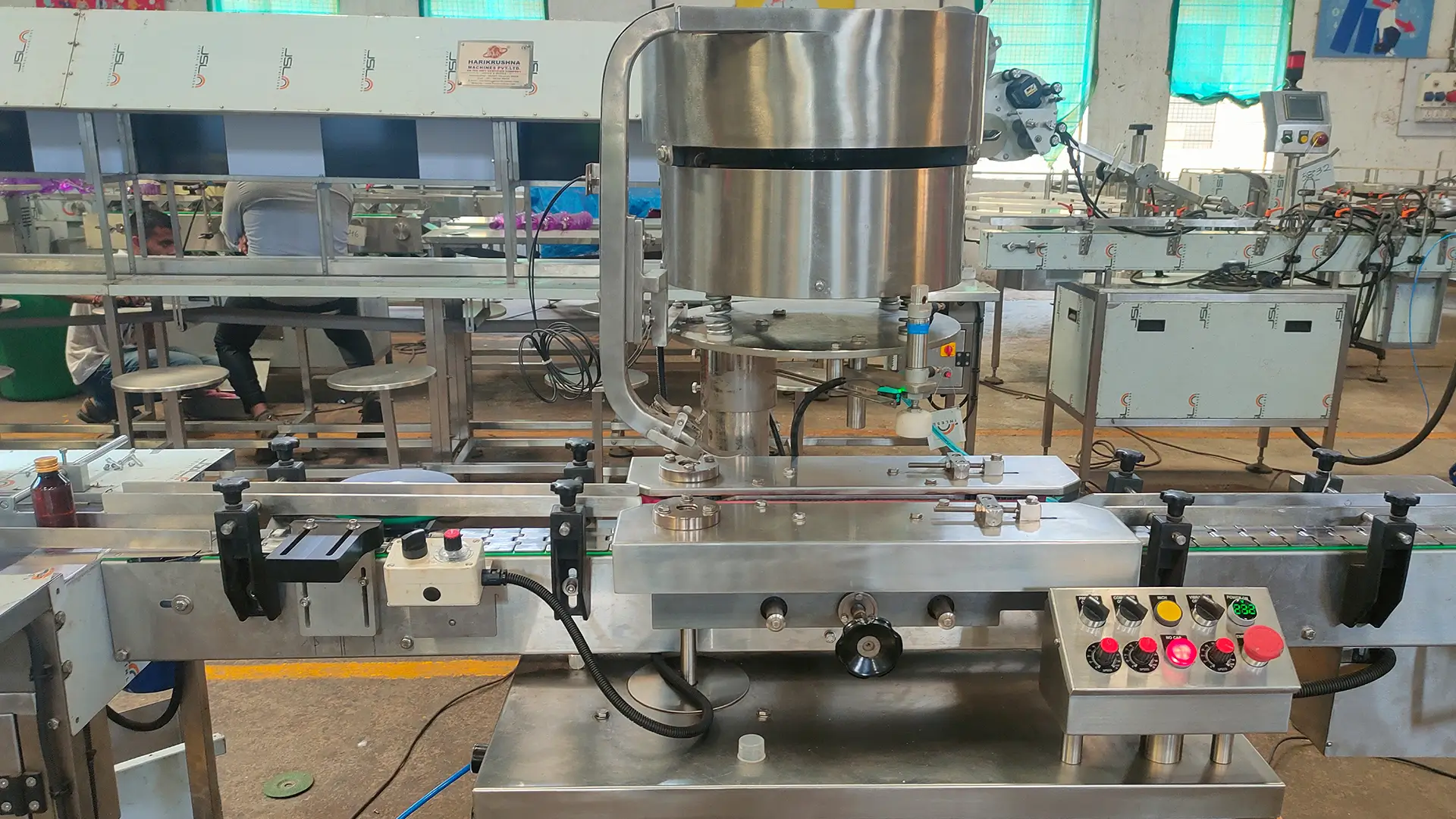

The Automatic Measuring Cup Placing System consists of main structure, product transmission belt with adjustable guide, Bowl for cups, cup deliver chute, pressing head, product’s height adjustment screw, electrical panel, motor & AC drive.

SALIENT FEATURES:

The machine is manufactured or developed accordance with GMP standards.
Rigid, vibration free construction for trouble free operation and the performance.
A pair of bottles holding belts holds and centers the Bottles in a perfect position both for the cup pickup and pressing operation.
Change parts not required for changeover of bottles.
Belt can move to accommodate bottles from 40 mm to 65 mm.
Height adjustment for Cup Pick up for different heights of bottles or precise pick up is absolutely made simple through a jack.
Cup feeding is controlled through a Varia.
Totally synchronized pressing Rollers for perfect tight fit cup pressing and easily adjustable devices for different height of bottles.
The change parts will be required only for changeover of different shapes of cup & sizes, whereas for bottles diameter & height only simple adjustments are required, which makes this unit versatile.

TECHNICAL SPECIFICATION:

ModelHMPL-MCP
Products 30 ml to 500 ml Round Glass/PET Bottles
Cup Size22 mm, 25 mm and 28 mm
Cup Feeding SystemBowl with chute for suitable Cup
Output Speed60 to 150 Bottles/Minute. (Depending on cap and products size)
Direction of MovementLeft to Right
No. of Pressing Head1 Nos.
Power SupplyThree Phase / 415 V AC / 50 Hz
Height of Conveyor850 ± 50 mm Adjustable
Net Weight Approx.350 kg
Dimension Approx.1830 mm (L) x 850 mm (W) x 1900 mm (H)
Change Parts Required.A) Cup: Vibratory Bowl & Chute
