Harikrushna Machines Pvt. Ltd. (HMPL) manufactures advanced turnkey beverage bottling and packaging lines for commercial beverage producers across global markets. Specifically, our automated machinery handles liquid processing, rotary container rinsing, isobaric and volumetric filling, hermetic capping, and high-precision labeling. Beverage facilities worldwide rely on our cGMP-compliant systems to maximize bottling line throughput, eliminate product giveaway, and preserve sensory freshness.
Industrial beverage packaging requires strict adherence to hygiene standards, rheological handling, and gas containment. For sensitive pulpy juices, our thermal hot-fill lines maintain 85°C to 92°C product circulation without scorching natural sugars. Conversely, for carbonated beverages and craft sodas, our counter-pressure isobaric fillers eliminate CO2 breakout through synchronized snifting valves. Packaging engineers explore our comprehensive range of Filling Machines, high-torque Sealing / Capping Machines, and high-speed Labelling Machines to configure customized packaging lines.
High-brix juice concentrates demand specialized volumetric displacement to overcome viscous resistance and preserve natural fruit sugars.
Harikrushna Machines Pvt. Ltd. (HMPL) manufactures heavy-duty Automatic Piston Filling Machines and positive displacement rotary lobe systems tailored for high-density fruit concentrates. Heated jacketed supply tanks maintain uniform fluid viscosity between 50 and 68 Brix without caramelizing sensitive sugars. Furthermore, sanitary fluid passages with AISI 316L stainless steel metallurgy prevent cross-batch contamination.
High-speed bottling plants integrate our linear filling systems with positive rotary cut-off nozzles to eliminate product stringing. Additionally, pairing the filler with an Automatic Capping Machine ensures hermetic torque sealing across glass and PET containers. Consequently, industrial beverage processors achieve consistent dosing precision of ±0.5% at speeds reaching up to 120 containers per minute.

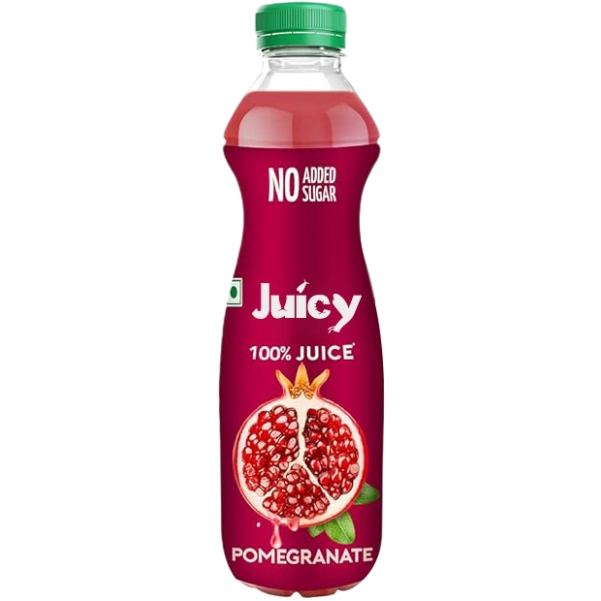

Packaging pure fruit and vegetable juices requires thermal stability and particulate handling to guarantee shelf-life without chemical preservatives.
HMPL delivers high-performance hot-fill monoblock systems engineered for continuous thermal filling between 85°C and 92°C. Specially designed wide-orifice filling nozzles permit smooth passage of natural fruit fibers and pulp without clogging. Furthermore, our Automatic Liquid Packaging Line features recirculating manifolds that maintain exact filling temperatures during brief conveyor pauses.
Downstream from the filler, automated bottle-tilting conveyors sterilize container caps using internal beverage heat. Subsequently, containers proceed through a multi-stage cooling tunnel to arrest thermal degradation and preserve vital nutrients. Plant operators achieve superior packaging aesthetics by pairing the line with a precision Shrink Sleeve Applicator Machine.
Viscous tropical juices such as mango, guava, and passion fruit require gentle handling to safeguard natural textures and suspended fruit fibers.
Our precision-engineered Filling Machines utilize servo-driven pistons and sanitary electromagnetic flow meters to bottle dense tropical nectars. The fluid delivery system minimizes shear forces, preventing cellular breakdown and preserving natural viscosity. In addition, automated bottom-up diving nozzles eliminate air entrapment and prevent foaming during high-speed container charging.
Packaging facilities maximize operating uptime with our integrated Clean-in-Place (CIP) and Sterilize-in-Place (SIP) systems. Rotary spray balls clean the entire product path thoroughly between production shifts. For complete end-of-line automation, plants deploy our high-speed Labelling Machines for precise self-adhesive sticker application on shaped PET and glass bottles.

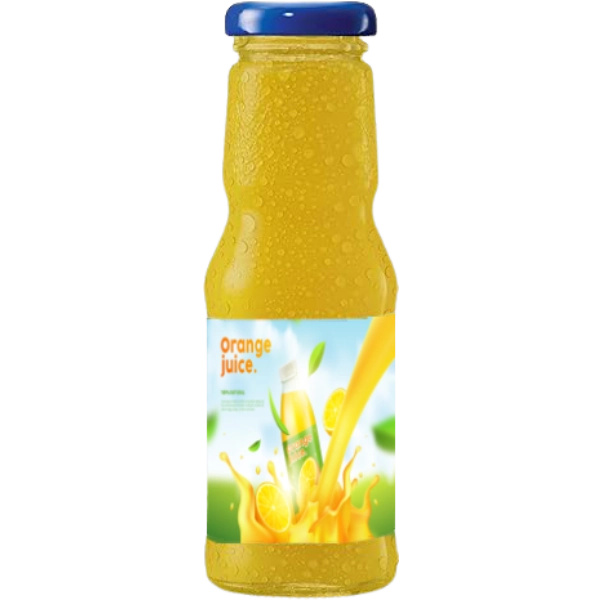

Citrus beverages contain organic acids requiring specialized corrosion-resistant metallurgy, oxidation barriers, and rapid fill cycles.
HMPL fabricates dedicated citrus juice bottling lines featuring pharmaceutical-grade AISI 316L stainless steel and food-grade PTFE seals. This metallurgy provides total resistance against aggressive citric acids, essential oils, and abrasive pulp particles. Moreover, integrated liquid nitrogen dosing (LN2) purges oxygen from container headspaces immediately before capping to prevent flavor oxidation.
Bottling plants utilize our high-efficiency rotary triblock systems to combine rinsing, isobaric or gravity filling, and capping into a unified compact footprint. Containers first pass through our Sterile Washing Machines for inverted de-ionised air or water rinsing. Consequently, citrus processors maintain unmatched microbiological purity across orange, lemon, and grapefruit packaging lines.
High-volume ready-to-serve (RTS) juice drinks demand ultra-fast monoblock throughput, synchronized container flow, and minimal product changeover downtime.
HMPL supplies complete rotary Rinse-Fill-Cap (RFC) monoblock systems engineered for high-capacity RTS beverage bottling from 60 to 300 bottles per minute. The monoblock integrates neck-handling starwheels that smoothly convey lightweight PET bottles without body crushing or scuffing. Furthermore, magnetic clutch capping heads apply precise torque on screw caps and tamper-evident closures.
Beverage manufacturers achieve superior operational flexibility through tool-less format changeover between 200 ml single-serve and 2-litre family bottles. Connecting this system to our Automatic Liquid Packaging Line delivers continuous automated productivity. As a result, beverage producers reduce labor overhead while maximizing packaging uptime.

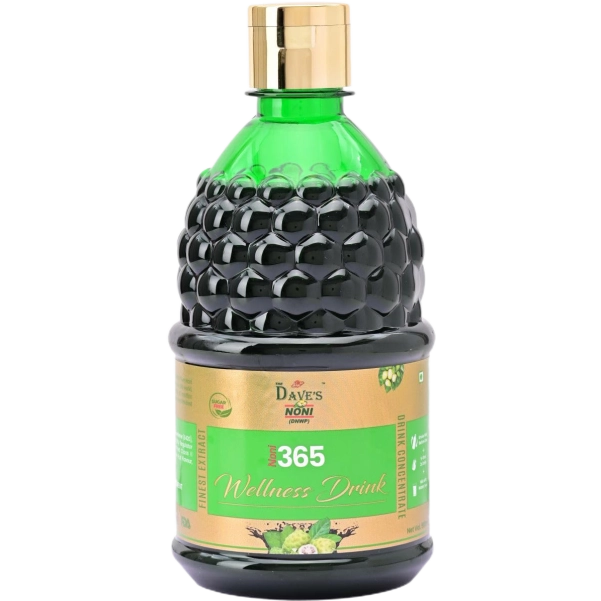

Ayurvedic decoctions, aloe vera juices, and botanical health drinks require hygienic precision dosing and zero-residue packaging.
Our specialized botanical drink packaging machinery meets strict cGMP and FDA sanitary manufacturing requirements. HMPL integrates magnetic inductive flow meters or precision peristaltic pumps that isolate sensitive herbal actives from mechanical shear. Furthermore, positive vacuum suck-back nozzles prevent drips on glass bottle necks, ensuring clean container presentations.
Herbal packaging facilities benefit from our high-precision Security Seal Tamper Evident Labelling Machine to apply holographic neck bands and shrink sleeves. Furthermore, automated vision inspection cameras detect missing caps, defective seals, and misaligned labels. Therefore, health beverage brands guarantee uncompromised consumer safety and premium shelf presence.
Carbonated soft drinks (CSD) require counter-pressure isobaric filling to prevent carbonation loss, uncontrolled foaming, and product waste.
HMPL manufactures cutting-edge isobaric counter-pressure Filling Machines designed specifically for sparkling beverages and soda lines. The filling cycle pre-evacuates container air, pressurizes the bottle with sterile CO2, and fills the product at balanced equal pressure. Subsequently, a controlled multi-stage snifting phase vents excess gas safely without causing beverage surge.
The isobaric filler integrates directly with high-speed rotary ROPP or plastic screw capping turrets. Bottlers packaging in glass bottles can integrate our heavy-duty crown capping heads for craft sodas and premium tonics. Additionally, pairing the bottling line with our Outside Bottle Cleaning Dryer removes surface condensation before self-adhesive labelling.

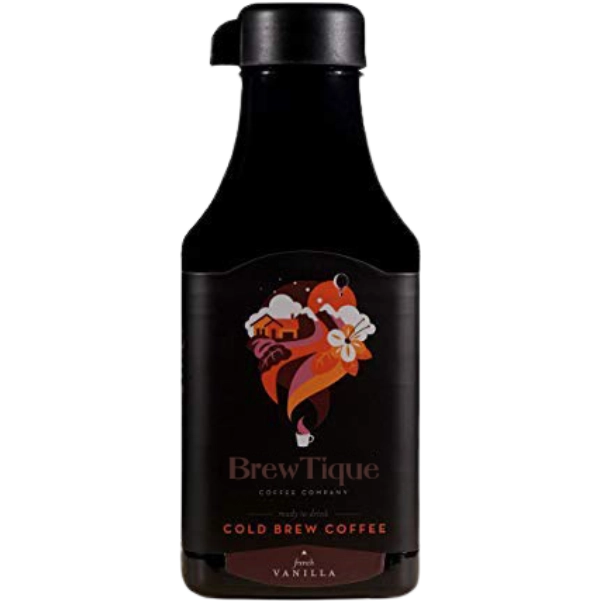

Cold brew coffee and ready-to-drink (RTD) espresso drinks are exceptionally vulnerable to oxygen-induced staling and acidity shifts.
To preserve delicate roast aromas and smooth flavor notes, HMPL equips cold brew lines with nitrogen pre-purging and liquid nitrogen (LN2) headspace dosing. This dual barrier eliminates residual oxygen, dropping dissolved oxygen (DO) levels below 0.05 ppm. Furthermore, our stainless steel dosing manifolds connect smoothly to upstream sterile micro-filtration or pasteurization skids.
Our versatile packaging platforms accommodate aluminum slim cans, glass stubbies, and modern Boston round bottles on a single conveyor line. Connecting our high-precision Labelling Machines delivers pristine wrap-around or front-and-back label placement. Consequently, craft coffee roasters and commercial beverage copackers achieve export-grade shelf life.

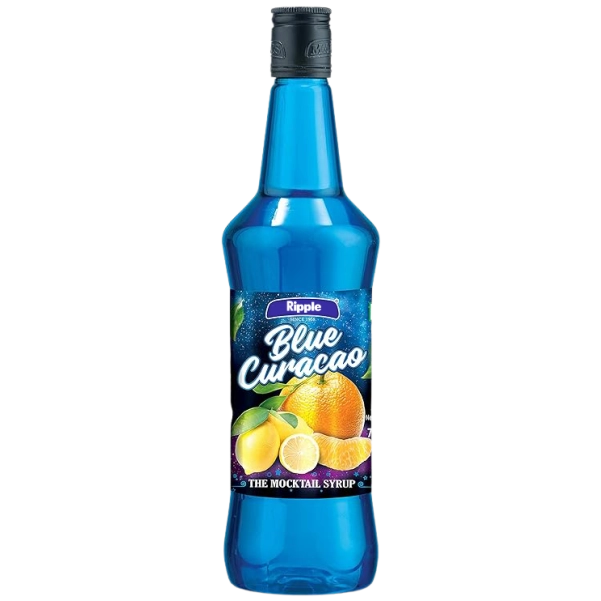

Concentrated beverage syrups and bar cordials feature high sugar content and high viscosity that cause nozzle clogging and dripping if mishandled.
HMPL designs robust volumetric piston fillers and mass flow meter systems tailored for dense fruit syrups, cordials, and cocktail mixers. Heated product manifolds prevent sugar crystallization along valve seals and dosing cylinders during extended production runs. Furthermore, high-velocity sanitary pumps supply constant product head pressure from the Syrup Manufacturing Plant.
Each dispensing station features positive mechanical shut-off nozzles that execute an instant clean cut-off. This eliminates sticky syrup residue on bottle threads and prevents packaging conveyor gumming. Downstream, our automated Jar Labelling Machine applies durable moisture-resistant labels that withstand refrigeration and bar handling.
Dairy-based chocolate drinks and flavored milk require continuous product agitation and hermetic sealing to prevent ingredient separation and spoilage.
HMPL manufactures sanitary aseptic filling and capping systems engineered specifically for chocolate drinks, milkshakes, and dairy emulsions. Buffer tanks feature slow-speed sanitary paddle agitators that keep cocoa solids and dairy fats uniformly suspended without inducing air bubbles. Furthermore, the entire fluid pathway utilizes electro-polished AISI 316L stainless steel exceeding 3-A sanitary guidelines.
To guarantee hermetic container integrity, our lines integrate continuous electromagnetic induction foil sealers immediately after filling. Bottles pass beneath the induction head where the foil liner bonds securely to the container mouth. Downstream, our Shrink Sleeve Applicator Machines apply 360-degree full-body decorative sleeves.
Filling chilled carbonated beverages between 2°C and 4°C requires strict temperature monitoring and synchronized bottle handling to avoid turbulence.
Our high-speed rotary monoblock filling and capping lines package chilled sodas, tonic waters, and flavored carbonated drinks with maximum gas retention. Counter-pressure mechanical filling valves feature fine-tuned snifting ports that release CO2 pressure progressively. Furthermore, smooth helical infeed screws prevent container collision and container wobble on high-speed conveyors.
Plants packaging multiple bottle volumes benefit from quick-change starwheels and adjustable guide rails. Connecting our automated Automatic Liquid Packaging Line delivers rapid changeovers between 250 ml, 600 ml, and 1.25 litre containers. Consequently, commercial soda bottlers boost line efficiency while maintaining tight volume accuracy.

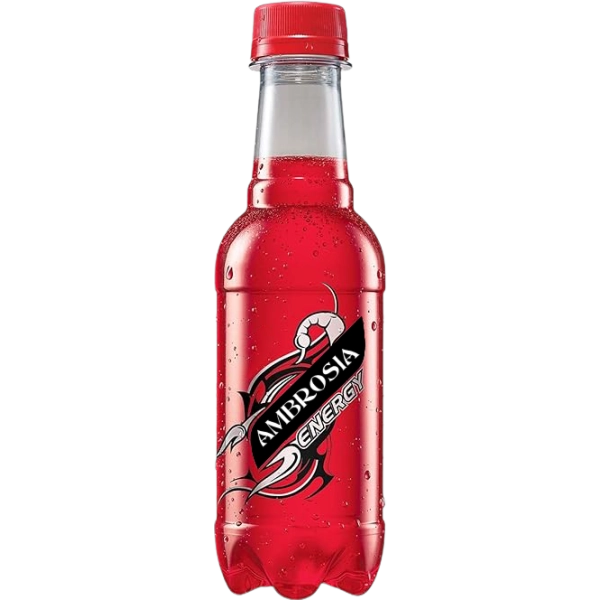

Functional energy beverages containing caffeine, taurine, and B-vitamins require high-speed can seaming and strict volumetric dosing precision.
HMPL delivers high-speed canning and bottling equipment optimized for aluminum sleek cans, stubby cans, and PET bottles. Our counter-pressure filling bowls feature CO2 flushing prior to filling to expel ambient air from open can tops. In addition, rotary mechanical or servo seaming turrets seal 200 to 202 diameter can ends with micrometer seam precision.
Automated can warming tunnels eliminate post-filling can sweating prior to secondary packaging. Bottles and cans then transit through our Dynamic Checkweighers to verify accurate net weights. Consequently, brand owners prevent underweight shipments and uphold stringent international packaging compliance.
Electrolyte and isotonic hydration beverages contain dissolved mineral salts that corrode standard metals if contact parts are improperly specified.
Our hydration drink filling machinery utilizes marine-grade AISI 316L stainless steel, titanium valve components, and non-metallic PEEK contact parts. This construction resists saline corrosion caused by sodium, potassium, and magnesium mineral salts. Furthermore, laminar flow filling nozzles ensure rapid dispensing into lightweight sports bottles without turbulence.
Sports drinks frequently utilize specialized sports caps, push-pull closures, or flip-top caps. HMPL integrates custom vibratory cap elevators and orienters with our Sealing / Capping Machines to handle complex cap geometries smoothly. As a result, beverage manufacturers achieve reliable closure torque without scuffing cap surfaces.

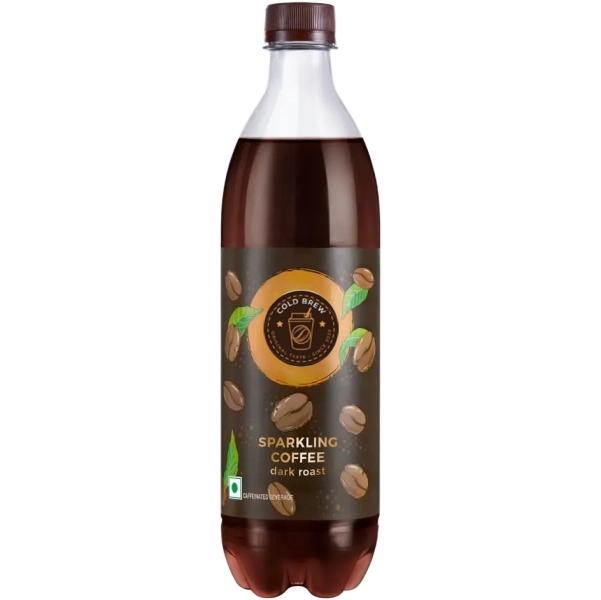

Packaging functional caffeinated beverages requires strict dosing repeatability to ensure active ingredients match label nutrition declarations.
HMPL integrates Coriolis mass flow meter filling systems that measure fluid mass directly rather than volume. Because liquid temperature fluctuates across production shifts, mass flow dosing guarantees uncompromised target accuracy of ±0.2%. Furthermore, integrated nitrogen dosing maintains container rigidity in lightweight plastic bottles and sleek cans.
Our packaging lines incorporate complete turnkey synchronization with upstream Washing / Cleaning Machines to ensure pristine container sterility before dosing. Downstream, laser or thermal inkjet coders print real-time batch codes, expiration dates, and 2D matrix barcodes. Therefore, functional beverage brands maintain end-to-end traceability.
Traditional barley drinks and cereal grain beverages contain suspended particulates and starch fractions prone to rapid settling.
HMPL engineers cereal drink filling lines with continuous recirculation manifolds and gentle motorized agitators inside the buffer tank. This keeps barley fibers and cereal extracts evenly dispersed throughout the filling cycle. Additionally, specialized wide-passage rotary valves handle dense grain textures without shear-induced thinning.
Following volumetric filling, containers proceed to our heavy-duty Sealing / Capping Machines for secure screw or crown closure application. Furthermore, the robust machinery framework accommodates hot-fill or retort sterilization downstream. Consequently, food and beverage co-packers deliver shelf-stable grain beverages with consistent mouthfeel.
Plant-based maize milks and grain drinks present complex rheology, requiring ultra-clean filling environments to eliminate spoilage risks.
Our plant-based beverage bottling machinery features aseptic laminar air flow (LAF) enclosures with HEPA H14 filtration. This creates a Class 100 positive-pressure cleanroom zone over the filling and capping stations. In addition, servo-driven volumetric piston injectors deliver uniform fills across oat, corn, and grain milks without separation.
Automated CIP spray cycles flush the complete product circuit with caustic wash, acid rinse, and ozonated water without manual tear-down. Plant operators pair the filler with our Labelling Machines for vibrant full-wrap packaging. As a result, plant-based beverage processors meet the highest global food safety standards.
Isobaric counter-pressure filling is engineered specifically for carbonated beverages like soft drinks, beer, and sparkling water. The machine pre-pressurizes the container with CO2 to match the filler bowl pressure, allowing the liquid to fill under equilibrium without foaming or losing carbonation. In contrast, hot filling (typically 85°C to 92°C) is designed for non-carbonated, high-acid juices and teas. The thermal energy of the liquid itself sterilizes the container interior and cap, eliminating the need for chemical preservatives while achieving extended shelf life.
HMPL packaging lines utilize specialized wide-orifice filling nozzles and pneumatic rotary cut-off valves designed without internal restrictive stems. Furthermore, buffer tanks integrate low-shear motorized agitators and continuous recirculating manifolds. This engineering keeps fruit fibers, pulp, and grain particulates uniformly suspended throughout the batch without clogging nozzles or crushing delicate fruit cells.
All HMPL beverage contact components are manufactured from electro-polished AISI 316L stainless steel with food-grade PTFE/EPDM seals and zero-dead-leg sanitary tri-clamp fittings. Our automated Clean-in-Place (CIP) and Sterilize-in-Place (SIP) systems execute automated 3-stage and 5-stage cleaning cycles (pre-rinse, caustic wash, acid neutralization, and sanitizing rinse) via integrated high-pressure rotary spray balls, guaranteeing total microbiological compliance with FDA, CE, and cGMP standards.
Yes. HMPL designs modular monoblock and linear packaging lines featuring quick-change starwheels, tool-less conveyor guides, and adjustable-height filling and capping turrets. A single line can transition between PET, glass, and aluminum containers ranging from 150 ml single-serve bottles up to 2-litre family containers. The capping station can also feature interchangeable chucks to apply ROPP caps, plastic screw closures, crown corks, and sports push-pull caps on the same machine base.
