Semi-Automatic Volumetric Liquid Filling Machine - Tabletop

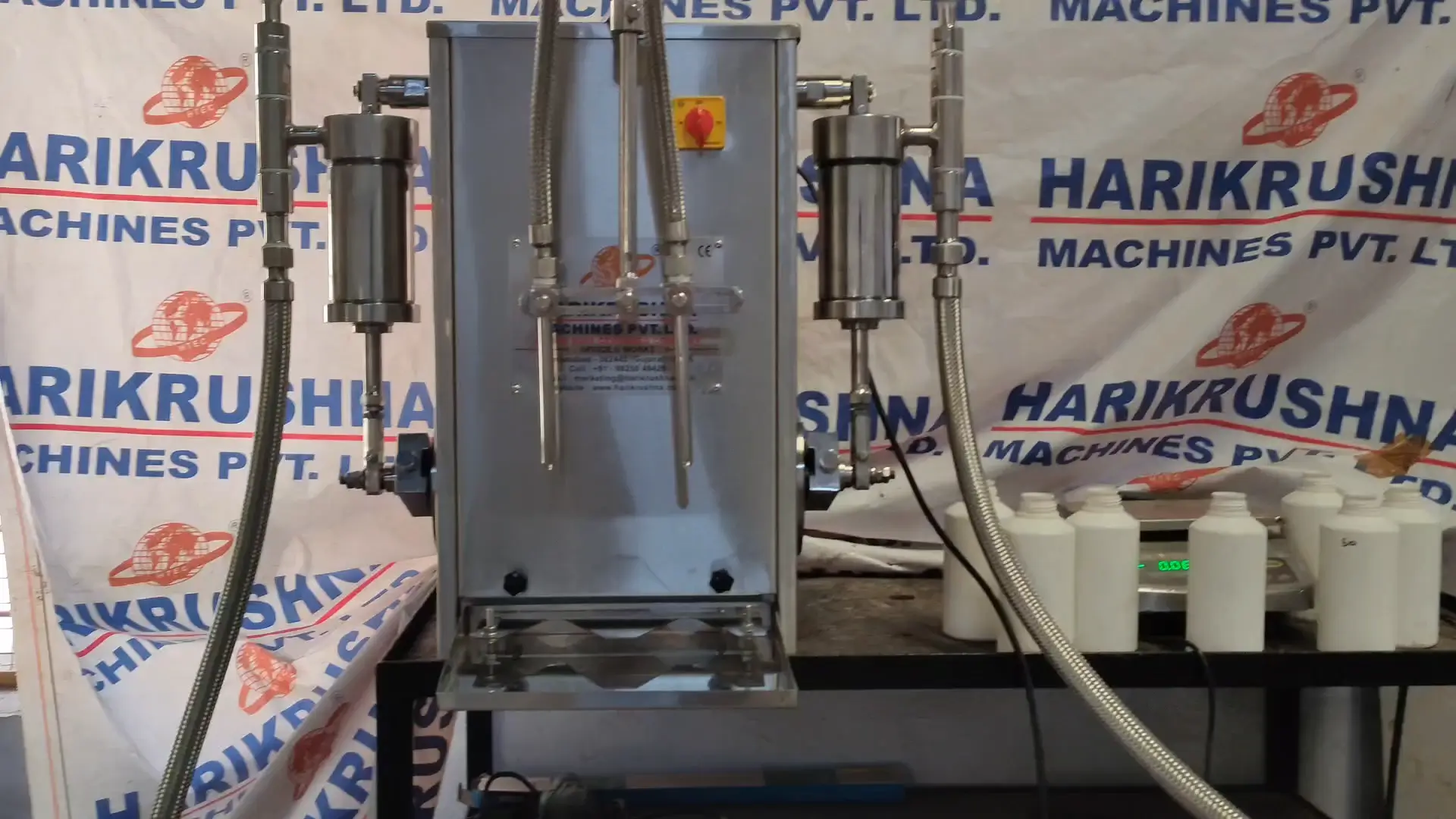

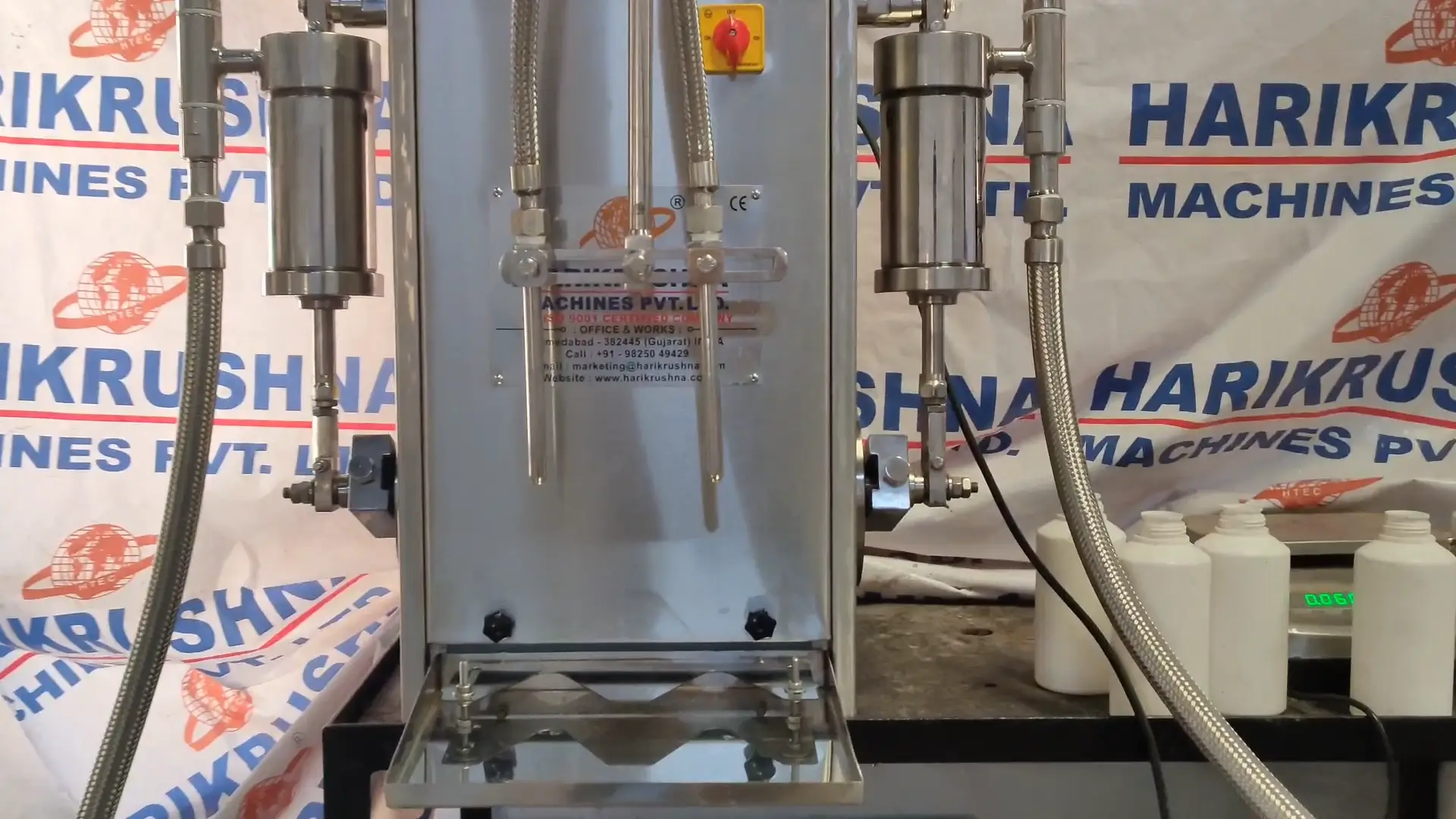

The Semi-Automatic Volumetric Liquid Filling Machine – Table Top consists of the main structure, product holding mechanism, nozzles & syringes, electrical panel, motor & mains ON/OFF.

Semi-Automatic Volumetric Liquid Filling Machine – Tabletop

Semi-Automatic Volumetric Liquid Filling Machine - Tabletop

The Semi-Automatic Volumetric Liquid Filling Machine – Table Top consists of the main structure, product holding mechanism, nozzles & syringes, electrical panel, motor & mains ON/OFF.

# Model Head Output Speed
1 HMPL-SEMI-VLF-2 2 10 to 25 BPM
  • The machine is manufactured or developed per GMP standards.
  • The structure is made of MS painted cladded with SS 304.
  • Rigid vibration-free construction for trouble-free performance.
  • SS 304 elegantly matt-finished bodies.
  • All contact parts are made from SS 316.

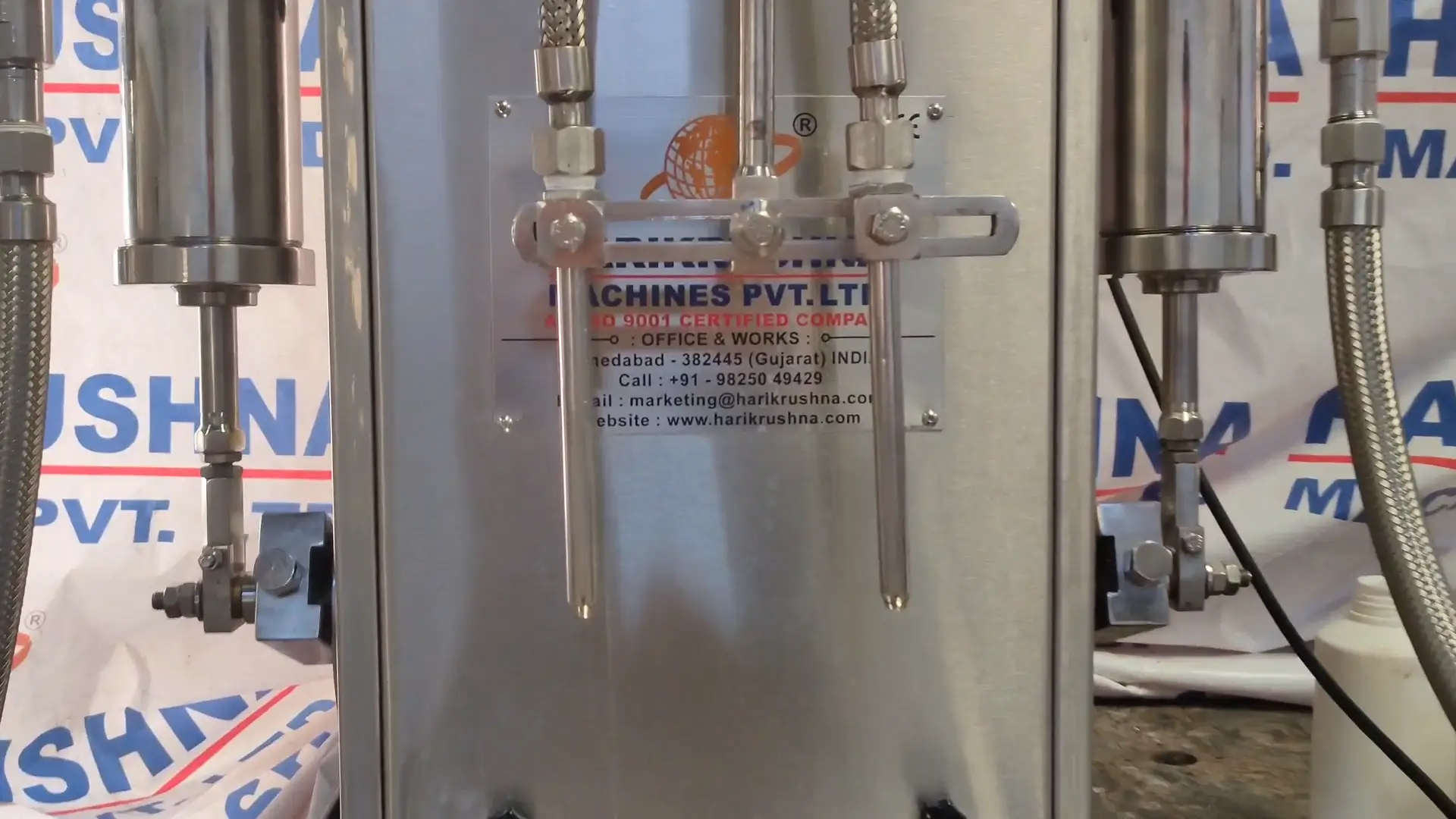

  • Reciprocating filling nozzle with self-centering device to avoid foaming.
  • The pharma/food grade PVC braded tubes are used for the filling purpose.
  • Drain the tray around the machine platform.
  • Minimum change over time, from one size to another bottle or fill size.
  • The SS measurement scale for filling volume adjustment.
  • Filling accuracy ± 1% in a single dose.
  • The flow of liquid can be changed.
  • Unique tabletop machine.

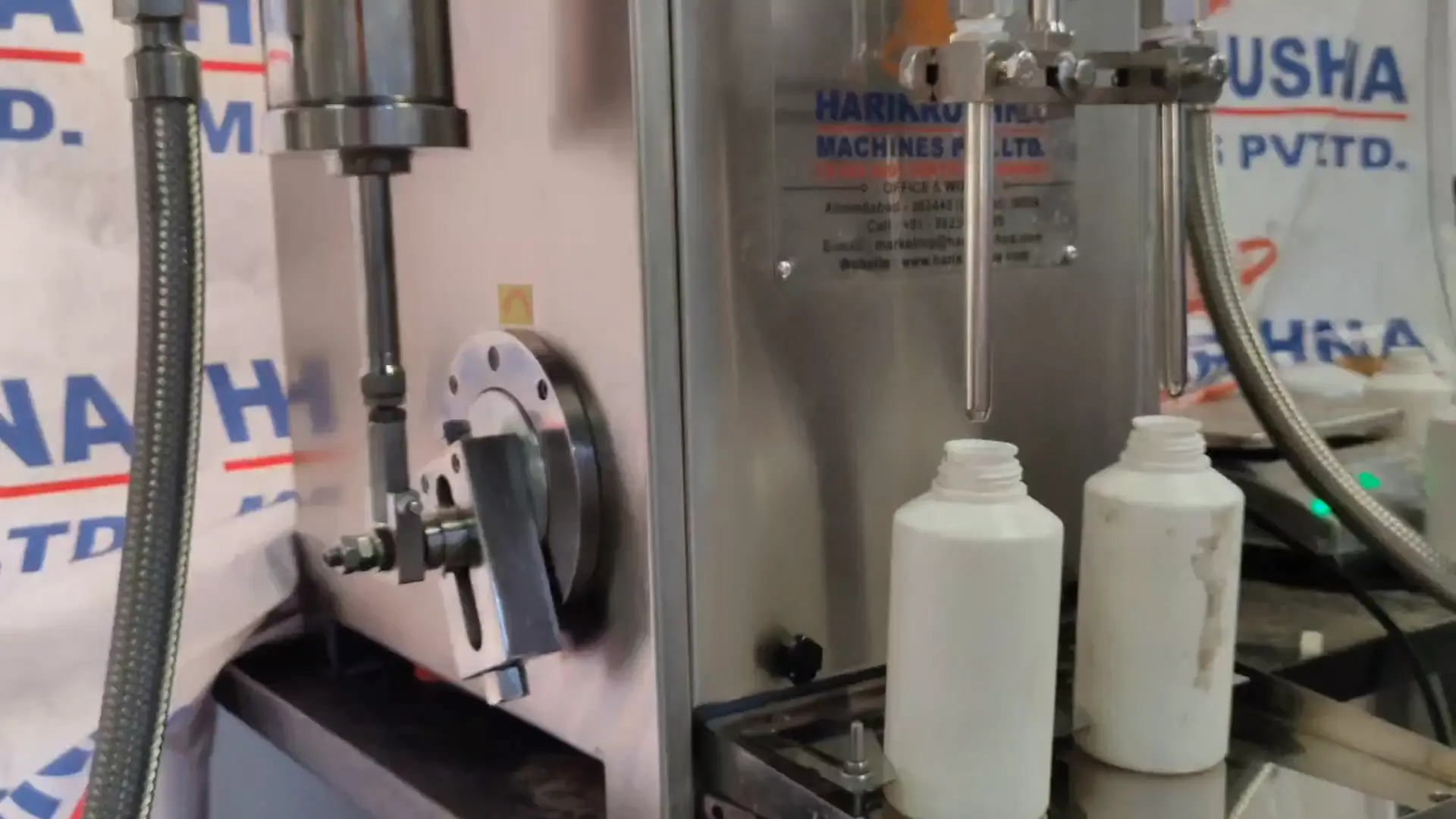

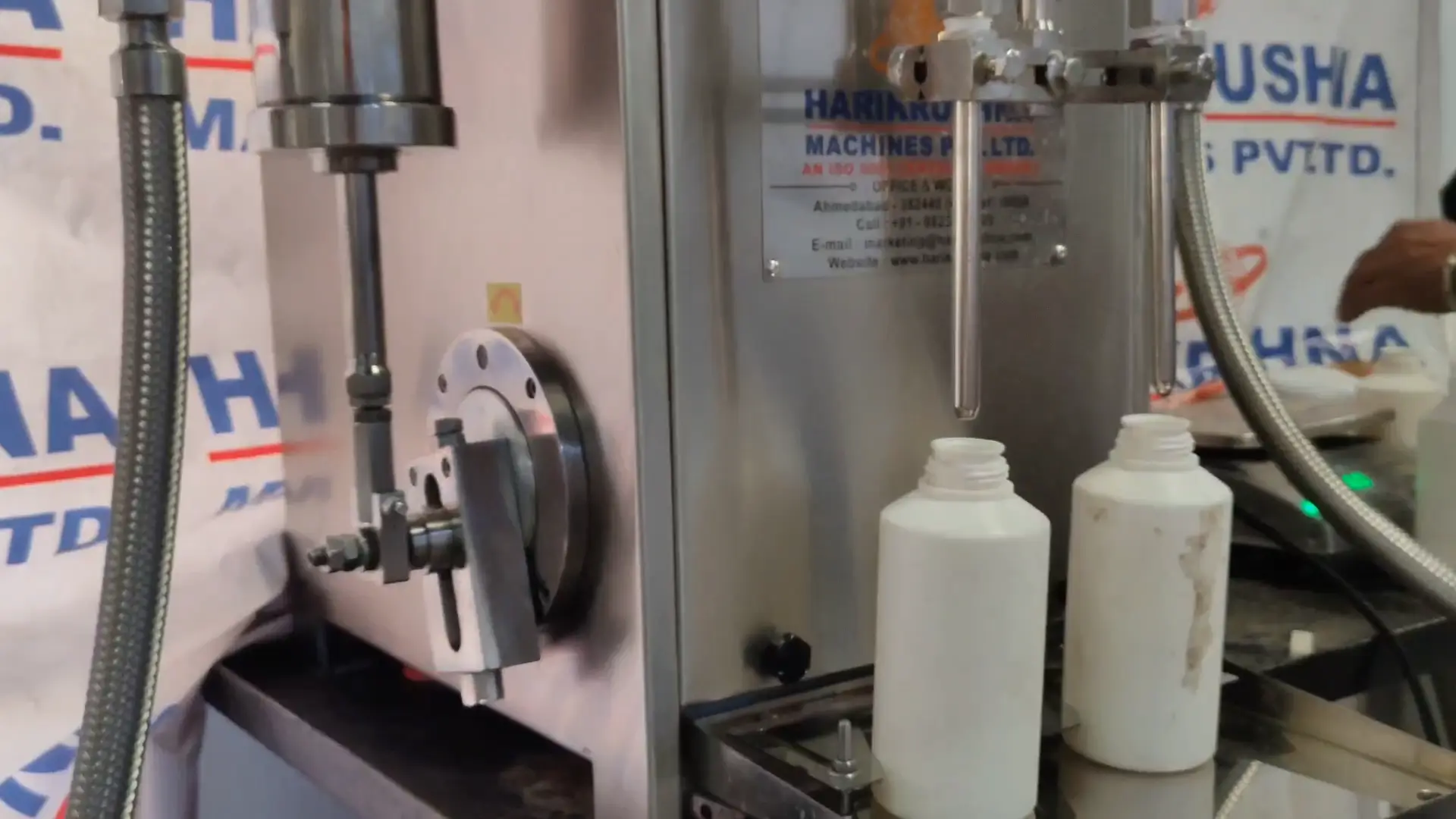

It is a tabletop model where the operator places the two bottles on the machine manually.  The bottle supporting system is attached to the machine. This bottle-supporting system is adjustable. The operator can easily adjust as the diameter of the bottle varies. The change parts are required for different sizes & volumes of bottles. To minimize foaming adjustable nozzle will reciprocate according to the filling dose. The operator puts the two bottles under the filling nozzles and the nozzles fill the bottles, once the bottle is filled the desired volume. The operator has to remove the bottles manually. The dosing block with a hexagonal bolt fitted below the syringes where the operator can easily adjust the different volumes. Here, the speed depends on the skill of the operator as the loading and unloading are done manually.

Filling Material Any Free Flow Non Acidic Liquid (From Water to Honey Viscosity Product)
Bottle Shape & MOC Round PET Bottles
Bottle size (Ø) 15 mm Ø to 90 mm Ø
Fill Size 10 ml to 5000 ml Round Glass/PET Bottles (With Required Change Parts)
Output speed 10 to 25 Products/Minute (Depending on viscosity of liquid and manual loading & unloading)
Number of Head/Syringe 2 Nos.
Power Supply Single Phase / 230 V AC / 50 Hz
Net Weight Approx. 150 Kg
Dimensions Approx. 765 mm L x 410 mm W x 980 mm H
