Semi-Automatic Tabletop Sticker Labelling Machine for Round Bottles

Semi-Automatic Tabletop Sticker Labelling Machine for Round Bottle Label Aluminum, Glass, Plastic, HDPE, LDPE, PP, PET, TIN Containers, Bottles etc.

Semi-Automatic Tabletop Sticker Labelling Machine for Round Bottles

Semi-Automatic Tabletop Sticker Labelling Machine for Round Bottles

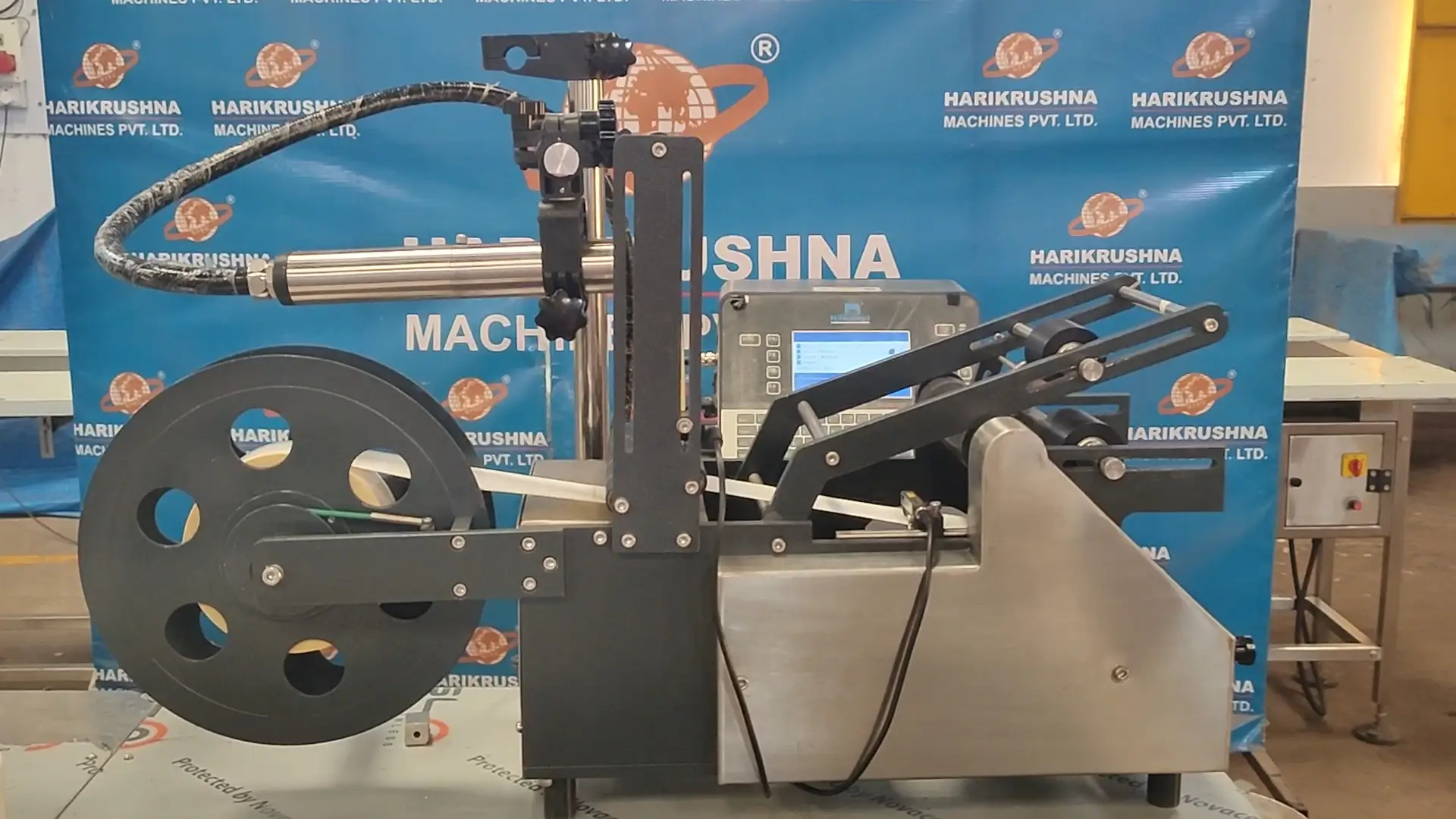

The Semi-Automatic Tabletop Sticker Labelling Machine consists of the main structure, product holding roller, Label wrapping unit, label dispensing system, foot-operated switch, mains ON/OFF, sensor & motor. this multi-purpose Tabletop Sticker Labelling Machine Can Be Utilized to Label Aluminum, Glass, Plastic, HDPE, LDPE, PP, PET, and TIN Containers, or Bottles.

Semi-Automatic Tabletop Sticker Labelling Machine for Round Bottles
Semi-Automatic Tabletop Sticker Labelling Machine for Round Bottles
Semi-Automatic Tabletop Sticker Labelling Machine for Round Bottles
Semi-Automatic Tabletop Sticker Labelling Machine for Round Bottles
Semi-Automatic Tabletop Sticker Labelling Machine for Round Bottles
# Model Output Speed
1 HMPL–SLTT–RD 15 to 20 Products/Minute (Speed depends on product size, label size & manual loading unloading)
  • The machine is manufactured or developed per GMP standards.
  • The structure is made of MS cladded with SS 304.
  • Rigid vibration-free construction for trouble-free performance.
  • It can be operated by semi-skilled operators.
  • Specially designed drive mechanism for Label Release.
  • Change parts required for different sizes of products i.e. product holding roller & wrapping roller.
  • Dispensing Unit to dispense labels.
  • Full / Partial labeling is possible.
  • Machine Suitable for Round Products like Vial/ Bottle/ Jar/ Tin / Can and Container.
  • Reel mechanism (Size: 300 mm) to hang the roll with core ID of 76 mm (3”).
  • Break assembly to avoid variation during releasing of the roll.
  • Various label position adjustment.
  • No Product No Labelling.
  • The machine can be utilized for various sizes (Diameter) of products.
  • User-friendly and very less maintenance required.
  • Specially designed wrapping mechanism to wrap label on product.
  • Fiber Optic based label gap sensor (Sensor Make: LEUZE/BANNER/SICK).
  • Most reliable and proven components using in the machine.

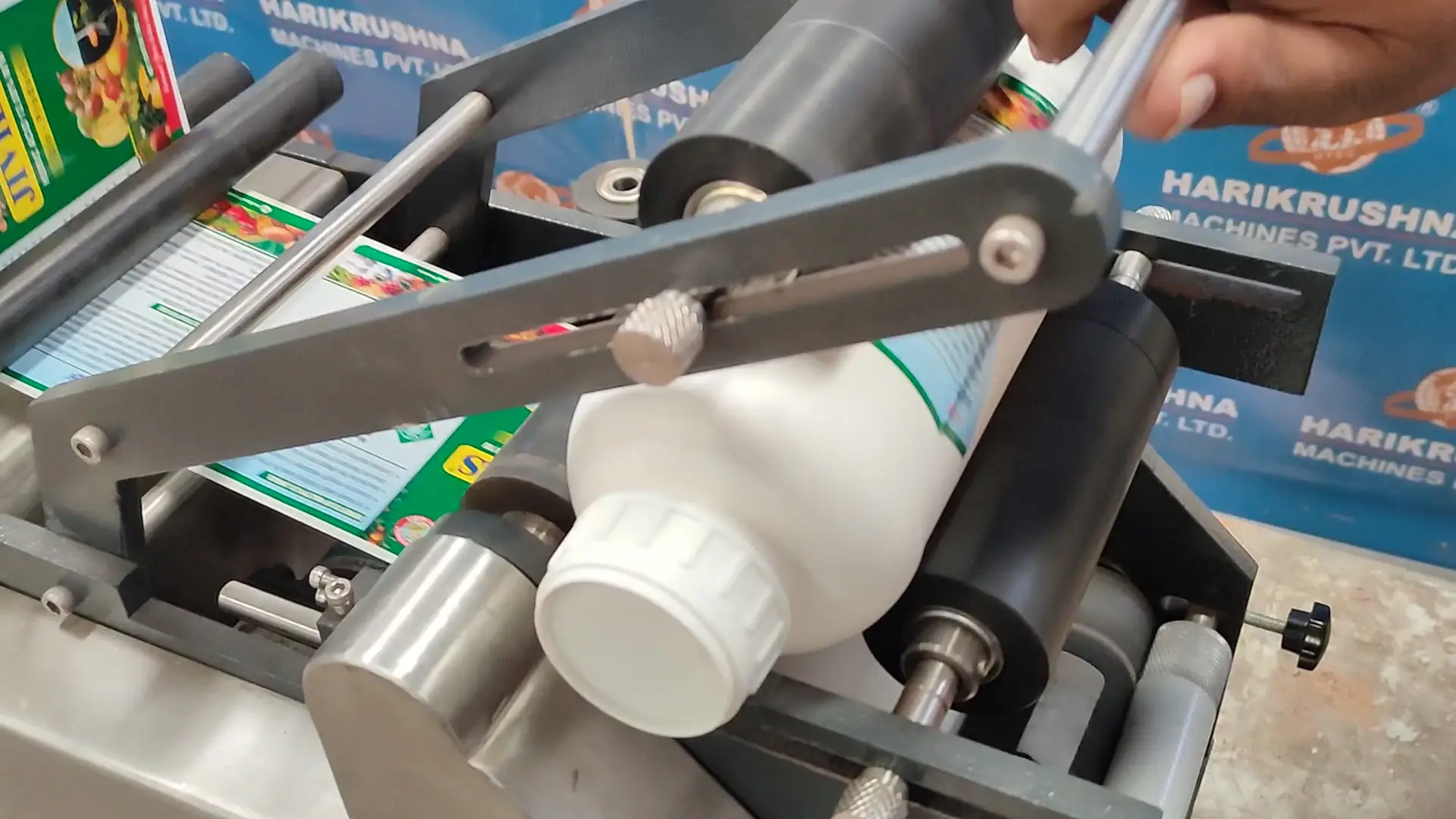

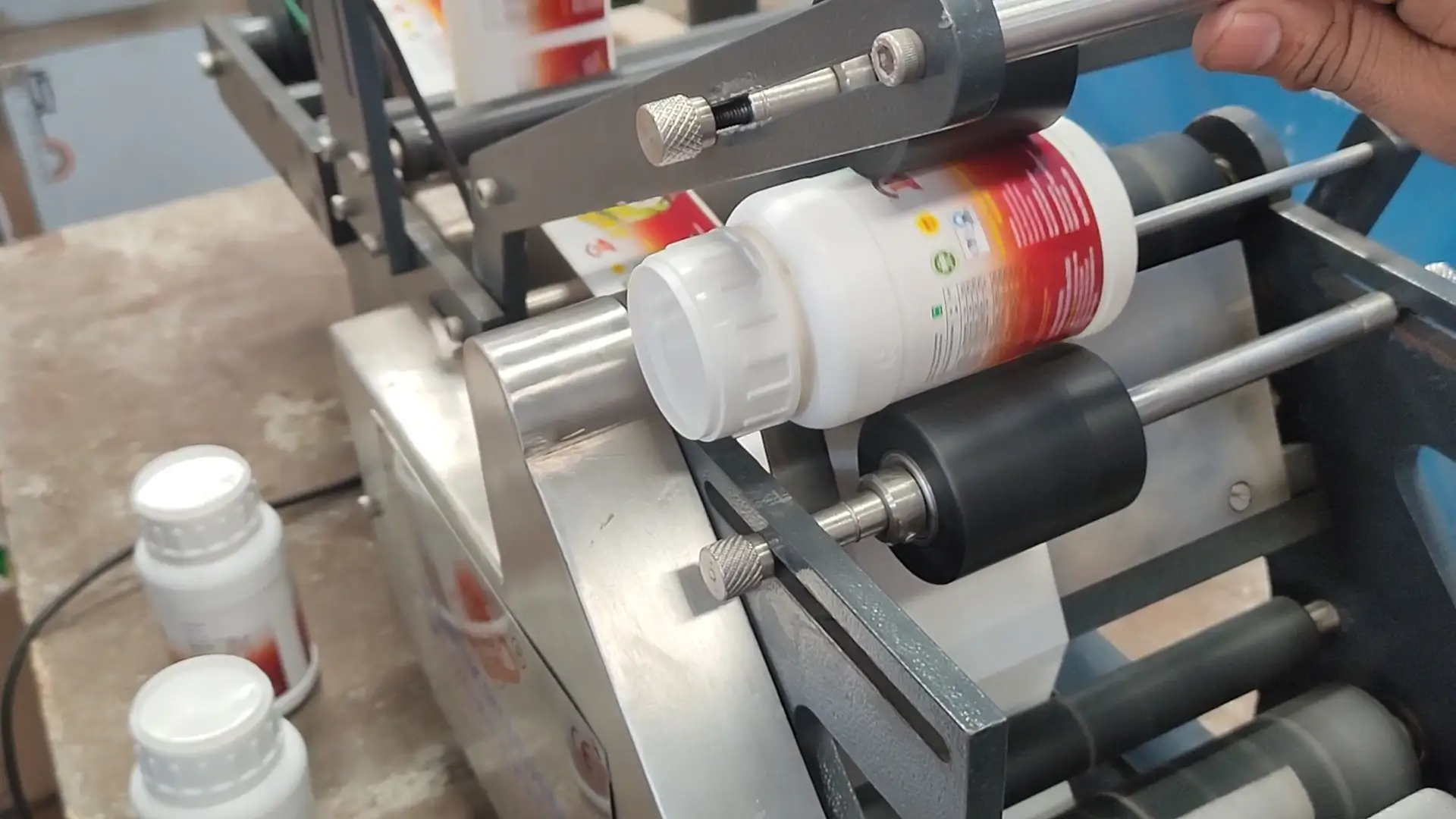

  • First of all the operator fixes the label roll on the label roll holding disc & is guided by the guide rolls.
  • The operator places the product manually on the specially designed roller stand.
  • As soon as the pressing system is operated, the wrapping rollers on the products, hold & keep the product rotated.
  • Simultaneously, the label is dispensed from the dispenser unit on the product.
  • The wrapping roller presses the label uniformly & the product is then taken out manually.
Sample Product Round Shape Aluminum, Glass, Plastic, HDPE, LDPE, PP, PET, and TIN Containers, or Bottles
Sample Product Size 5 ml to 1000 ml
Label Size To be Specify by Customer
Output Speed 15 to 20 Products/Minute (Speed depends on product size, label size & manual loading unloading)
Working Height Tabletop
Power Consumption 0.2 KW
Power Supply Single Phase/ 230V AC/ 50 Hz
Air Consumption N. A.
Net Weight 80 Kg Approx.
Dimensions 1220 mm (L) x 610 mm (W) Approx.
