Pressure Leak Check Machine for IV Bottles

Harikrushna Machines Pvt. Ltd. (HMPL) offers a Pressure Leak Check Machine for 100 ml to 1000 ml IV/Infusion Bottles, with a speed of 100 to 120 bottles per minute. Bottles are manually loaded, pressurized, and separated if a leak is detected.

Pressure Leak Check Machine for IV/Infusion Bottles

Pressure Leak Check Machine for IV/Infusion Bottles

How does it work?

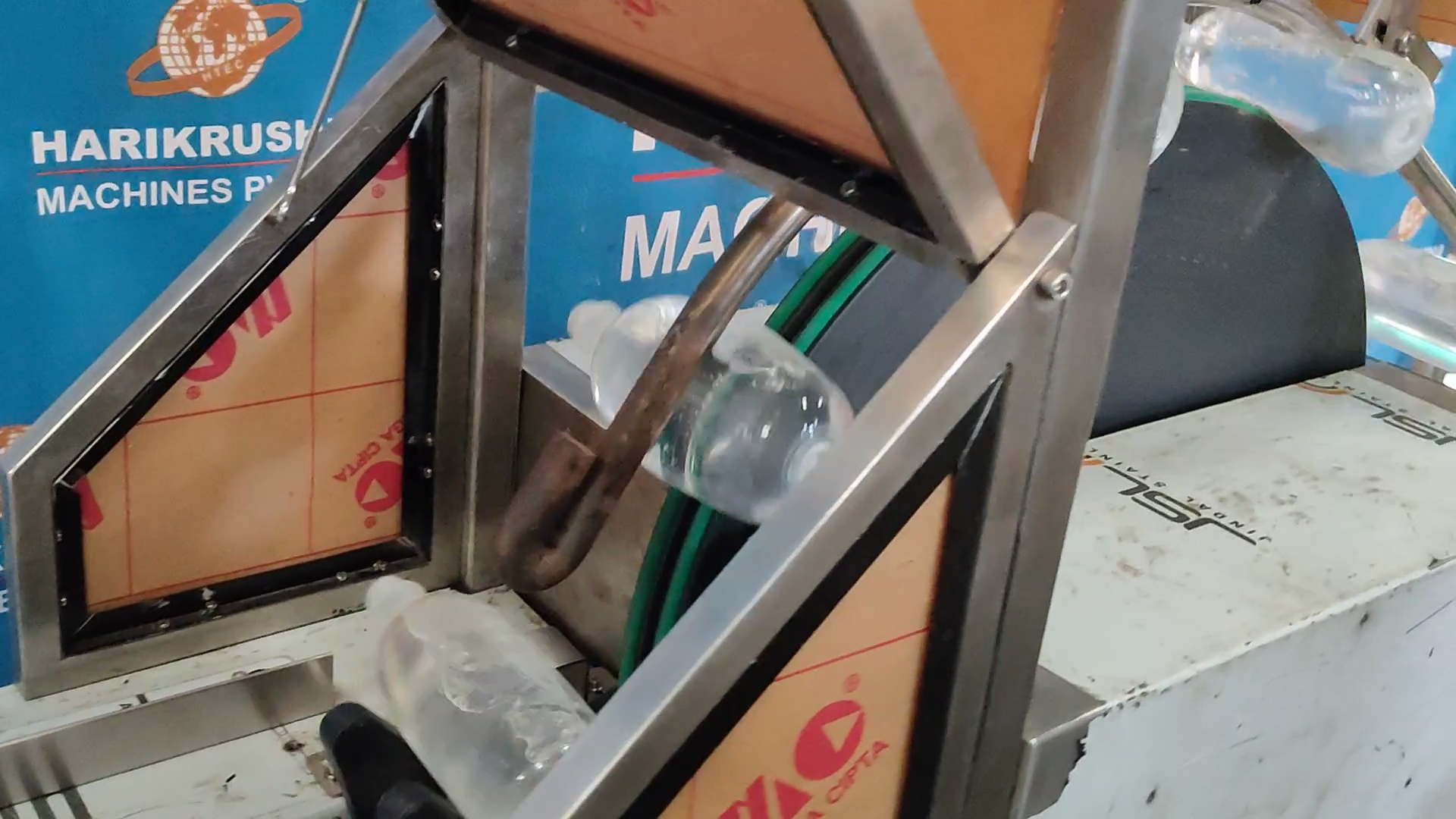

Harikrushna Machines Pvt. Ltd. (HMPL) provides a Pressure Leak Check Machine designed for 100 ml to 1000 ml IV/Infusion Bottles (Large Volume Parenterals), offering an output speed of 100 to 120 bottles per minute. An operator manually loads the bottles onto the conveyor belt, where they pass between the SS rod and the wheel for pressurization. If a bottle leaks, the operator separates it from the rest. The leak test machine checks for leakage and ensures the integrity of joints in filled IV fluid plastic bottles. It integrates seamlessly with the visual inspection system, sticker labelling machine, and packing conveyor belt for an efficient inline process. The IV Plastic Bottle Leak Check Machine features a specialized stainless-steel conveyor belt with a hook system. A rotary bottle forwarding assembly, a Hylum wheel with a rubber belt, a spring-loaded pressure assembly, and a drive unit. The machine's stainless-steel structure includes a moving Stainless Steel Slat chain with a sturdy Stainless-Steel pipe frame with adjustable bolts.
IV Bottle Leak Testing Machine | IV Bottle Leak Testing Equipment Manufacturer and Exporter in India
Our IV Bottle Leak Testing Machine is a high-demand product for pharmaceutical companies. We also customize IV Bottle Leak Testing Equipment per customer's packaging needs. Harikrushna Machines is a trusted packaging partner for many pharmaceutical companies. Our passionate engineering team researches and develops packaging solutions tailored to meet customer needs and market demands. We provide the latest packaging innovations, ensuring our clients excel in a competitive market with reliable after-sales service. Harikrushna Machines Pvt. Ltd. (HMPL) is an ISO 9001:2015 & CE-certified pharmaceutical processing and packaging machinery manufacturer and exporter with 25+ years of experience. We are leading the IV Bottle/ IV Bag Packaging Line (Large Volume Parenterals) and Respules, WFI (water for injection) packaging line (Small Volume Parenterals) Manufacturer. We have done 12500+ machine installations in 60+ countries to startups and small, medium and large level enterprises.

Pressure Leak Check Machine for IV/Infusion Bottles
Pressure Leak Check Machine for IV/Infusion Bottles
Pressure Leak Check Machine for IV/Infusion Bottles
Pressure Leak Check Machine for IV/Infusion Bottles
Pressure Leak Check Machine for IV/Infusion Bottles
Pressure Leak Check Machine for IV/Infusion Bottles
Pressure Leak Check Machine for IV/Infusion Bottles
Pressure Leak Check Machine for IV/Infusion Bottles
Pressure Leak Check Machine for IV/Infusion Bottles
Pressure Leak Check Machine for IV/Infusion Bottles
Pressure Leak Check Machine for IV/Infusion Bottles
Pressure Leak Check Machine for IV/Infusion Bottles
# Model Output Speed
1 HMPL-LC 200 to 220 Bottles/Minute @ 100 ml (Depending upon the operators)
  • The machine is manufactured or developed per GMP standards.
  • SS square pipe frame structure with doors of SS 304 sheet.
  • All moving parts of the machine are covered by SS safety guards.
  • All exposed parts of SS/electroless nickel plated.
  • Dual track SS chain conveying system to convey the product with easy adjustable side guide.
  • Drive motor & gear mechanism.
  • The star plate & rotary plate (partially) is covered with an acrylic cover.
  • Back side mirror for leak check of bottle bottom.
  • Pressure alignment level for different sizes.
  • Star plate to lift the bottle.
  • The star plate & Rotary plate is made from UHMW-nylon.
  • Adjustable pressure rod.
  • Collection tray at the bottom to collect liquid of leakage bottles.
  • Bottles are to be loaded manually to the conveyor.
  • The bottles move on the conveyor & at the end of the conveyor, bottles are lifted with the help of a star plate.
  • Through the star plate bottle moves on a rotary plate with a pressure rod where the operator can check leakage in the bottles with the mean of pressure.
  • The operators remove the leaked bottles manually.
  • After the process of leak testing the bottles are transferred for further operation.
Model HMPL–LC
Bottle MOC & Shape PE Flat I. V. Bottles/ Intravenous Fluids Bottles / IV Fluid Bottles
Bottle Volume 100 ml to 1000 ml
Conveyor Belt Width 40 mm
Conveyor Belt SS Slat
Both Side Working Space 7”
Output Speed 200 to 220 Bottles/Minute @ 100 ml (Depending upon the operators)
Working Height 950 mm ± 50 mm Adjustable
Power Supply Three Phase / 415 V AC / 50 Hz
Net Weight Approx. 200 Kg
Dimensions Approx. 2200 mm L x 875 mm W x 1530 ± 50 mm H Approx.
