Automatic Vial Cap Sealing Machine

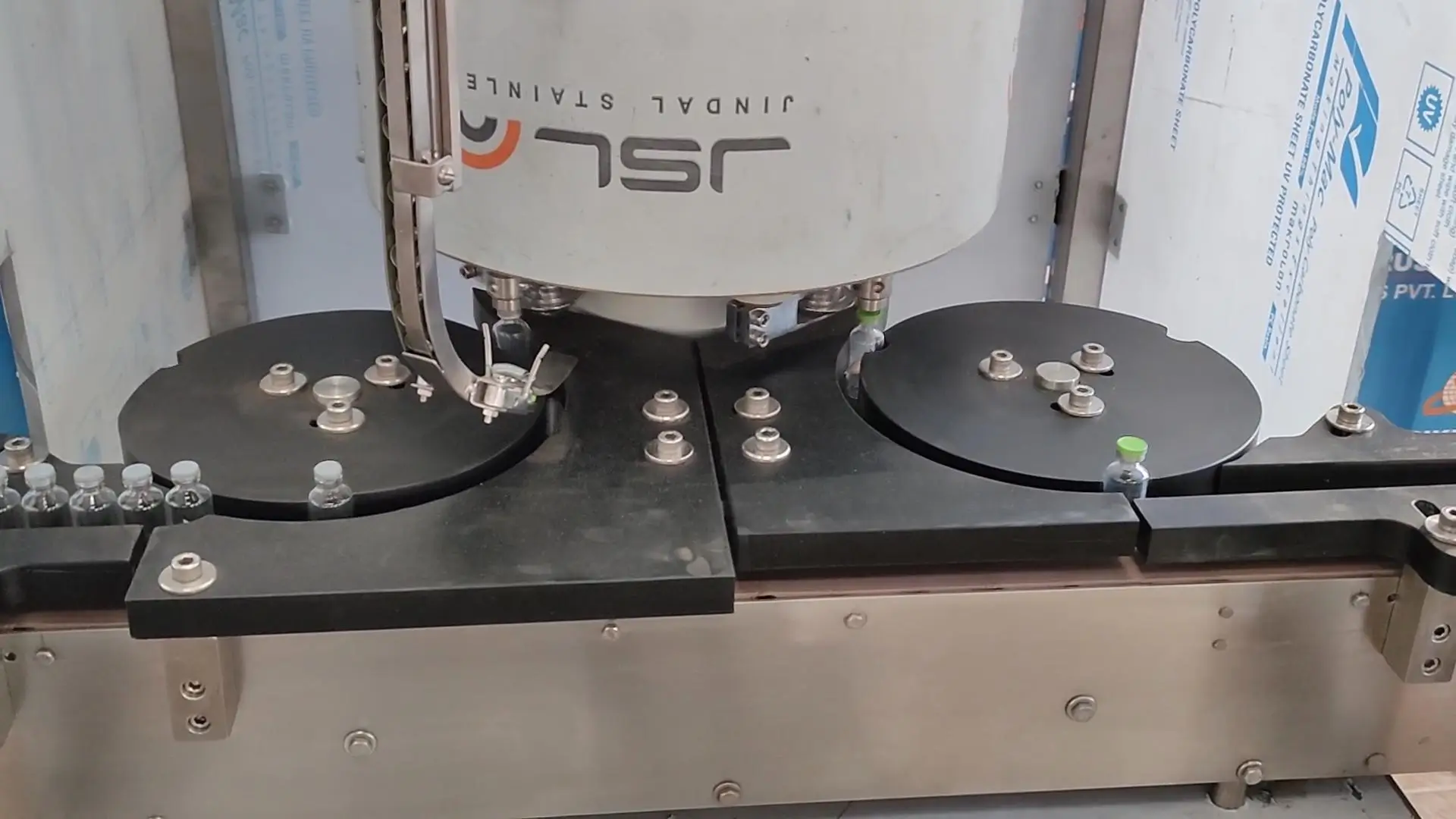

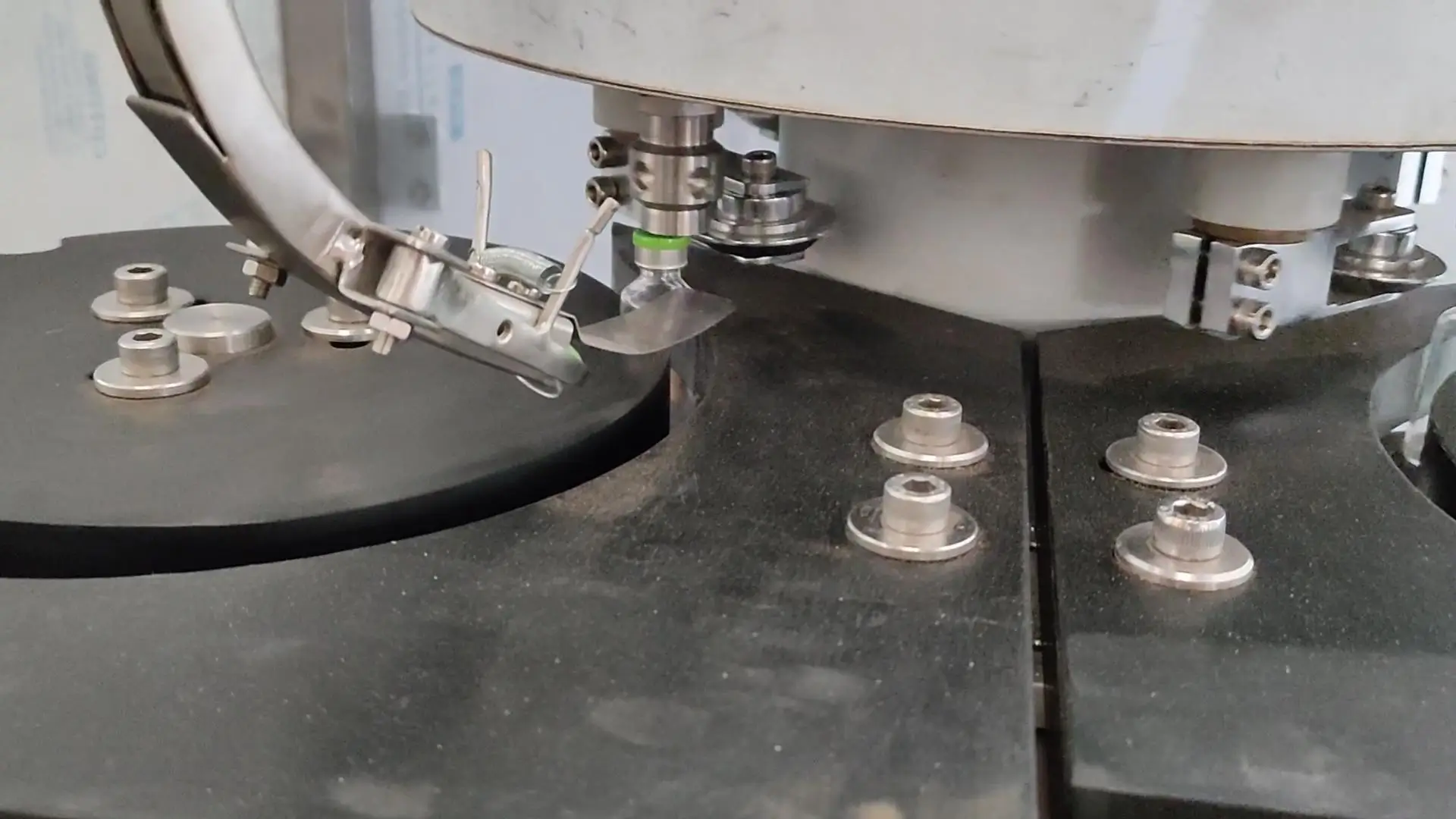

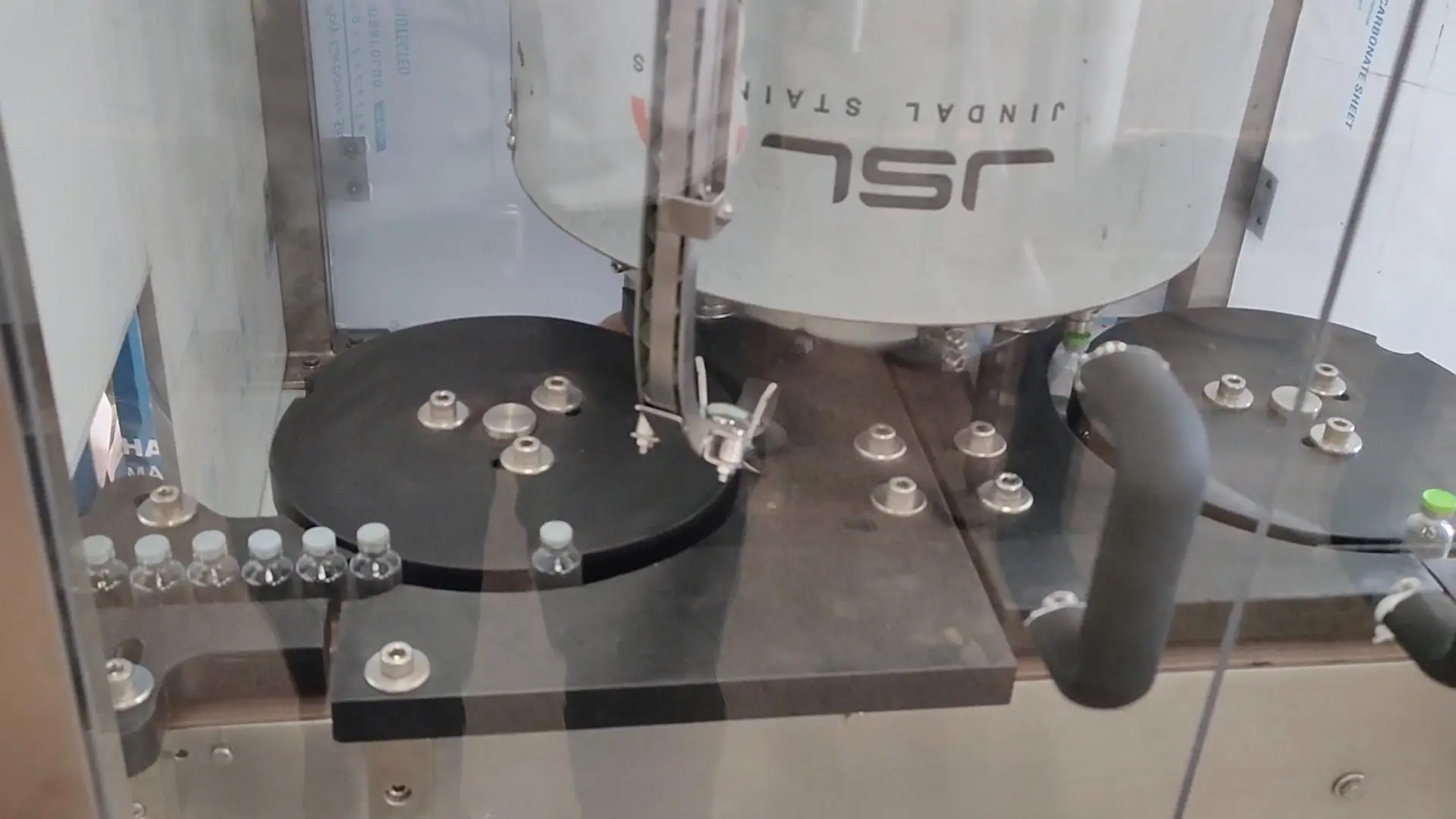

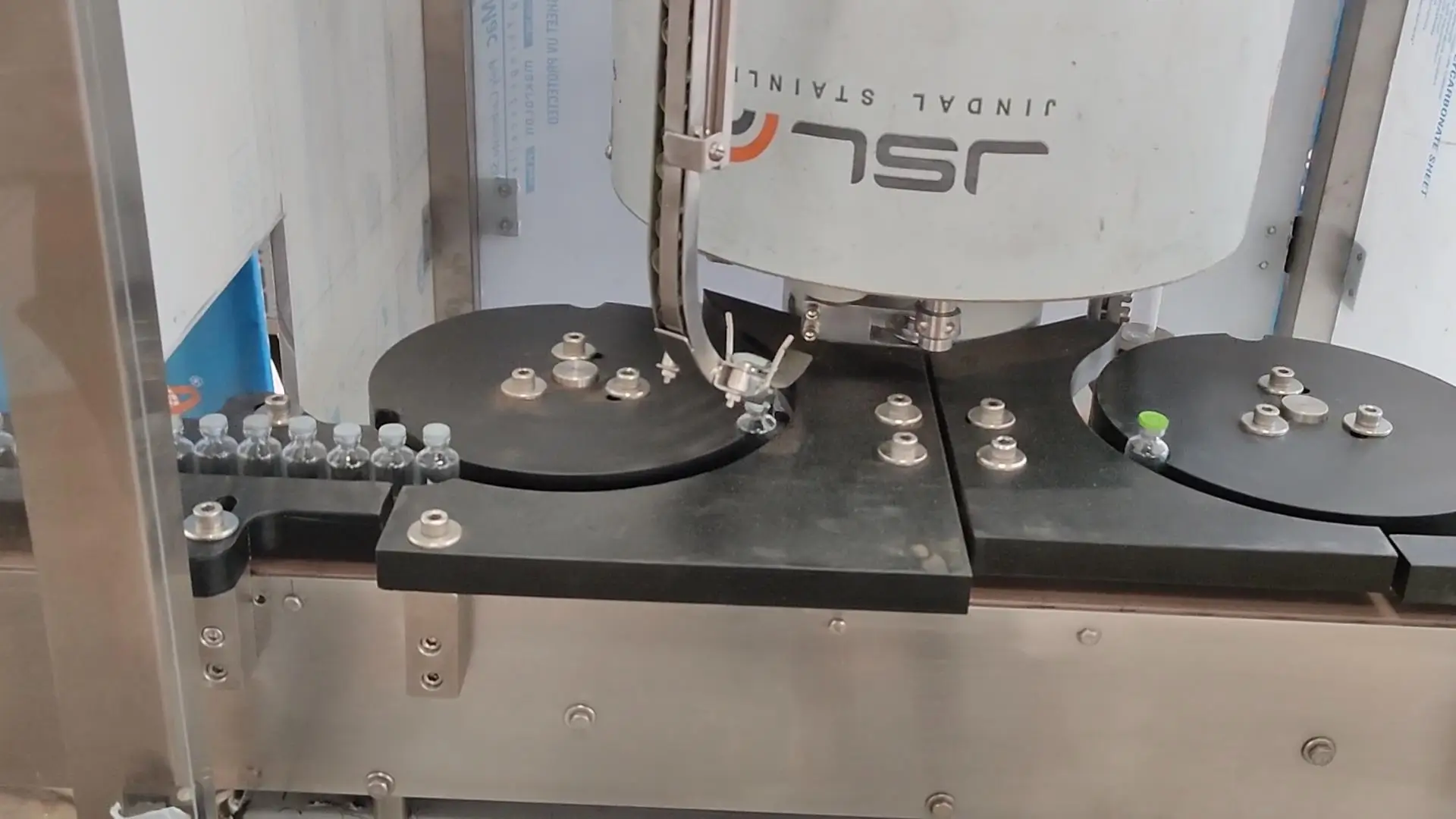

The Automatic Vial Cap Sealing System consists of main structure covered with SS cabinet safety poly carbonate glass doors, Delrin slate conveyor, vials height adjustment screw, centralized lubrication system, out-feed turn table, vibrator bowl & chute for cap, in-feed screw & star plate, sensors, electrical panel, AC Drive, PLC & HMI.

SAILENT FEATURES:

The machine is manufactured or developed accordance with GMP standards.
The structure is made of MS and cladded with SS 304.
Rigid vibration free construction for trouble free performance.
The mechanical driven system of the whole machine is through foot mounted motor and gear box.
The complete synchronized mechanism is designed on gears and chain.
Totally synchronized PLC controlled system.

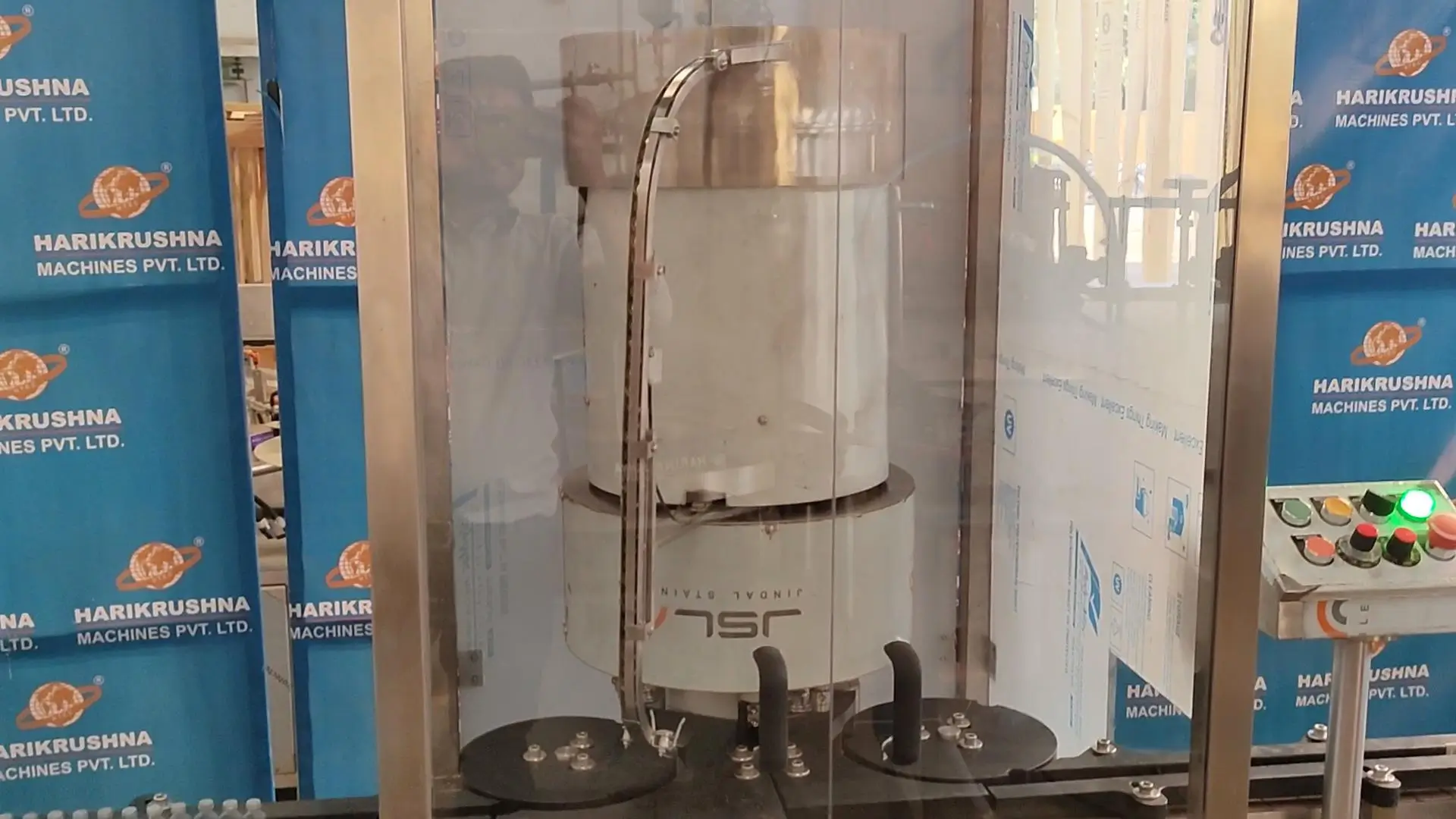

The whole machine covered with cabinet of SS and polycarbonate glass doors.
User friendly to adjust the different speed (vials/minute) with the help of HMI.
The Real output speed (vials/minute) appear on HMI.
Few change parts are required for different vials.
Vials without bungs and no caps are detected by the sensors and give the alarm alert and machine stop itself.
Daily production ratio, production counter is given with the password protection.

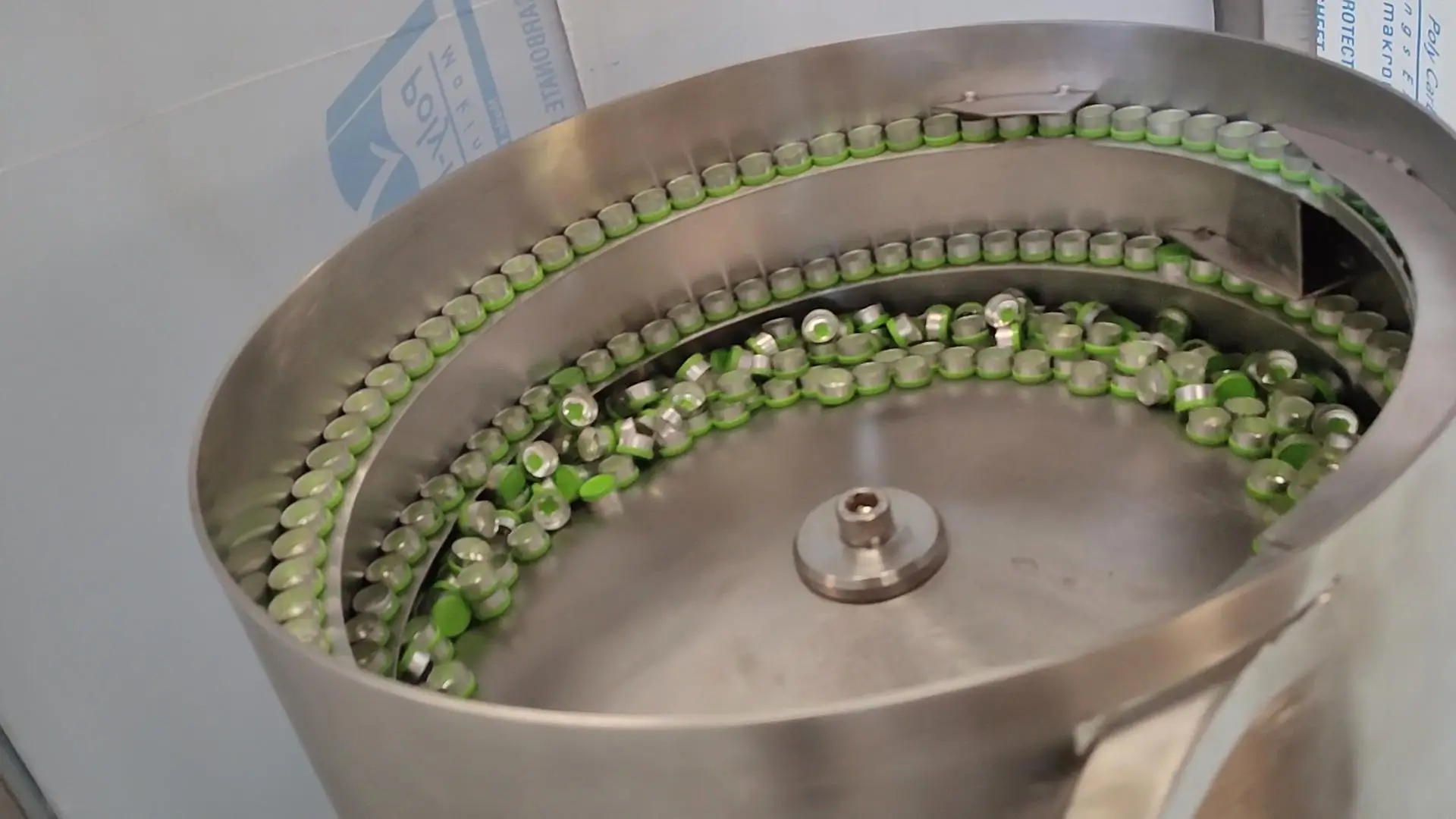

There is a special designed vibrator bowl and chute with no cap sensors for continuous flow of the cap.
The faults such as vials without bungs, no caps appear on the HMI and can be attended easily.
Very less mechanical adjustment required due to the special design.
PLC modes are user friendly and can be operated easily.
User friendly and very less maintenance required.
The structure construction of machine is useful to mount laminar flow.
Most reliable and proven components such as Festo/SMC make pneumatic and electrical/electronic such as Bonfiglioli/Motovario/Rotomotive make AC motor, Delta make Drives, Delta make PLC & HMI, LEUZE/BANNER/SICK make Sensors, MCB & relay "CE" make.

TECHNICAL SPECIFICATION:

ModelHMPL–PRE–RVS
Suitable For2 ml to 30 ml (with the help of required change parts)
Cap Size13 mm to 32 mm
Output speed30 to 120 Vials/Minute
Sealing Head1 / 4 / 6 head
Working Height850 ± 50 mm Adjustable
Power Consumption2.0 KVA
Power Supply3 Phase + Neutral + Earthing / 415 V AC / 50 Hz
Air SupplyN.A.
Net Weight600 Kg Approx.
Dimensions2525 mm (L) x 950 mm (W) x 2000 mm (H) Approx.
