Global Reach: Over 12,500 Machines Installed In 60+ Countries And Still Counting...

Complete Injectable Vial Liquid Packaging Line

Harikrushna Machines Pvt. Ltd. (HMPL Sterile) offers a state-of-the-art Vial Liquid Packaging Line for 2 ml to 10 ml liquid vials with up to 400 vials per minute output speed.

Complete Injectable Vial Liquid Packaging Line

Vial Liquid Packaging Line | Injectable Liquid Filling Line Manufacturer and Exporter in India

Vial Liquid Packaging Line is suitable for 2 ml to 10 vials with up to 400 vials per minute output speed.

Complete Injectable Vial Filling Line | Vial Line

The Complete Injectable Vial Liquid Filling Line consists of an Automatic Rotary Vial Washing Machine/ Linear Vial Washing Machine, Sterilization and Depyrogenation Tunnel, Automatic Vial Filling and Rubber Stoppering Machine with LAF (Laminar Air Flow) System, Automatic Vial Aluminum/Flip Off Capping Machine, Online Visual Inspection Conveyor, Automatic Vial Sticker Labelling Machine, Automatic Vial Cartoning Machine etc. with the speed up to 400 Vials/Minute. We offer customized solutions per customer requirements.

Why Harikrushna Machines (HMPL Sterile's) Vial Packaging Line is the 1st preference of every pharma company?

  • ISO 9001:2015 and CE-certified Injectable Vial Packaging Line Manufacturer and Exporter since last 25+ Years.
  • High-Quality Liquid Vial Packing Line at a reasonable cost.
  • Prompt and the best pre-and-post sales services.
  • More than 12500 machine installations Spread to 65 Countries
  • International regulatory standards, including EU GMP & USFDA.


  • Accurate Fillings
  • Aseptic Packaging & Compliance
  • Versatility
  • High Speed & Efficiency
  • Customization
  1. Automatic Rotary Vial Washing Machine
  2. Sterilizing & Depyrogenation Tunnel
  3. Automatic Injectable Liquid Filling and Rubber Stoppering Machine with LAF (Laminar Air Flow) System
  4. Swing Conveyor
  5. Automatic Cap Sealing Machine
  6. Online Visual Inspection (Optional – As per Customer’s Requirements)
  7. Turntable Machine
  8. Automatic Premium Bottle Sticker Labelling Machine with 21 CFR System (As per Customer’s Requirements)
  9. Packing Conveyor
Sample Products Glass Vials
Sample Product Size 2 ml to 10 ml Glass Vials
Types of Drugs Free Flow Liquid
Output Speed Up to 400 vials per minute

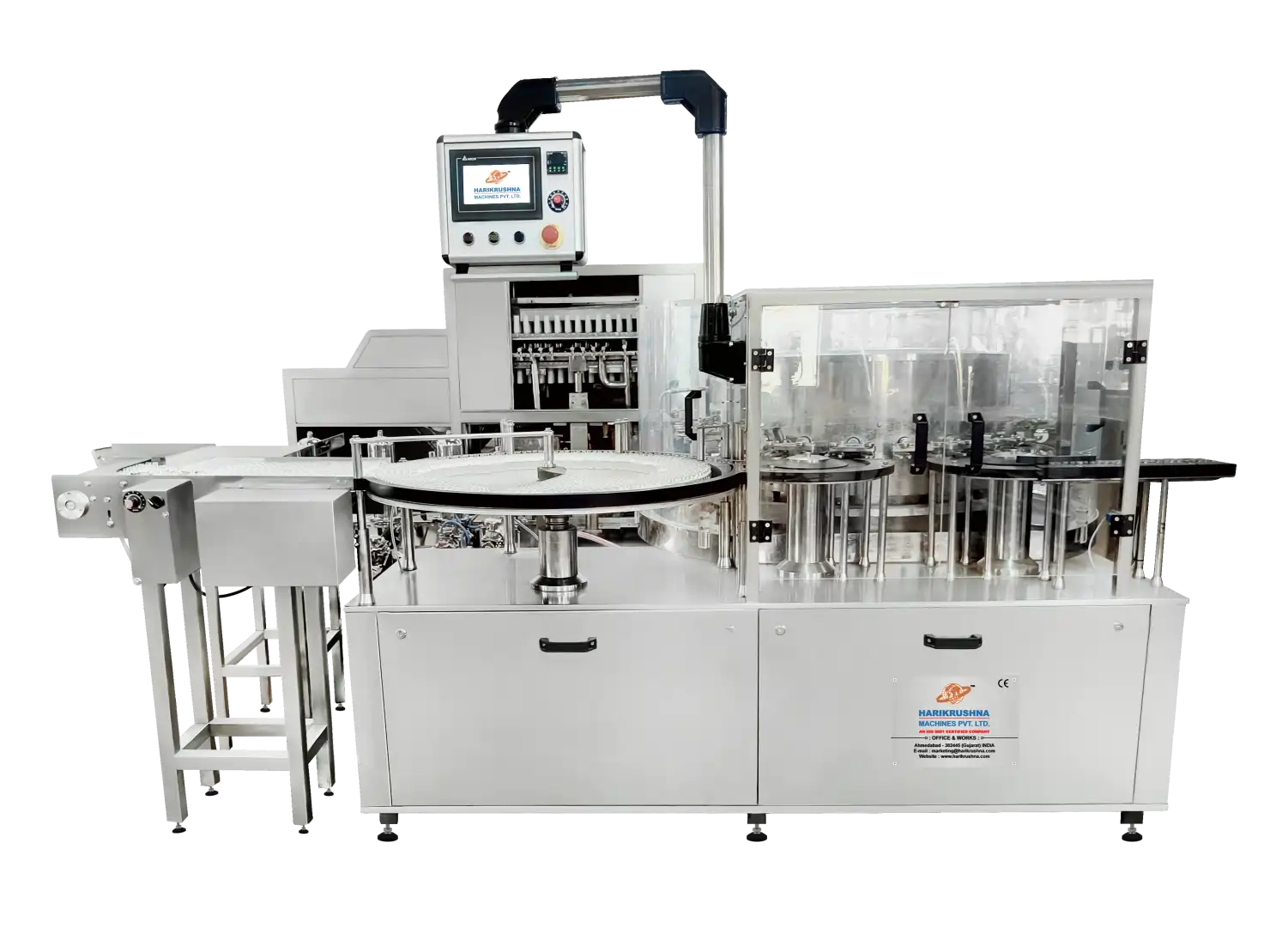

Automatic Rotary Vial Washing Machine

Automatic Vial Washing Machine

The Vial Washing Machine washes vials with minimal contact between machine parts and the vial. Our vial washing equipment effectively washes various sizes of vials with the assistance of changing parts. The pharmaceutical, veterinary, and biotech industries widely use our system. The specially designed Gripper System holds the vial from the neck and inverts it until the washing operation. Again, after washing, the machine releases the vial on the out-feed feed screw system in a vertical position, ensuring positive wash vials.

Sterilizing & Depyrogenation Tunnel

Harikrushna Machines Pvt. Ltd. (HMPL Sterile) offers a variety of sterilization tunnels, delivering adaptable solutions for efficiently treating various types of glass containers. Utilizing dry heat sterilization guarantees uniform treatment quality while reducing energy consumption. Whether you’re packaging liquid pharmaceuticals in ampoules, vials, injection and infusion bottles, cartridges, or syringes, ensuring dependable container sterilization is crucial for improving product safety.

Sterilization and Depyrogenation Tunnel

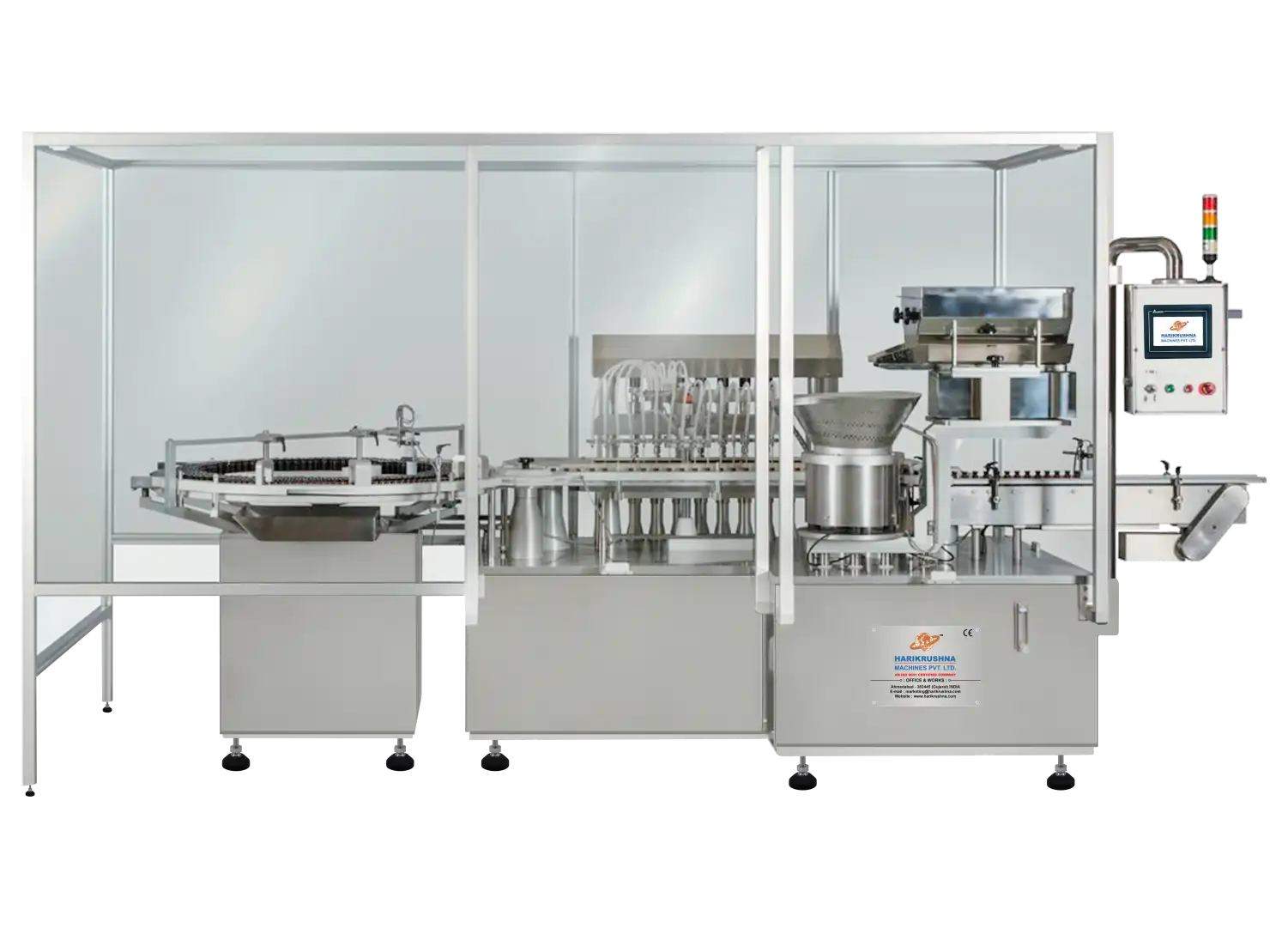

Vial Filling & Stoppering Machine

Automatic Vial Filling and Rubber Stoppering Machine with LAF (Laminar Air Flow) System

The Automatic Vial Filling Machine and Rubber Bunging Machine with LAF (Laminar Air Flow) System consist of a main structure covered with SS cabinet safety acrylic cover, laminar air flow, in-feed turntable Machine, peristaltic pump filling Machine, Delrin Slate conveyor, outfeed turn table, vibrator bowl & chute for rubber stopper, pneumatic components and electrical panel, AC Drive, PLC & HMI. Our Vial Filling & Rubber Stoppering Machine fills 30 to 100 Vials/Minute (Depending upon the nature of the liquid & size of the vials) output speed.

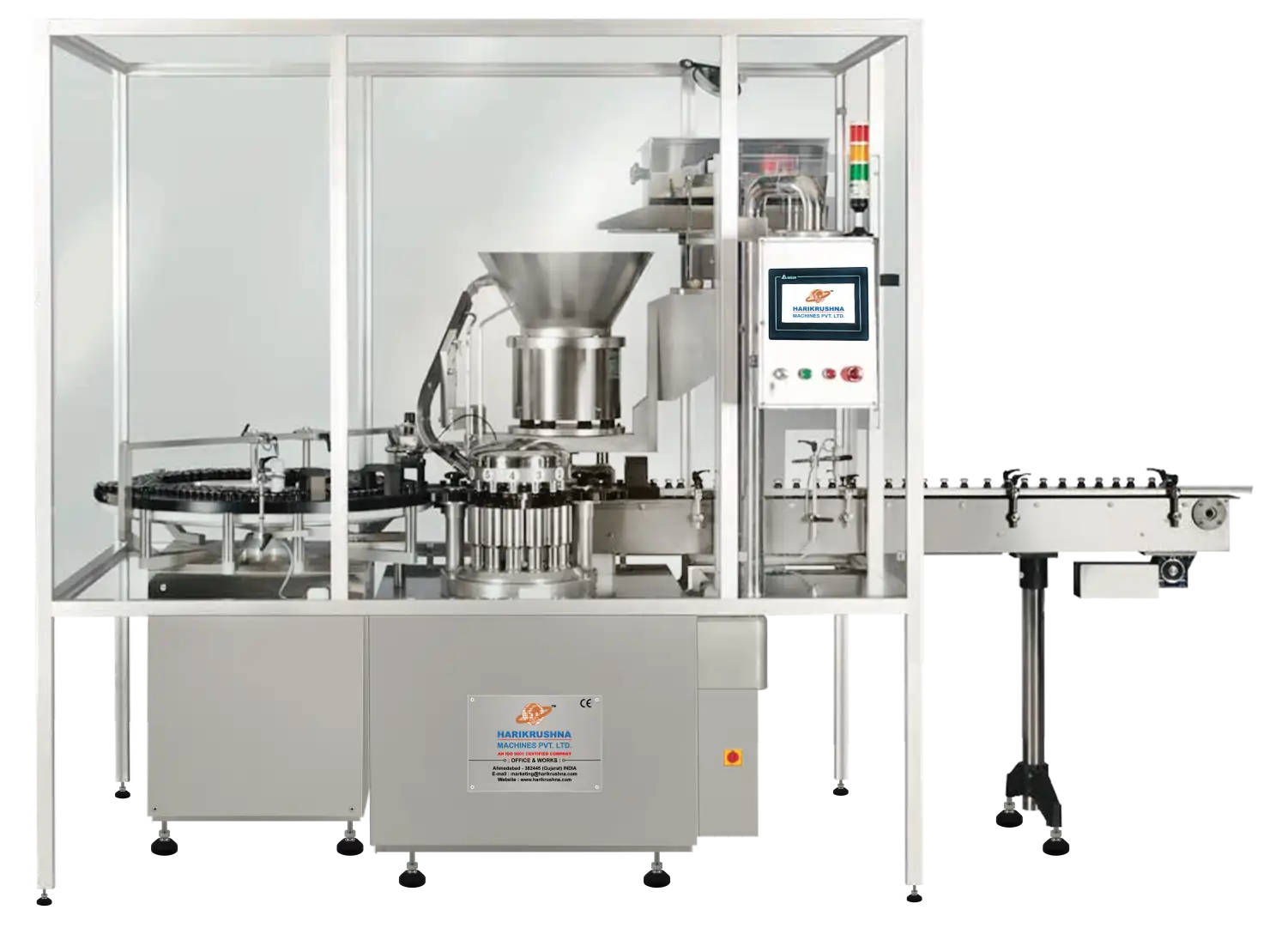

Automatic Vial Cap Sealing Machine

The Automatic Vial Cap Sealing Machine consists of the main structure covered with SS cabinet safety polycarbonate glass doors, Delrin slate conveyor, vials height adjustment screw, centralized lubrication system, out-feed turntable, vibrator bowl & chute for cap, in-feed screw & star plate, sensors, electrical panel, AC Drive, PLC & HMI. Our machine is suitable for 2 ml to 30 ml (with the help of required change parts) with 13 mm to 32 mm cap size with 30 to 120 Vials/Minute output speed.

Vial Cap Sealing Machine

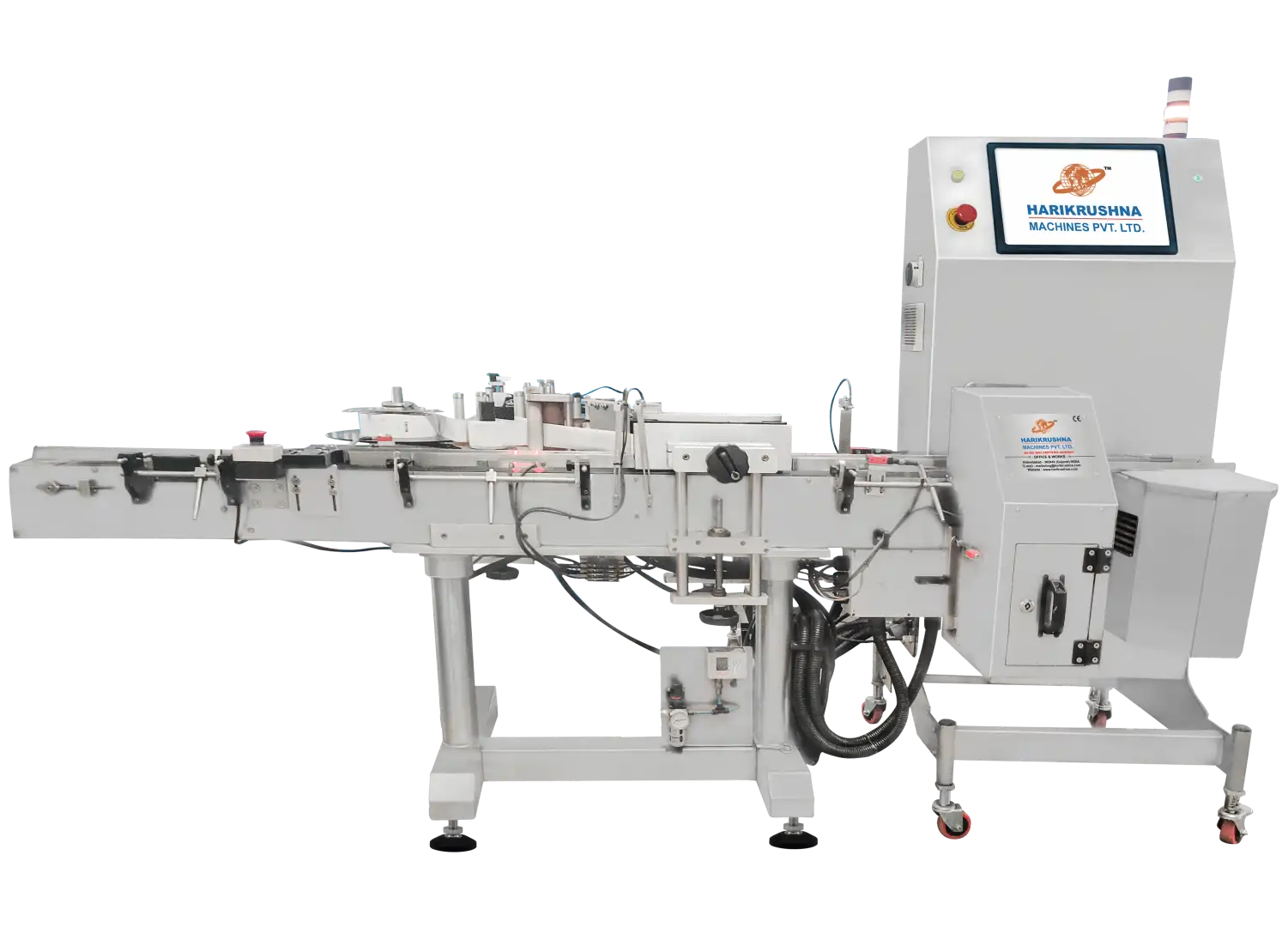

Automatic Premium Vial Sticker Labeling Machine with 21 CFR System

Automatic Premium Bottle Sticker Labelling Machine with 21 CFR System

The Automatic Premium Bottle Sticker Labelling Machine with 21 CFR System of the main structure is covered with an SS cabinet and safety Polycarbonate enclosure, belt conveyor, separator unit, dispenser unit, wrapping unit, electrical panel, PLC & HMI, Vision System (OPTIONAL), AC drives, rejection system (OPTIONAL) & A batch printing unit (OPTIONAL). Our Vial Sticker Labelling Machine is suitable for 15 mm Ø to 90 mm Ø round vials with up to 200 products per minute output speed.

Automatic Vial Cartoning Machine

The Complete Injectable Vial Liquid Filling Line consists of an Automatic Rotary Vial Washing Machine/ Linear Vial Washing Machine, Sterilization and Depyrogenation Tunnel, Automatic Vial Filling and Rubber Stoppering Machine, Automatic Vial Aluminum/Flip Off Capping Machine, Online Visual Inspection Conveyor, Automatic Vial Sticker Labelling Machine, Automatic Vial Cartoning Machine etc. with the speed up to 400 Vials/Minute.

Automatic Cartoning Machine
