Packing Conveyors

Packing Conveyors are equipment for transferring material from one machine to another in the Complete Packaging Line.

Packing Conveyors

Packing Conveyors for Packaging Line

Packing Conveyors are equipment for transferring material from one machine to another in the Complete Packaging Line. The Packing Conveyor loads and unloads packages from one place to another place with the help of a conveyor belt. Conveyor convey materials on a dynamic belt commonly employed in the packaging industry. The Packing Conveyor Belt plays a crucial role within the manufacturing unit. Packing conveyors find global use in diverse applications and are indispensable for specific stages of the production process.

Packaging Conveyor Manufacturer and Exporter in India

Harikrushna Machines guarantees the Conveyor Belt's exceptional tensile strength, longevity, and durability by utilizing the highest-quality materials. Additionally, The Conveyor Belt from HMPL features a specially designed adjustable angle at the beginning of the conveyor to facilitate the packing of bottles, jars, pouches, etc.

Key Features of Packaging Conveyor Systems:

  • The construction utilizes stainless steel, providing the body with a matte finish.
  • Ensure a long life and straight running of the belt with an active belt-alignment system.
  • Adjust the angle at the initial part of the conveyor for specialized packing of bottles, jars, and pouches.
  • Synchronize the machine with the printing machine and bundle packing machine.
  • Construct with vibration-free, jerk-free, and noiseless features.

Harikrushna Machines - Leading Packing Conveyor Manufacturer and Exporter in India

Harikrushna Machines Pvt. Ltd. is an ISO 9001:2015 & CE-certified Packing Conveyor Manufacturer and Exporter in Ahmedabad, Gujarat, India. We have installed machines in over 12,500 locations across 60 countries worldwide. Likewise, we have established a reputation as pioneers in the industry. Specializing in manufacturing and globally distributing cutting-edge machines for liquid processing and packaging, we also cater to various industries.
  • Beverages
  • Cosmetics
  • Dairy
  • Distilleries
  • Edible Oil
  • Food
  • Lubricants
  • Pesticides
  • Pharmaceuticals
  • Other Allied Industries

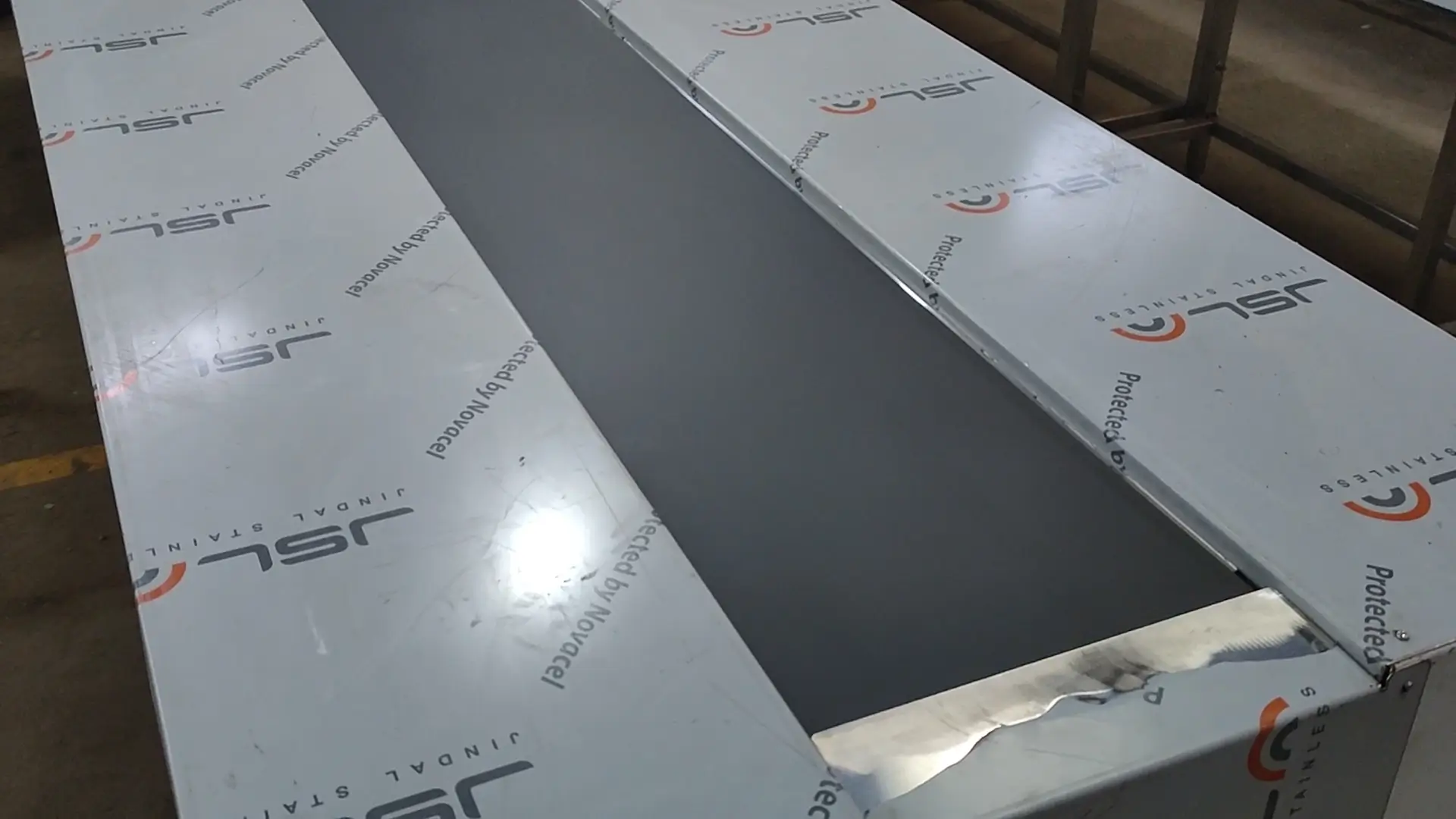

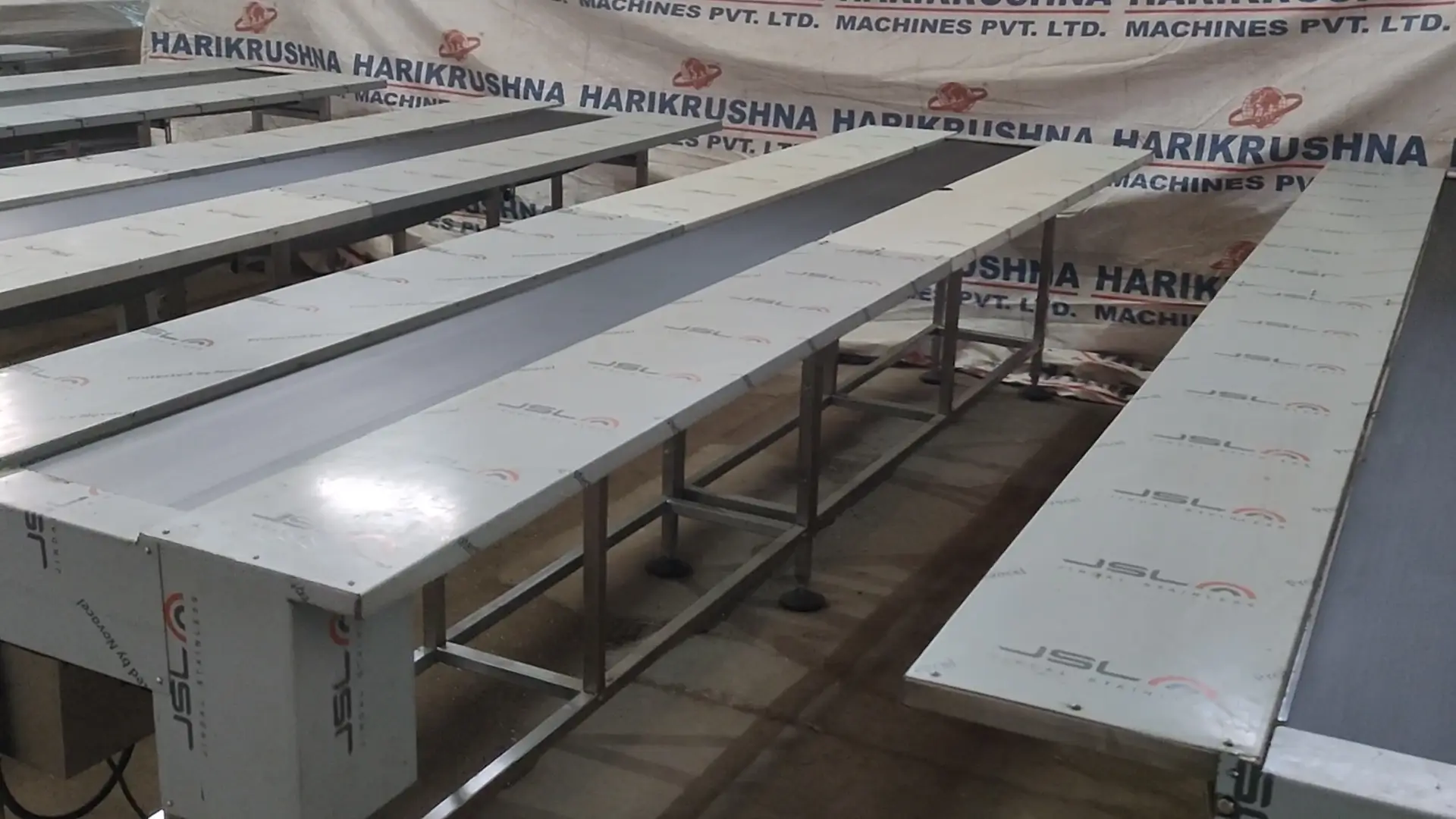

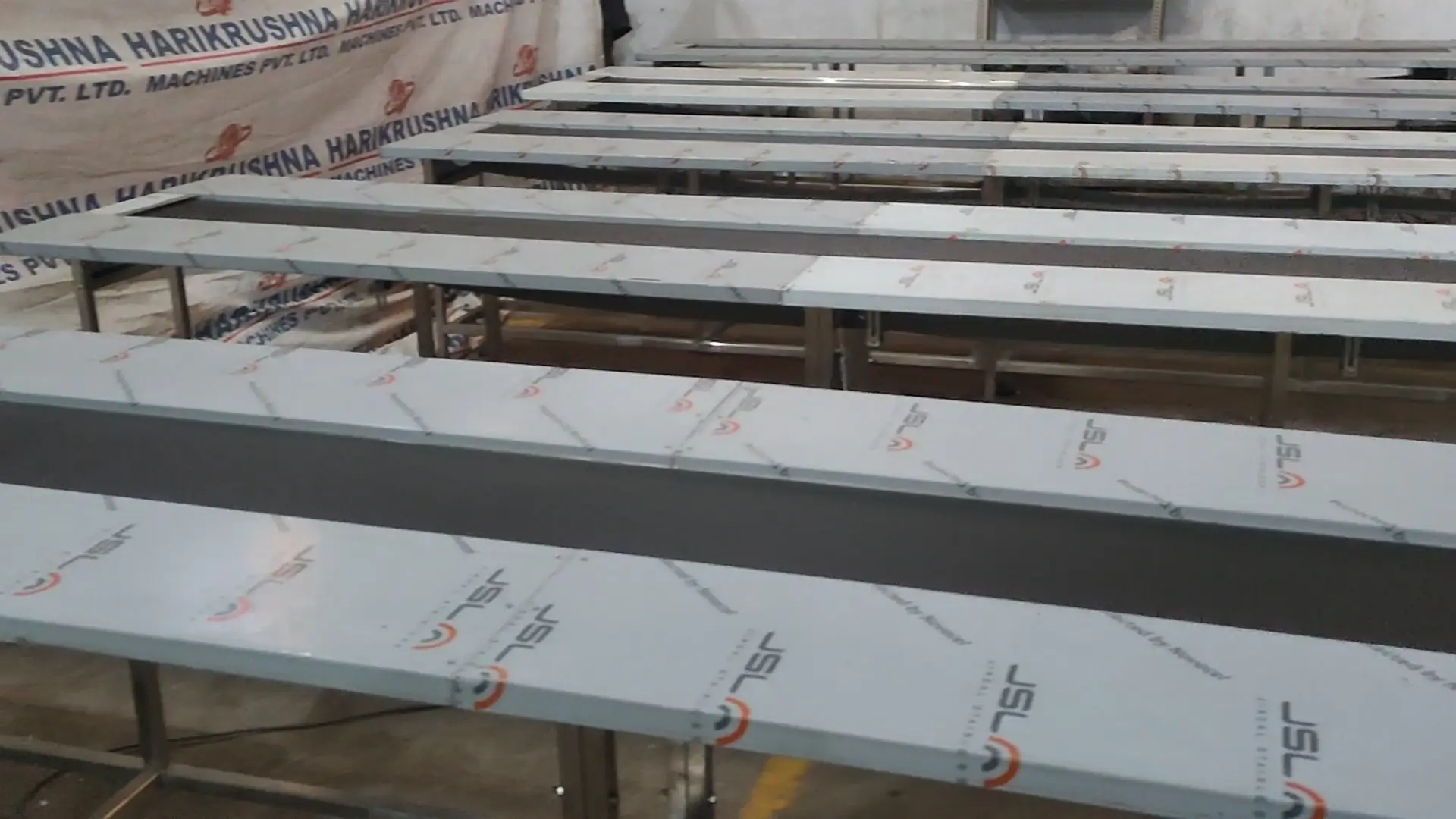

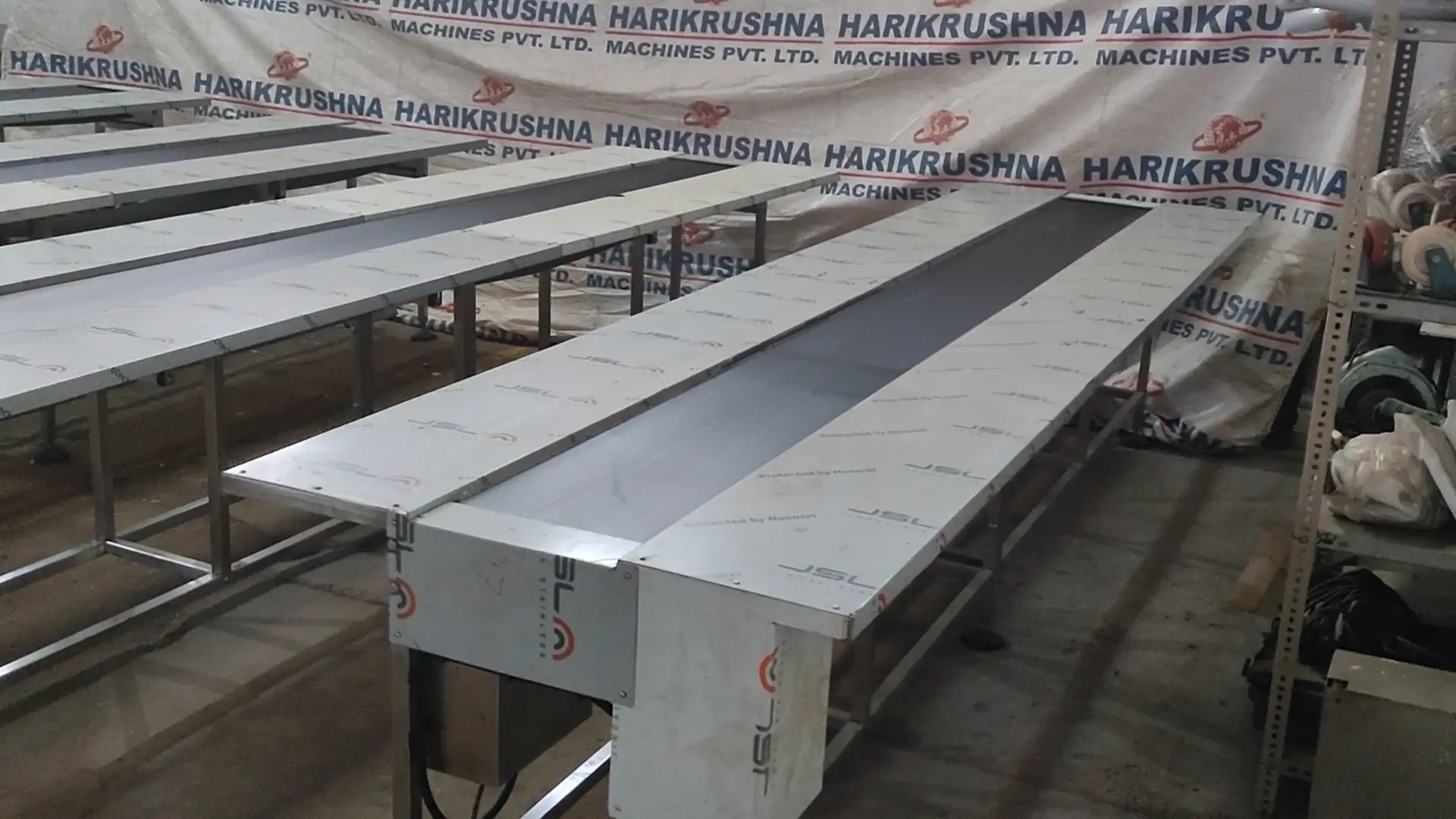

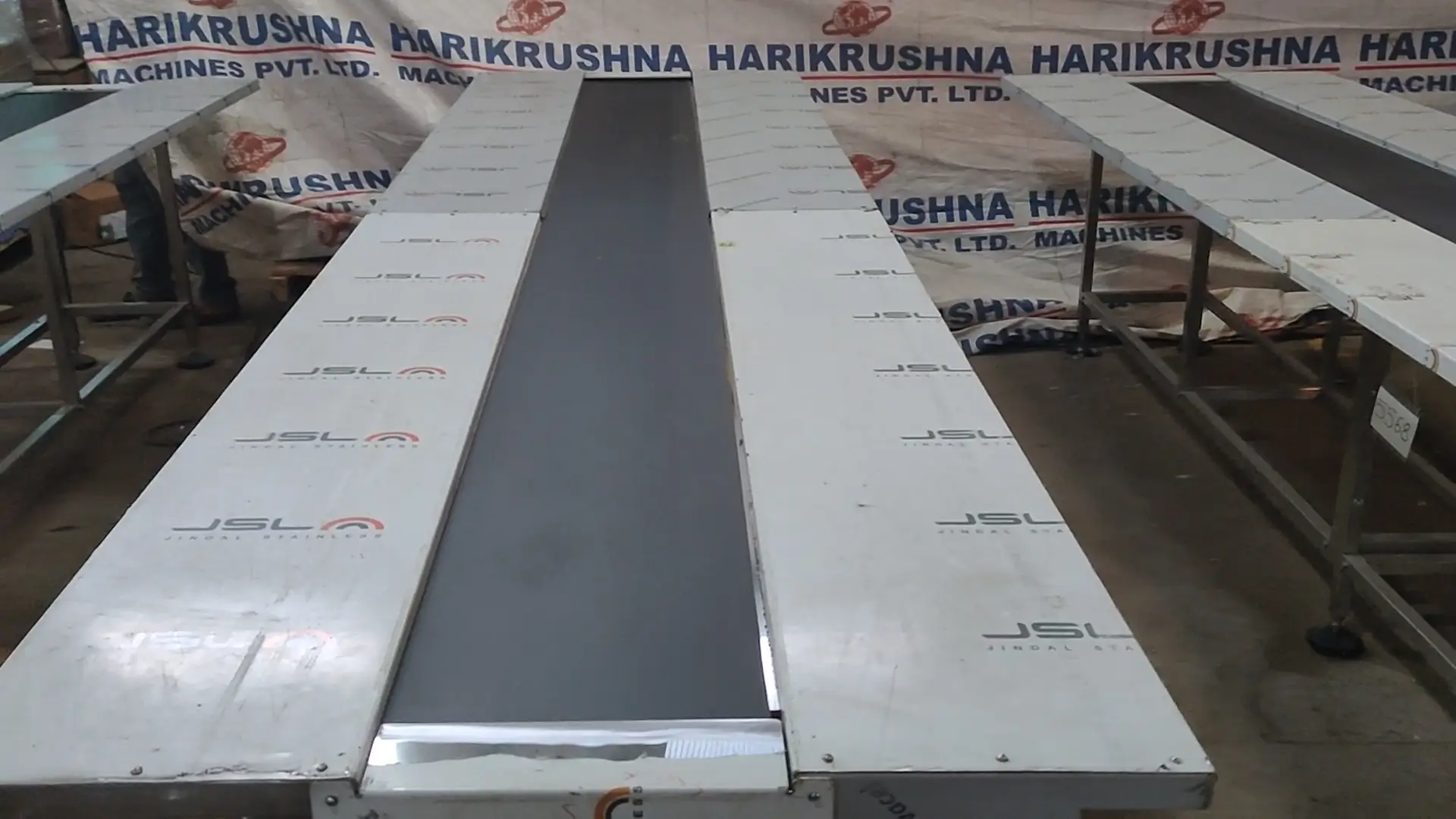

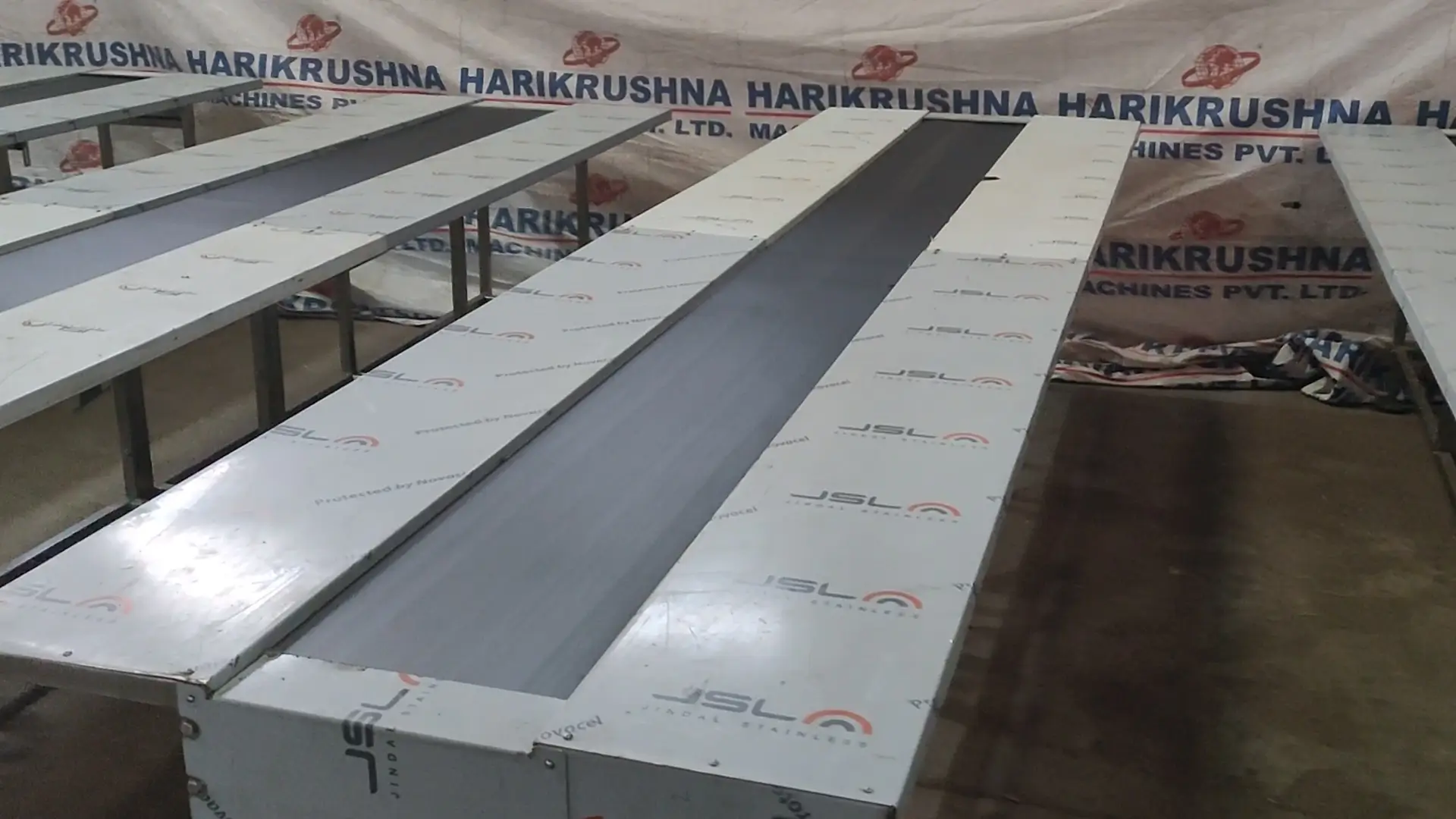

Packing Conveyors
Packing Conveyors
Packing Conveyors
Packing Conveyors
Packing Conveyors
Packing Conveyors
# Model Output Speed
1 HMPL-PC-6 Variable Speed
2 HMPL-PC-8 Variable Speed
3 HMPL-PC-10 Variable Speed
4 HMPL-PC-12 Variable Speed
  • The conveyor is manufactured or developed per GMP standards.
  • SS square pipe frame structure.
  • The desired Length can be provided as per customer requirement.
  • SS elegantly matt finishing.
  • Adjustable height of the conveyor belt, to align with other machines of the line.
  • Specially designed hard chrome roller with self-aligned bearings for longer life of the conveyor.
  • A tension mechanism is provided for adjusting the belt tension.
  • AC variable drive for variable speed as per product size. The drive is fitted in the control panel below the conveyor.
  • Stopper arrangement at the end of the conveyor for preventing falling/breakage of bottles.
  • Working space of 6, 9 & 12 inches on each side of the conveyor as per customer requirement.
  • Can be supplied with Castor wheels (OPTIONAL).
  • Usage of reliable & proven components such as Bonfiglioli/Motovario/Rotomotive Motor, Delta makes AC variable drive etc.
  • The conveyor transmits the products from the labelling machine and brings them to the end of the conveyor for further process of packing.
  • During this process, the operators pick up the products & do necessary actions like primary packing, and secondary packing.
Model HMPL–PC–6
Bottle MOC & Shape Round Glass/ PET Bottles/ Vials/ Cartons
Bottle Volume 100 ml to 5000 ml
Output Speed Variable Speed
Belt Width 12” Inches
Belt Details Endless Nylon Rubberized Sandwich Belt
Working Space 12” on both sides
Working Height 875 mm ± 50 mm Adjustable
Power Supply Single Phase / 230 V AC/ 50 Hz
Net Weight 150 Kg. Approx.
Dimension 1830 mm L x 915 mm W x 875 ± 50 mm H Approx.
