Automatic Volumetric Liquid Filling Machine

Harikrushna Machines offer Automatic Volumetric Liquid Filling Machine for filling 10 ml to 5000 ml Glass/PET Bottles with Up to 120 Bottles per minute output speed.

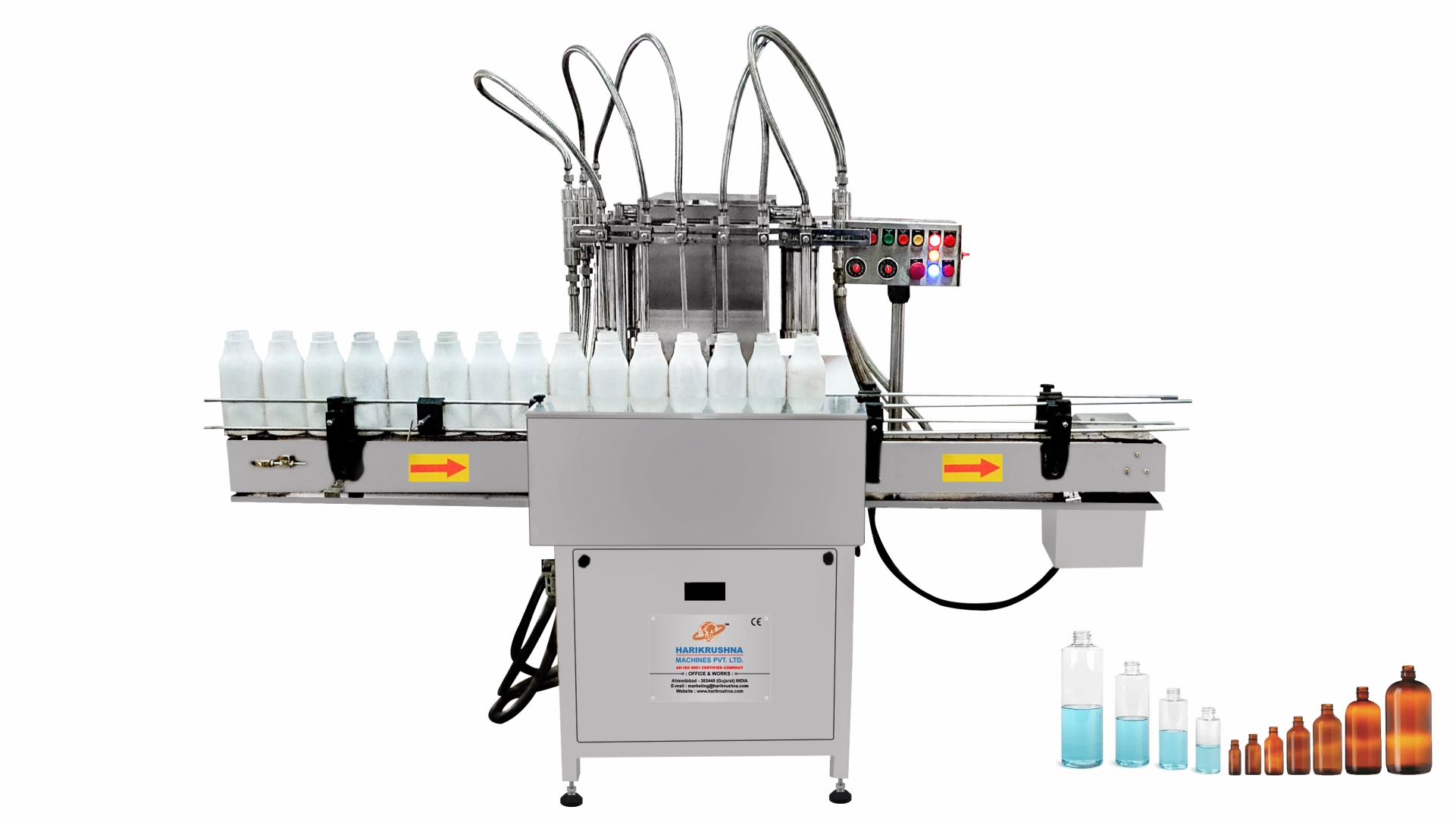

Automatic Volumetric Liquid Filling Machine

Automatic Volumetric Liquid Filling Machine

The Automatic Volumetric Liquid Filling Machine consists of a main structure, product transmission belt with an adjustable guide, safety acrylic enclosure with SS pipe frame (OPTIONAL), pneumatic/mechanical stopping facility, nozzle & syringes, electrical panel, motor, sensor, AC drive & mains ON/OFF.

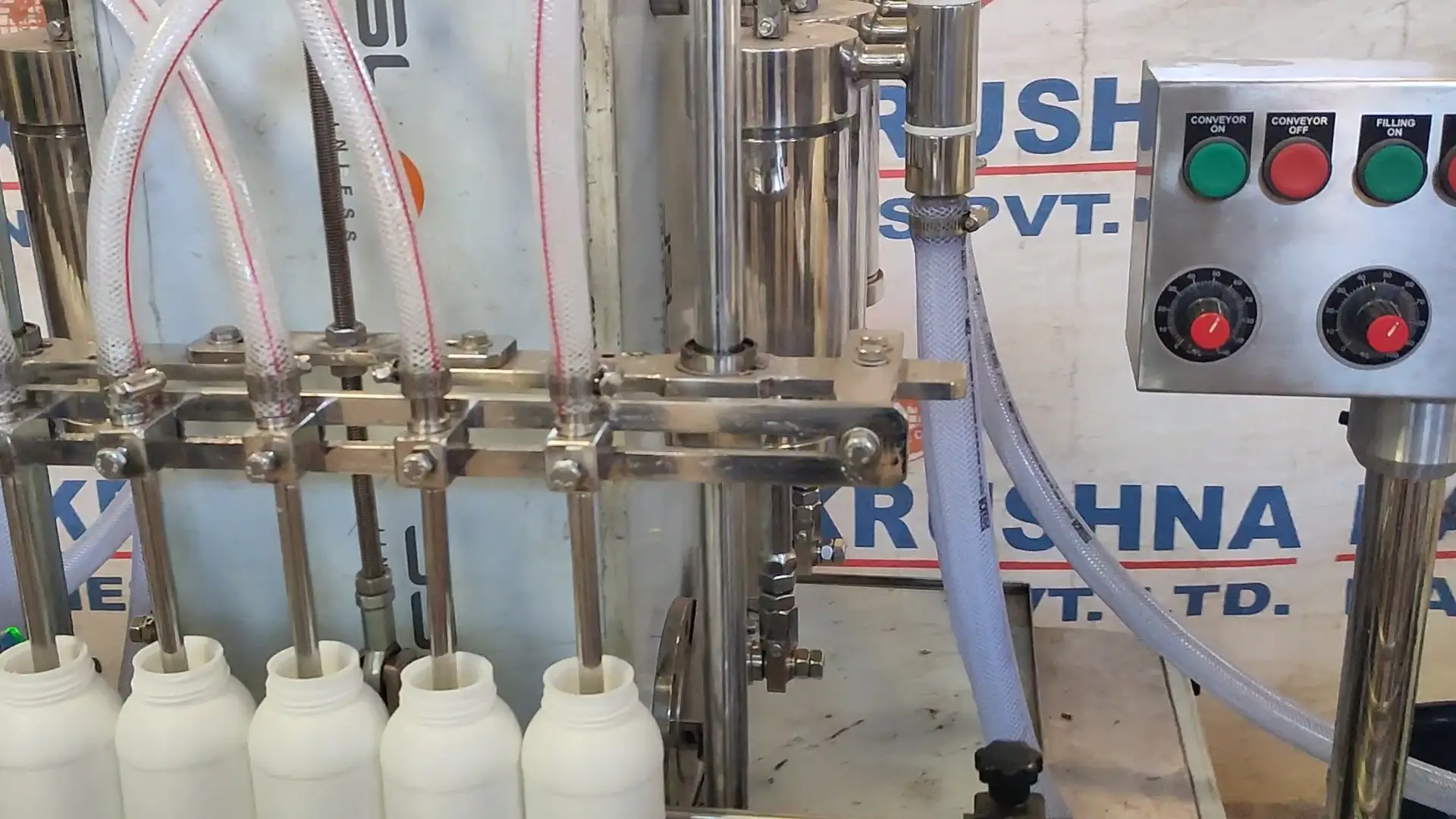

Automatic Volumetric Liquid Filling Machine

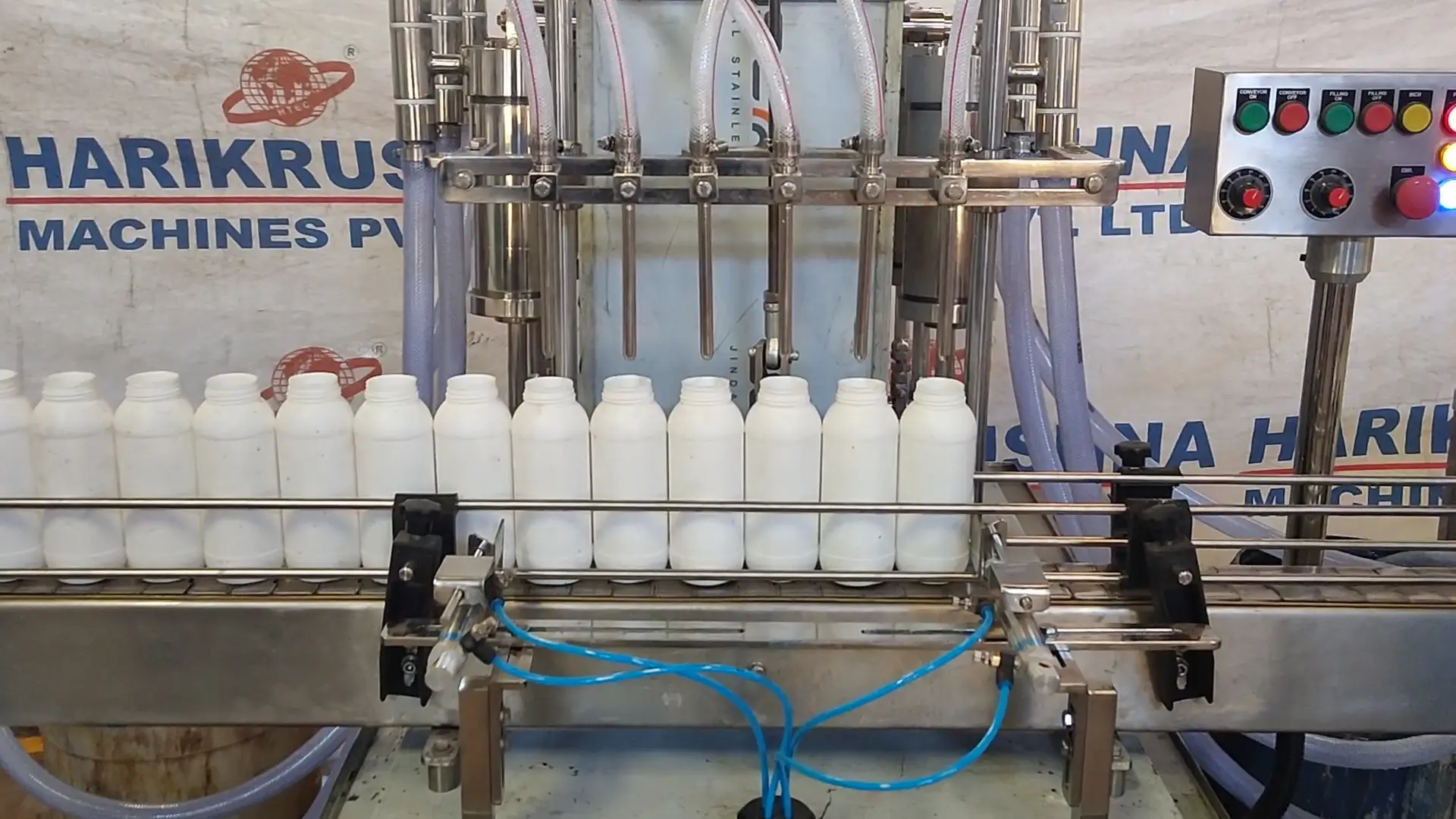

Automatic Volumetric Liquid Filling Machine

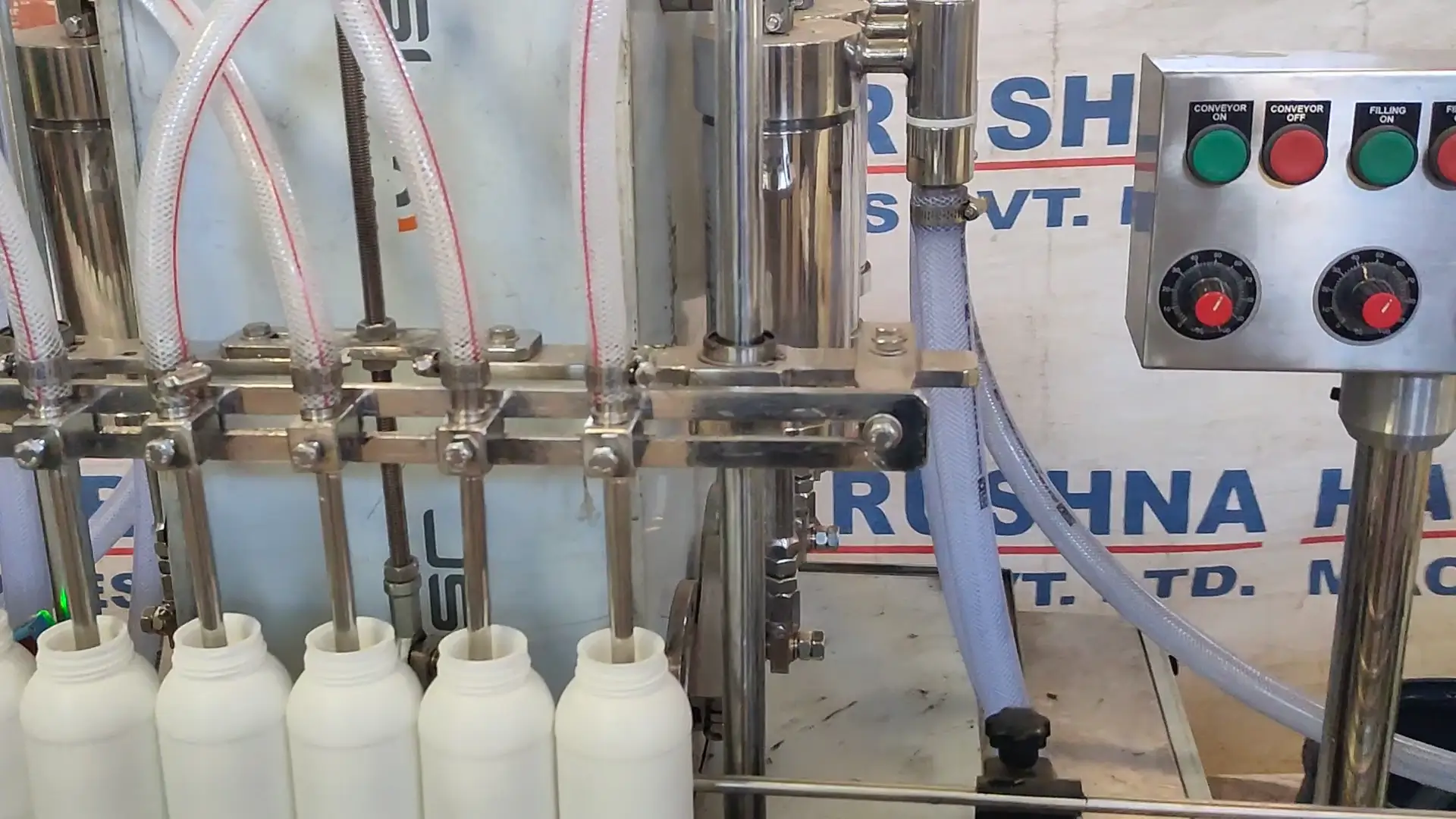

Automatic Volumetric Liquid Filling Machine

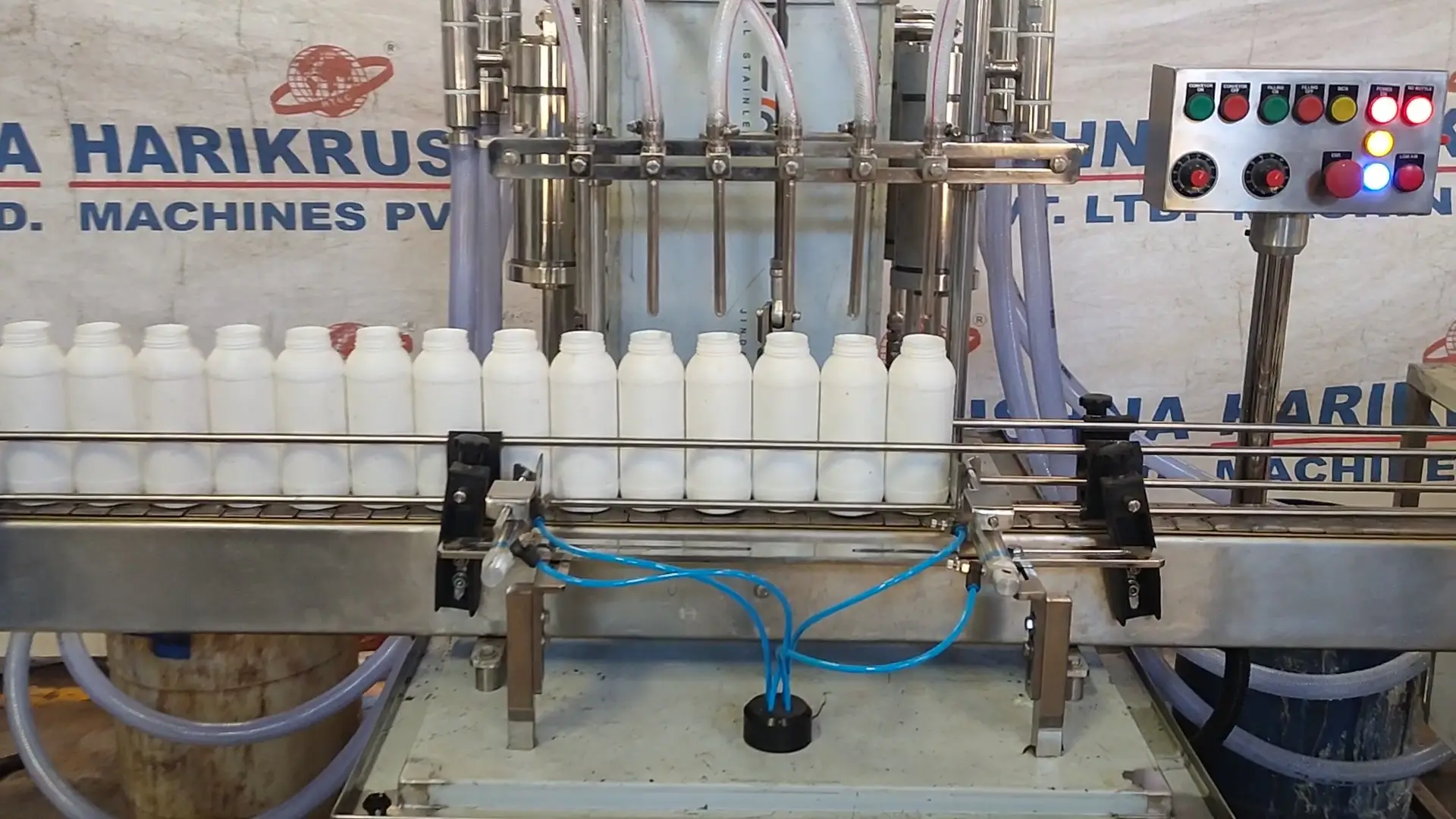

Automatic Volumetric Liquid Filling Machine

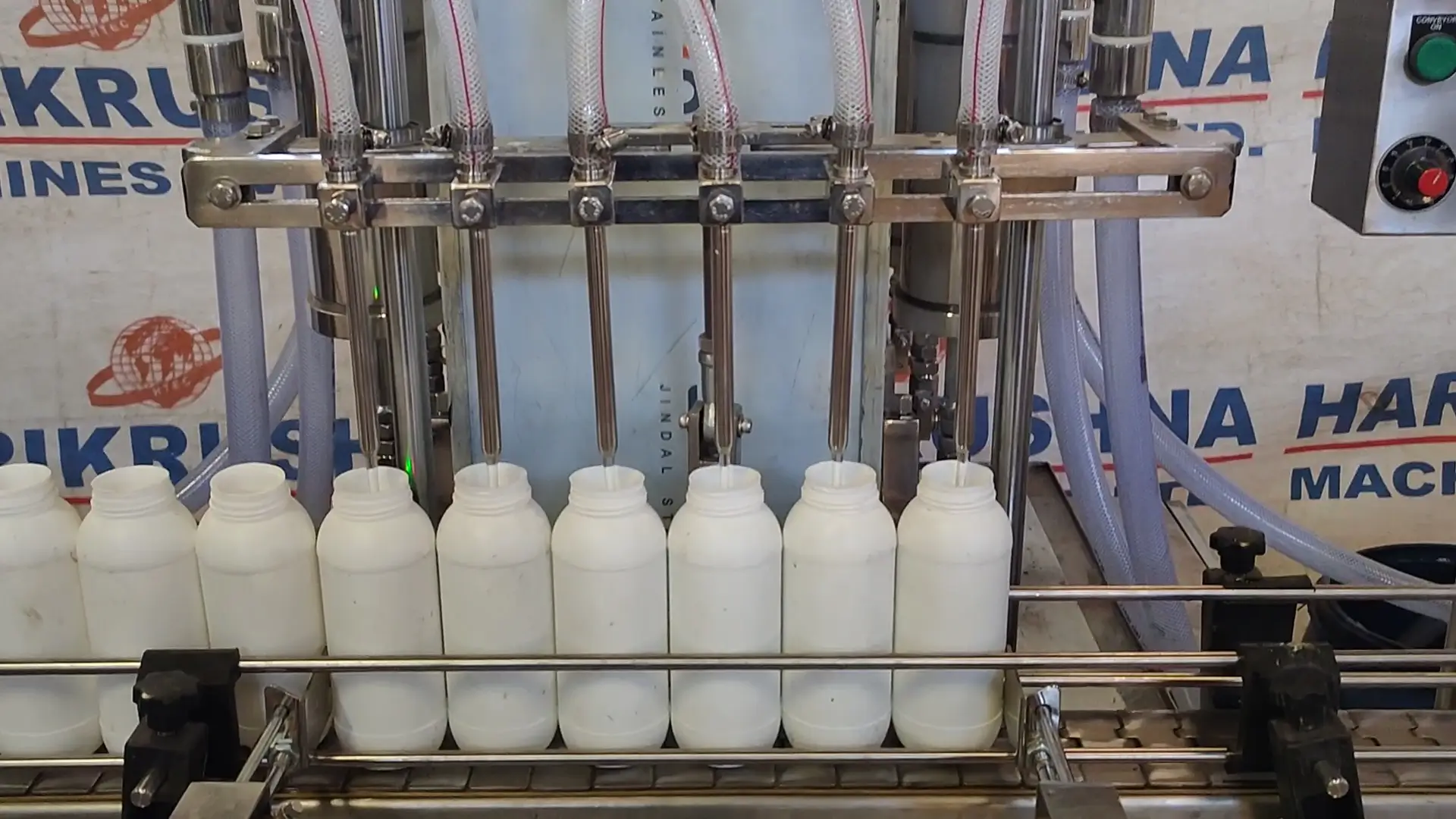

Automatic Volumetric Liquid Filling Machine

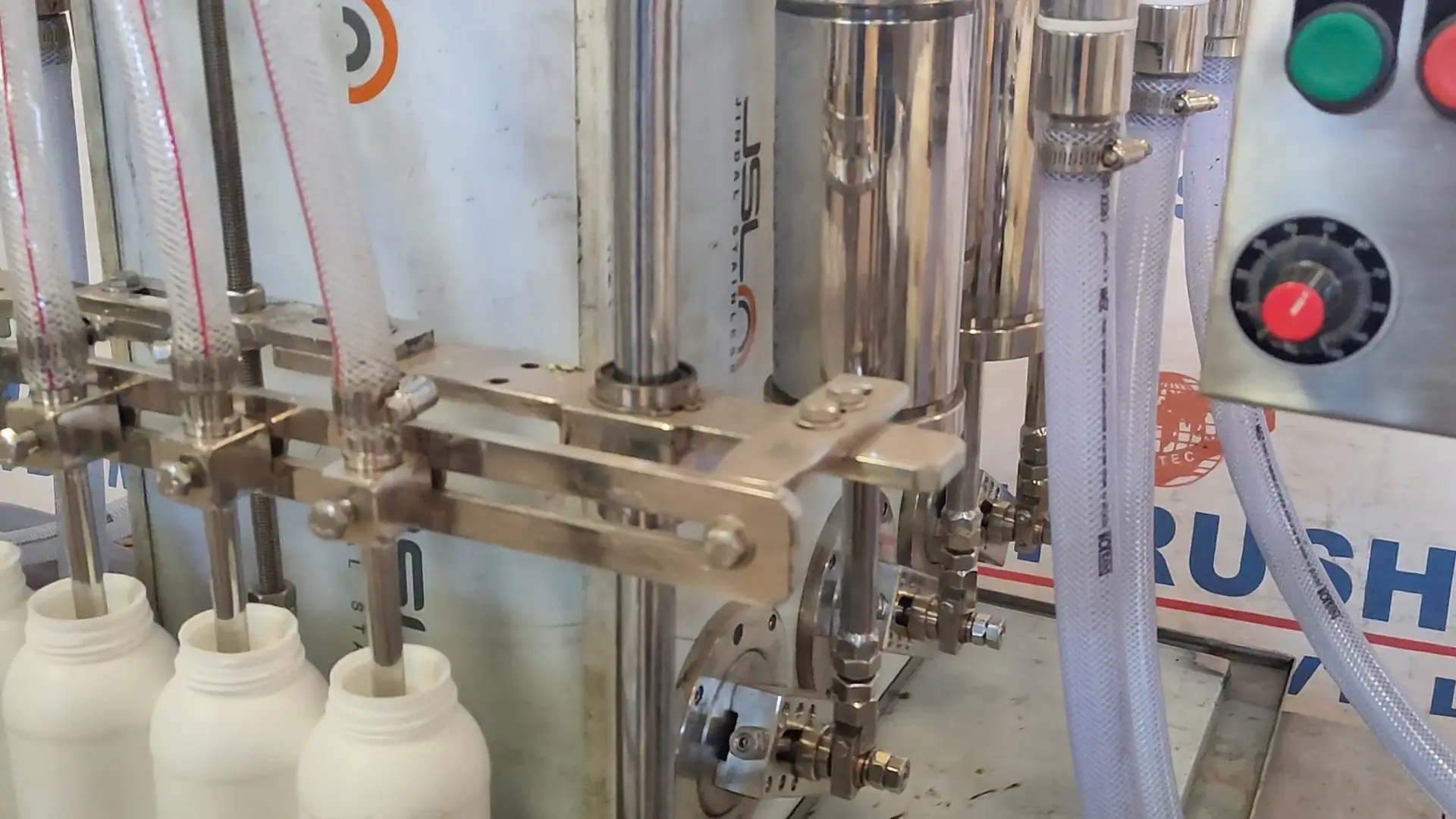

Automatic Volumetric Liquid Filling Machine

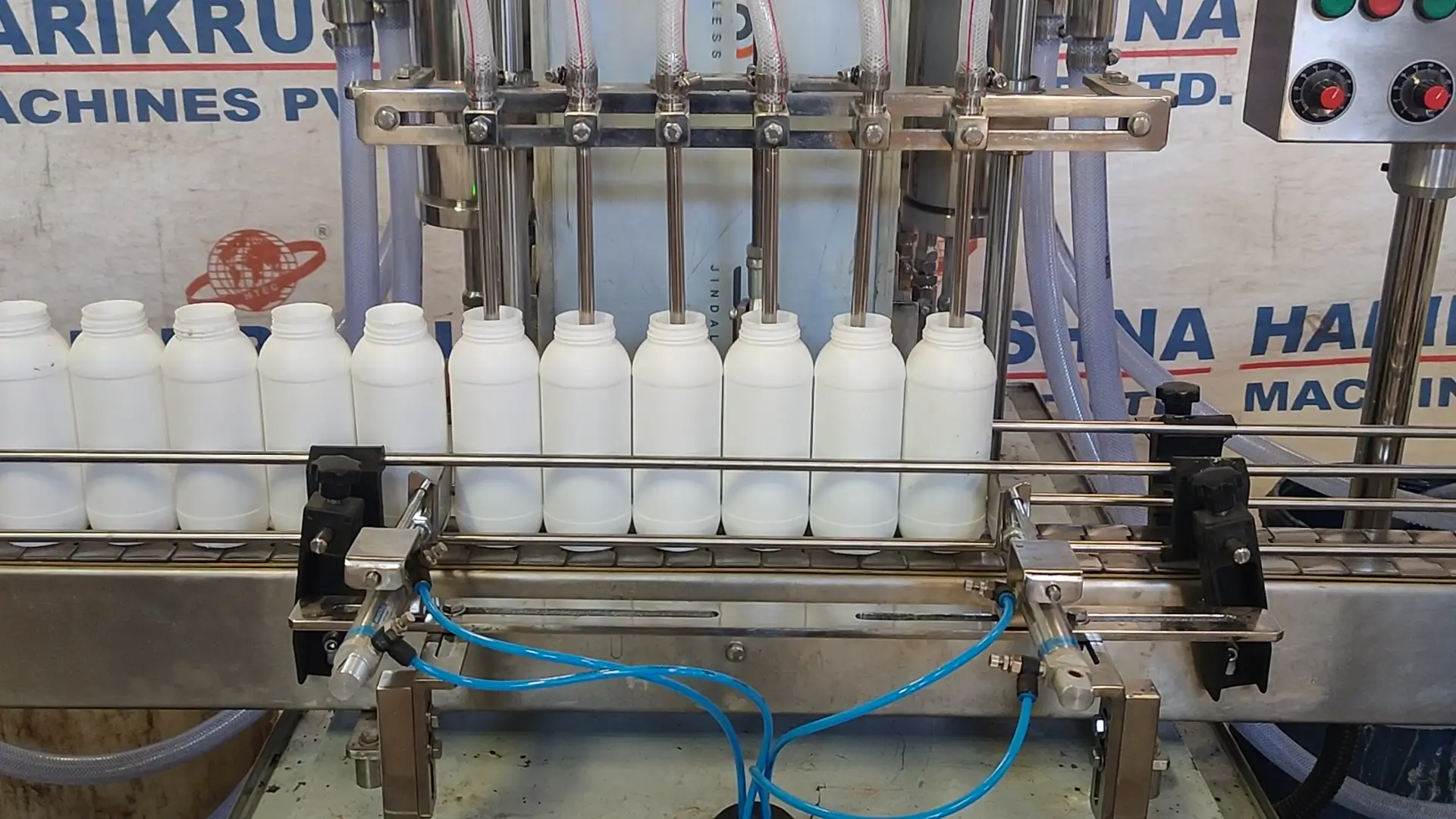

Automatic Volumetric Liquid Filling Machine
# Model Head Output Speed
1 HMPL-VLF-2 2 10 to 20 BPM
2 HMPL-VLF-4 4 30 to 40 BPM
3 HMPL-VLF-6 6 40 to 60 BPM
4 HMPL-VLF-8 8 60 to 80 BPM
5 HMPL-VLF-10 10 80 to 100 BPM
6 HMPL-VLF-12 12 100 to 120 BPM
  • The machine is manufactured or developed per GMP standards.
  • The frame structure & base plate of MS painted cladding and doors of SS 304.
  • Rigid vibration-free construction for trouble-free performance.
  • The contact parts such as the syringe, and filling nozzle are made of SS 316.
  • SS elegantly matt-finished body.
  • Conveying system to convey the product with an easily adjustable side guide.
  • Self-lubricating UHMW-PE guide profile for SS slat chain provides low friction wear surface, smooth and noiseless conveying.
  • Drain tray around the machine platform.
  • Drip tray under the conveyor.
  • The pharma/food grade PVC braded tubes are used for the filling purpose.
  • Elegant and easy control panel for total control of operation.
  • All interlocks must be shown on the control panel.
  • ± 1 % Filling accuracy on a single dose.
  • No Bottle No Filling System – Machine stops at Home position.
  • Filling is based on a diving system wherein nozzles go inside the bottle and once the bottle is filled as per the desired volume, it comes out of the bottle.
  • Minimum changeover time, from one size to another bottle or fill size.
  • Pneumatic/Mechanical bottle-stopping arrangement.
  • Synchronized two nos. AC drives for the main motor & conveyor belt.
  • The SS measurement scale for filling volume adjustment.
  • Safety guard for conveyor gearbox, motor and pneumatic cylinders.
  • Inbuilt protection against over current, voltage fluctuation, and short circuit in AC frequency drive.
  • Most reliable and proven components such as pneumatics and electrical/electronic such as AC motor, AC Drive, Sensor, MCBs & relay “CE” certified.
  • Diving nozzle device.
  • Self-lubricating UHMW-PE guide profile for SS slat chain provides a low friction wear surface, smooth and noiseless conveying.
  • MCB for overload protection, and prevent against short circuit.
  • Inbuilt protection against overcurrent, voltage fluctuation, short circuit in AC frequency drive.
  • Bottles moving on SS Slat conveyor going up to the filling nozzles through a settable two pneumatically/mechanically operated stopper system.
  • The two pneumatically/mechanically operated stopper systems and reciprocating nozzles can precisely match for centering of the bottle below the nozzles, to avoid spillage of liquid on the bottle.
  • To minimize foaming adjustable nozzle will reciprocate according to the filling dose.
  • The filling is based on a diving system wherein nozzles go inside the bottle and once the bottle is filled as per the desired volume, it comes out of the bottle.
  • The dosing block with a hexagonal bolt fitted below the syringes where the operator can easily adjust the different volumes.
Bottle size (Ø) 15mm Ø to 90mm Ø
Bottle Shape & MOC Round Glass/PET Bottles
Output speed 30 to 120 Bottles/Minute
Filling Volume 10 ml to 5000 ml
Direction of Movement Left to Right
Number of Head/Syringe 2/4/6/8/10/12 Nos.
Filling Material Any Free Flow Non Acidic Liquid (From Water to Honey Viscosity Product)
Power Supply Three Phase + N + E /415 V AC/50 Hz
Air Supply 4 to 6 Kg/Cm² (If pneumatic operated stopper)
Height of Conveyor 875 ± 50 mm Adjustable
Net Weight Approx. 450 Kg
Dimensions Approx. 1525 mm L x 1070 mm W x 1370 ± 50 mm H
Change Parts (A) Syringe: If Volume Higher/Lower
