Automatic Ampoule Filling & Sealing Machine

Automatic Ampoule Filling & Sealing Machine with Laminar Air Flow (LAF) System is suitable for automatic filling and sealing glass ampoules and used for various industries like pharmaceutical, veterinary, and biotech industries.

Automatic Ampoule Filling & Sealing Machine with Laminar Air Flow (LAF) System

Automatic Ampoule Filling & Sealing Machine with Laminar Air Flow (LAF) System

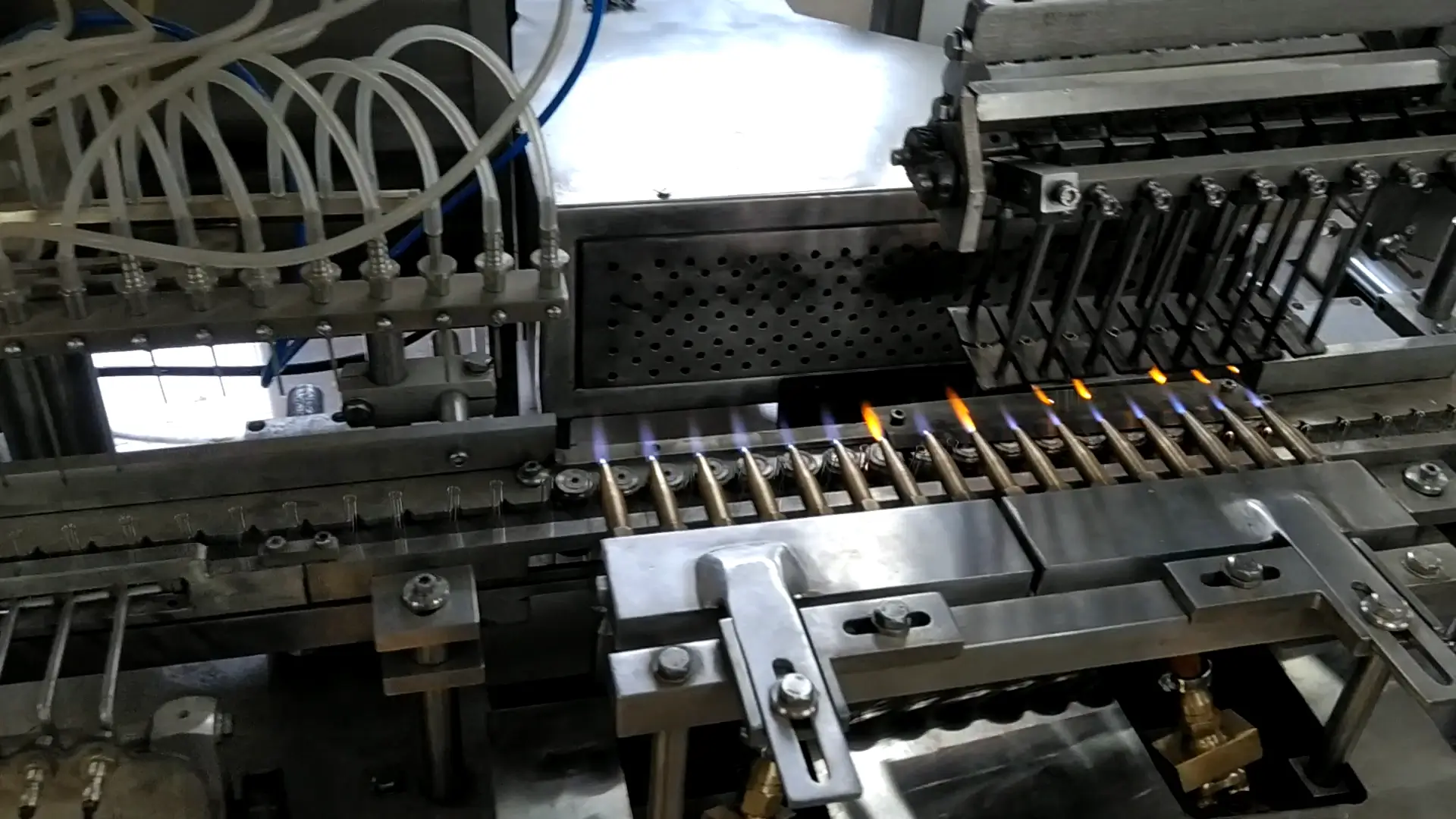

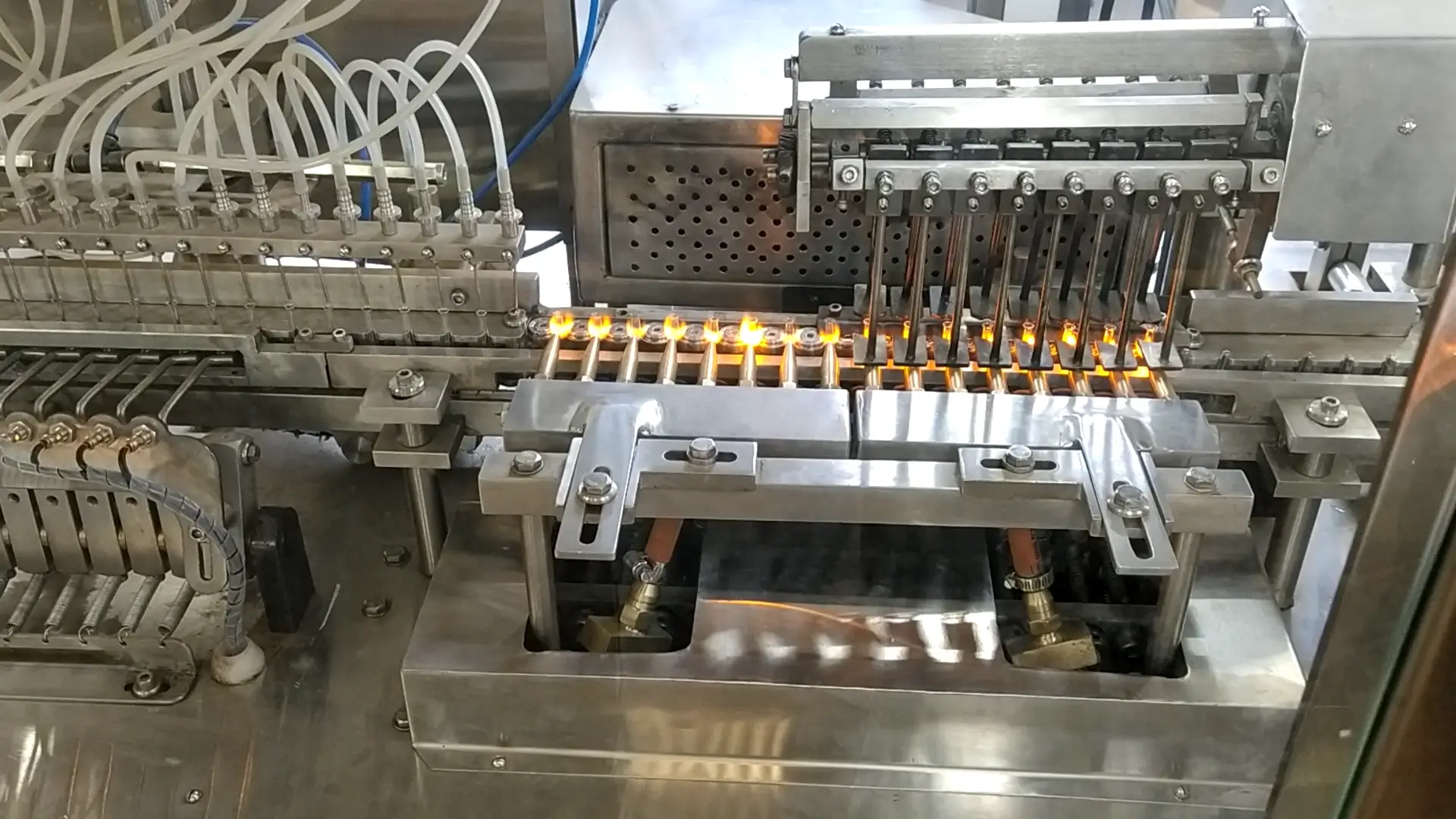

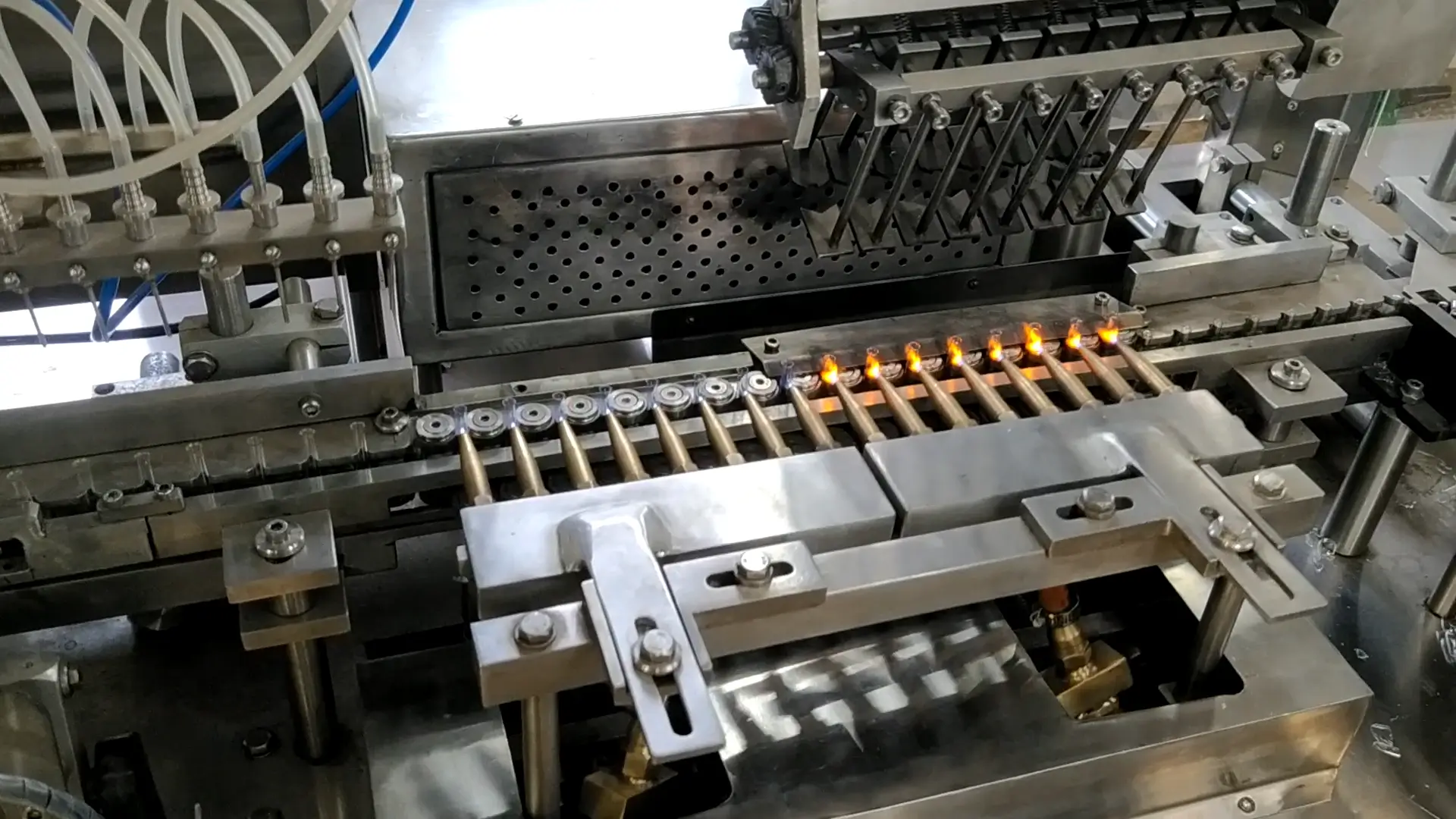

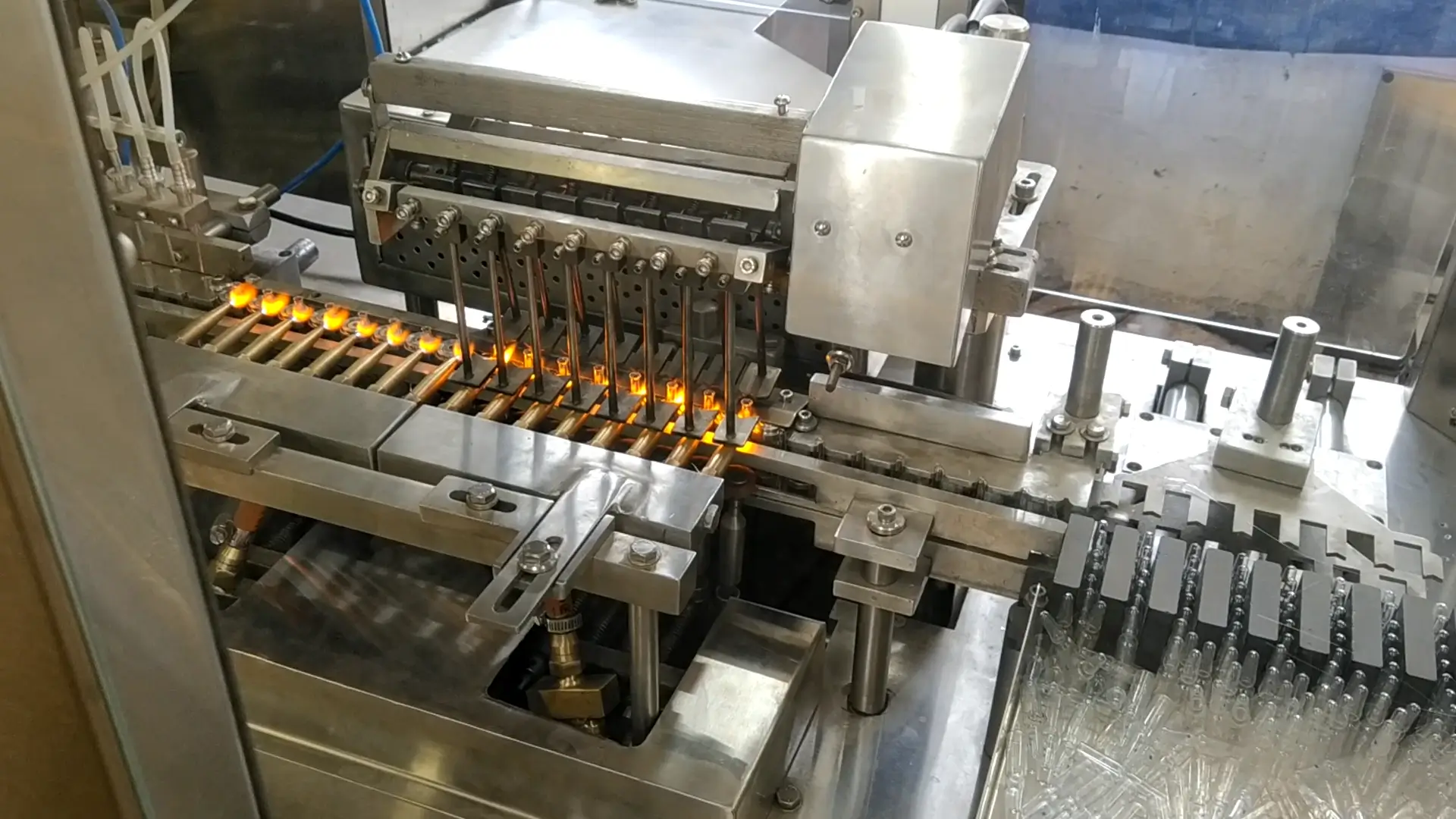

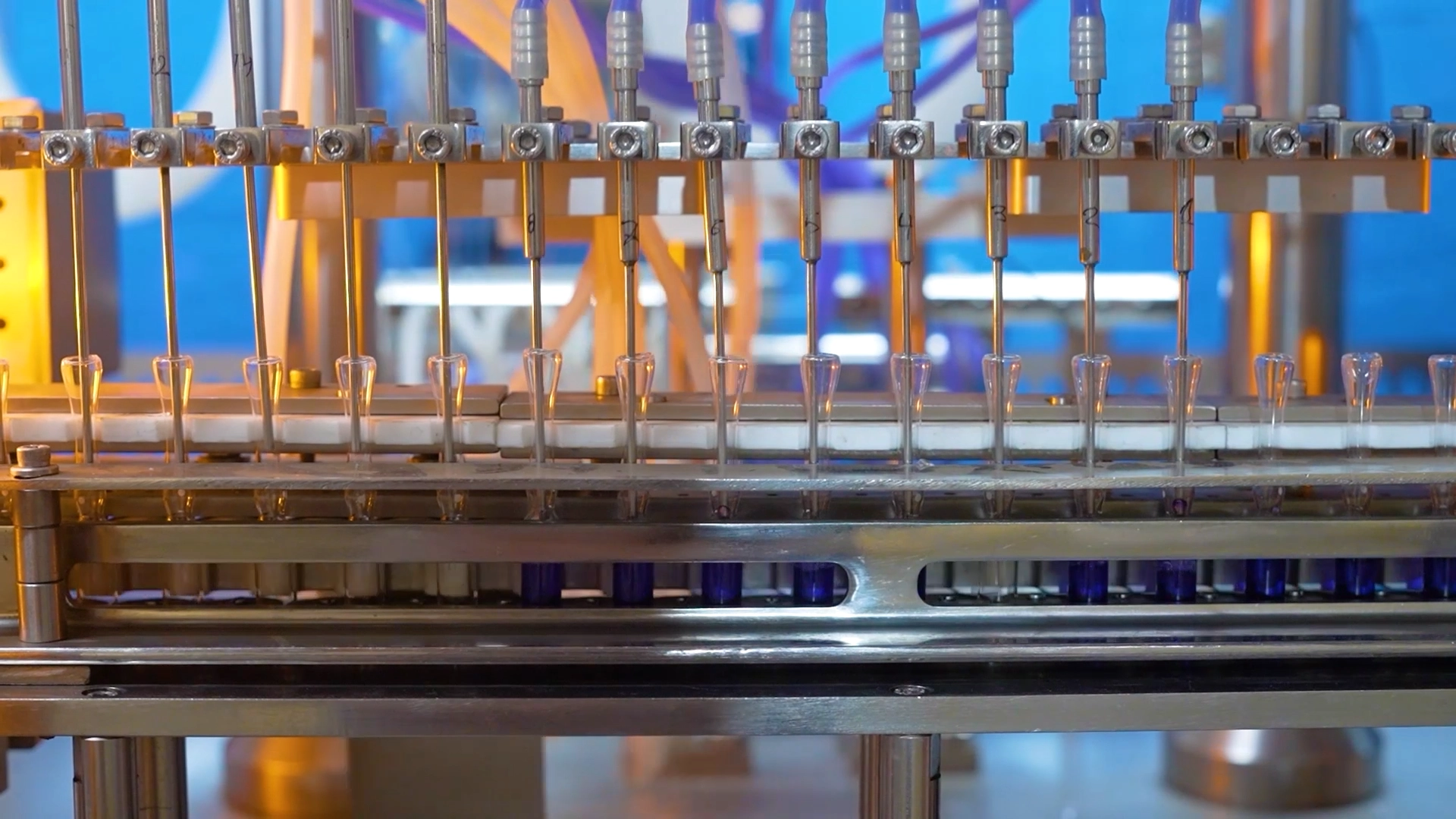

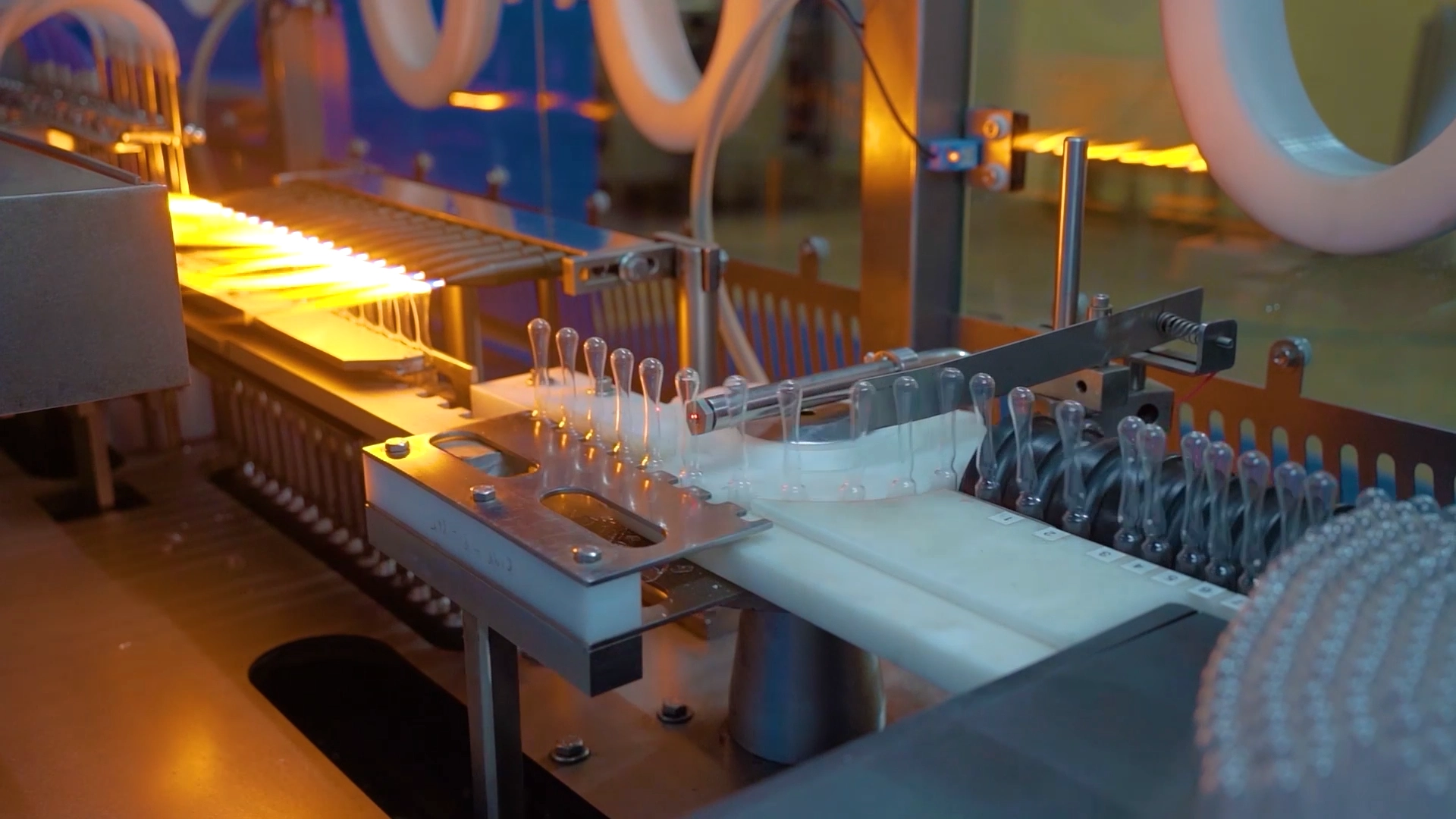

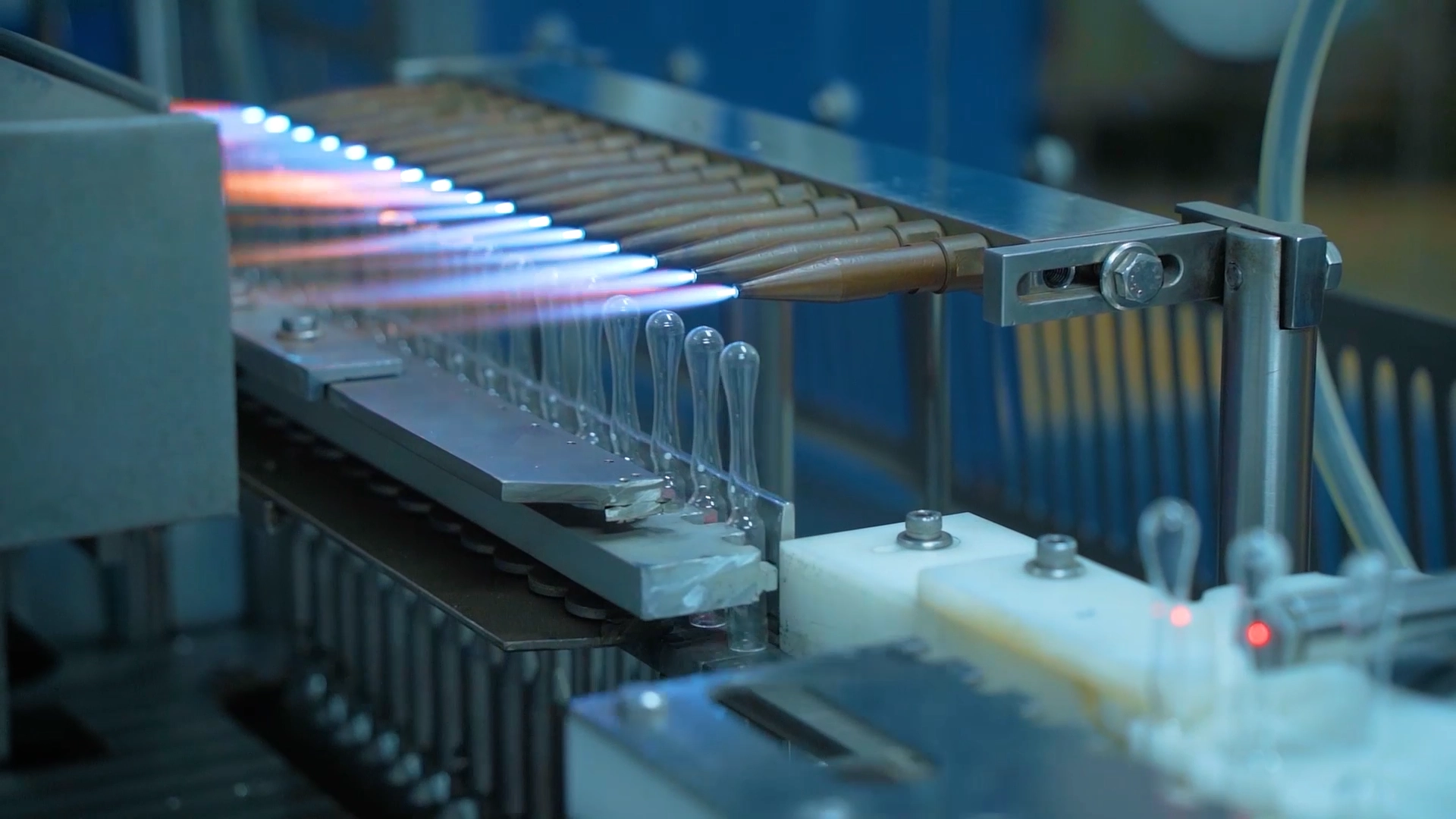

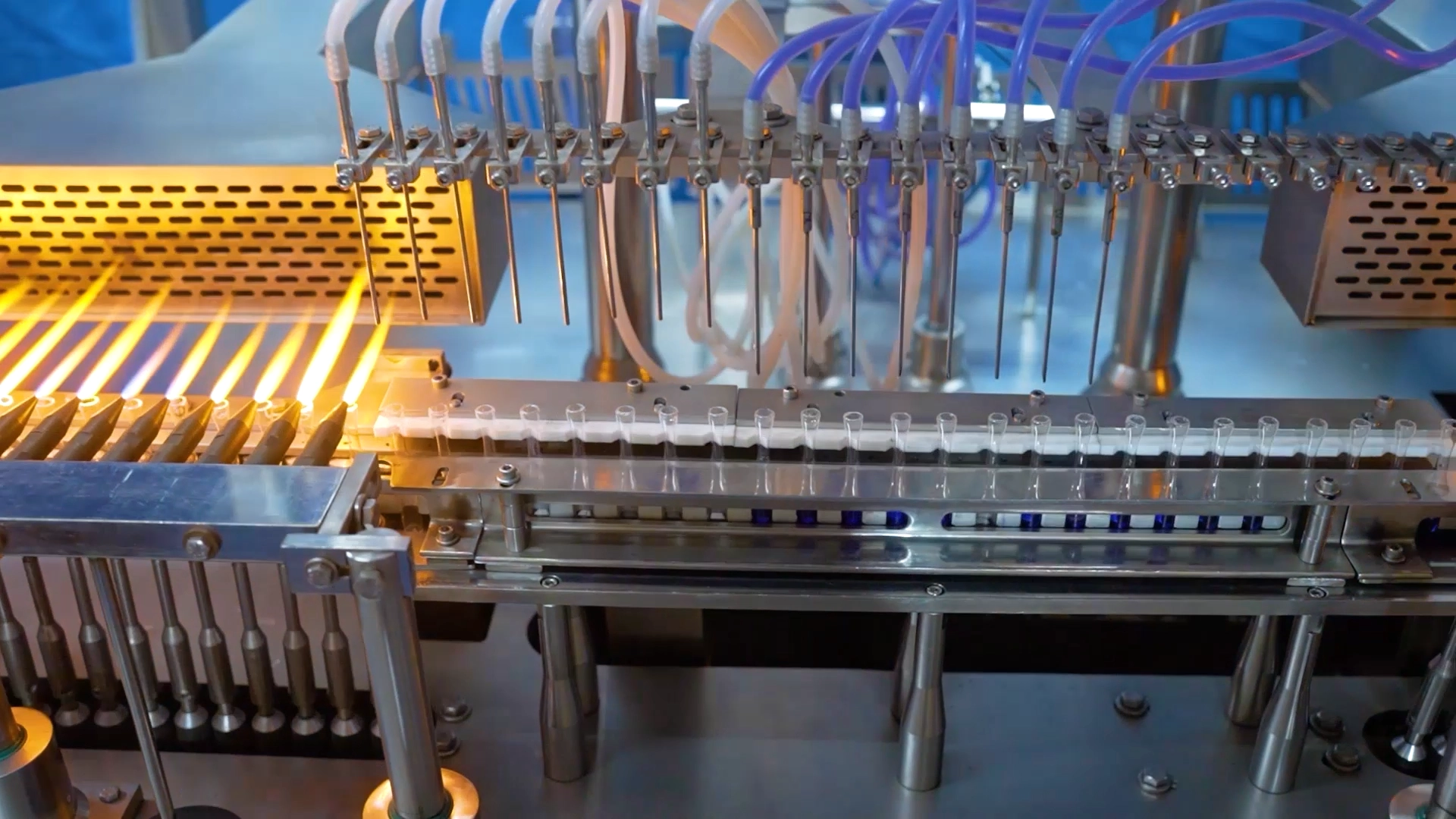

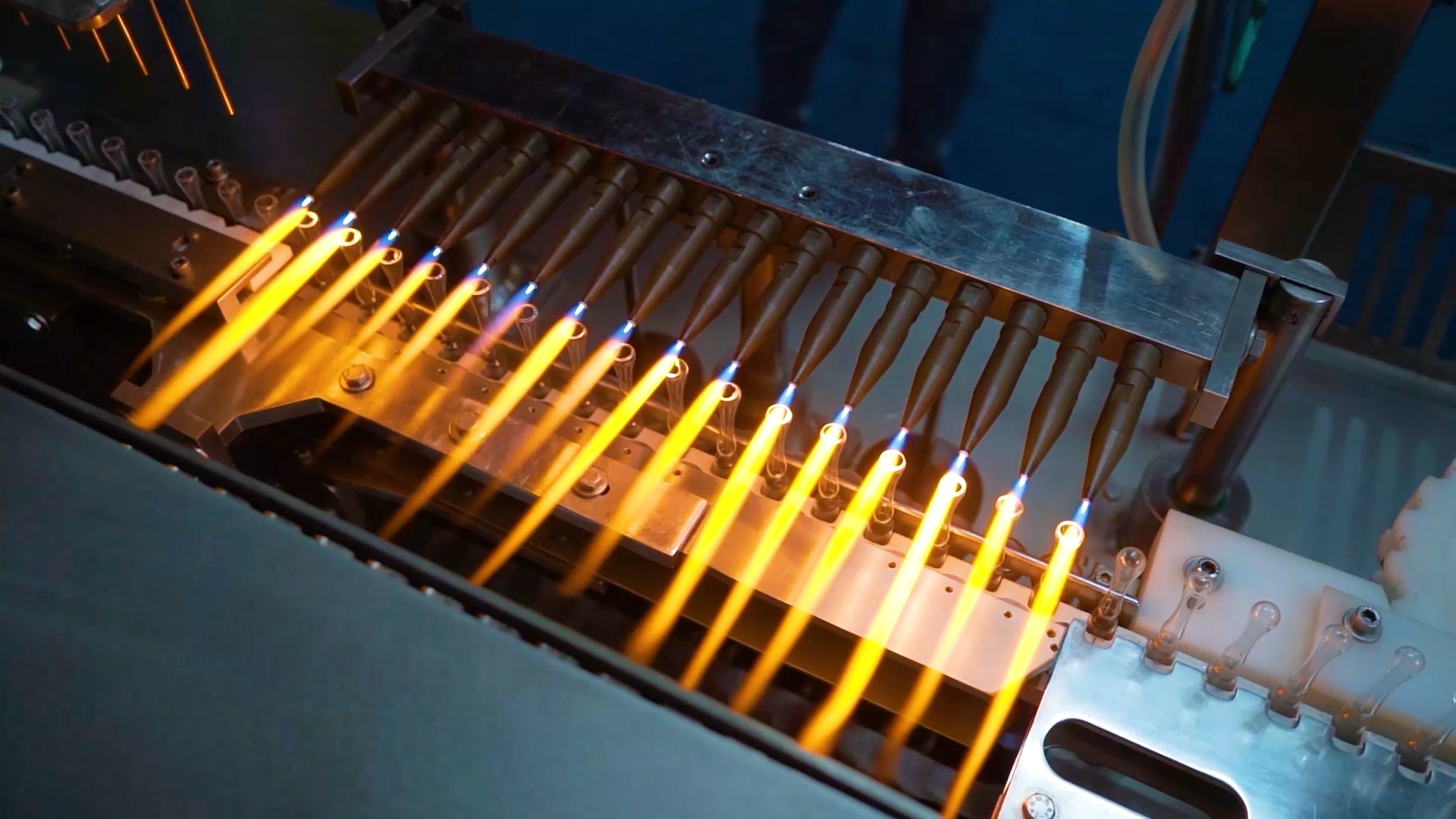

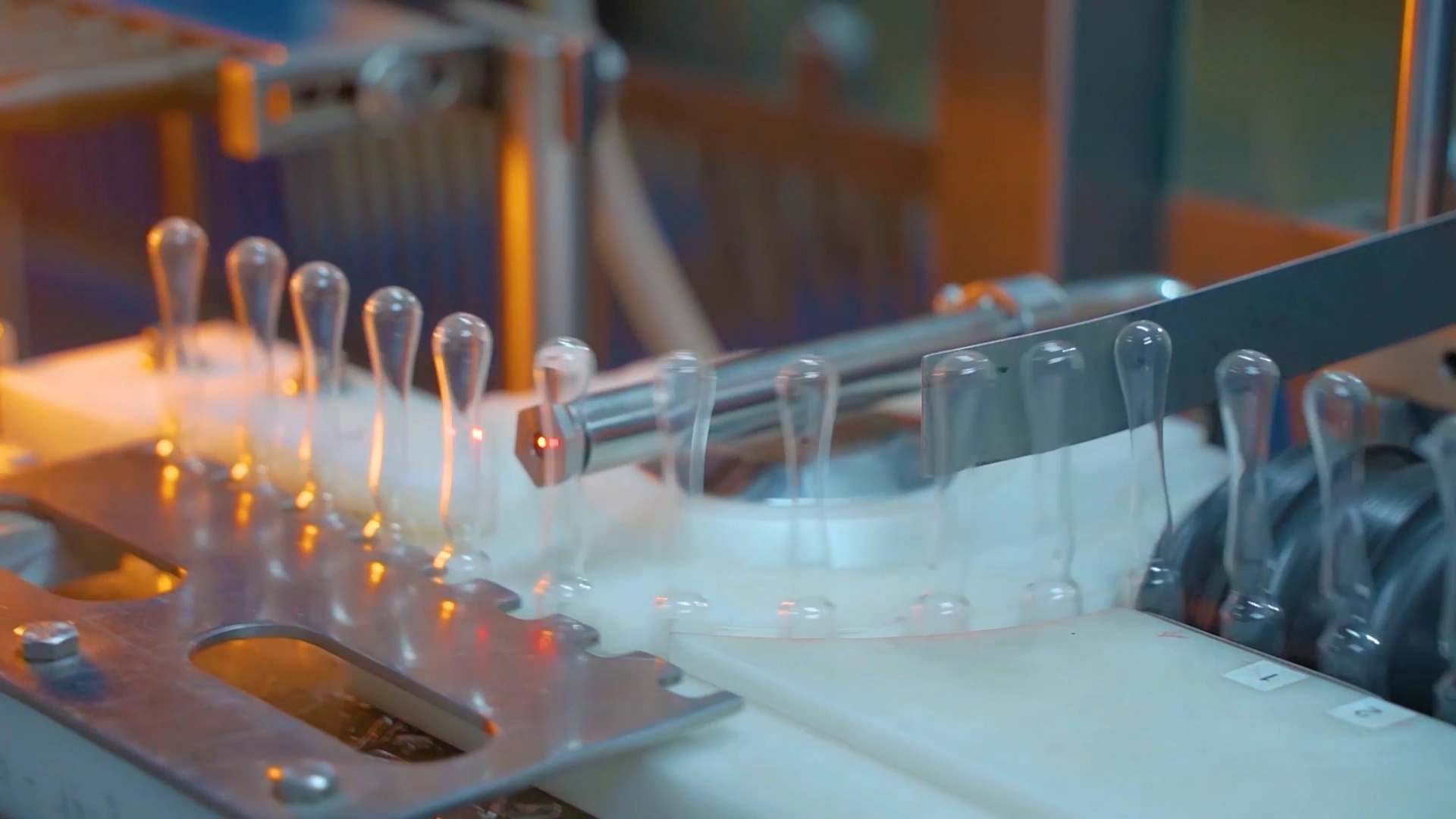

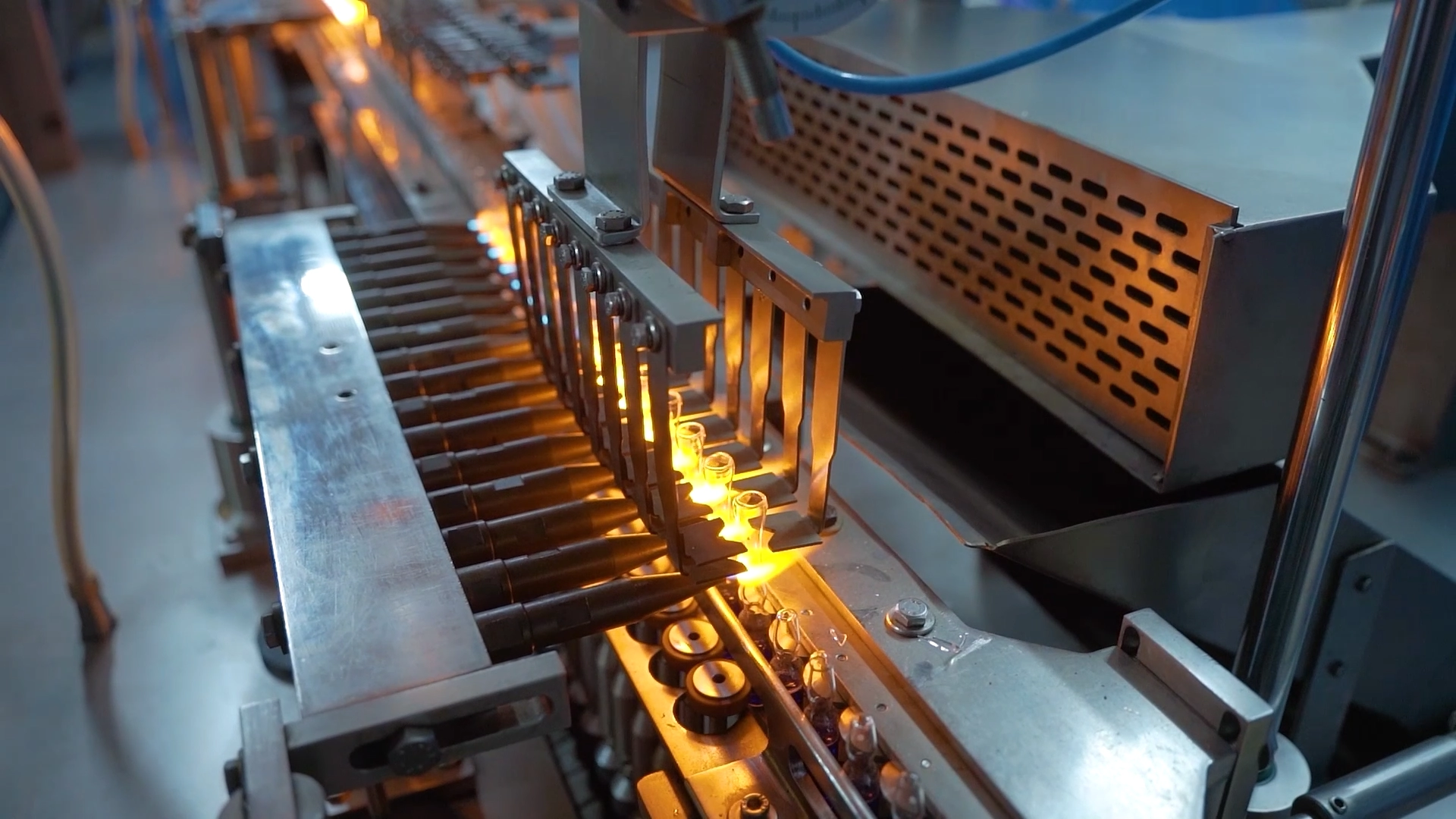

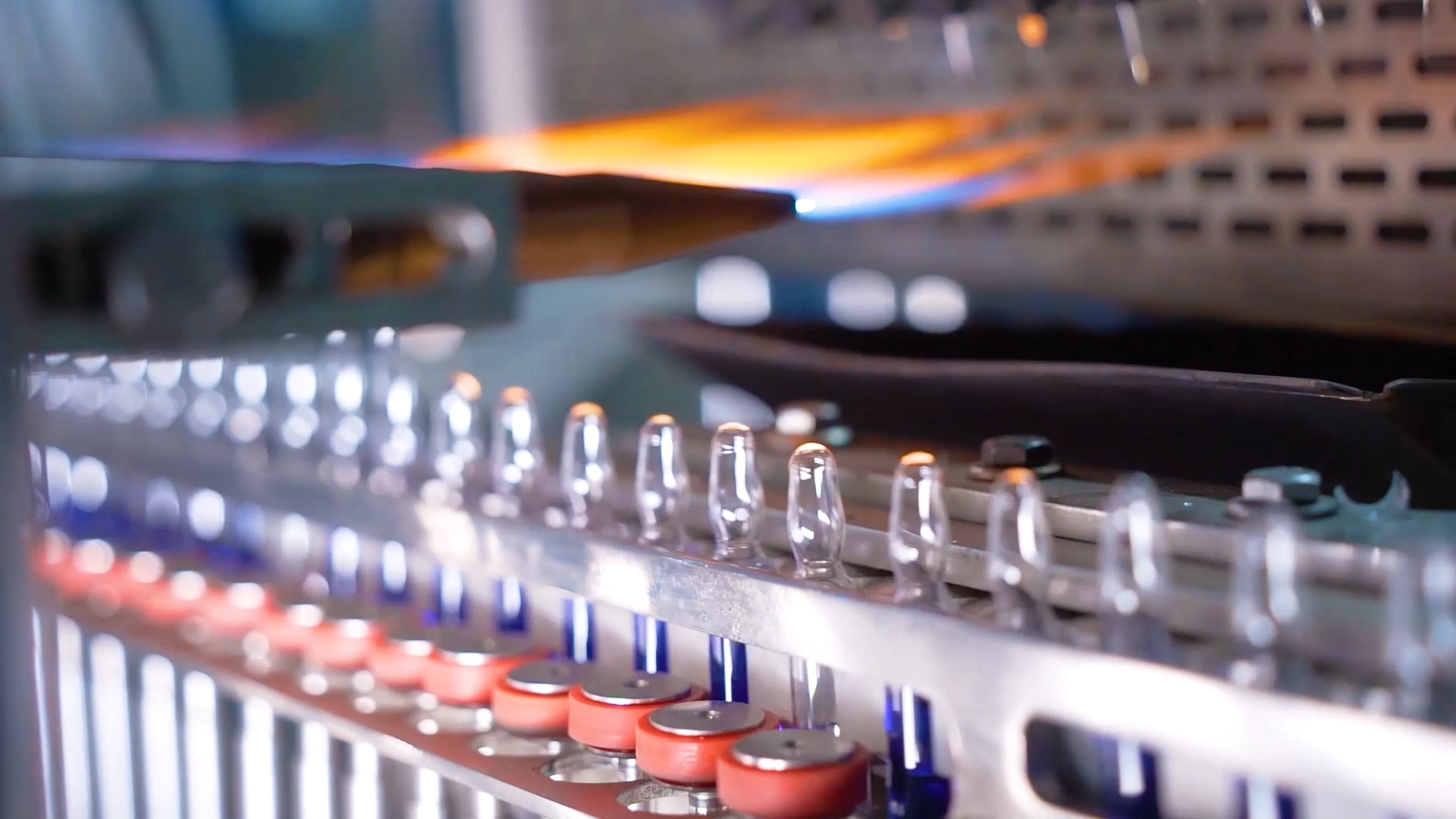

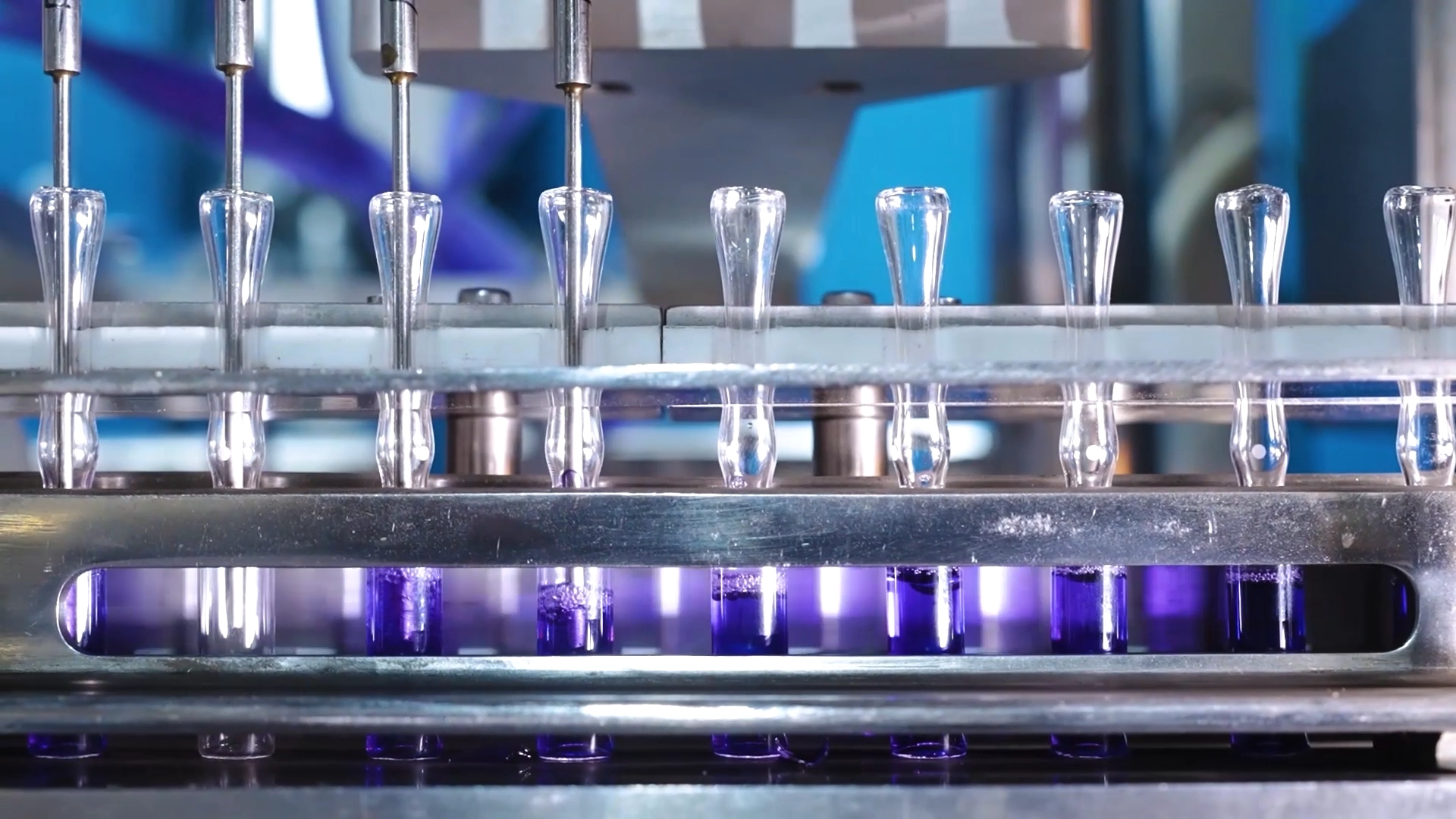

Automatic Ampoule Filling & Sealing Machine with Laminar Air Flow (LAF) System for filling and sealing glass ampoules for pharmaceutical, veterinary, and biotech industries. Our Multi-axis servo-driven ampoule filling and sealing machine has a servo system driving feed worm, infeed starwheels, ampoule travelling rack, syringes, nozzles diving system, and ampoule cutting system. The ampoule-filling mechanism is executed by imported Rotary Syringes.

Automatic Ampoule Filling & Sealing Machine with Laminar Air Flow (LAF) System
Automatic Ampoule Filling & Sealing Machine with Laminar Air Flow (LAF) System
Automatic Ampoule Filling & Sealing Machine with Laminar Air Flow (LAF) System
Automatic Ampoule Filling & Sealing Machine with Laminar Air Flow (LAF) System
Automatic Ampoule Filling & Sealing Machine with Laminar Air Flow (LAF) System
Automatic Ampoule Filling & Sealing Machine with Laminar Air Flow (LAF) System
Automatic Ampoule Filling & Sealing Machine with Laminar Air Flow (LAF) System
# Model Output Speed
1 HMPL-AFS Up to 400 ampoules per minute
  • Minimum Quantity of Ampoule at Infeed Wire Mesh Conveyor Machine Stop with Auto Restart Facilities.
  • Machine Suitable For 1 ML To 25 ML Ampoule (with Help of Change Parts).
  • Fitted with change parts of 2 ML/3 ML Ampoule.
  • No Ampoule No Filling System in Individual Syringe.

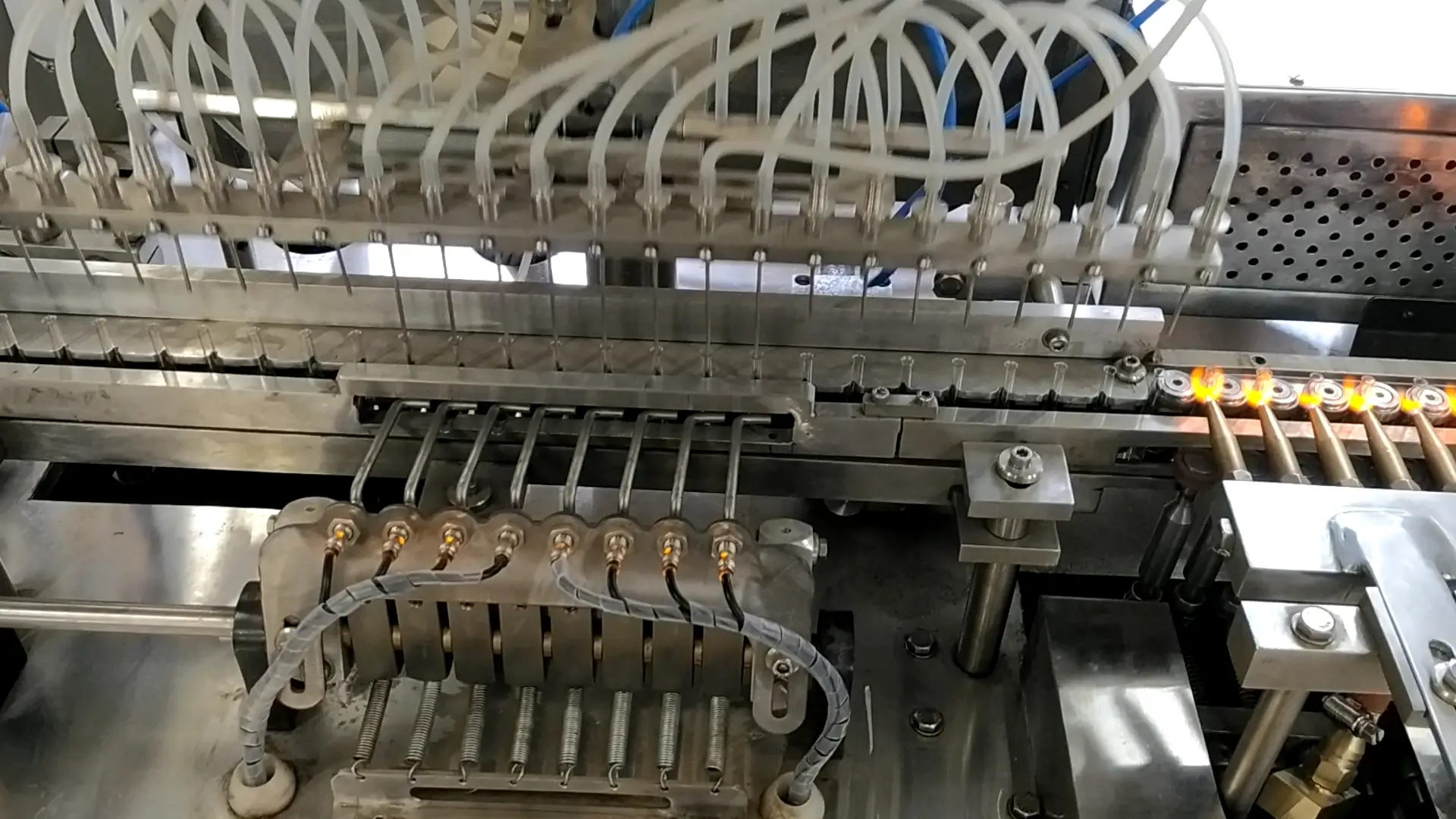

  • Peristaltic Pump attached with Servo Motor (8 Nos. = 1 Set) suitable for 1 ML to 25 ML Fill.
  • A.C. Variable Drive For Main Machine and Conveyor.
  • Rotomotive/Bonfiglioli Make Gear Box.
  • Nitrogen Pre and Post Purging System with Rota Meter.
  • Delta Make PLC Unit with Delta Make 10.2” Color Touch Screen HMI with Printing Facilities.
  • Exhaust Duct with Blower (Exhaust Duct from The Machine to The Service Floor will be in Customer Scope).
  • SS-304 Construction.
  • Servo Motor-based Label Applicator.
  • Sensor- Sick/Baumer/Benner Make
  • Gear Box – Rotomotive/Bonfiglioli
  • Fitted with change parts for 2/3 ML Ampoule
  • In Built A.C. Frequency Drive For Speed Control
  • Output: 300 Ampoule/minute On Base Of 2/3 ML Ampoule
  • Change Parts of each size of Ampoule

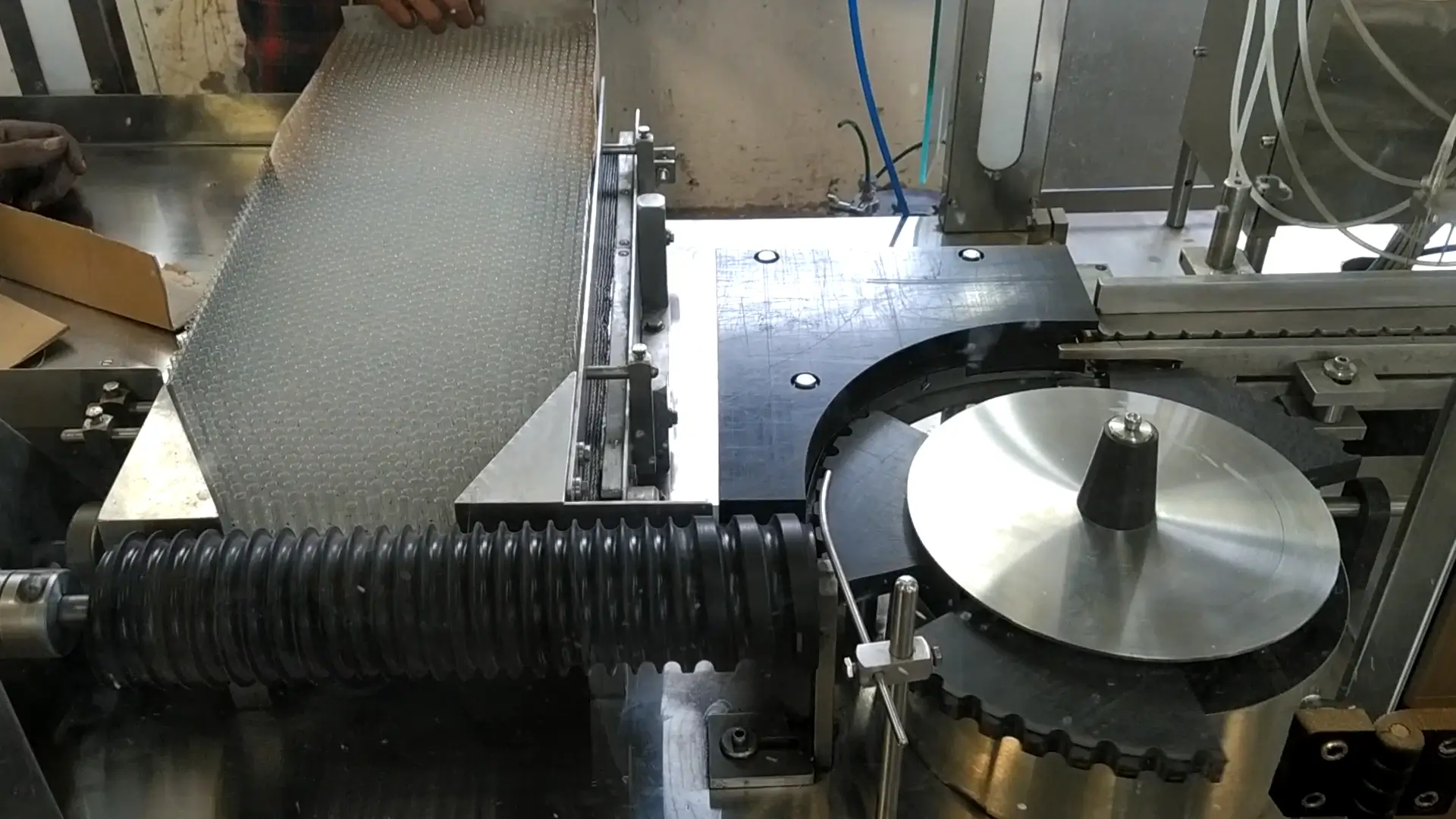

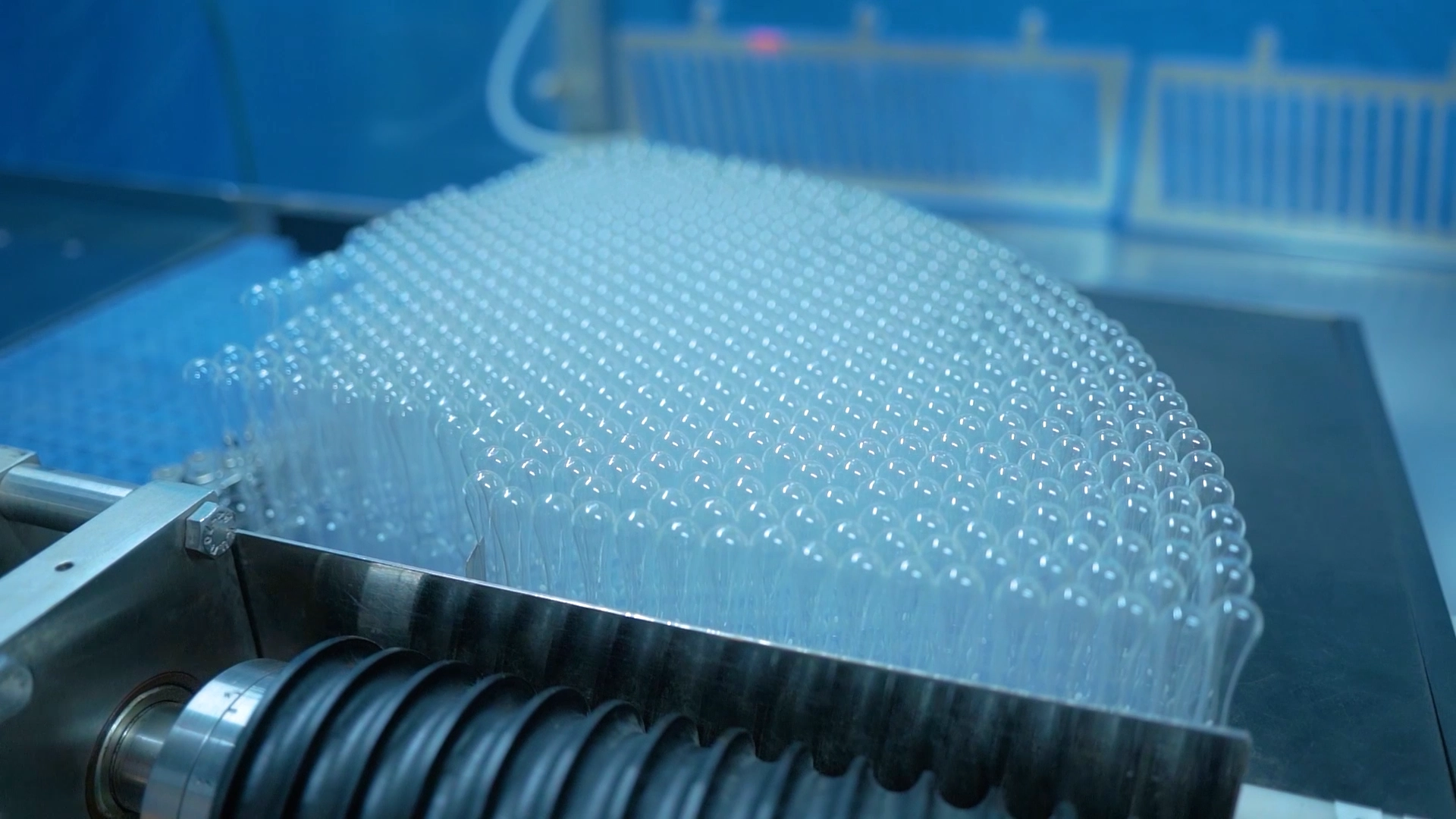

  • Infeed Feed Worm -1 No.
  • Star Wheel Bracket -3 Nos. with 1 No. Guide Set
  • Travelling Rack -1 No.
  • Peristaltic Pump Synchronized Attached with Servo Motor
  • Optional Accessories
  • LAF Unit Suitable for Amp. Filling & Sealing Machine
  • Toughen Glass Cabinet with SS Structure
  • Laminar Air Flow Unit For Ampoule Filling Sealing Machine
  • Infeed Worm – 1 Nos.
  • Star Wheel Bracket -3 Nos. with 1 Nos. Guide Set
  • Travelling Rack-1 Nos.
  • Discharging Hopper
  • Toughen Glass Cabinet with SS Pipe Structure
