Automatic Premium Bottle Sticker Labelling Machine with 21 CFR System

Automatic Premium Bottle Sticker Labelling Machine with 21 CFR System of the main structure is covered with an SS cabinet and safety Polycarbonate enclosure

Automatic Premium Bottle Sticker Labelling Machine with 21 CFR System

Automatic Premium Bottle Sticker Labelling Machine with 21 CFR System

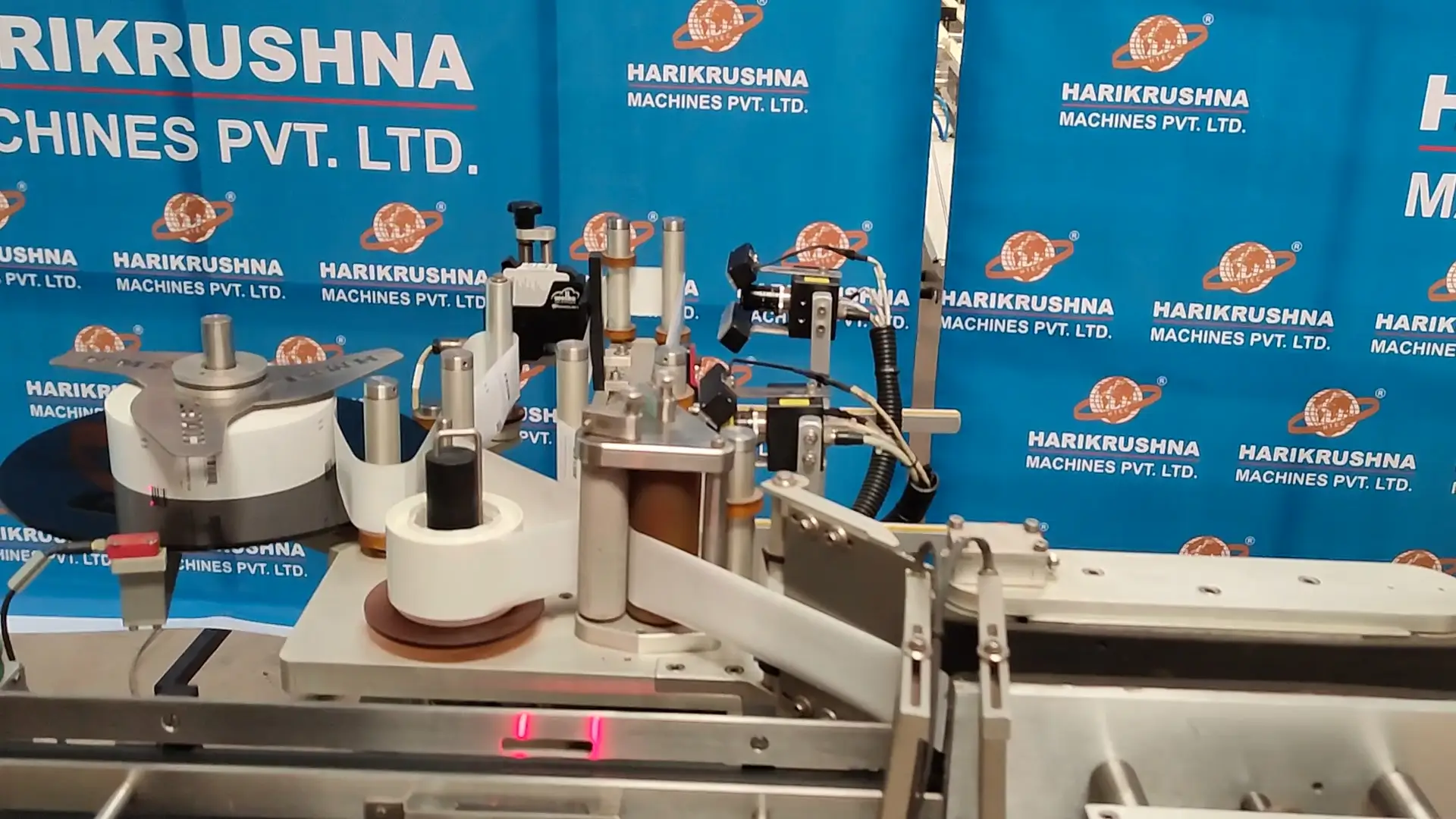

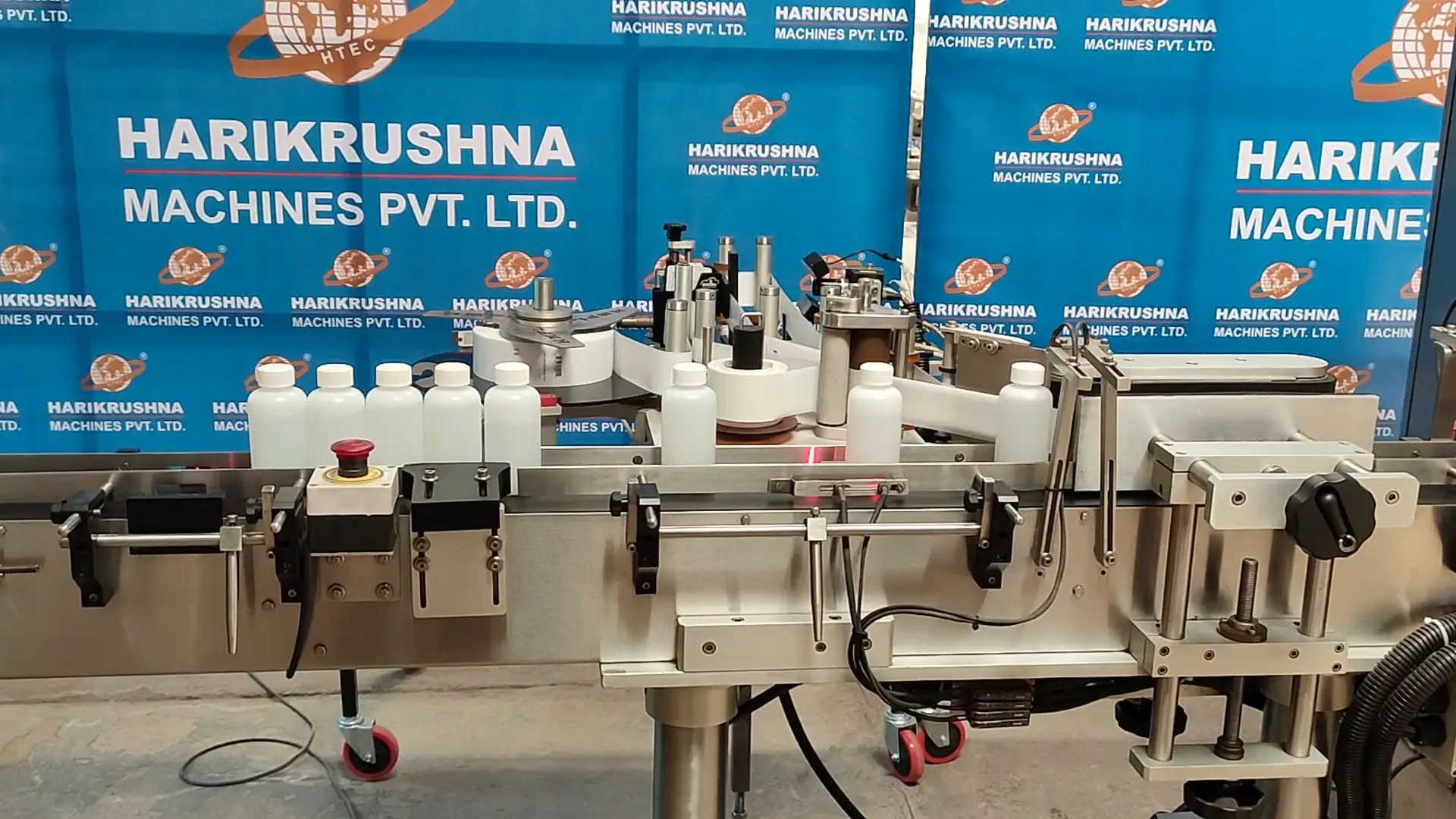

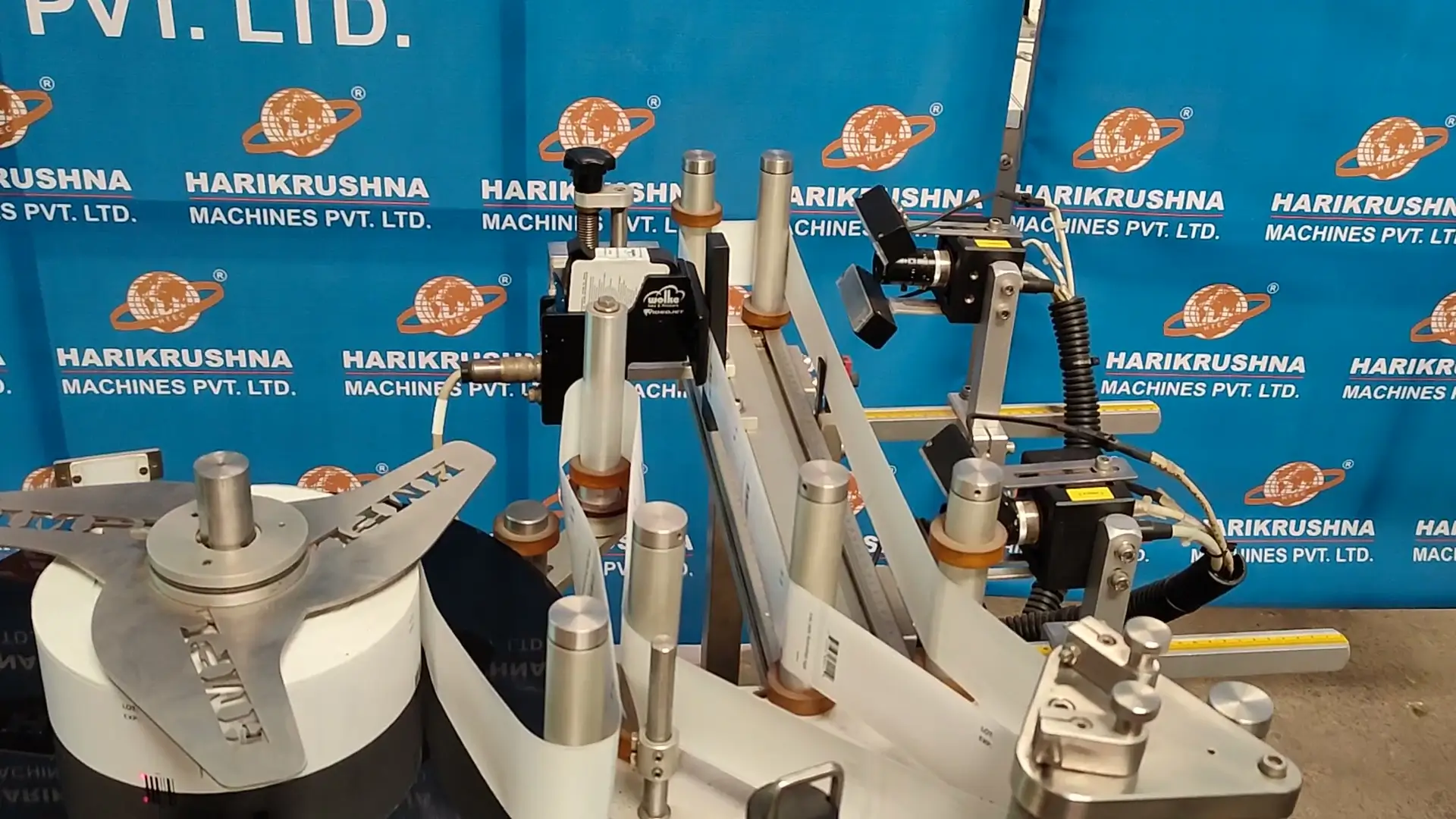

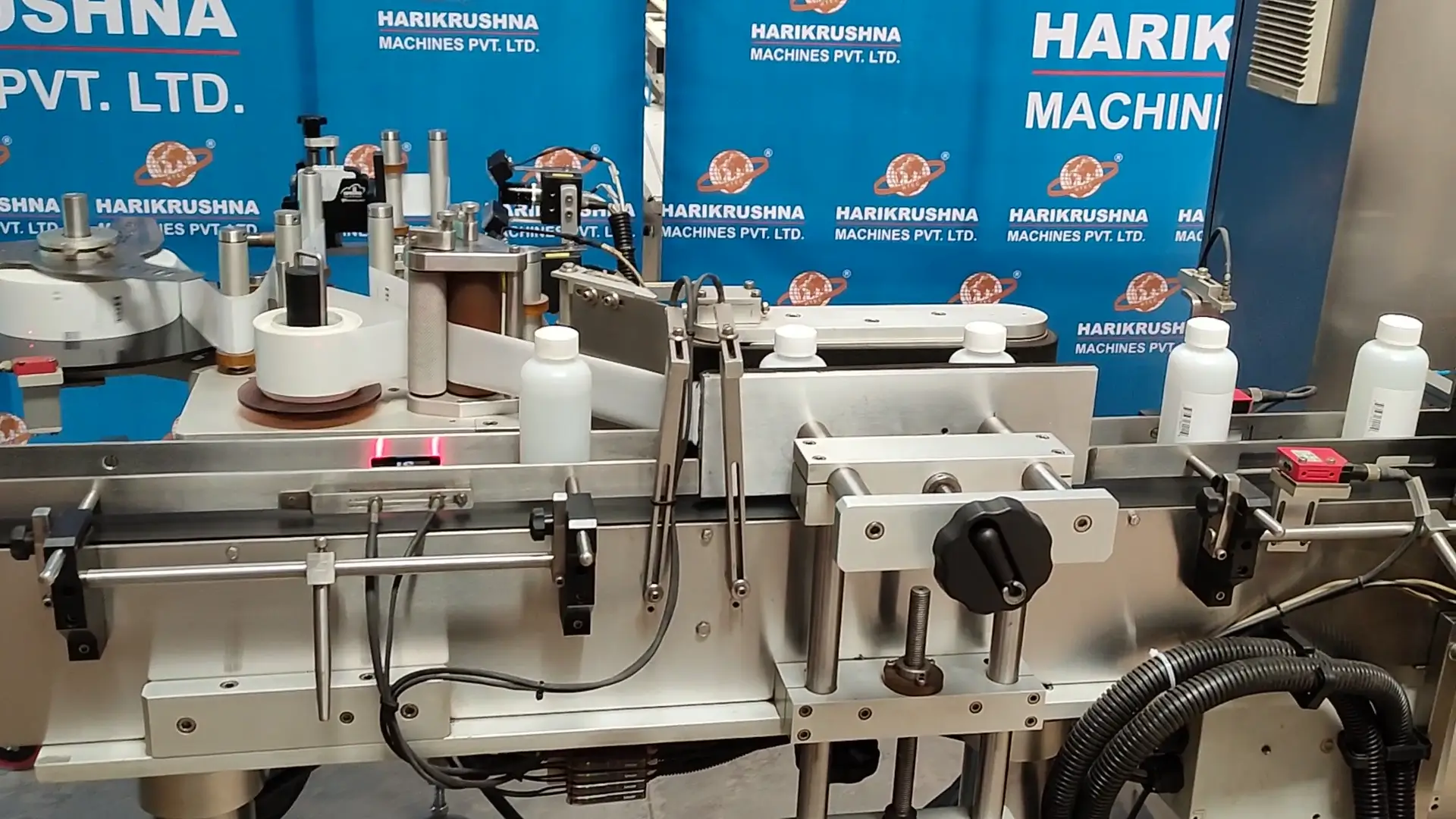

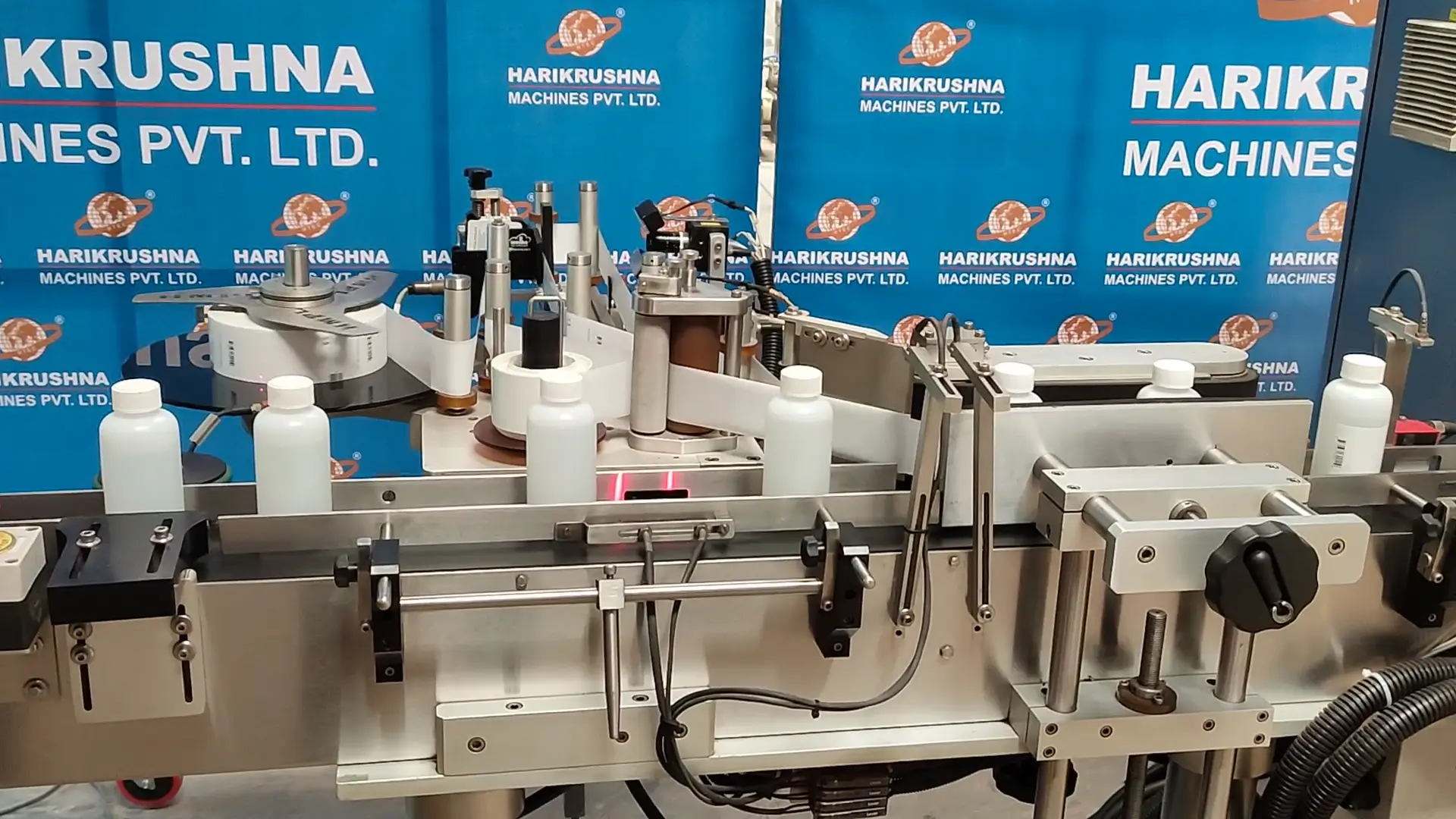

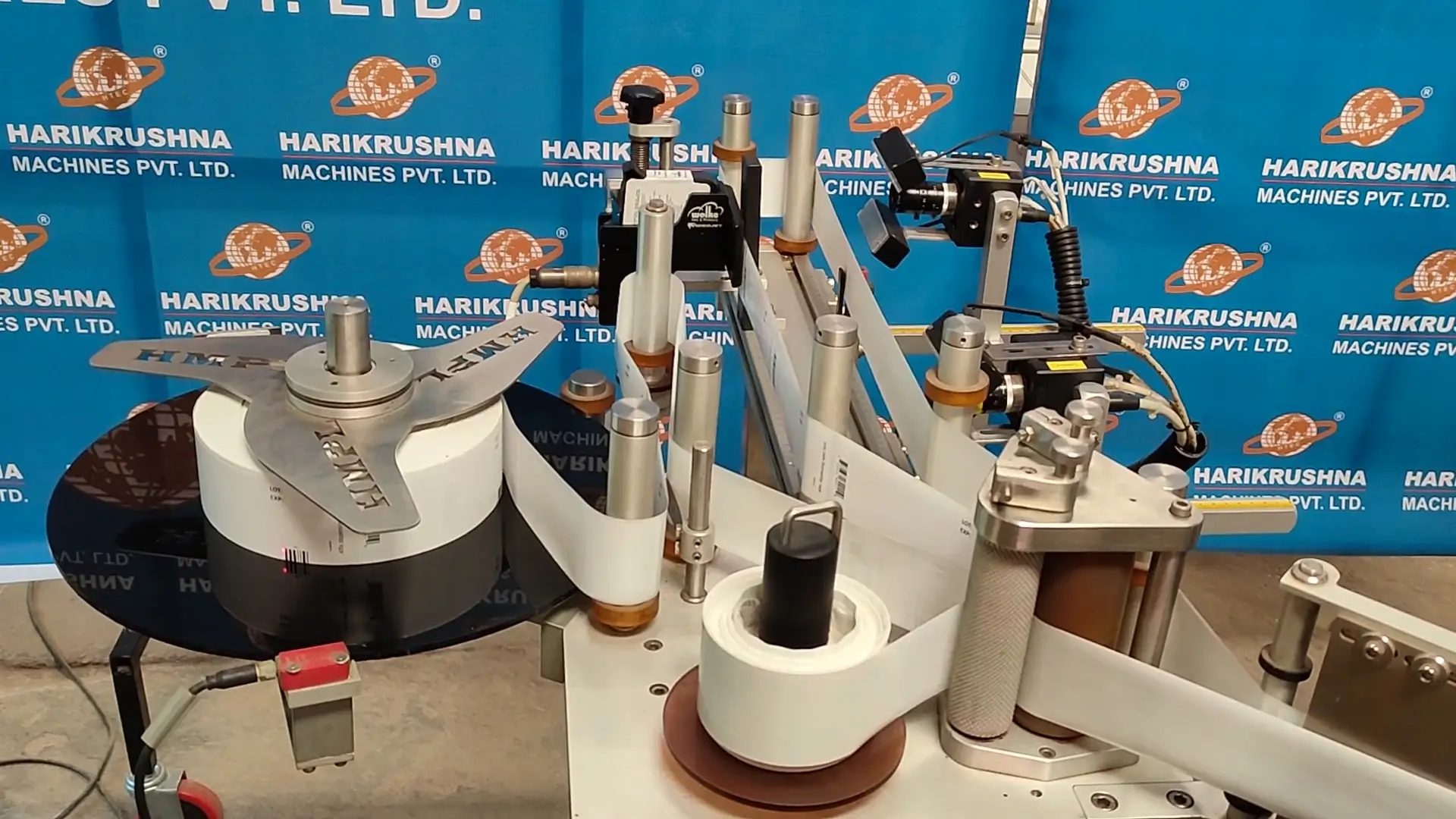

Automatic Premium Bottle Sticker Labelling Machine with 21 CFR System of the main structure is covered with an SS cabinet and safety Polycarbonate enclosure, belt conveyor, separator unit, dispenser unit, wrapping unit, electrical panel, PLC & HMI, Vision System (OPTIONAL), AC drives, rejection system (OPTIONAL) & A batch printing unit (OPTIONAL).

Automatic Premium Bottle Sticker Labelling Machine with 21 CFR System
Automatic Premium Bottle Sticker Labelling Machine with 21 CFR System
Automatic Premium Bottle Sticker Labelling Machine with 21 CFR System
Automatic Premium Bottle Sticker Labelling Machine with 21 CFR System
Automatic Premium Bottle Sticker Labelling Machine with 21 CFR System
Automatic Premium Bottle Sticker Labelling Machine with 21 CFR System
Automatic Premium Bottle Sticker Labelling Machine with 21 CFR System
# Model Output Speed
1 HMPL–PRE–RBL–21CFR Up to 200 Products/Minute
  • The machine is manufactured or developed accordance with GMP standards.
  • Structure is made of SS 304.
  • All moving parts of the machine covered by safety guards of SS.
  • All exposed parts of MS are powder coated / electroless nickel plated.
  • Rubberized Endless Conveyor Belt.
  • Conveying system to convey the product with easy adjustable side guide.
  • Conveying system equipped with imported AC frequency variable drive for variable speed with constant torque.
  • Unique motorized separator to ensure uniform distance between two products.
  • Unique machine for all round products label application without change parts.
  • Full / Partial labelling is possible.
  • Machine Suitable for Round Product like Vial/ Bottle/ Jar/ Tin / Can and Container.
  • Specially designed drive mechanism for Label Release.
  • Reel mechanism (Size: 300 mm) to hang the roll with core ID of 76 mm (3”).
  • Break assembly to avoid variation during releasing of roll.
  • Various label position adjustment with the help of sliding pipe assembly.
  • Specially designed wrapping unit to wrap label on product.
  • The Wrapping belt is made of specialized nylon sponge material for longer life.
  • Most reliable and proven components such as Festo/SMC/Janatics make pneumatic and electrical/electronic such as Panasonic/Bonfiglioli/Motovario/Rotomotive make AC motor, Delta make AC Drive, PLC & HMI (Keypad), MCB & relay “CE” certified.



  • No Product No Labelling.
  • Fiber Optic based Product sensor to sense the product (Sensor Make: LEUZE/BANNER/SICK).
  • Fiber Optic based Label Gap sensor to sense the gap between two labels (Sensor Make: LEUZE/BANNER/SICK).
  • The unit is made compact design & user-friendly operating HMI.
  • Special HMI function like product delay & pre-dispensing length for easy machine setting.
  • HMI with 4-level password systems for safety operator, supervisor, manager & administrator level.
  • Label dispensing speed can be set digitally using HMI.
  • Motor unlock facility for changing the label roll.
  • PPM (Product per machine) facility is available.
  • Capacity to control AC drive speed from HMI.
  • Multiple program facility.
  • The Panel unit is made in a compact design & easy serviceable/Removable.
Product Size (Ø) 15 mm Ø to 90 mm Ø
Product Range Round Vials/Bottles
Label Size Up to 95 mm H
Output Speed Up to 200 Products/Minute
Working Height 850 mm ± 50 mm Adjustable
Power Consumption 2.5 KVA
Power Supply 3 Phase + Neutral + Earthing/ 440V AC/ 50Hz
Air Supply 4 to 6 Kg/Cm2
Net Weight 550 Kg Approx.
Dimensions 2100 mm (L) x 1200 mm (W) x 1850 x 50 mm (H)
