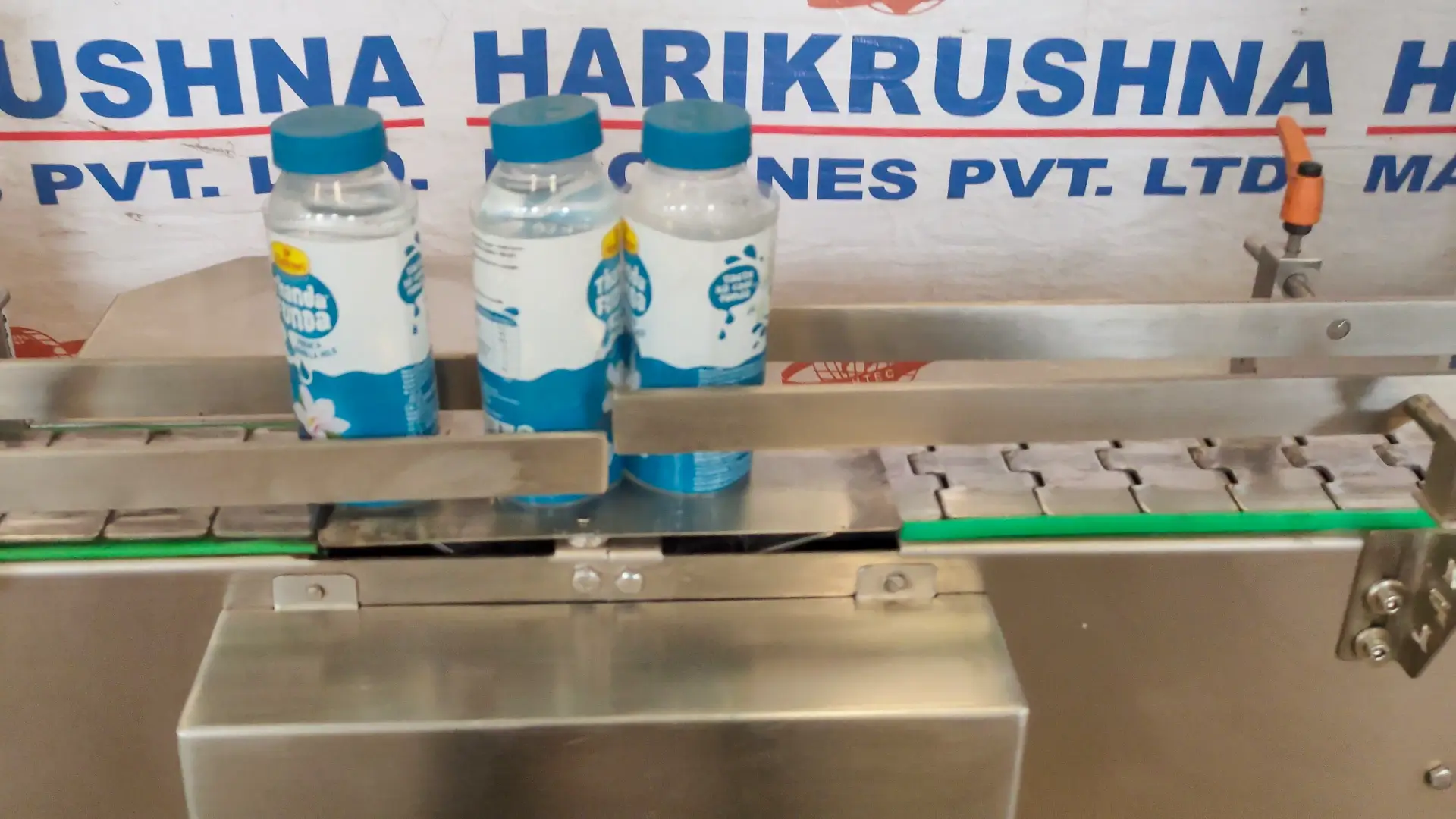

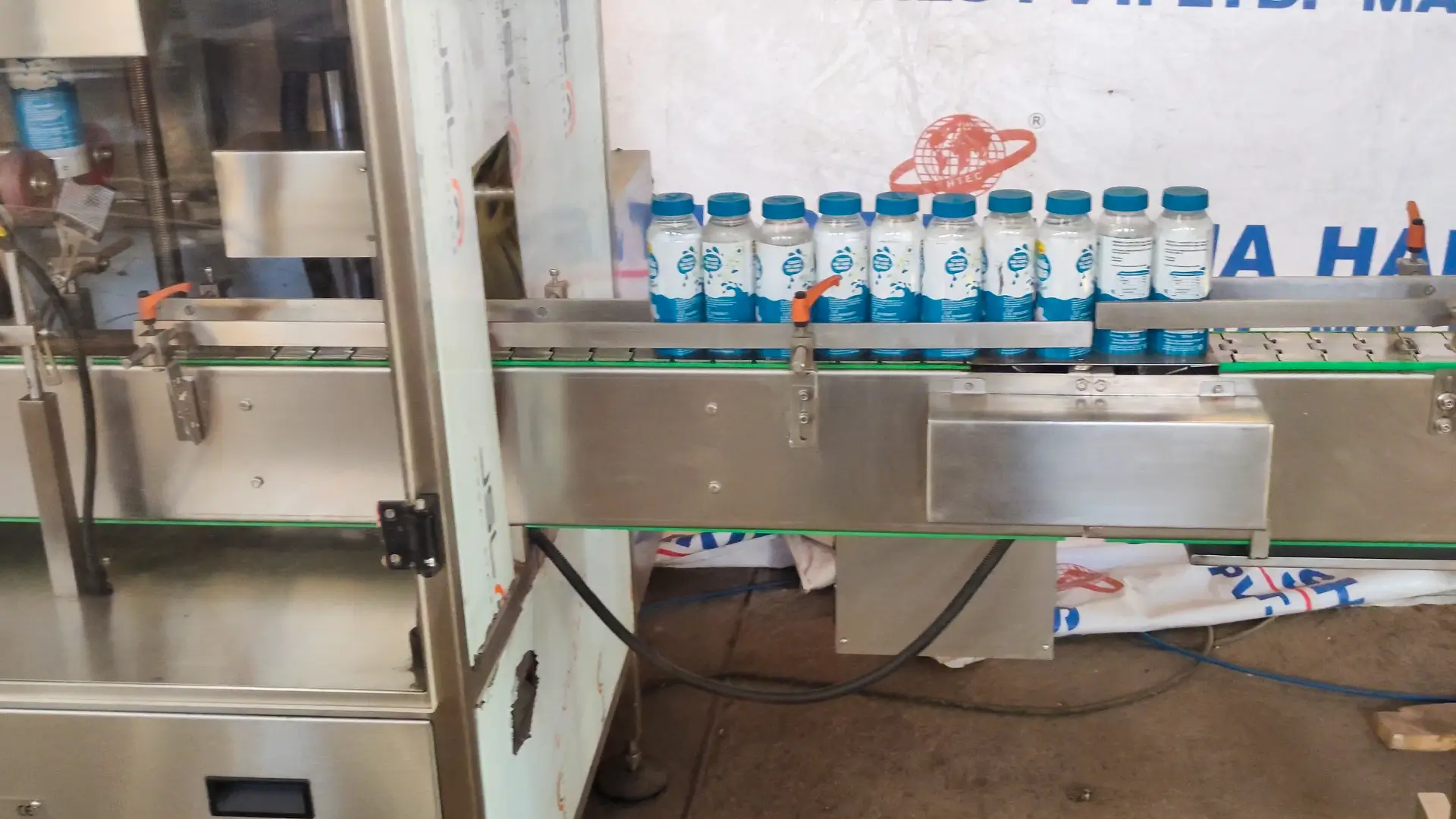

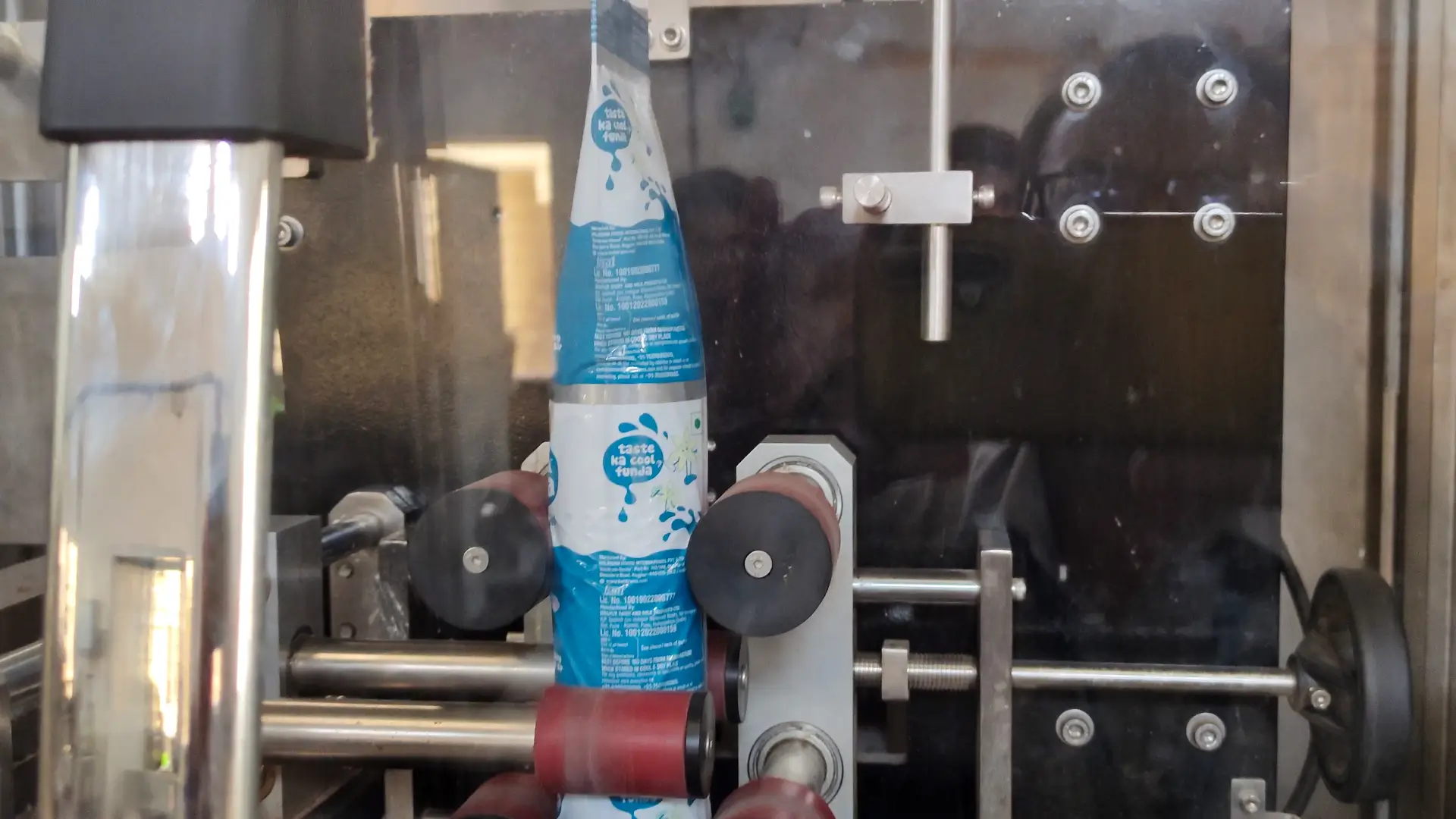

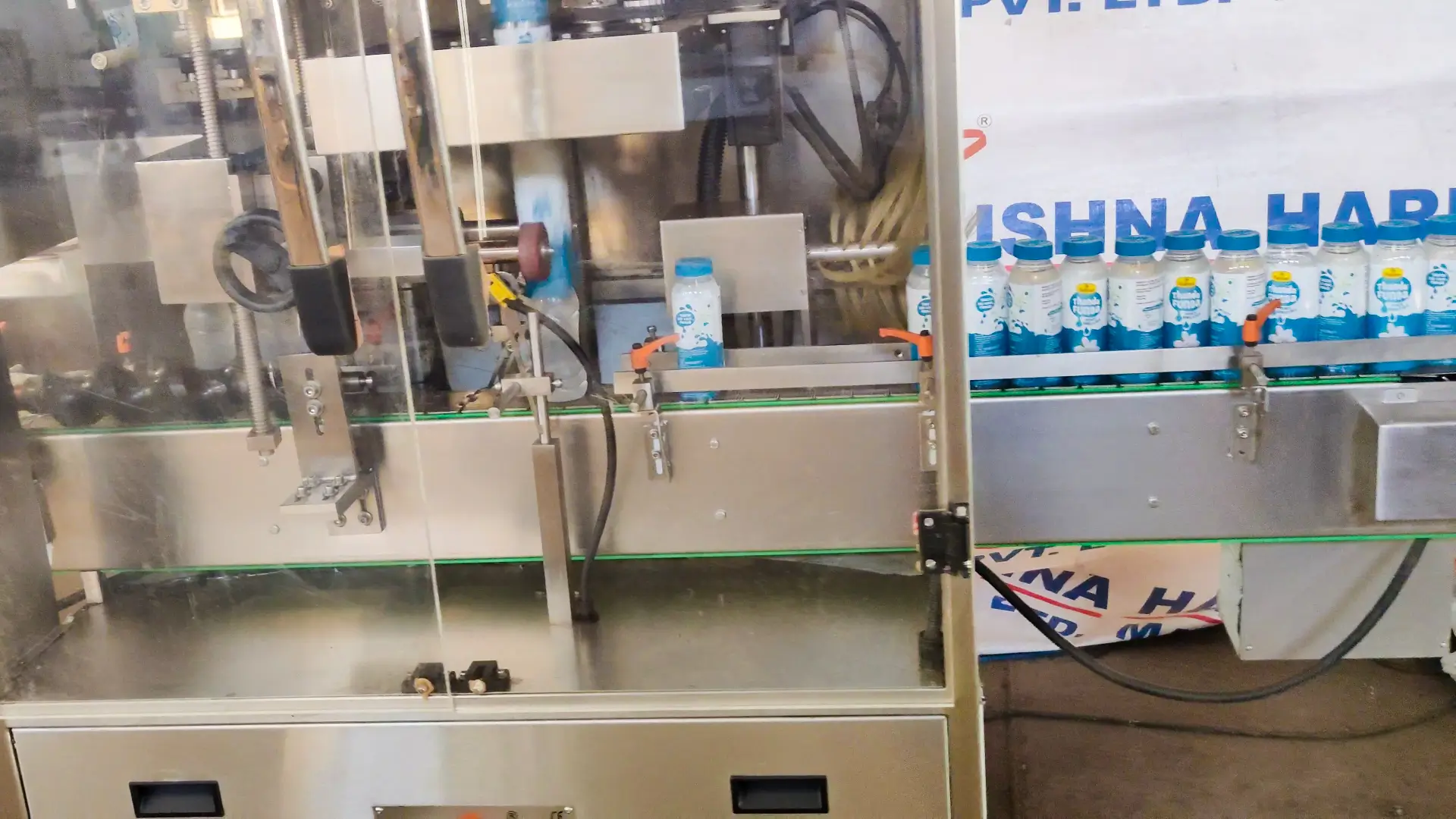

Shrink Sleeve Labelling Machine

We are engaged in offering an exclusive range of Shrink Sleeve Labelling Machine. The Shrink Sleeve Labelling Machine is Worldwide recognized for its unique feature like to reduce labor and increase manufacturing rates. The Machine is used to apply or insert Shrink Sleeve Label on the Container. This Fully-Automatic Machine is Suitable for Glass, Plastic, Pet, Tin, Corrugated containers.

Shrink Sleeve Labelling Machine

Shrink Sleeve Labelling Machine

We are engaged in offering an exclusive range of Shrink Sleeve Labelling Machine. The Shrink Sleeve Labelling Machine is Worldwide recognized for its unique feature like to reduce labor and increase manufacturing rates. The Machine is used to apply or insert Shrink Sleeve Label on the Container. This Fully-Automatic Machine is Suitable for Glass, Plastic, Pet, Tin, Corrugated containers.

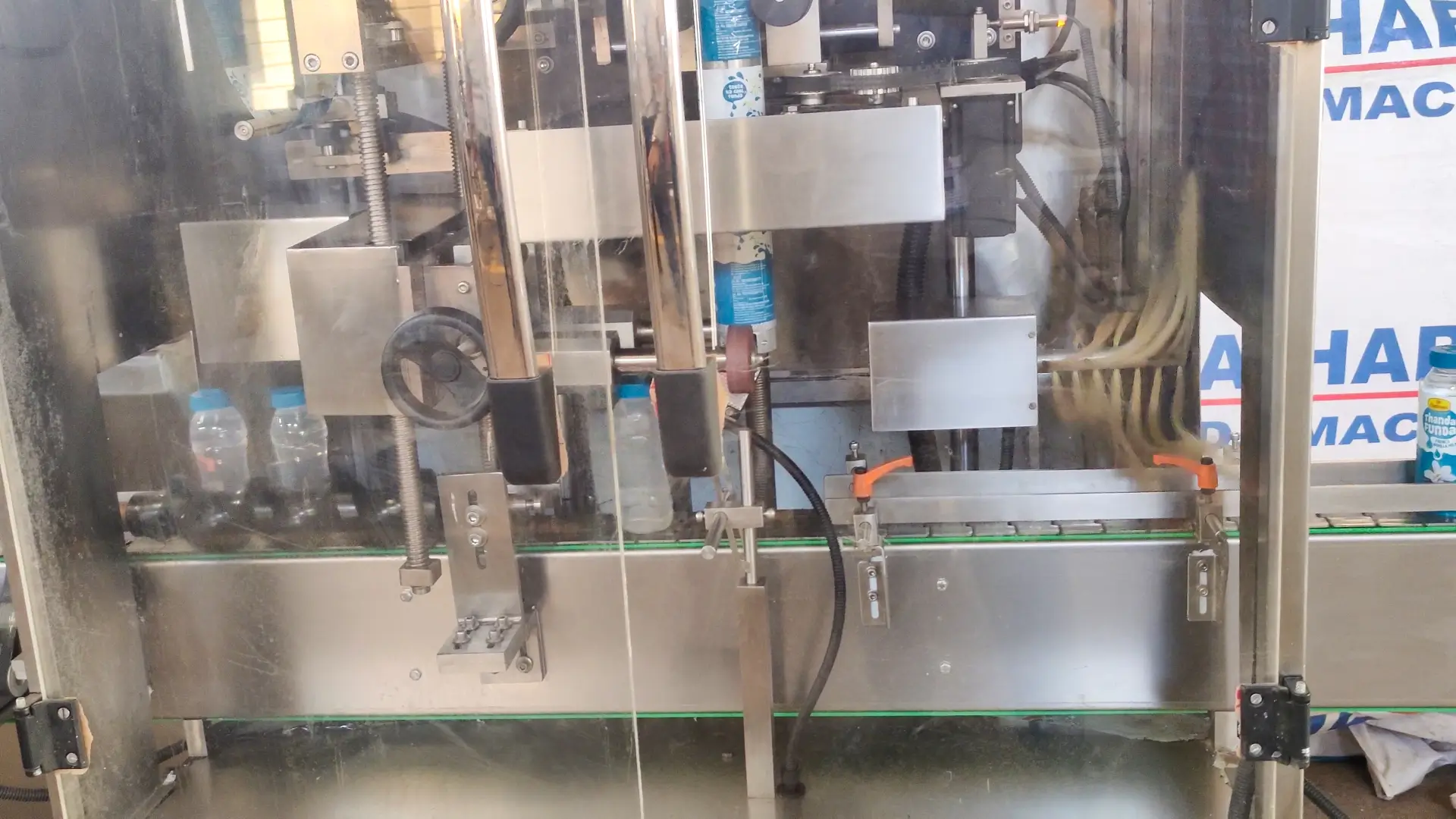

The unit consisting of sleeve roll loader-carrier assembly, conveyor bottle separating assembly, Center pillar, Bottle positioning mechanism, Cutter mechanism, Fiber-optical sensor and controlling assembly and Brush etc.

Output Speed Up to: 60 / 90 / 120 BPM
Sleeve LFW Min-75 mm, Max-165 mm
Sleeve Cut Length Not less than 40 mic
Inter Lock No Bottle – No Sleeve, Guard Open Machine off with respect to Alignment / Paneling
Contact Parts SS-304 / Nylon / Aluminum
Drive Stepper Motor Drive (For sleeve feeder & cutter)
Controls Programmable Logics, Make : Delta
Power Consumption As Per Capacity
Machine Dimension (Feet) As per Requirement

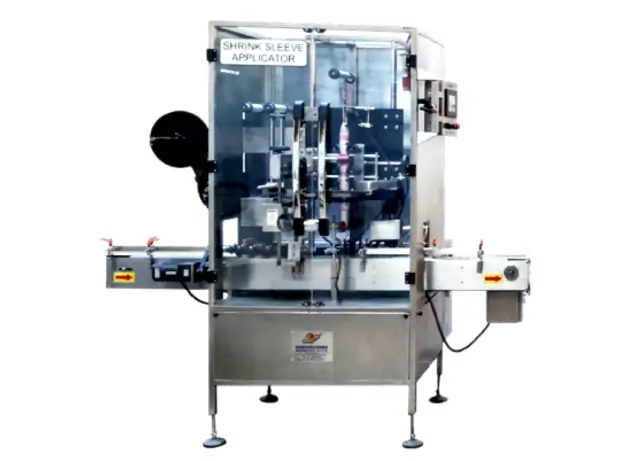

Shrink Sleeve Applicator

The Shrink Sleeve Applicator by Harikrushna Machines Pvt. Ltd. is a versatile and efficient solution designed for applying shrink sleeves to a range of bottle types including glass, HDPE, and plastic. It accommodates bottle diameters from 30 mm to 120 mm, with sleeve lengths between 30 mm and 100 mm and sleeve widths from 40 mm to 170 mm. This machine offers an impressive output speed of 60 to 200 bottles per minute, depending on the cut length of the sleeve, making it an ideal choice for high-speed, high-volume packaging operations that demand precision and reliability.

Electrical Heater Operated Shrink Tunnel

The Electrical Heater Operated Shrink Tunnel by Harikrushna Machines Pvt. Ltd. is a robust and efficient solution for achieving uniform shrink sleeve applications. Utilizing advanced electrical heating elements, this shrink tunnel ensures precise and consistent heat distribution, resulting in smooth and tightly fitted sleeves on various container types. Designed for high productivity, it integrates seamlessly with existing production lines, optimizing the shrink sleeve process for enhanced visual appeal and product protection. Its user-friendly interface and durable construction make it a reliable choice for modern packaging operations, ensuring consistent quality and performance.

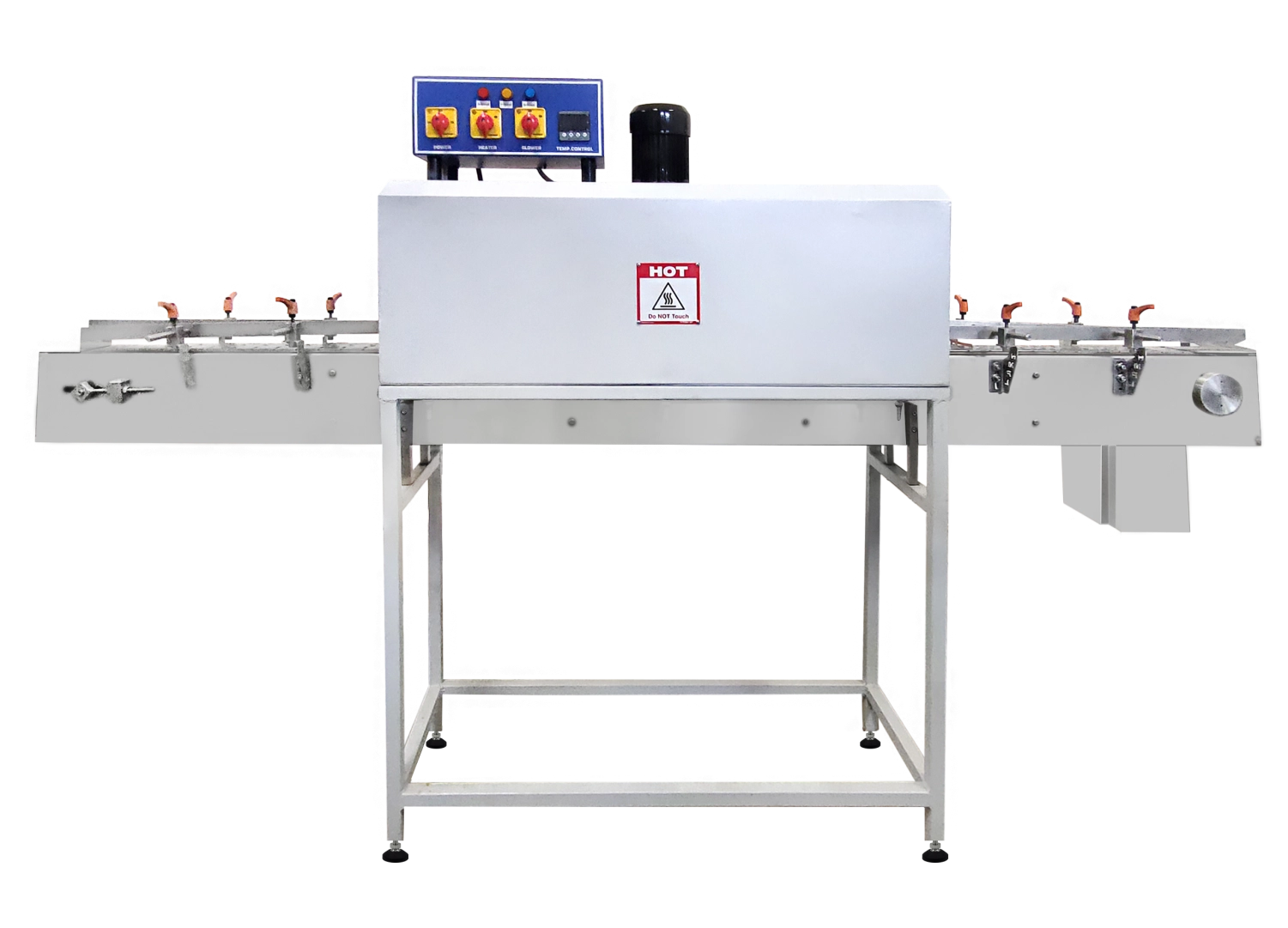

Electrical Heater Operated Shrink Tunnel-HMPL

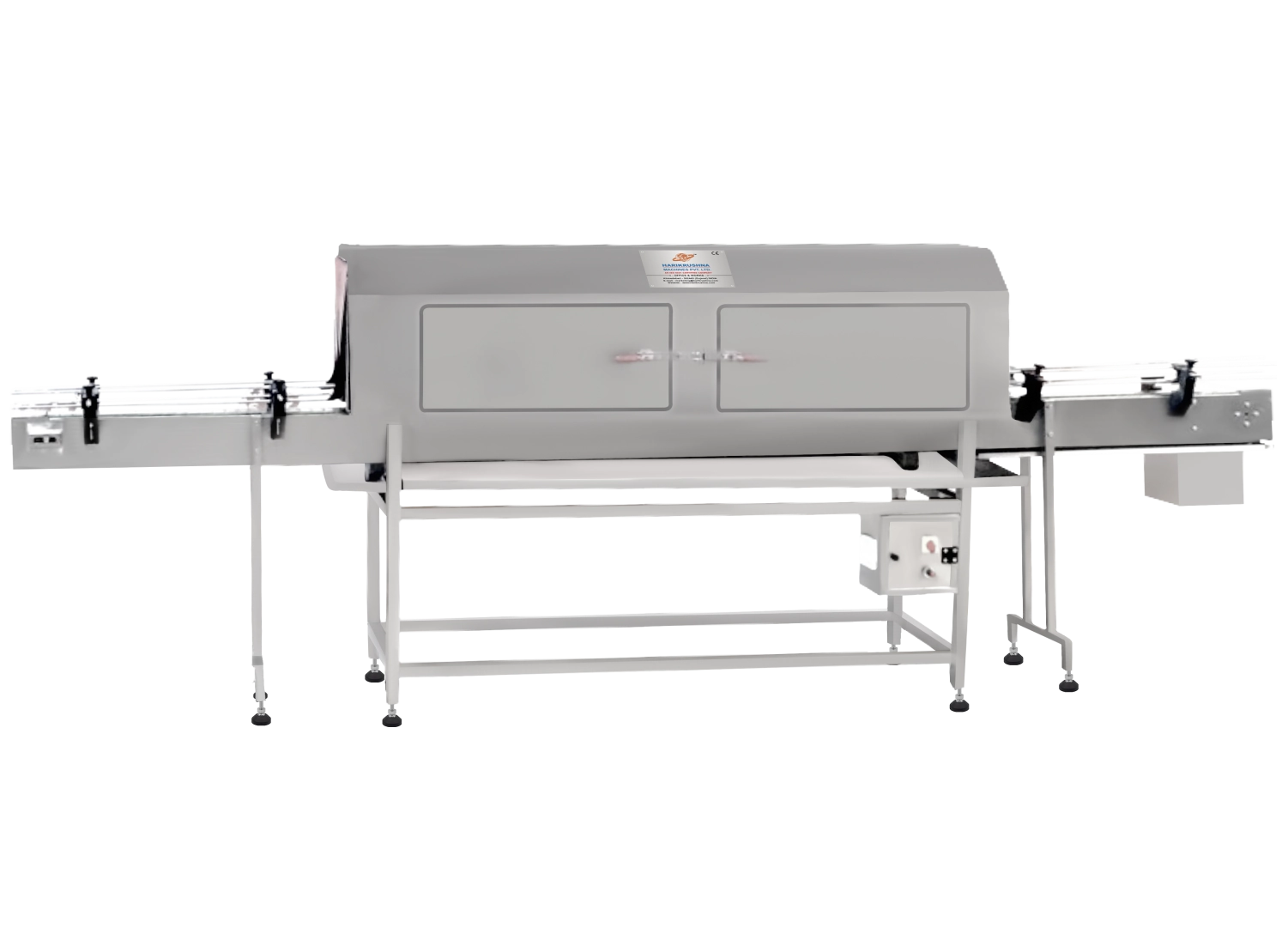

Steam-Operated Shrink Tunnel-HMPL

Steam Operated Shrink Tunnel

The Steam Operated Shrink Tunnel by Harikrushna Machines Pvt. Ltd. offers an efficient and uniform method for applying shrink sleeves to various containers. Leveraging the power of steam, this tunnel provides even heat distribution, ensuring a smooth and wrinkle-free finish on the sleeves. Ideal for diverse packaging applications, it caters to containers of different shapes and sizes, delivering high-quality results consistently. Its advanced design promotes energy efficiency and easy integration into existing production lines. With user-friendly controls and robust construction, this steam shrink tunnel is an excellent choice for manufacturers aiming to enhance the aesthetic appeal and protective qualities of their packaged products.

Steam Generator

The Steam Generator by Harikrushna Machines Pvt. Ltd. is a high-performance equipment designed to provide a reliable source of steam for various industrial applications, including shrink sleeve tunnels. Engineered for efficiency and durability, it delivers consistent steam output, ensuring optimal performance in processes requiring precise temperature control. Its robust construction and advanced safety features ensure reliable and safe operation. It is easy to monitor and adjust per needs. Ideal for integration into diverse production environments, this steam generator enhances productivity and product quality, making it a valuable asset for modern manufacturing facilities.

Steam Generator-HMPL
