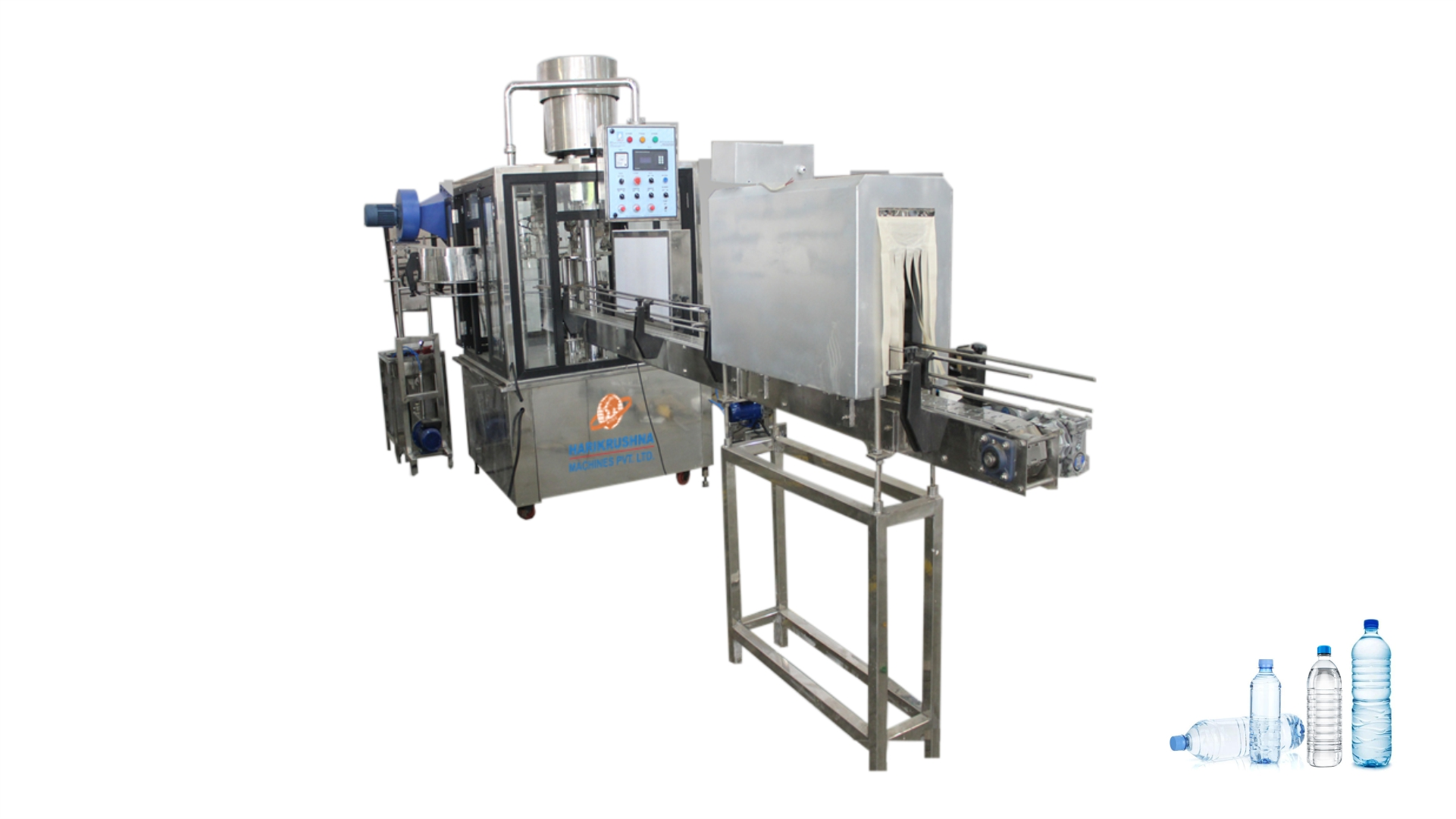

The Semi-Automatic Rinsing, Filling and Capping Machine consist of a main structure, air conveyor, bottle rinsing unit, bottle filling unit, bottle capping unit, cap bowl with a transfer system, star plate, product transmission belt with an adjustable guide, Safety acrylic cover, AC drive, the motor with gearbox, electrical panel, PLC & HMI.
The machine is manufactured or developed accordance with GMP standards. |
Structure frame of MS cladded platform and housings of SS 304. |
Rinse Fill & Seal cycle, fully Trio-block for total filling hygiene. The whole process is semi-automatic. |
Bottle in-feed using high pressure air conveyor. |
Air Blow Conveyor on the in-feed. |
Rotary neck holding. |
Slat chain Conveyor on the out-feed with the AC Drive and Inspection Table with lighting system & white background. |
No Bottle - No Rinse - No Fill - No Cap. |
Unique Pick & Place type Capping. |
Drive is based on Geneva mechanism hence low on maintenance. |
Speed Control by AC Drive. |
Vibrator bowl for feeding cap to the chute with semi-automatic operation. |
Speed indicator on main panel |
Can handle all bottle size ranging from 250 to 2000 ml. |
Capping done by “Torque Adjustable” magnetic capping heads using two stage Pick & Place system. |
Stainless Steel enclosure provided for complete hygienic bottling. |
Easy open able nozzles for easy cleaning. |
Can handle bottles blown from low grammage Pre-forms without distortion. |
Can be linked directly to Semi-Automatic Blow Moulding Machine for online Blow- Rinse-Fill-Seal. |
Compatible with Online Shrink Tunnel, Labeling Machine or Ink Jet Printer. |
