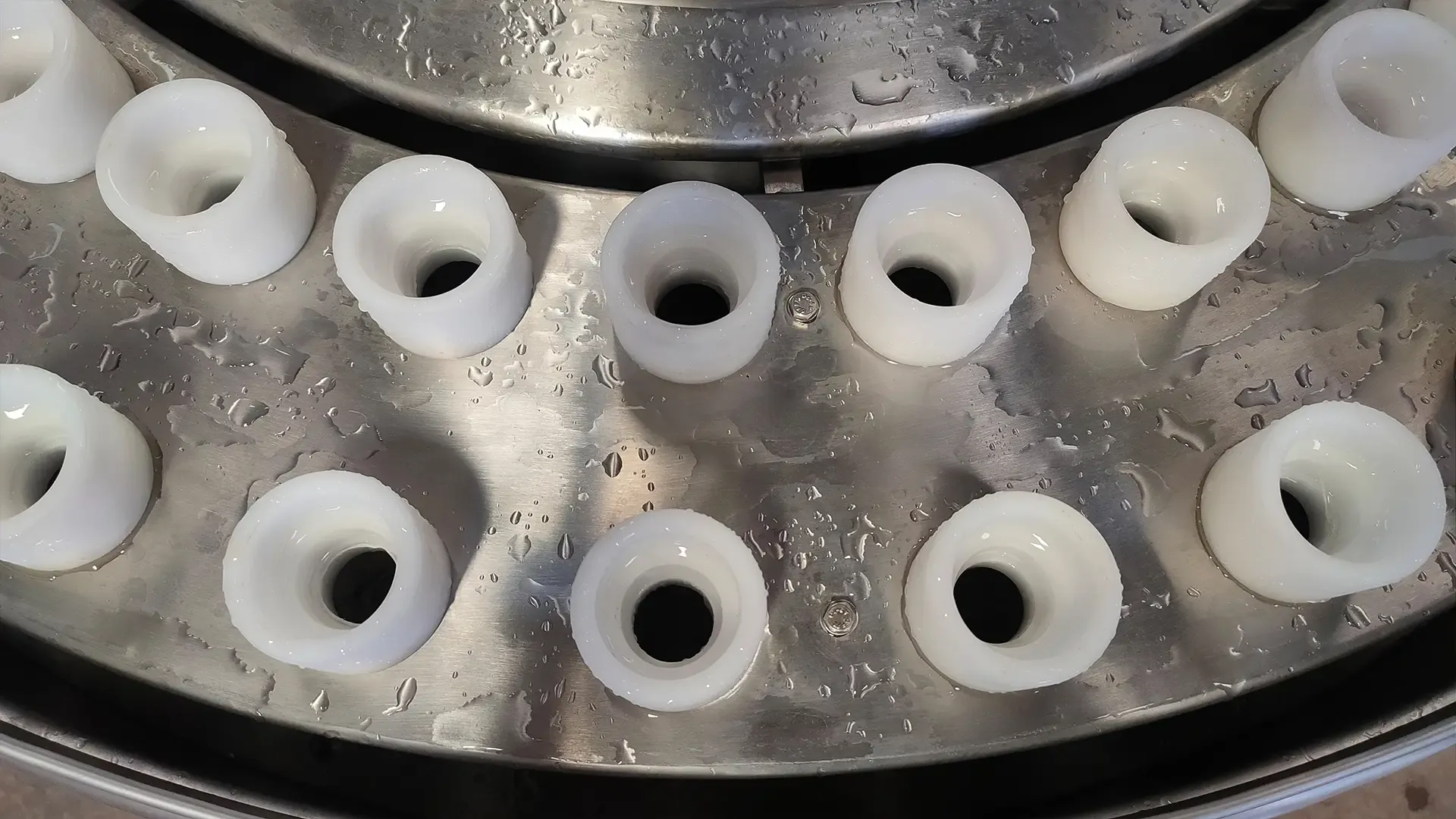

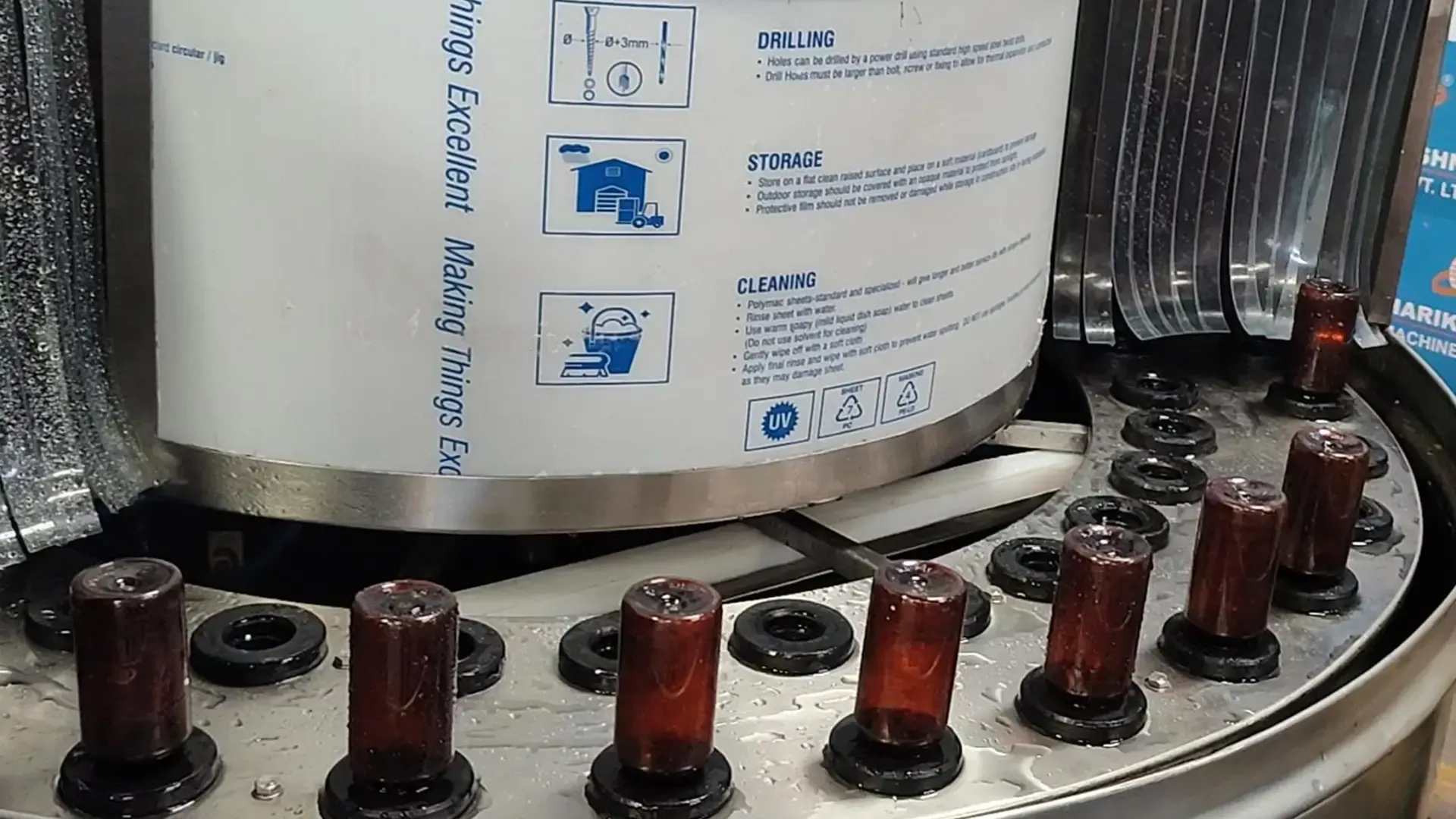

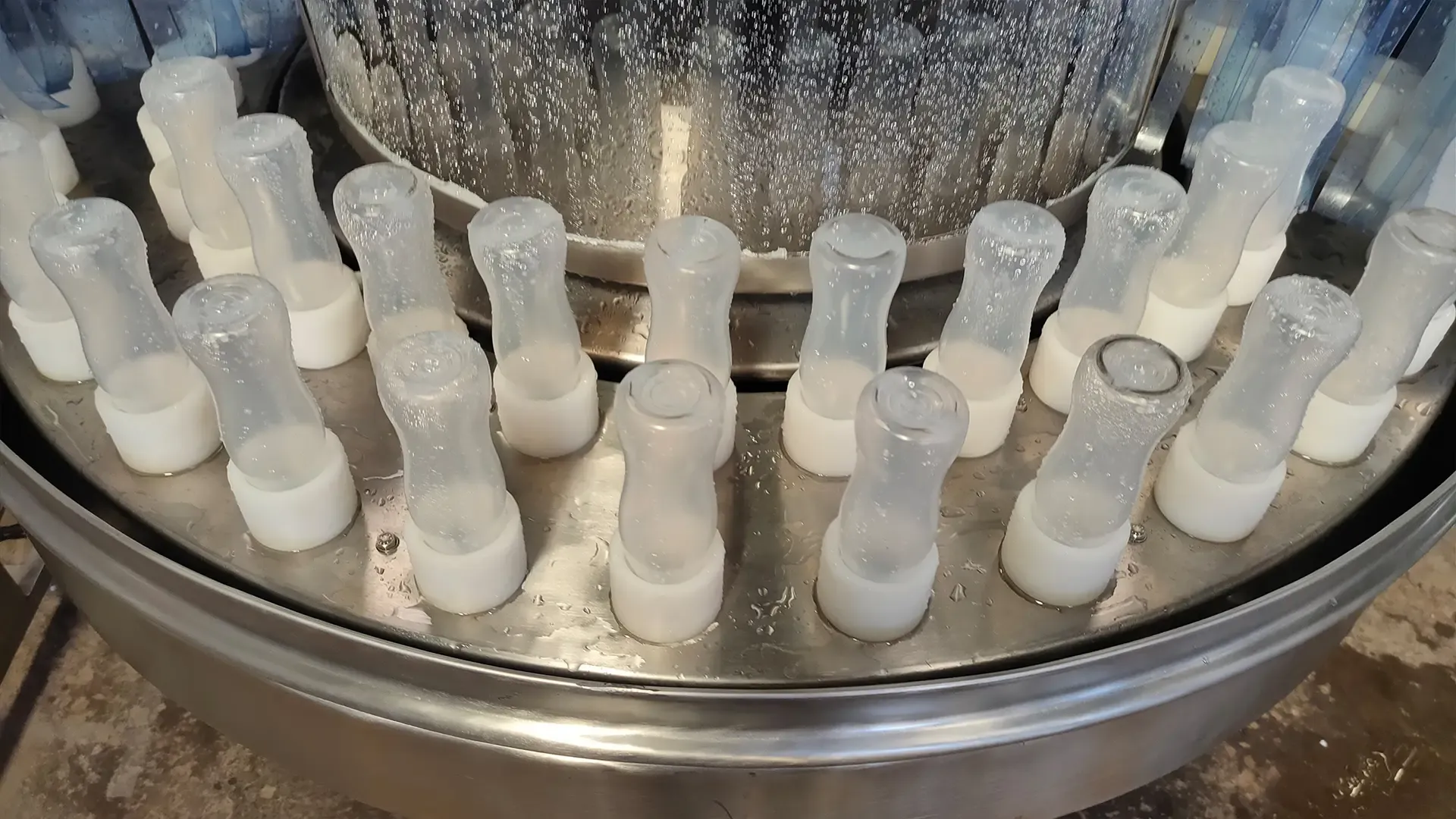

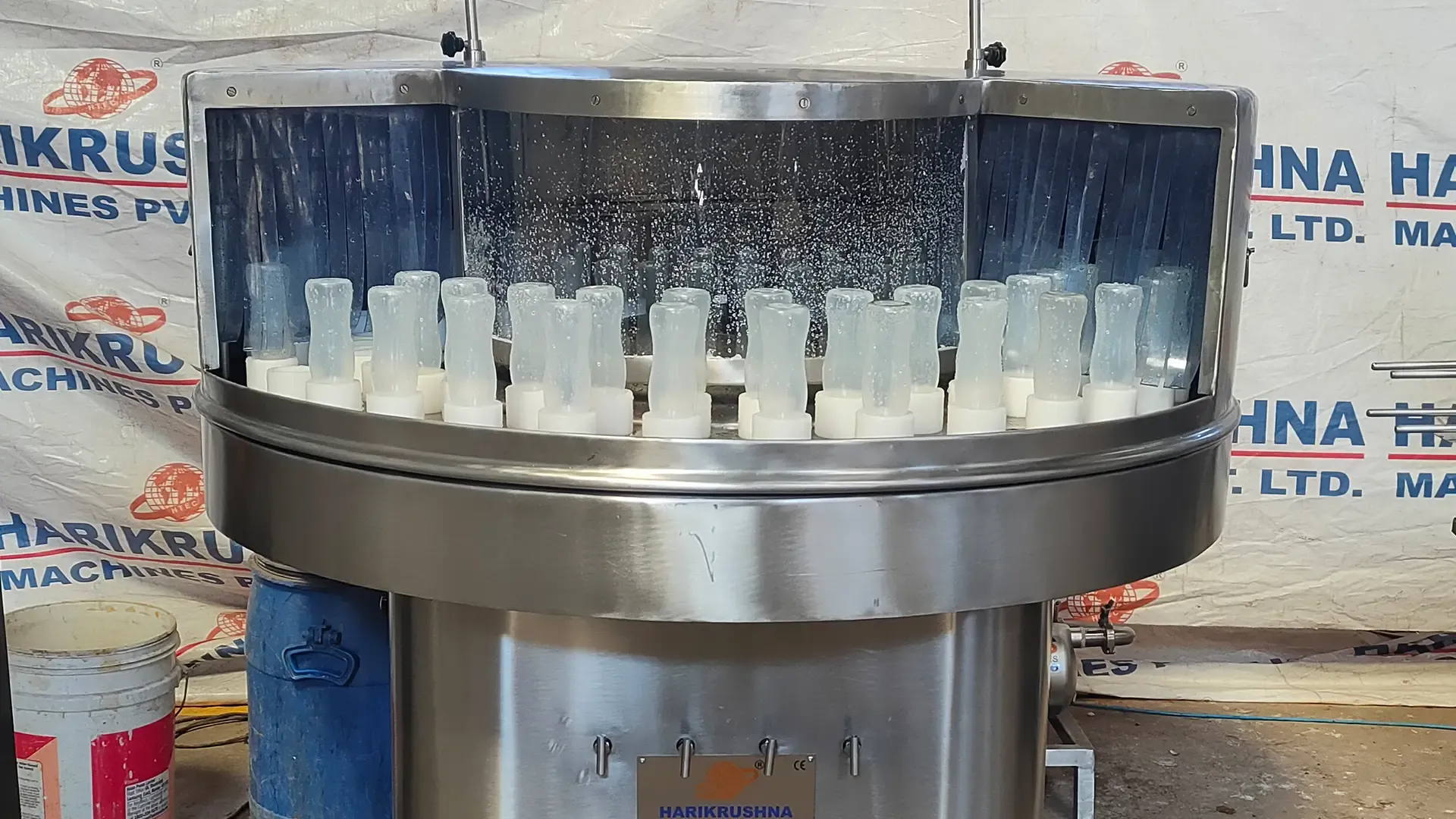

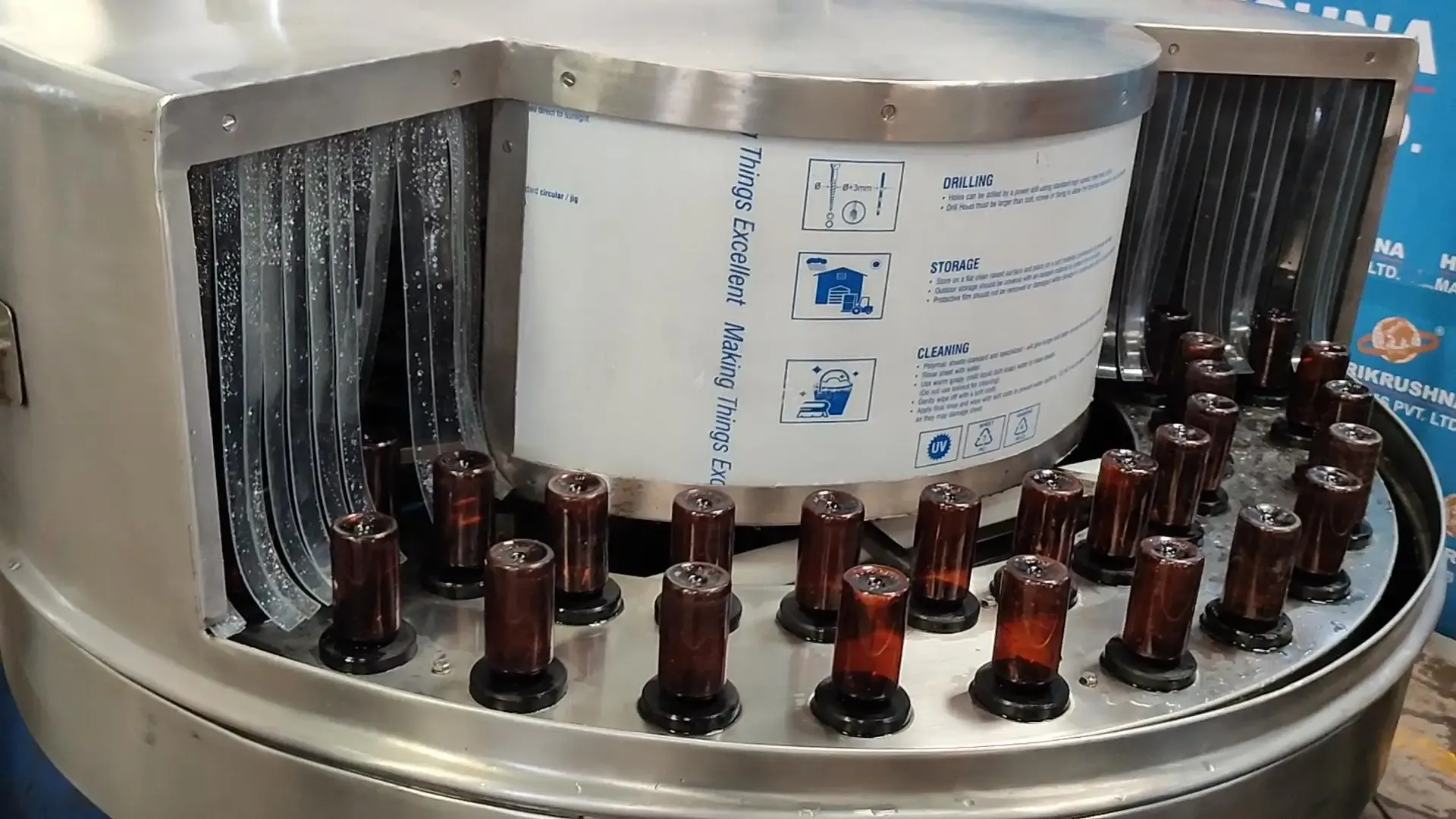

The Rotary Bottle Washing System consists of main structure, rotary platform, bottle holder/cups, flow regulators, pressure meter, solenoid valve, Geneva mechanism, 2 nos. of SS tanks with pump, nozzle, electrical panel & AC motor.

SALIENT FEATURE:

The unit is made compact & versatile as per GMP norms.
The structure is made of MS and cladded with SS304
Rigid vibration free construction for trouble free performance.
The contact parts such as washing nozzle, washing pump impeller, tanks, cup/bottle holder plate are made of Stainless Steel 304.
Easy to clean the base of the machine by removing the top cover.
The tanks capacity is 75 litres each.
Specially designed SS 304 Impeller based AC motor for pumps.
Pumps and tanks are mounted on portable stand for easy maintenance and cleaning purpose.
Higher capacity of centrifugal pumps to wash bigger bottles (500ml & 1000 ml).
Stationary nozzles to eliminate contamination of water cycles.
Specially designed Geneva Mechanism.
Four inner wash (Included one air wash , two inner wash with recycled tray) & one outer wash
Easy loading/unloading & operation.
Individual solenoid valve use for each wash - which eliminates carbon plate and other accessories. This is to avoid leakages and minimize the maintenance ratio.
Individual flow regulating valves to control the flow of water.

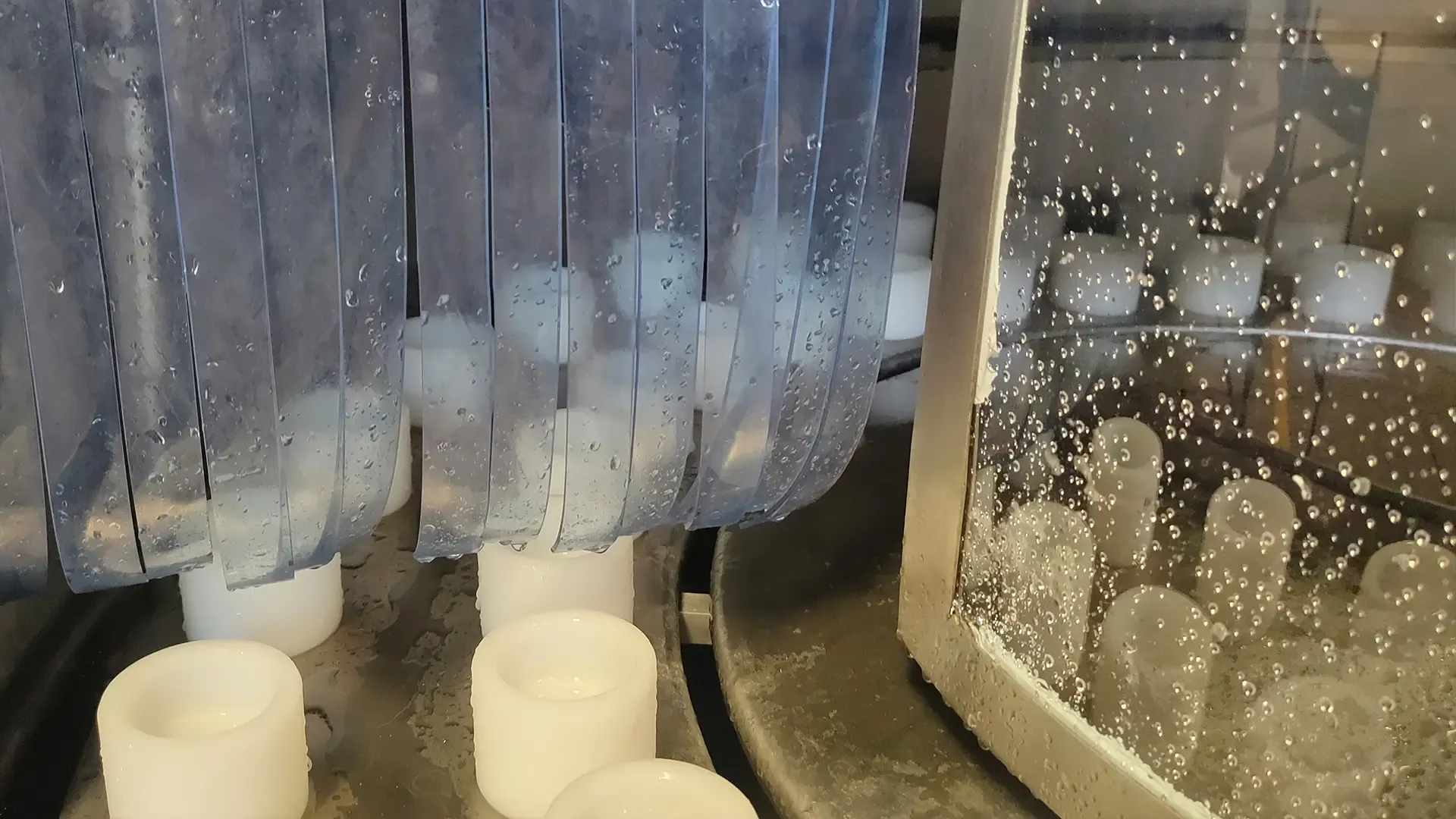

Bottle guide system especially for lightweight bottle.
Separate panel control to avoid any short circuit due to spraying of water.

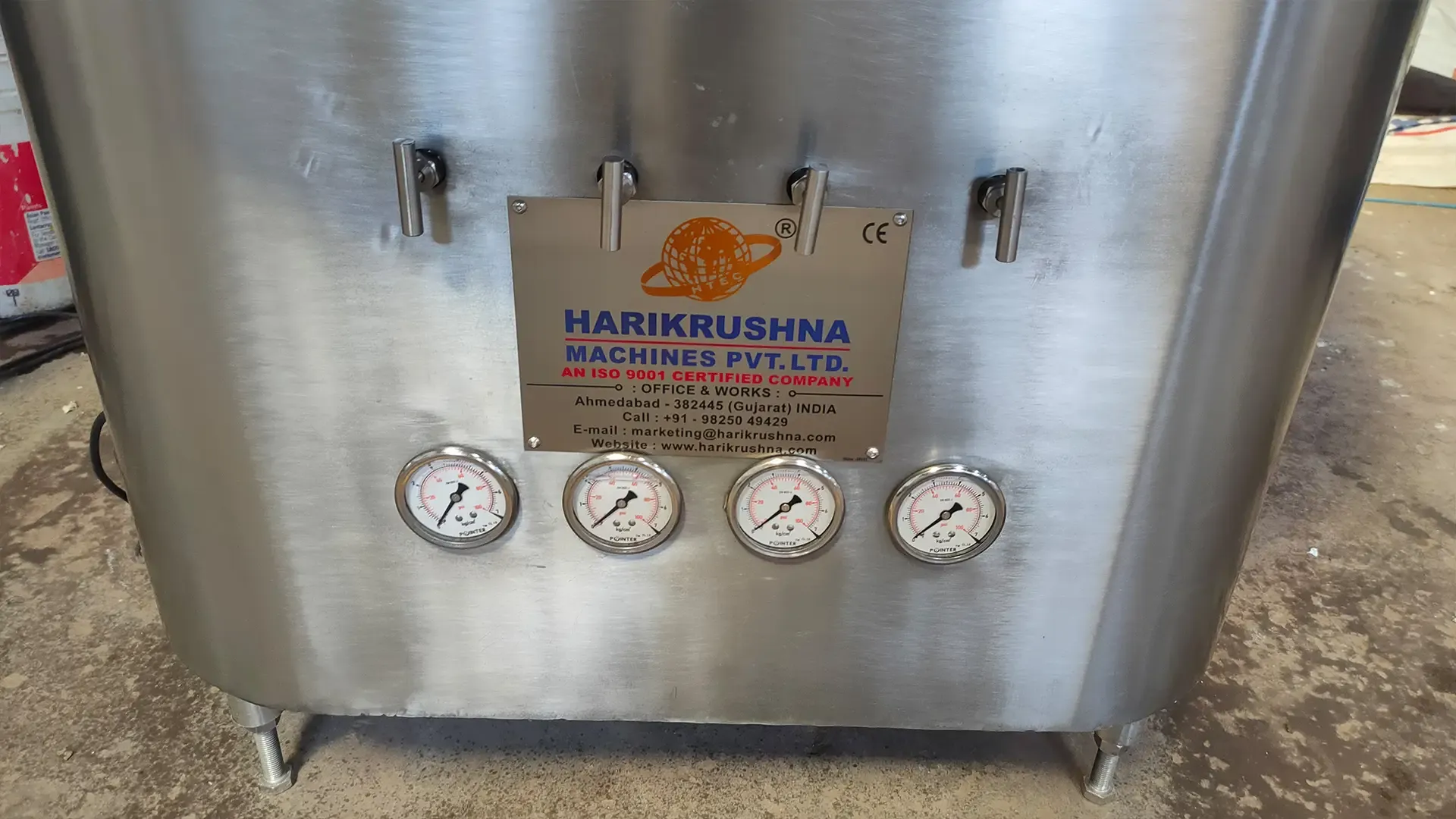

SS glycerin fill pressure meter.

TECHNICAL SPECIFICATION:

ModelHMPL–RBW–64 / 96
Bottle Size(Ø)15mm Ø to 70mm Ø Height: 50 mm to 270mm Neck Ø: 21 mm to 25mm
Output Speed3600 to 7200 Bottles / Hour (Speed Depends on Products Size)
Working Hight850 ± 50 mm Adjustable
Power Consuption5.0KW (Main Motor: 0.5HP, Pump: 1HPX2 & Heater: 3KW)
Power Supply3 Phase / 440V AC/ 50Hz
Air Consumption5 CFM
Air Supply4 to 6 kg/cm2
Net Weight Approx.450 Kg
Dimensions Approx.1600mm (L)x 1300mm (W)x 1300 mm(H)
DirectionClockwise
Number of Cup Holder64 / 96
Wash Cycle4 Inner + 1 Oute
Tank Capacity75 Litres (2 nos)

CONSUMPTION OF WATER:

First Wash200 Liters/Hour230 Liters/Hour
Second WashNo consumption as such, water loss during recirculation shall be compensated-
Third Wash200 Liters/Hour230 Liters/Hour
Fourth WashNo consumption as such, water loss during re-circulation shall be compensated OR Air Wash-
Outside Wash200 Liters/Hour230 Liters/Hour
