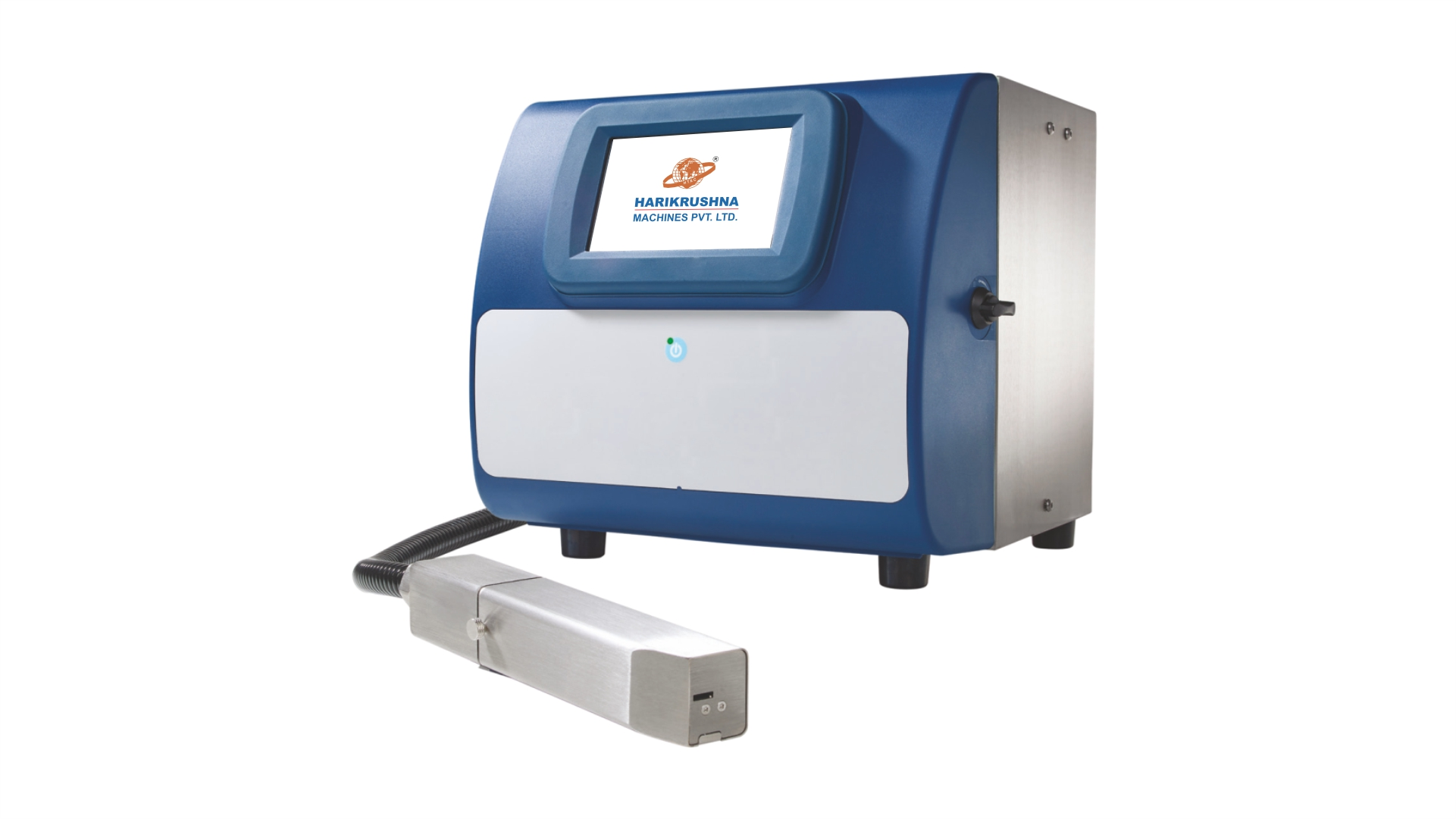

Automatic Batch Coding Machine
Reliable Coding, Marking and Labelling solutions from Automatic Batch Coding Machine systems crisp codes for almost any application.



# | Model | Output Speed |
1 | HMPL-DIGI-BTC | 100 Pieces/ Minute |
Supply Voltage | 110 or 220 V AC 10%, 50 / 60 Hz, 50 VA |
Operating Range | 0 to 45 Deg. C., 10 – 90 % RH non-condensing |
Printing Area | 4 Lines of 120 meters / min. for 1 to 4 line printing |
Prints Using | XAAR (UK) Piezo-electric print head for spraying ink |
Print Distance | Max. 6-mm Down or in Front or at any angle |
Inking Medium | Disposable pre-mix ink cartridge |
Printing Medium | Solvent based inks (Black, Blue, Red, etc.) |
Ink Drying Time | Min. 5 to 10 seconds on plastic, metal & laminates |
Dimensions | 20 X 30 X 36 cm & 31 X 38 X 100 cm with stand |
Weight | 15 Kg. for machine & 20 Kg. with stand |
